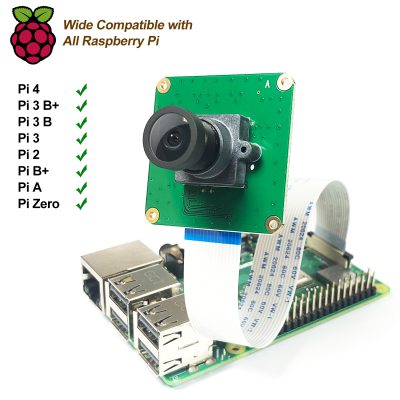

RPI Wide Angle Camera OV5647 5 MPixel Fished-Eye for Raspberry Pi3 B+/PI3/PI2/PI B+/PI A/PI ZERO

[Software Download:]

  • http://www.inno-maker.com/wiki

  • support@inno-maker.com

[Description:]

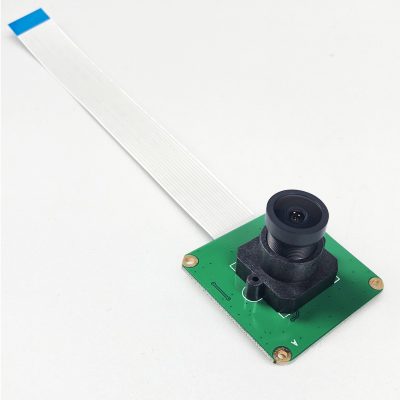

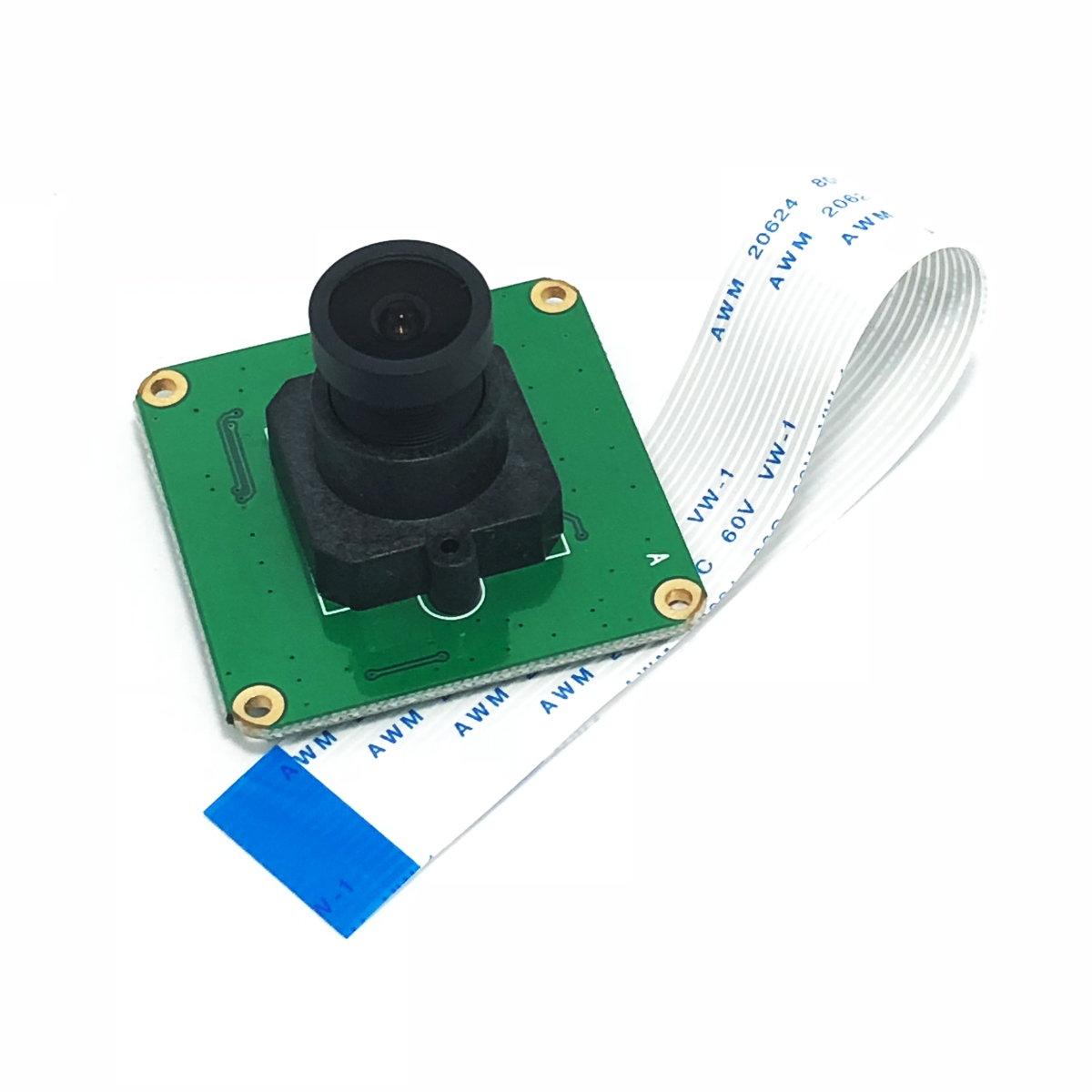

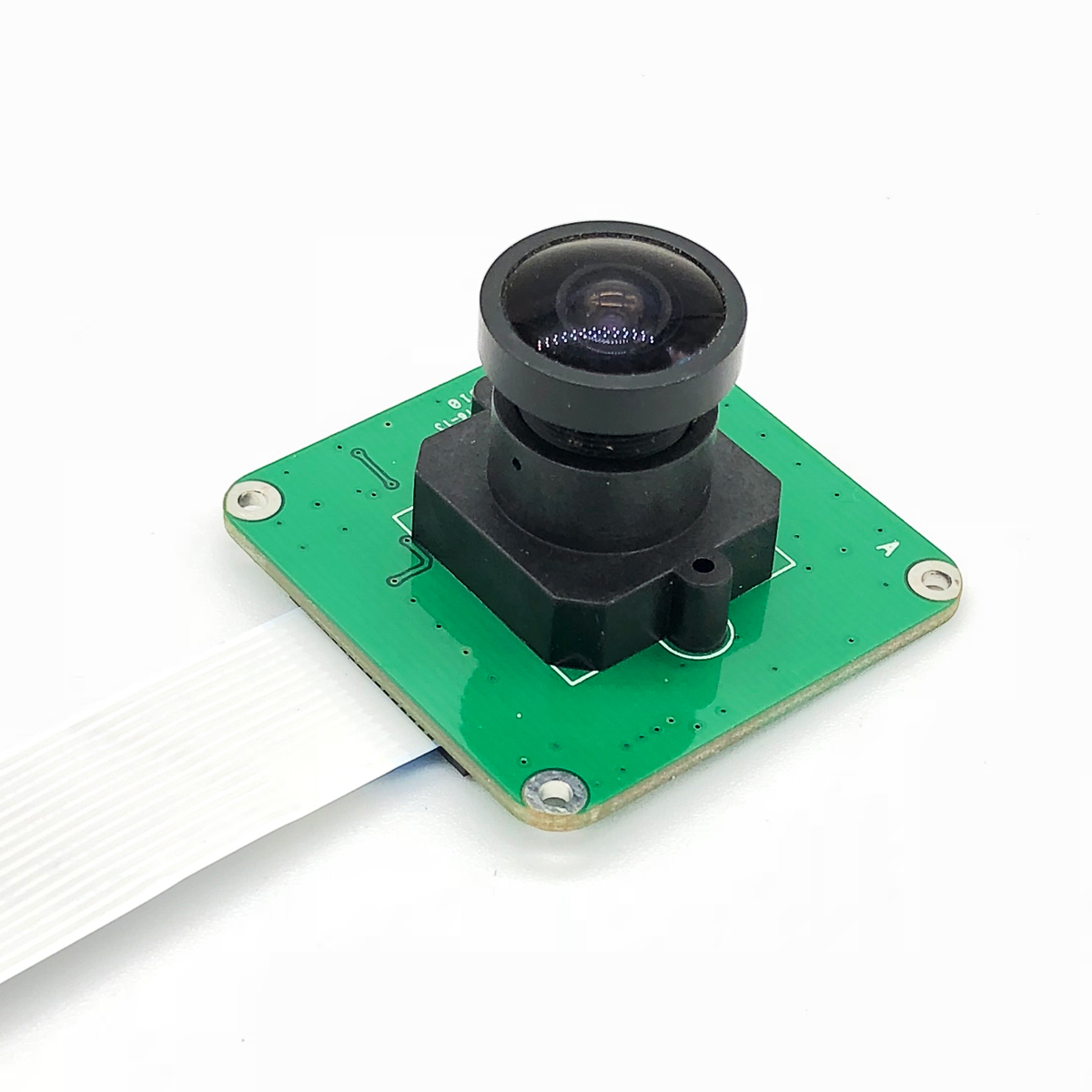

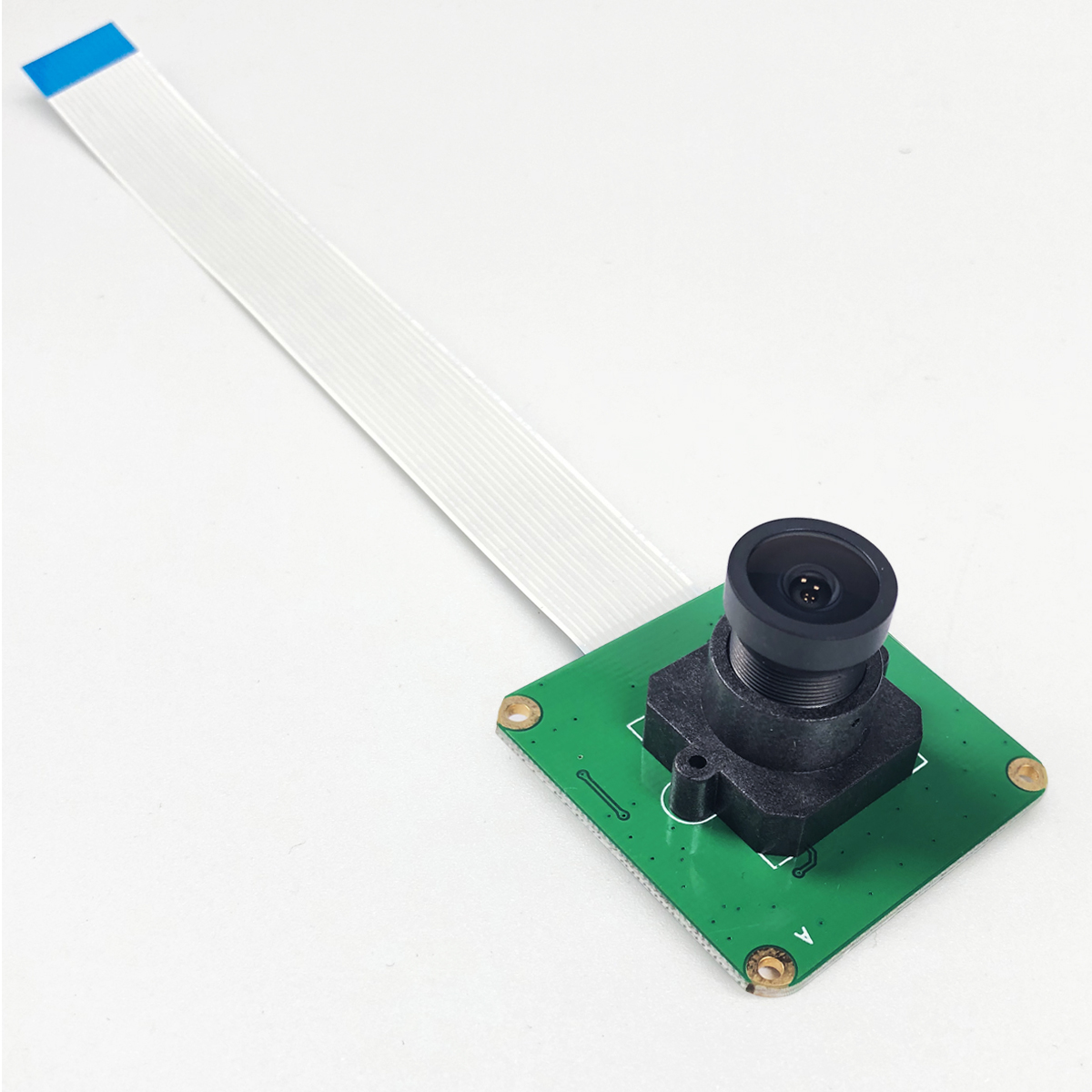

  • CAM OV5647 is a low-cost Fished-eye Lens, wider Field View Camera module, designed for Raspberry Pi3 B+/PI3/PI2/PI B+/PI A/PI ZERO.

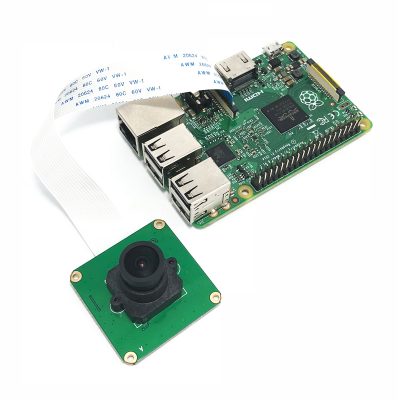

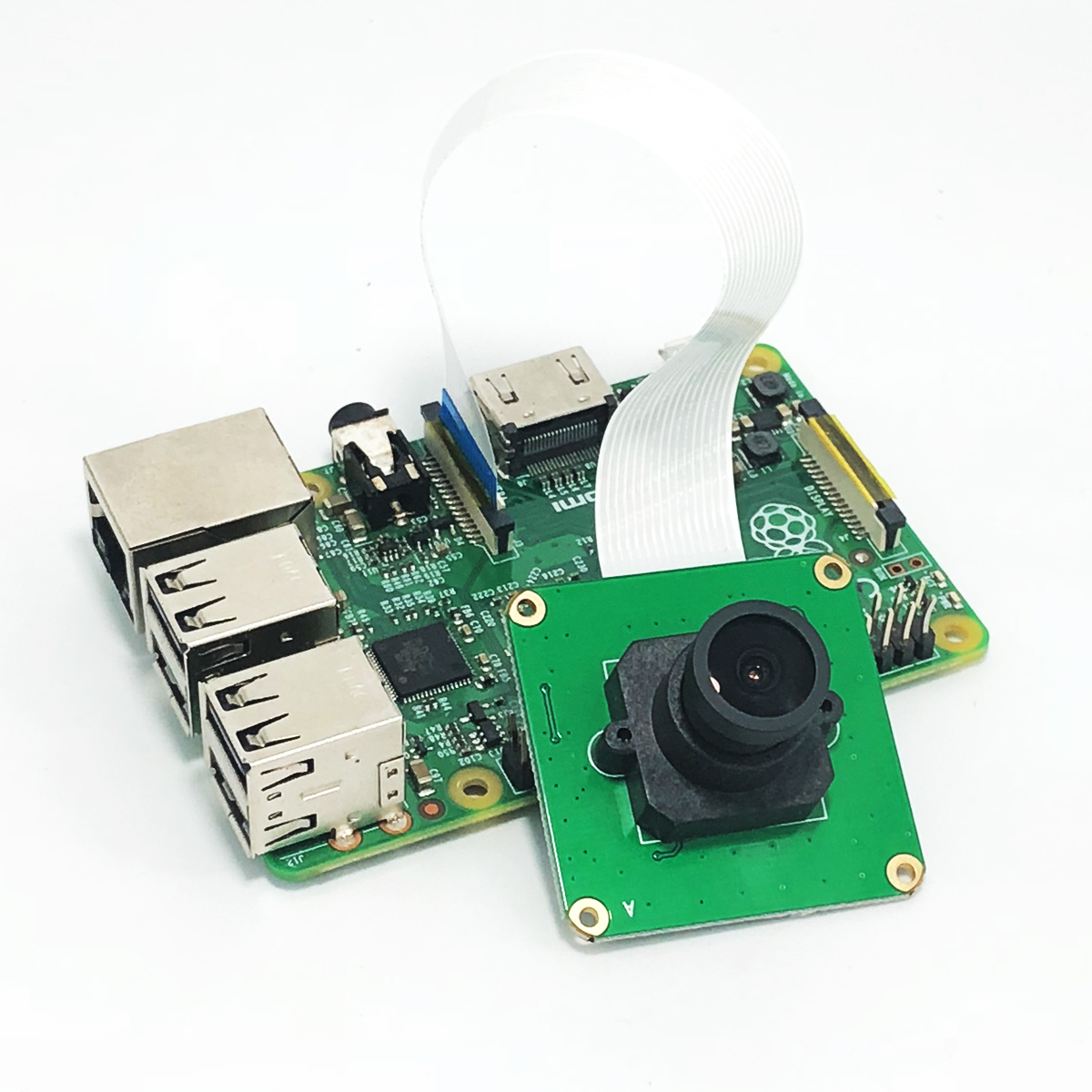

  • CAM OV5647 has a 5 MPixel sensor, and connects via a ribbon cable to the CSI connector on the Raspberry Pi. The video and still image quality is better than a USB webcam of similar price.The board is the same 39 x 39 mm size.

  • Provides preset image for the camera which you can connect it with a display.

[Features:]

   LENS Features:
  • FOCAL LENGTH: 2.8

  • LENS DIAMETER:12mm

  • Lens Seat Spacing:22mm

  • F/NO :2.2

  • FIELD OFVIEW: D=148° H=118°

  • TV DISTORTION: <-17%

  • Element:4G+IR

  • CRA:10&deg;

  • Relative Illumination: 52%

   Sensor type:
  • OmniVision OV5647 Color CMOS QSXGA (5-megapixel)

   Sensor size:
  • 3.67 x 2.74 mm (1/4" format)

   Pixel Count:
  • 2592 x 1944

   Pixel Size:
  • 1.4 x 1.4 um

   Video:
  • 1080p at 30 fps with codec H.264 (AVC)

  • Up to 90 fps Video at VGA

   Board size:
  • 39 x 39 mm (not including flex cable)

   Mounting Holes:
  • 4x D=2.20 mm
