Description

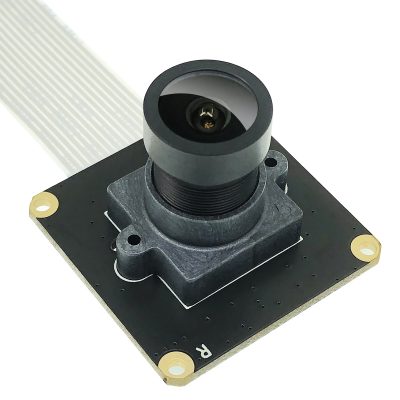

Jetson Nano 8mp camera

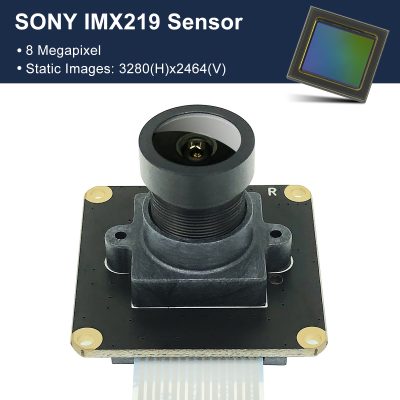

raspberry pi camera v2 Sensor Type: Low-cost 8 Megapixel IMX219 Sensor, Static Images: 3280(H)x2464(V) pixel, Support 1080p@30fps, 720p@60fps and 640x480p@90fps video record.

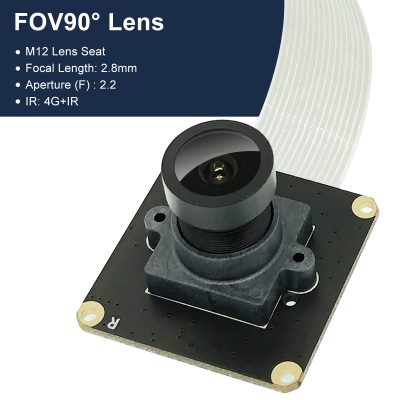

Lens: M12 Lens Seat, FOV90 Degree Lens, Focal Length: 2.8mm, Aperture (F) : 2.2, IR: 4G+IR.
Support raspistill, raspivid and raspiyuv command line, Board Size: 32mm x 32mm.
Packing List: PICAM-IMX219-FOV90 Module x1, FPC Cable x1, FOV90 Degree Camera Lens x1.
Quick Start For Raspberry PI Legacy Os(Buster)
|
|
|
|
|---|---|---|
Step1, Download SystemStep1, Download the raspberry pi legacy os, please do not use the bullseye system if you wish to use raspistill, raspivid , raspiyuv commands. The latest raspberry pi bulleys do not support the old command |
Step2,Enable CameraStep2, Enable Camera use command sudo raspi-config and select Enable Camera |
Step3, Test resultStep3, Test Example
More information please check raspistill,raspivid,raspiyuv |
Quick Start For Raspberry PI 32/64 bit Os(Bullseye)
|
|
|
|
|---|---|---|
Step1, Download SystemStep1, Download the raspberry pi bullseye os |
Step2,Enable Camera Legacy ModeStep2, Enable Legacy Camera Mode. Use command sudo raspi-config and select Legacy Camera Enable and then reboot |
Step3, Test resultStep3, Test Example
More information please check raspistill,raspivid,raspiyuv |
