Description

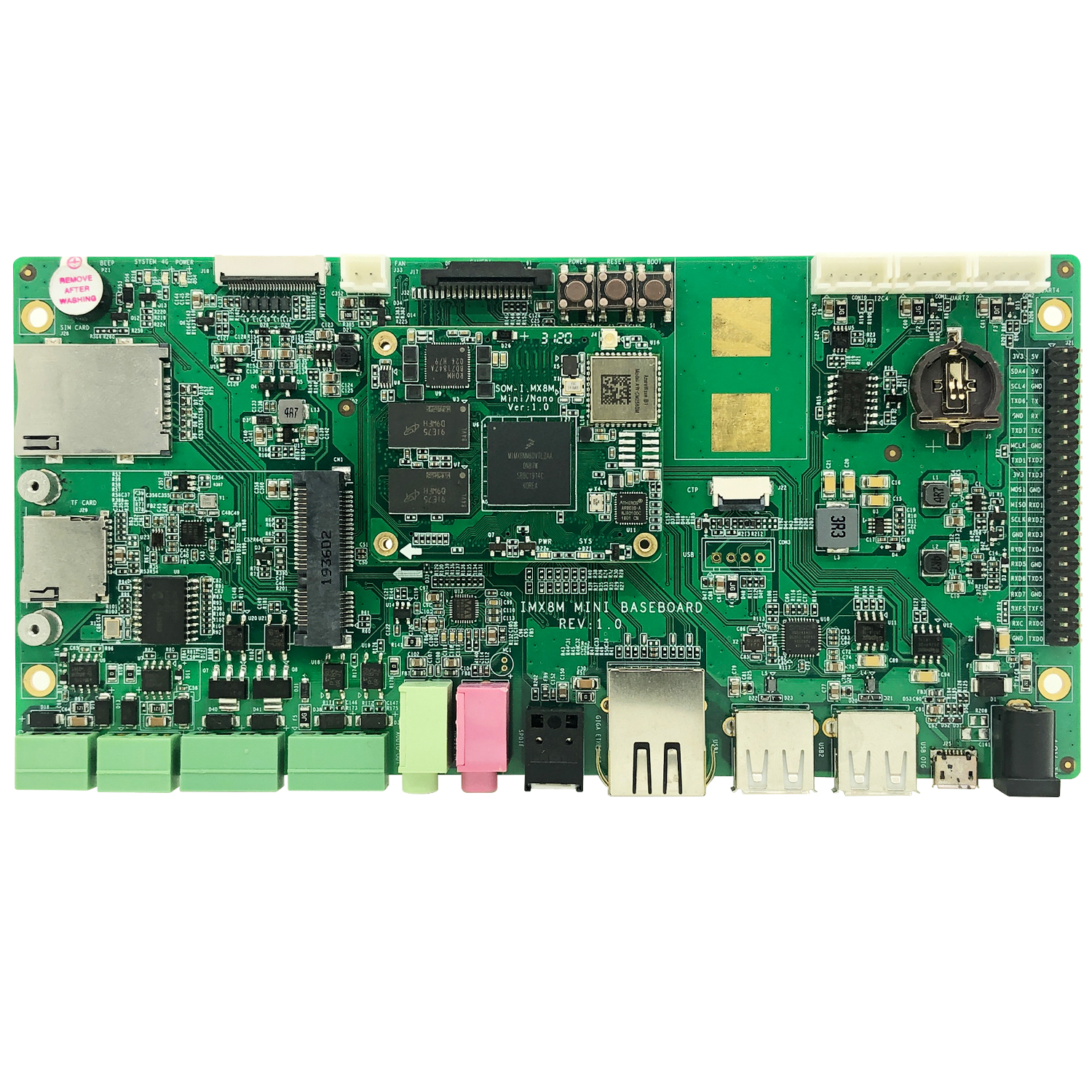

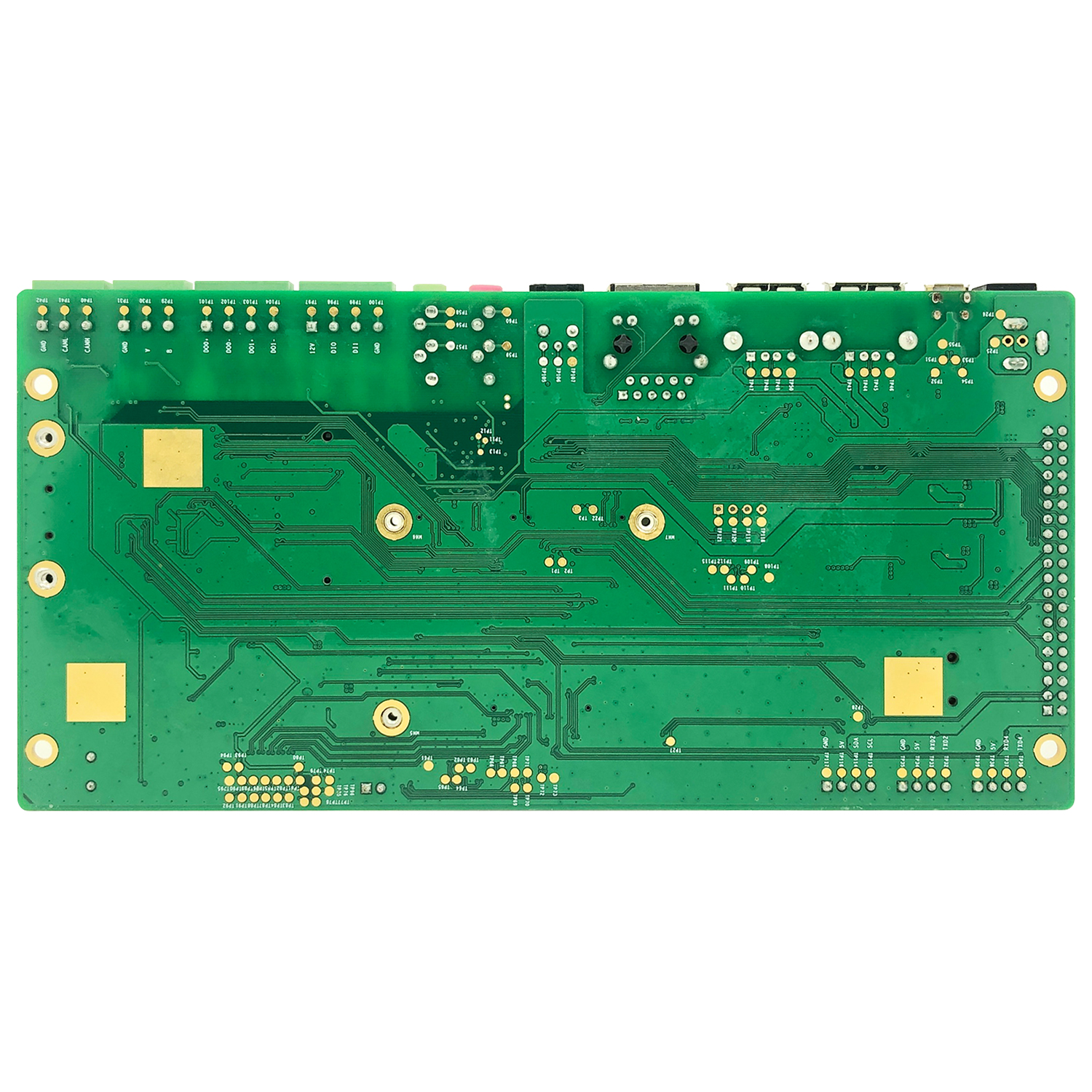

1 Product Description
- The board is based on NXP’s energy efficient i.MX 8M Mini series processor. For i.MX 8M Mini series processors which has up to 4 x Cortex-A53 cores capable at running up to 1.8 GHz and one Cortex-M4 core capable at running up to 400 MHz core for low-power and real-time operation.
- On-board up to 2GB DDR4, up to 64GB eMMC and a WiFi / Bluetooth module, and with MIPI DSI display driver, MIPI CSI camera receiver, flexible audio interfaces and comprehensive communication features. The SOM-IMX8M-MINI Module is a fully-integrated system that helps you build your professional embedded systems rapidly.
- Support Linux kernel, Yocto Project file-system,
2 Specification
2.2 Carrier Board Interface
- 12V Power IN x 1
- USB 2.0 Host x 2,
- USB OTG x 1,
- USB 2.0 Host (4 Pin Connector) x 1
- UART:
- UART2 (TTL, For Debug),
- UART3 (TTL, For User),
- UART4 (TTL, For User)
- I2C x 3
- USB Touch x 1
- MIPI-CSI x 1
- Fan 5V port x 1
- MIPI-DSI x 1
- Buzzer x 1
- SIM Card x 1
- TF Card x 1
- Mini PCIE Interface x 1, For 4G module and PCIE module
- CAN Bus x 1, RS485 Bus x 1
- Input Terminal x 2 PIN (With Isolation)
- Output Terminal x 2 PIN (With Isolation)
- Headphone Output/MIC In x 1
- SPDIF Out x 1
- 1x Gigabit Ethernet on-board

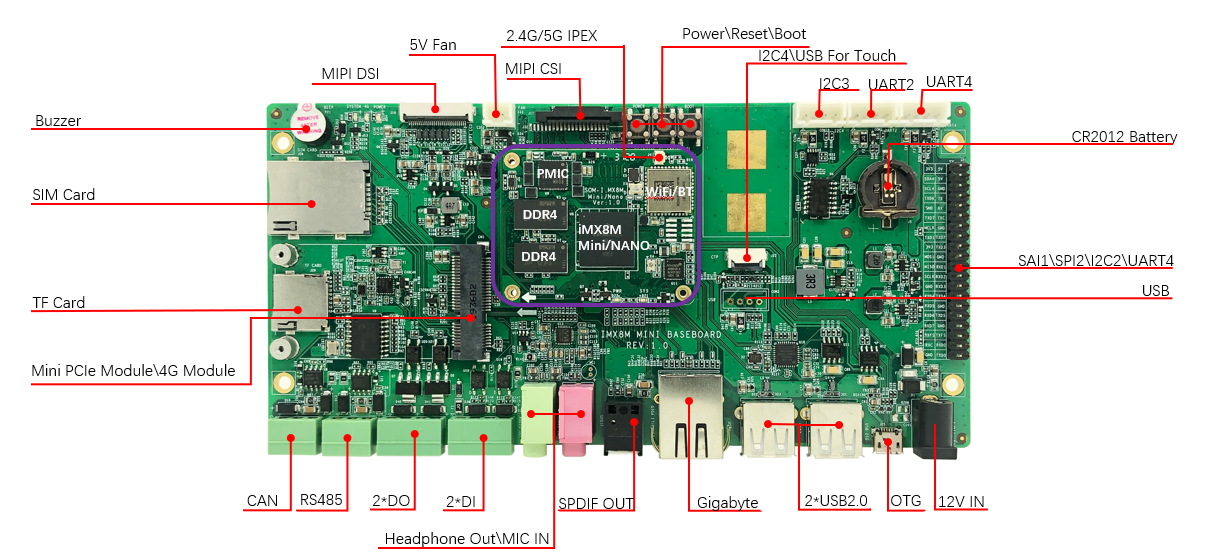

3 Hardware Connection
| LCD-MIPI7C

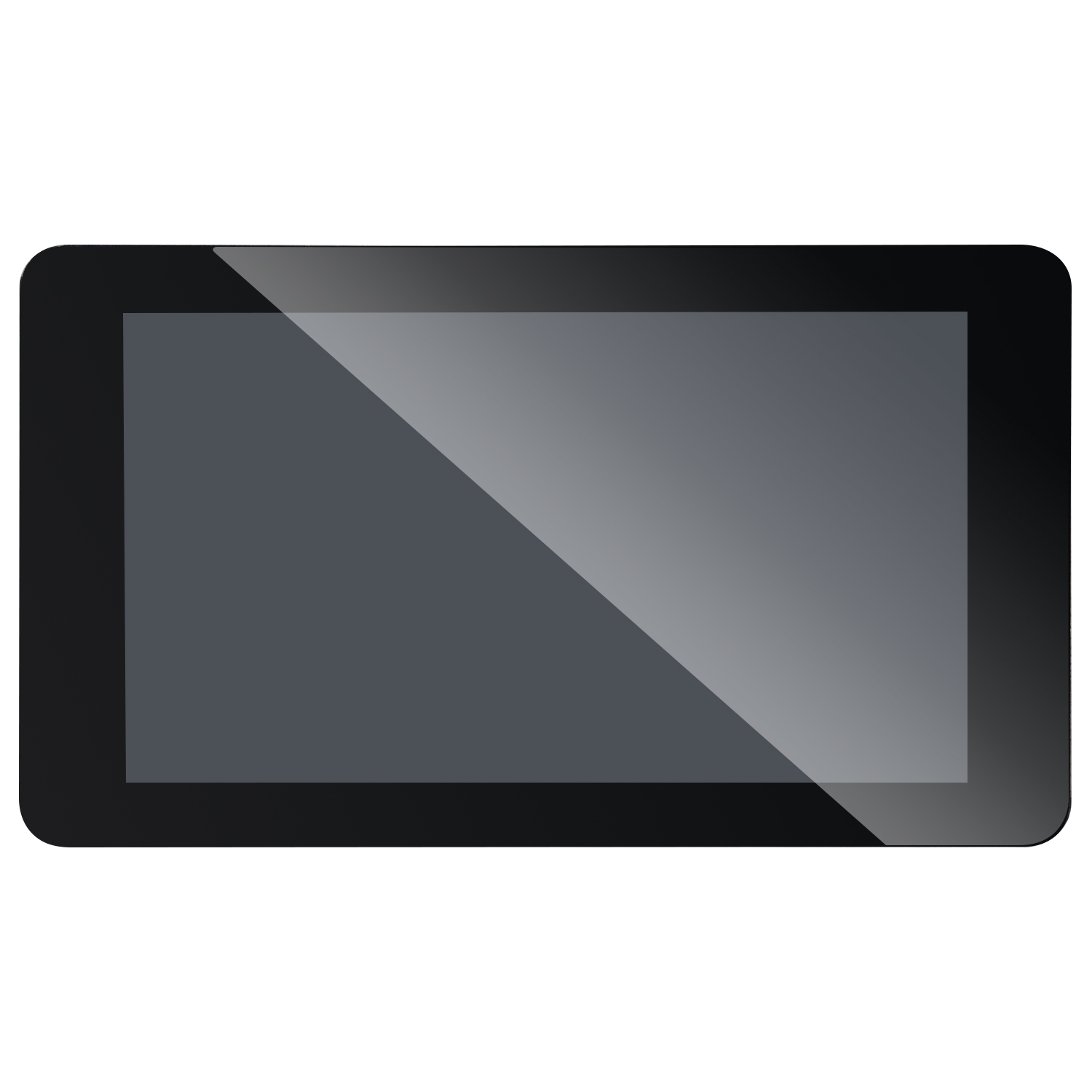

7 Inch MIPI Display with resolution 1024*600, Start Kit Including This Unit
|
