Packing List

• Serial Cable(USB To TTL)
• 12V Power Adapter
• HDMI Adapter Board
• Ethernet Cable
• English UserManual
• System Image(Download)
• Source Code(Download)
• Ready Made Yocto Compiler Enviroment (Download)

· System On Module Interface

· System On Module Interface

• o Up to Quad-core ARM Cortex-A53
• o 64-bit Armv8-A architecture
• o Target frequency up to 1.8GHz
• o 2D/3D GC520L
• o Media Processing Engine (MPE) with NEON technology
• o Floating Point Unit (FPU) with support of the VFPv4-D16 architecture
• o One Cortex-M4 up to 400MHz

· Wi-Fi 1×1 (802.11b/g/n/ac 2.4/5GHz) (Option, Only for SBC-IMX8MM-216C-W)

· Bluetooth 5.0(Option, Only for SBC-IMX8MM-216C-W)

· From 8 to 64GB eMMC

· Up to 2GB DDR4

· 64M bit Quad SPI Flash on-board

· 3*60Pin 0.5mm pitch BTB connectors

· Up to 75xGPIO (including SPI,I2C,PWM,UART,SAI, and SDIO)

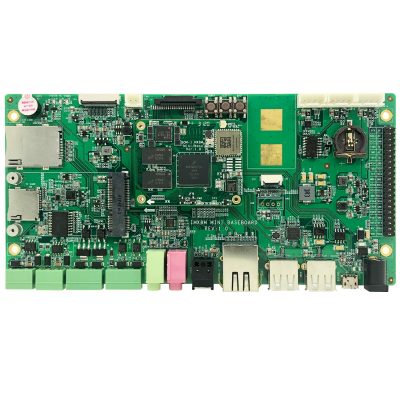

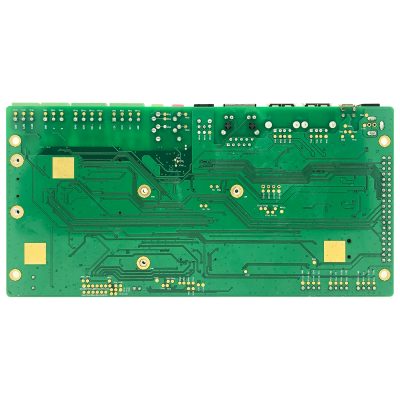

Carrier Board Interface

· 12V Power IN x 1

· USB 2.0 Host x 2,USB OTG x 1,USB 2.0 Host (4 Pin Connector) x 1

· UART:UART2 (TTL, For Debug),UART3 (TTL, For User),UART4 (TTL, For User)

· I2C x 3,USB Touch x 1,MIPI-CSI x 1,Fan 5V port x 1

· MIPI-DSI x 1

· Buzzer x 1

· SIM Card x 1

· TF Card x 1

· Mini PCIE Interface x 1, For 4G module and PCIE module

· CAN Bus x 1, RS485 Bus x 1

· Input Terminal x 2 PIN (With Isolation)

· Output Terminal x 2 PIN (With Isolation)

· Headphone Output/MIC In x 1

· SPDIF Out x 1

· 1x Gigabit Ethernet on-board

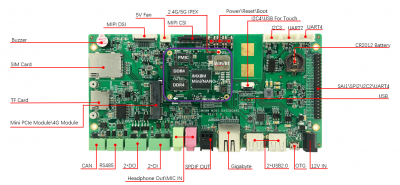

Hardware Connection

Software Linux5.4.47

• Uboot Source Code
• Kernel Source Code
• Yocto Weston with Qt & Opencv Image/Source Code/Build Enviroment
