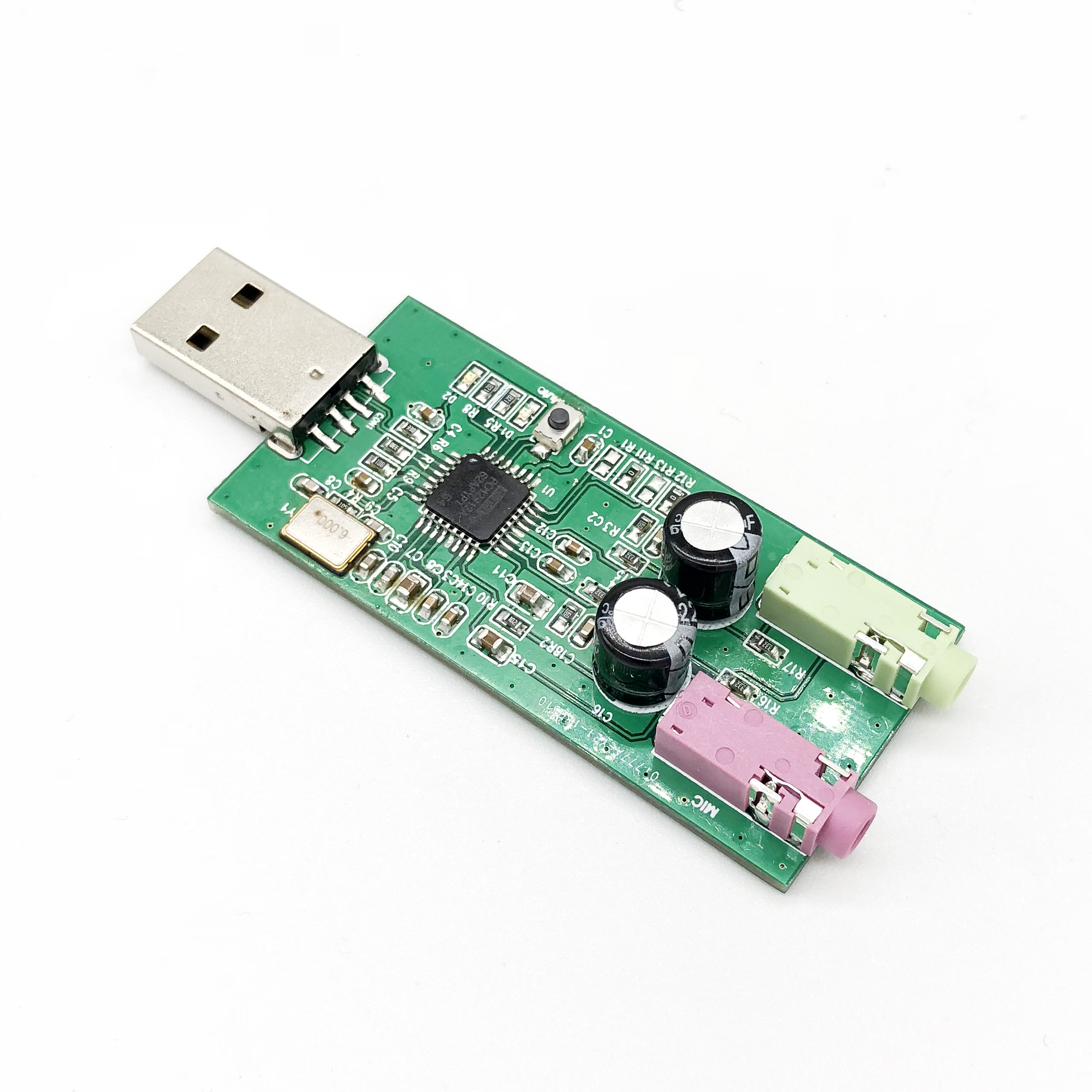

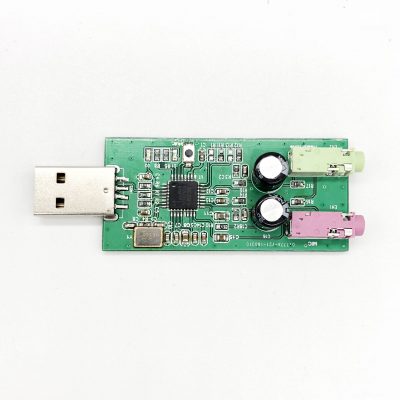

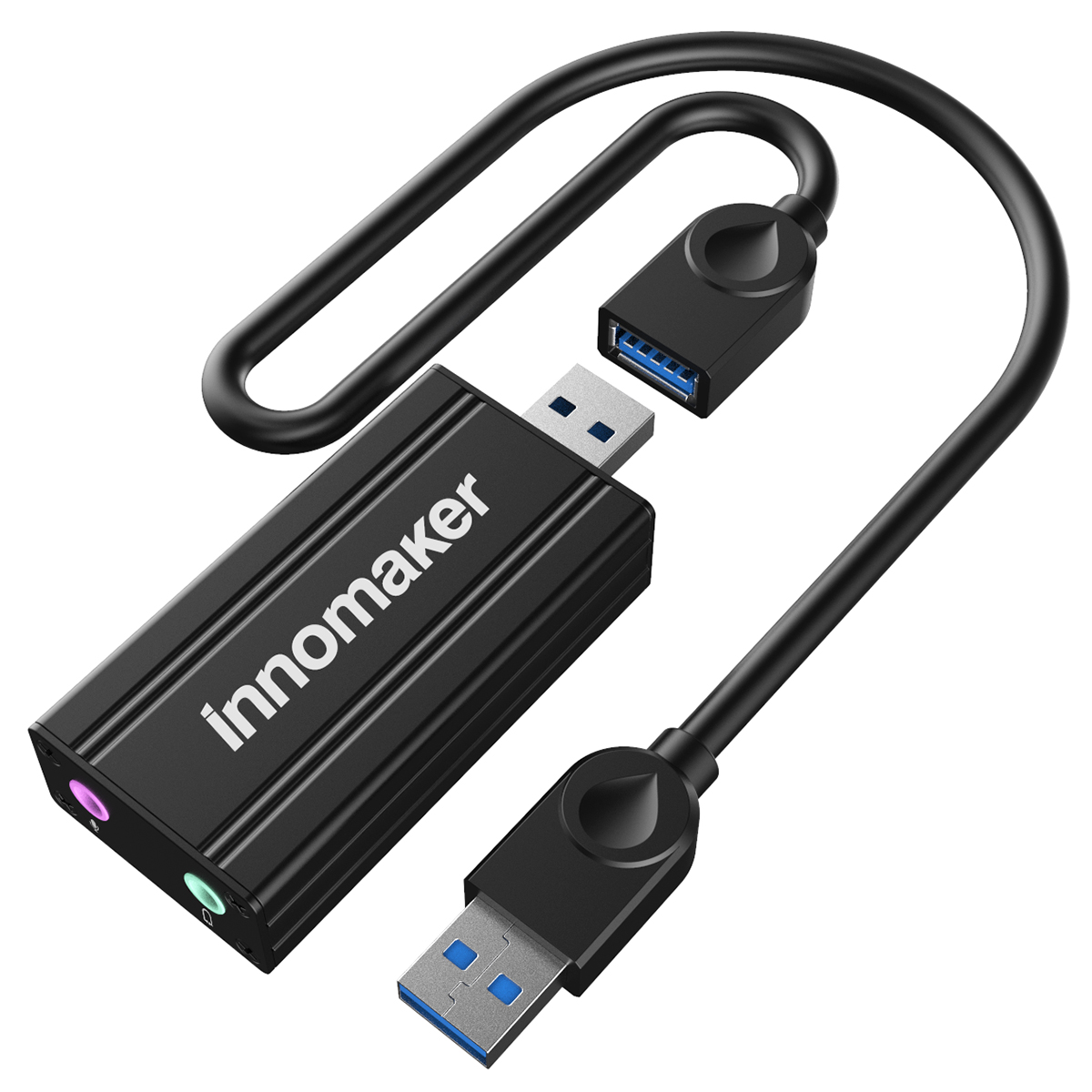

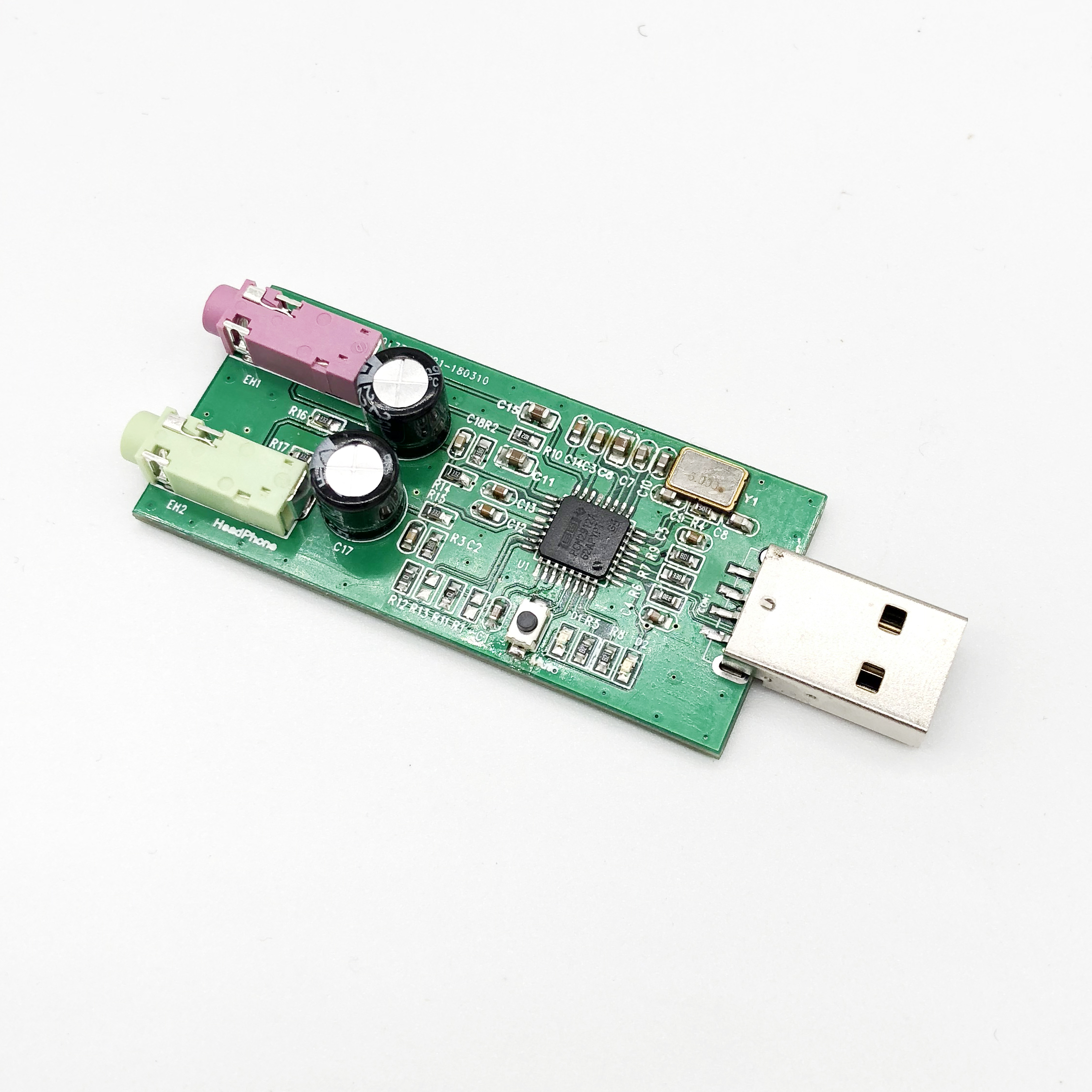

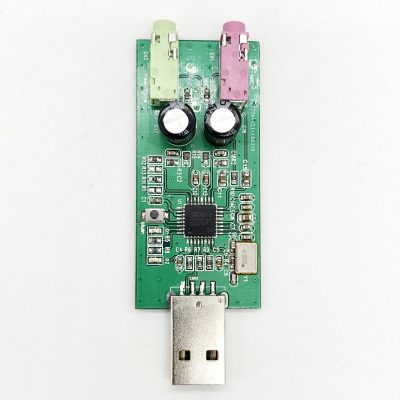

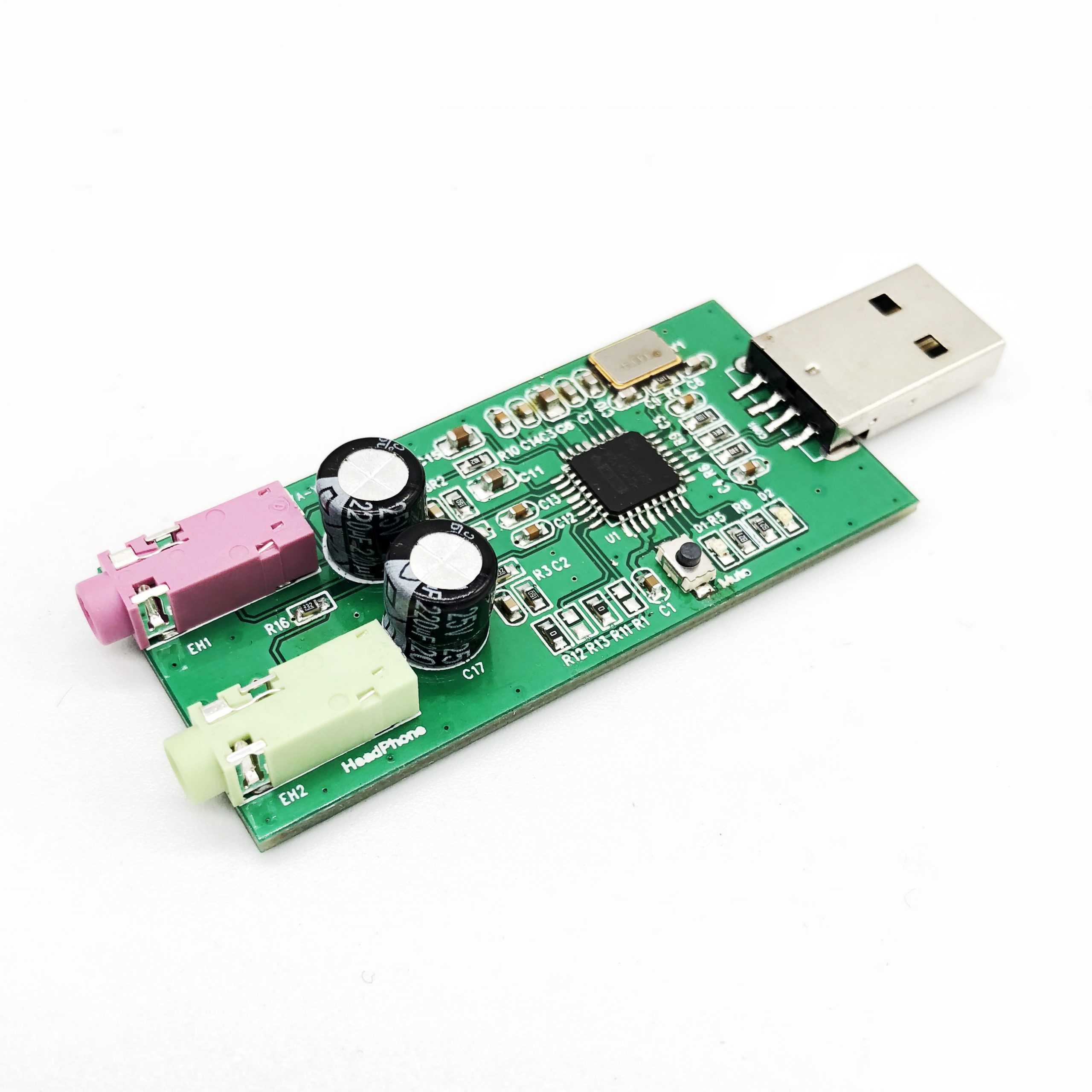

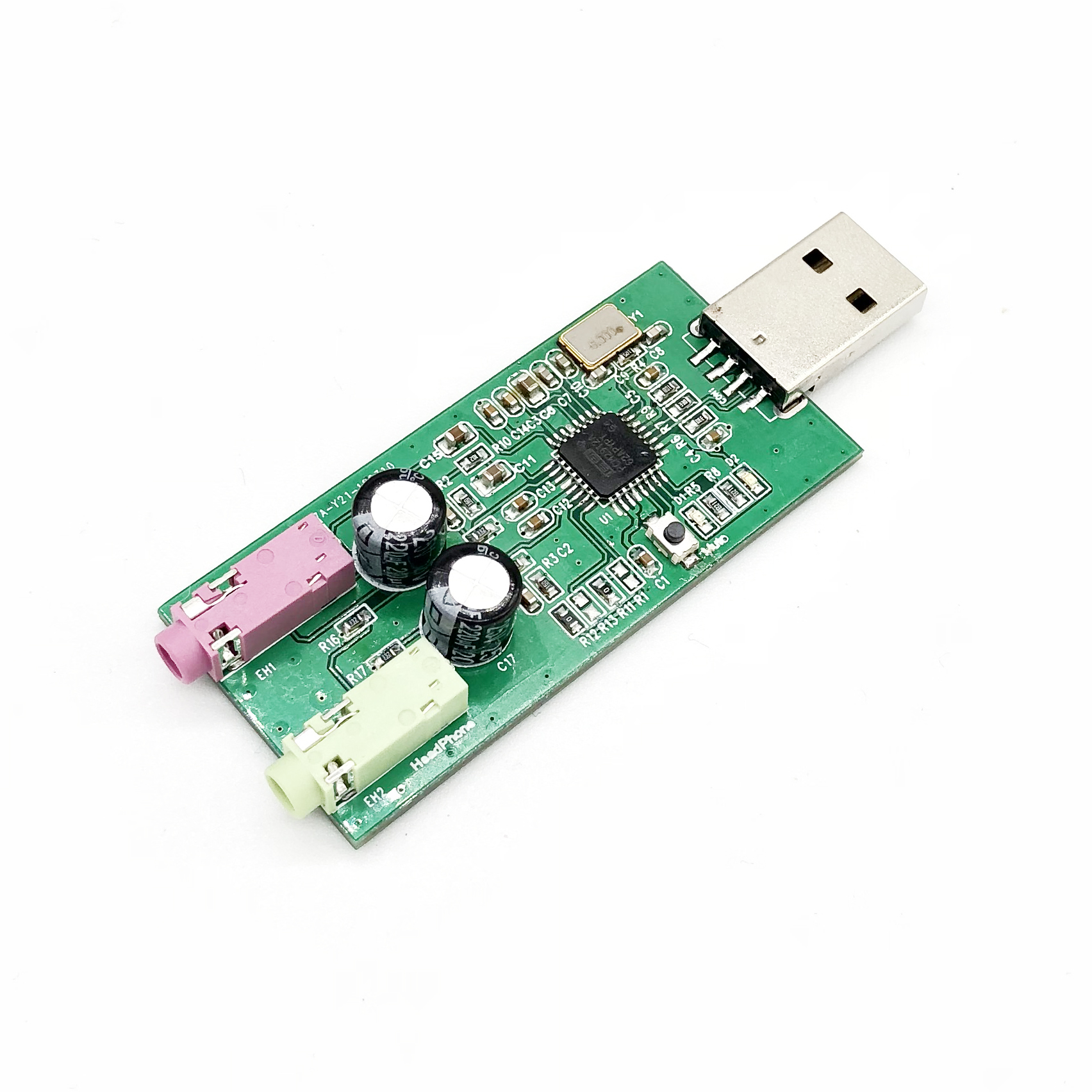

SKYLARK-I,UAC2912 Audio Card Module

$19.99 $12.99

Datasheet: wiki.inno-maker.com/display/SKYL

  • 1、High performance USB Audio Sound Card, support stereoscopic output and mono amplifier microphone input with 3.5mm jack, compatible with Linux , Windows Mac OS.
  • 2、Plug and play External Stereo DAC Audio Card, no software driver and external power supply required, flexible and easy to use, help you enjoy the premium sound free.
  • 3、Adopted the TI PCM2912 Single Chip, USB stereo audio codec with a USB 2.0, full-speed protocol controller and an analog front-end (AFE) function for headset applications.
  • 4、Compatible stability with mobile phones, desktops, laptops, portable digital music players, car audio systems, house stereo background system, Raspberry pi 3 modle B, pi 3 modle B+, Pi Zero, Pi Zero W.
  • 5、Supports sampling at 8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz. Lift your auditory experience.
Categories: , SKU: USB Sound Card

Description

[UserManual&Software Download:]

[Description:]

People usually use expensive headphones or music amplifier direct with their crappy built-in audio of computer and mobiles devices, Just like buying the most expensive sports car but using the cheapest automobile engine. This versatile and inexpensive usb sound card can make great improvement of your output/inpot quality, wide frequency support, higher sensitivity, higher sound pressure level, richer tenor strong, and more powerful deep bas. Immerse yourself in the fantastic audio world with this External Stereo DAC Audio Sound Card.

  • On-Chip USB Interface:
    – With Full-Speed Transceivers
    – Fully Compliant With USB 2.0 Specification
    – Certified By USB-IF
    – Partially Programmable Descriptors
    – Adaptive Isochronous Transfer for Playback
    – Asynchronous-Isochronous Transfer for Record
    – Bus Powered
    -16-Bit Delta-Sigma ADC and DAC
  • Sampling Frequency:
    8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz for ADC and DAC
  • Mono ADC with Microphone Input
    – Analog Performance at VBUS = 5 V:
    – THD+N: 0.01%
    – SNR: 92 dB
    – Dynamic Range: 90 dB
    – Microphone amplifier (+20 dB gain)
  • Stereo DAC With Headphone Output
    – Analog Performance at VBUS = 5.0 V
    – THD+N: 0.01% (RL > 10 )
    – THD+N: 0.02% (RL = 32 )
    – SNR: 92 dB
    – Dynamic Range: 90 dB
  • <b>Operating Temperature Range: –25°C to +85°C

[Hardware connection:]
The UAC-2919 used USB interface.

[Packing List:]
1 x UAC-2919 USB Audio Card
