Description
Introduction
U20CAM-IMX307-ISP is a cost-effective USB camera. This module use the SONY STARVIS CMOS image sensor IMX307LQD-C,built-in ISP processing.
Users can easily integrate into embedded systems or PC platforms via USB interface.
Features
- SONY IMX307 STARVIS Sensor, 1/2.8 inch 2 Mega
- Built-in ISP processing
- USB2.0 Interface,USB Video Class(UVC)
- Data fromat : YUY2 / MJPG / H.264
- Standard lens mount
- IR-CUT circuit
- BLC, Digtal WDR, 2D/3D noise reduction, Anti-fog
- Brightness, Contrast, Sharpness, Saturation adjustable
Thechnical Detail
Technical Details |
SENSOR |
Sensor |
SONY IMX307LQD-C STARVIS |
Pixels |
2.07M pixels |
Resolution |
1920*1080 MAX |
Image Size |
Diagonal 6.46 mm (Type 1/2.8) |
Unit Cell Size |
2.9um (H)*2.9um(V) |
SNR1s Value |
0.24lx |
ISP |
YUY2 Frame Rate |
640*360@25fps / 30fps |
MJPG Frame Rate |
1920*1080@25fps / 30fps, 1280*720@50fps / 60fps, 640*360@25fps / 30fps |
H.264 Frame Rate |
1920*1080@25fps / 30fps, 1280*720@50fps / 60fps, 640*360@25fps / 30fps |
Exposure |
Auto or Manual |
White Balance |
Auto or Manual |
Shutter |
1/25(1/30)s to 1/50,000s |
Slow Shutter |
Coming Soon |
Denoising |
2D/3D noise reduction |
Image Setting |
Brightness, Contrast, Sharpness, Saturation,Flip, Mirror |
Image Enhancement |
BLC, Digtal WDR, Defog |
Day/Night Switch |
Manual or IR-CUT filter with external trigger |
Lens & IR-CUT |
Lens |
Support M12*0.5 or M16*0.5 depend on lens mount |
Lens Mount with IR-CUT |
MTV12 or MTV16 |
Mounting Hole |
2 screw holes with diameter of 2.2mm,20mm Center-to-Center Spacing |
Interface |
Connector |
MX1.25*4,USB2.0 Interface |
Communication Interface |
USB2.0,UVC Protocol |
IR-CUT Control |
IR-CUT motor control, 3.3VDC |
Day/Night External Trigger |
3.3VDC to 5VDC compatibility |
General |
Operating Conditions |
-10℃~60℃, Humidity 95% or less, non-condensing |
Power Supply |
5VDC |
Power Consumption |
5VDC,1.5W MAX |
Dimension |
38mm*38mm*10mm(not include lens and lens mount) |

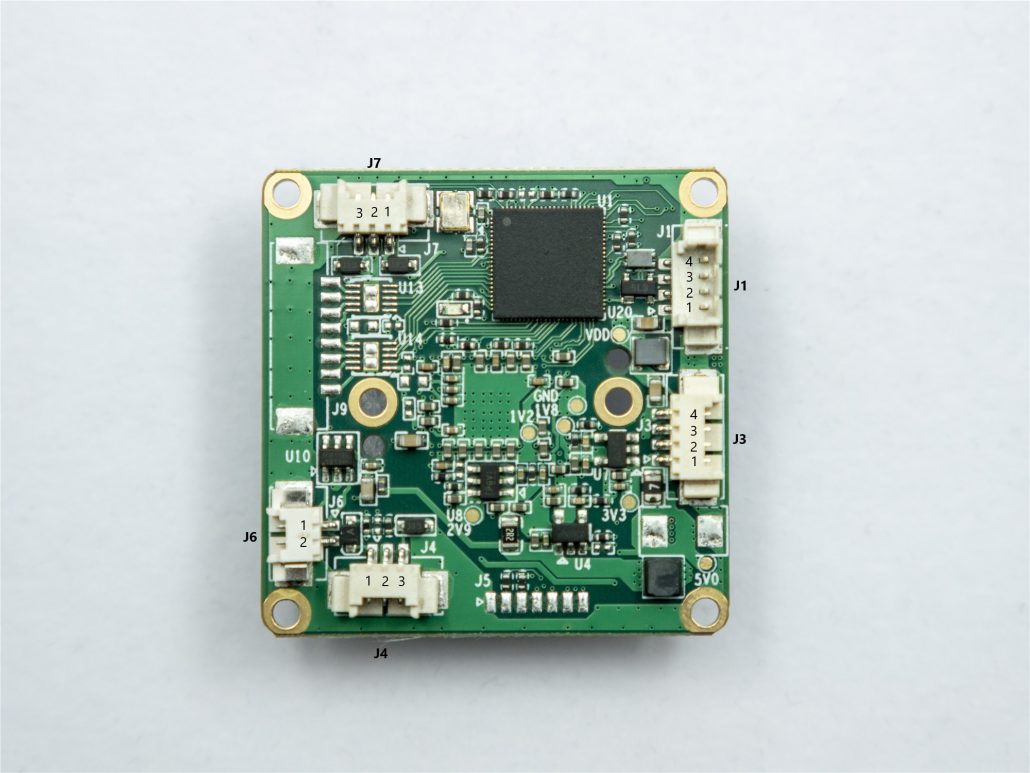

Interface & Pin list

J1:USB2.0 Interface |
Pin NO. |
NAME |
Remarks |
1 |
VBUS(5V) |
|
2 |
D- |
|
3 |
D+ |
|
4 |
GND |
J3:Power Input, Used during firmware upgrade |
Pin NO. |
NAME |
Remarks |
1 |
5VDC |
5V IN |
2 |
NC |
|
3 |
NC |
|
4 |
GND |
J4:Day/Night External Trigger |
Pin NO. |
NAME |
Remarks |
1 |
IR LED ON |
INPUT,ACTIVE LOW |
2 |
GND |
|
3 |
RESERVE |
J6:IRCUT Control |
Pin NO. |
NAME |
Remarks |
1 |
IRCUT1 |
|
2 |
IRCUT2 |
J6 IRCUT Control Functional specifications |
MODE |
pin |
Signal polarity |
Image type |
Filter position |
Mode 1 |
IRCUT1 |
+ |
color |
Infrared cutoff |
IRCUT2 |
– |
Mode 2 |
IRCUT1 |
– |
mono |
Full wavelength pass |
J7:Configurable GPIO ( RESERVE ) |
Pin NO. |
NAME |
Remarks |
1 |
GPIO0 |
Can Be Configured |
2 |
GND |
|
3 |
GPIO1 |
Can Be Configured |

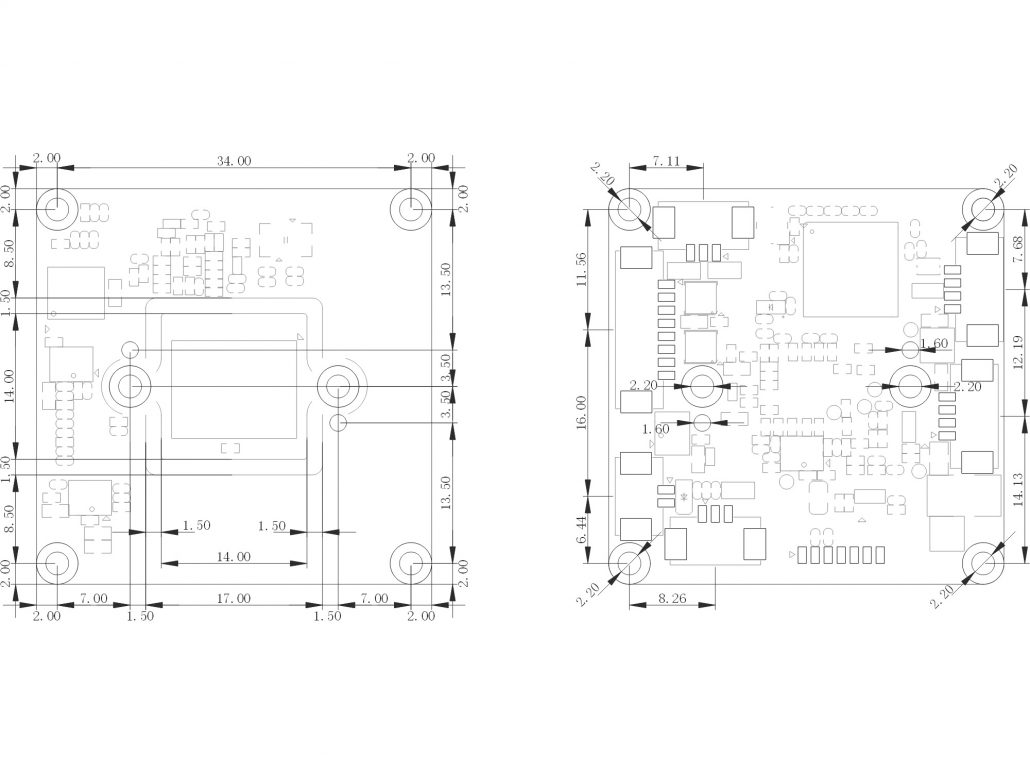

Board Dimension
