MIPI CAM 327,2M STARVIS Camera Module,Sony IMX290,IMX327 For Raspberry PI,RPI

[Software Download:]

  • www.inno-maker.com/wiki

  • support@inno-maker.com

[Bulk Price:]

  • sales@inno-maker.com

[Description:]

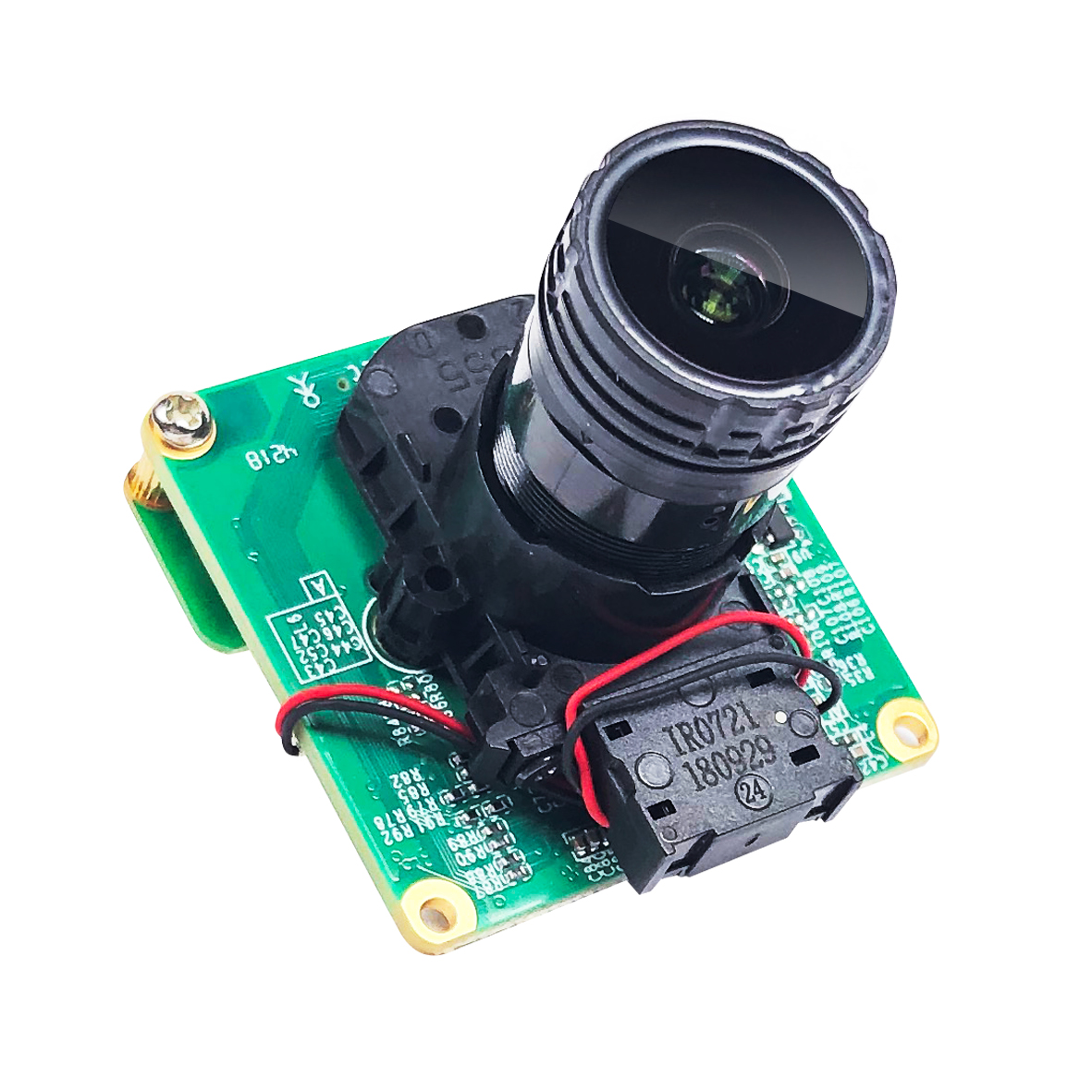

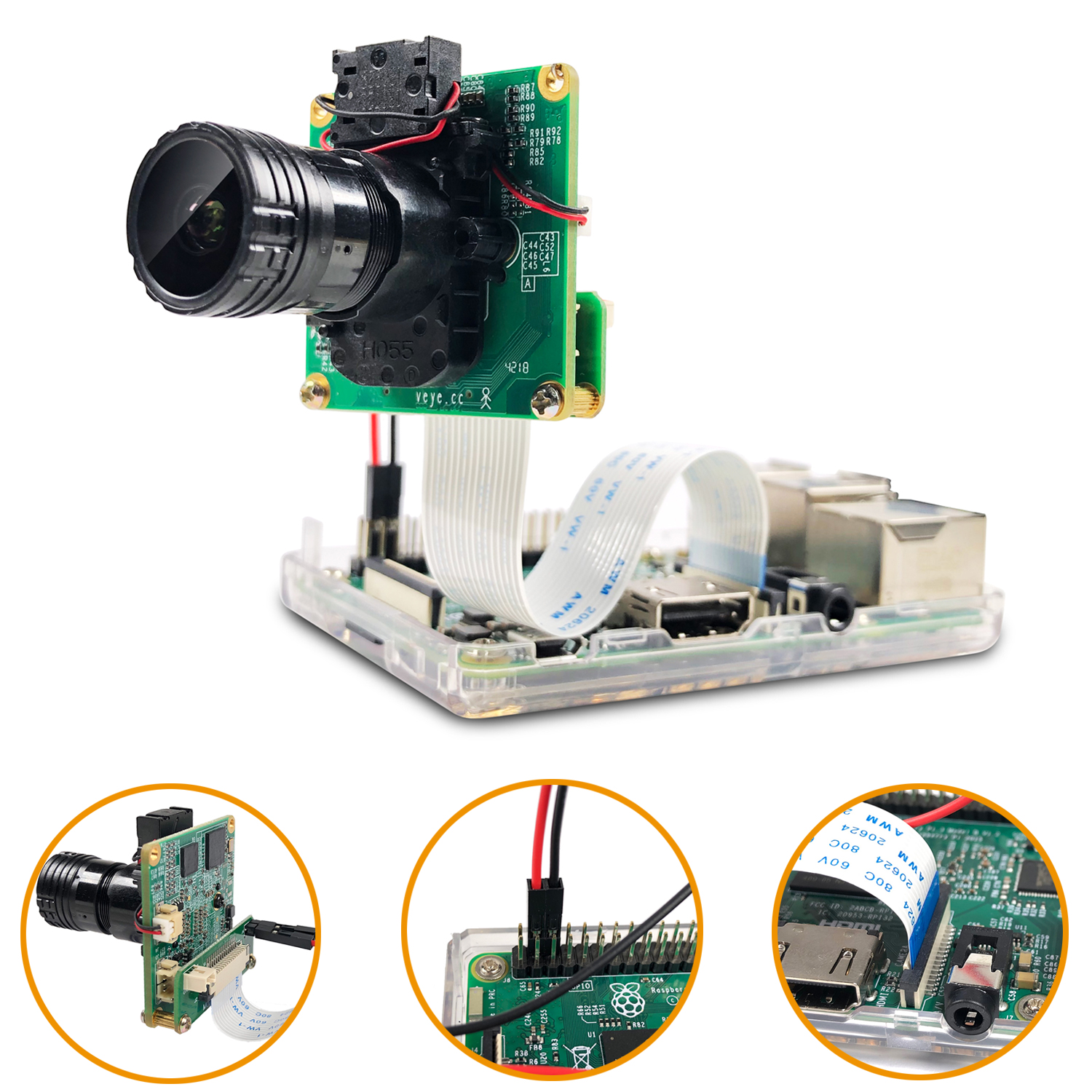

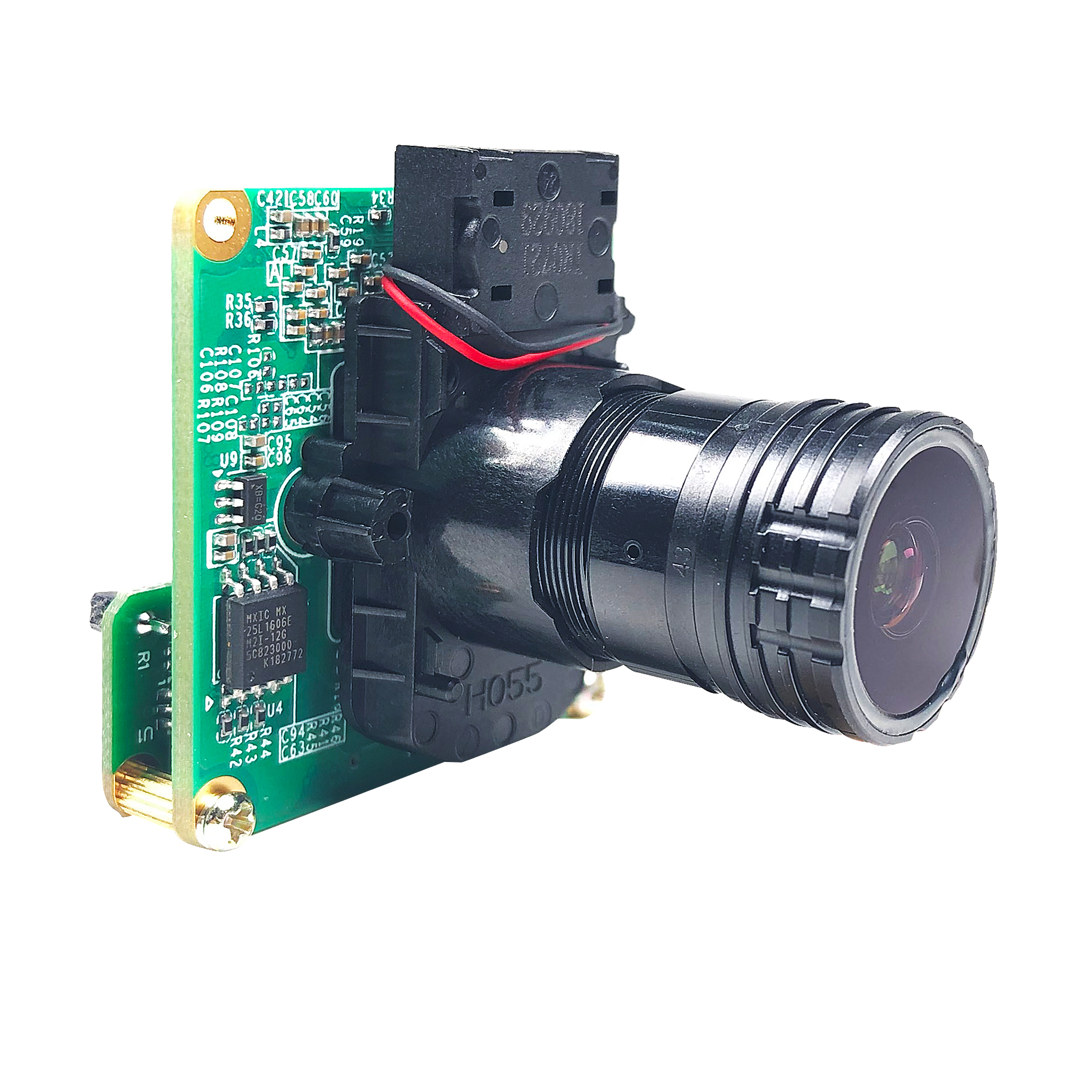

MIPI-CAM-327 is a high quality Sony STARVIS IMX327 image sensor custom designed add-on board for Raspberry PI. It attaches to Pi by way of one of the small sockets on the board upper surface and uses the dedicated CSI interface, designed especially for interfacing to cameras. The board itself is tiny and weighs just over 3g, making it perfect for mobile or other applications where size and weight are important.

  • 1. 1/2.8 inch 2 Mega STARVIS Mega STARVIS sensor IMX327 by SONY;

  • 2. MIPI output: CSI-2 2Lans;

  • 3. Uncompressed UYVY format, YUV422-8bit;

  • 4. Standard lens mount;

  • 5. IR-CUT circuit;

  • 6. BLC, DOL-WDR, 2D/3D noise reduction, Anti-fog;

  • 7. Brightness, Contrast, Sharpness, Saturation adjustable;

  • 8. Support Raspberry Pi 3B+,3A+,ZERA;Drivers for other ARM Solutions,please contact:support@inno-maker.com;

  • 9. All software is supported within the latest version of Raspberry Operating System

[Technical Details:]

SENSOR:
  • Sensor:SONY IMX290LQR-C STARVIS Or IMX327

  • Pixels:2.13M pixels

  • Image Size:Diagonal 6.46 mm (Type 1/2.8)

  • Unit Cell Size:2.9um (H)*2.9um(V)

ISP:
  • Frame Rate:1080p@25/1080p@30fps

  • Exposure:Auto or Manual

  • White Balance:Auto or Manual

  • Shutter:1/25(1/30)s to 1/50,000s

  • Denoising:2D/3D noise reduction

  • ImageSetting:Brightness,Contrast,Sharpness,Saturation,Flip, Mirror

  • Image Enhancement:BLC, DOL-WDR, Defog

  • Day/Night Switch:Manual or IR-CUT filter with external trigger

Lens & IR-CUT:
  • Lens:Support M12*0.5 or M16*0.5 depend on lens depend on lens mount

  • Lens Mount with IR-CUT:MTV12 or MTV16

  • Mounting Hole:2 screw holes with diameter of 2.1mm Centre distance of 20mm

Interface:
  • PCB Connector:BTB050040-F1D

  • Communication Interface:IIC

  • Video Data Interface:MIPI:2Lane/4Lane, CSI2 YUV422-8bit Data Type,Bandwidth 1.188Gbps

  • IR-CUT Control:IR-CUT motor control, 3.3VDC level

  • External Trigger:Ambient light synchronization, 3.3VDC level

General:
  • Operating Conditions:-10℃-50℃, Humidity 95% or less, non-condensing

  • Power Supply:3.3VDC

  • Power Consumption:3.3VDC, 1.2W

  • Dimension:38mm*38mm*8mm(not include lens and IR-CUT)

 [Quick Start:]

pi@raspberrypi:~ $ git clone https://github.com/veyeimaging/raspberrypi.git (Download codes)

pi@raspberrypi:~ $ cd /home/pi/raspberrypi/veye_raspcam/bin  (Enter the Patch)
pi@raspberrypi:~/raspberrypi/veye_raspcam/bin $ chmod a+x * (Get permission

pi@raspberrypi:~/raspberrypi/veye_raspcam/bin $ ./veye_raspipreview -t 20000
Privew
(20s video real-time display to HDMI output)

LENS Options

MIPI CAM 327(NO LEN), MIPI CAM 327(F/N0.95-4.0I), MIPI CAM 327(F/N1.0-4.0), MIPI CAM 327(F/N1.0-4.0I), MIPI CAM 327(F/N2.4-4.0I), LEN F/N0.95-4.0I, LEN F/N1.0-4.0, LEN F/N1.0-4.0I, LEN F/N2.4-4.0I
