RPI HIFI DAC PRO

$89.00

Github:

  • https://github.com/INNO-MAKER/DAC-PRO-HAT

Features:

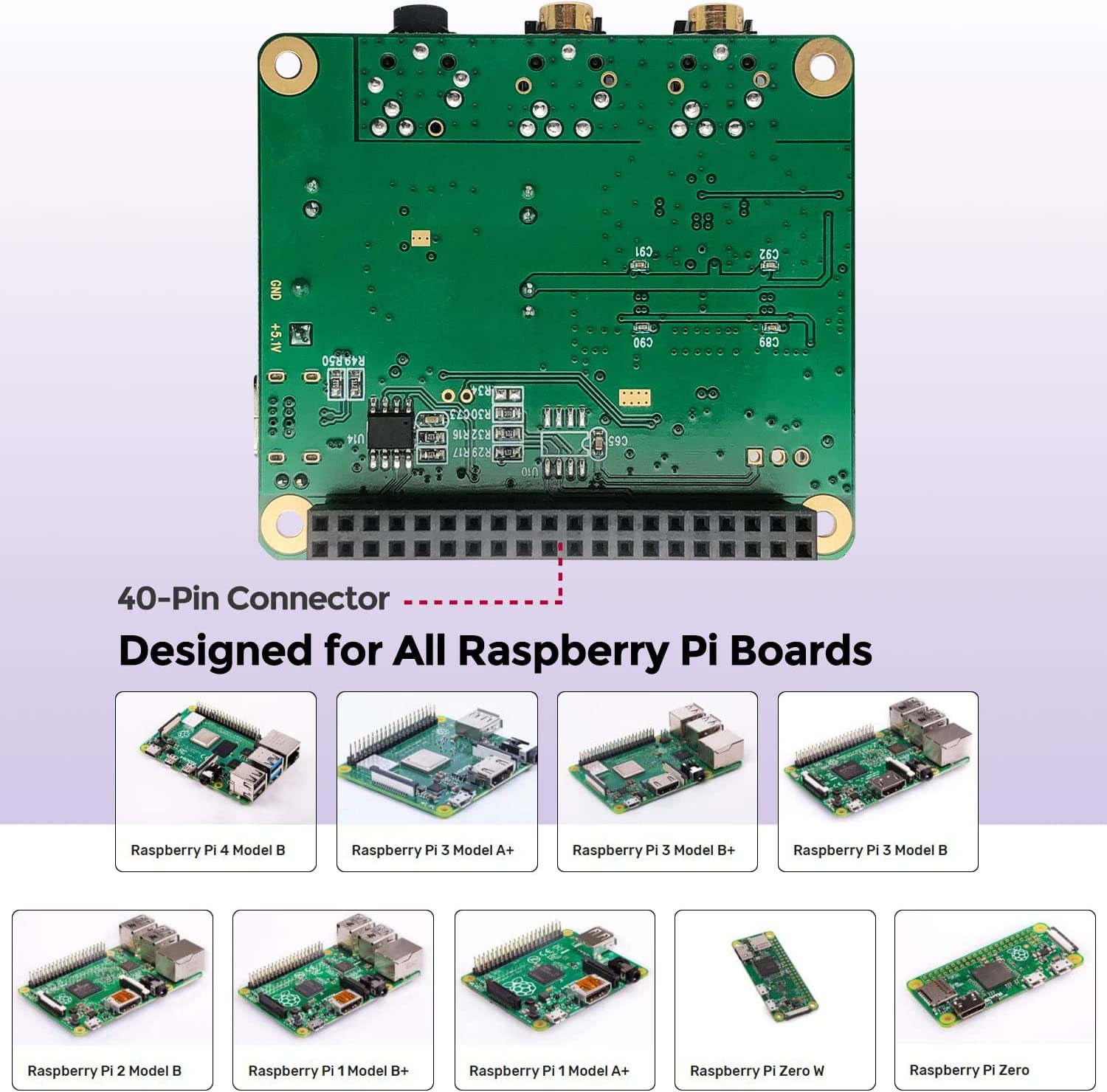

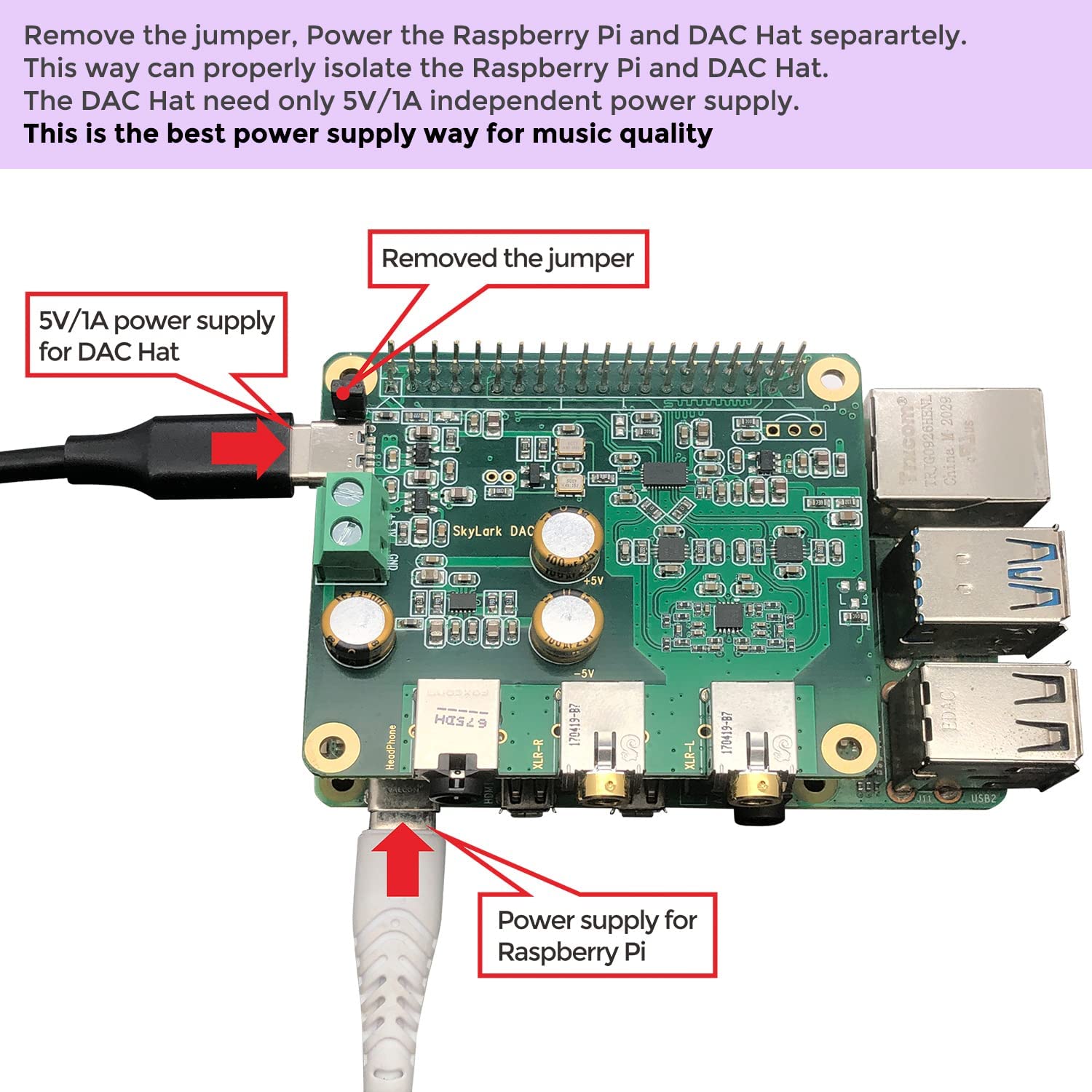

  • The HiFi DAC Pro Hat compatible with all Raspberry Pi Boards via the 40-pin connector, Connects directly to the Raspberry Pi board, no additional cables required, no soldering. Easy to get more beautiful and fantastic sound.

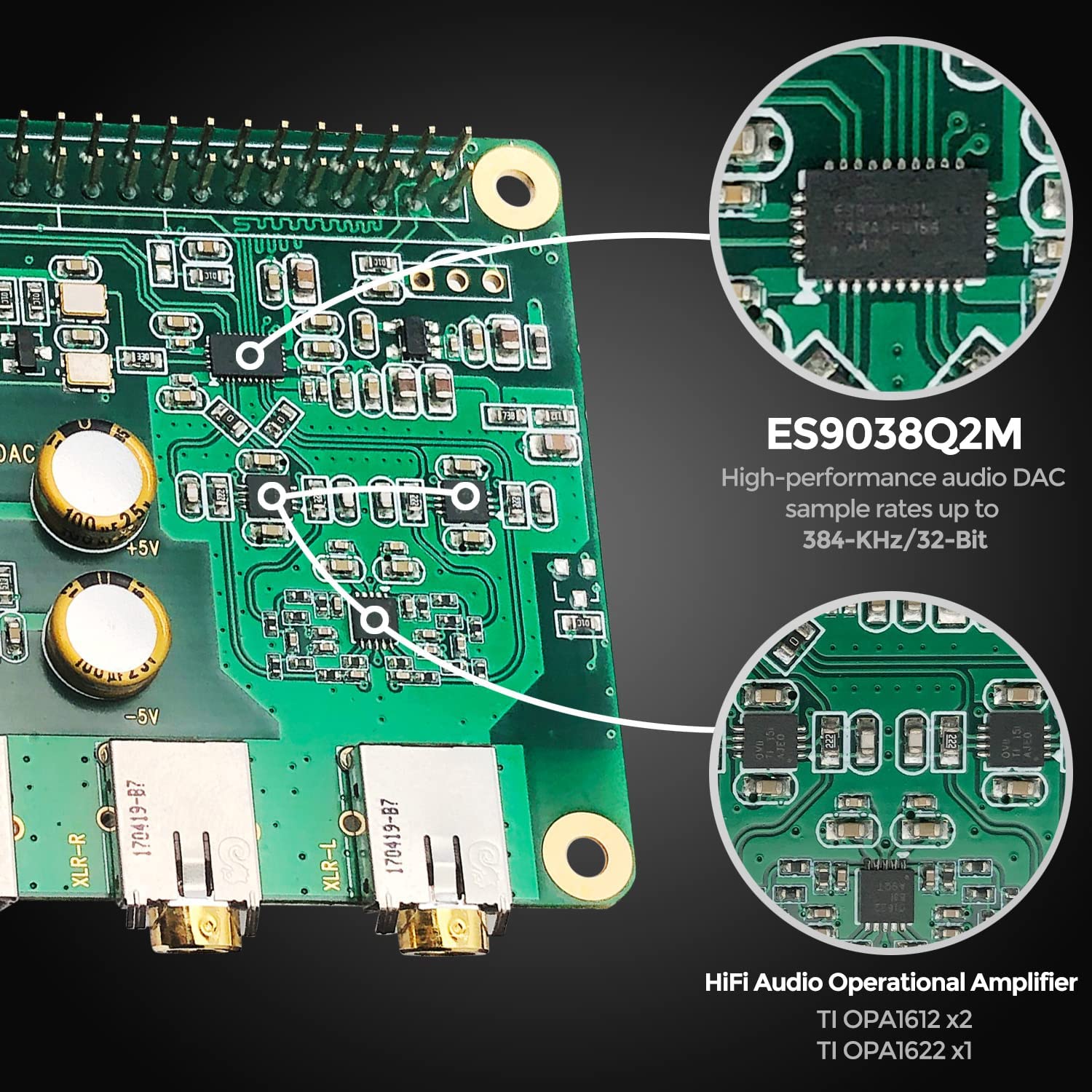

  • Build-in a high-performance audio DAC ES9038Q2M chip, sample rates up to 384-KHz/32-Bit(PCM), DSD Lossless High Resolution Digital-to-Analog Converter. Paired with 3 Texas Instruments SoundPlus HiFi audio operational amplifiers, afford 2.1vrms output.

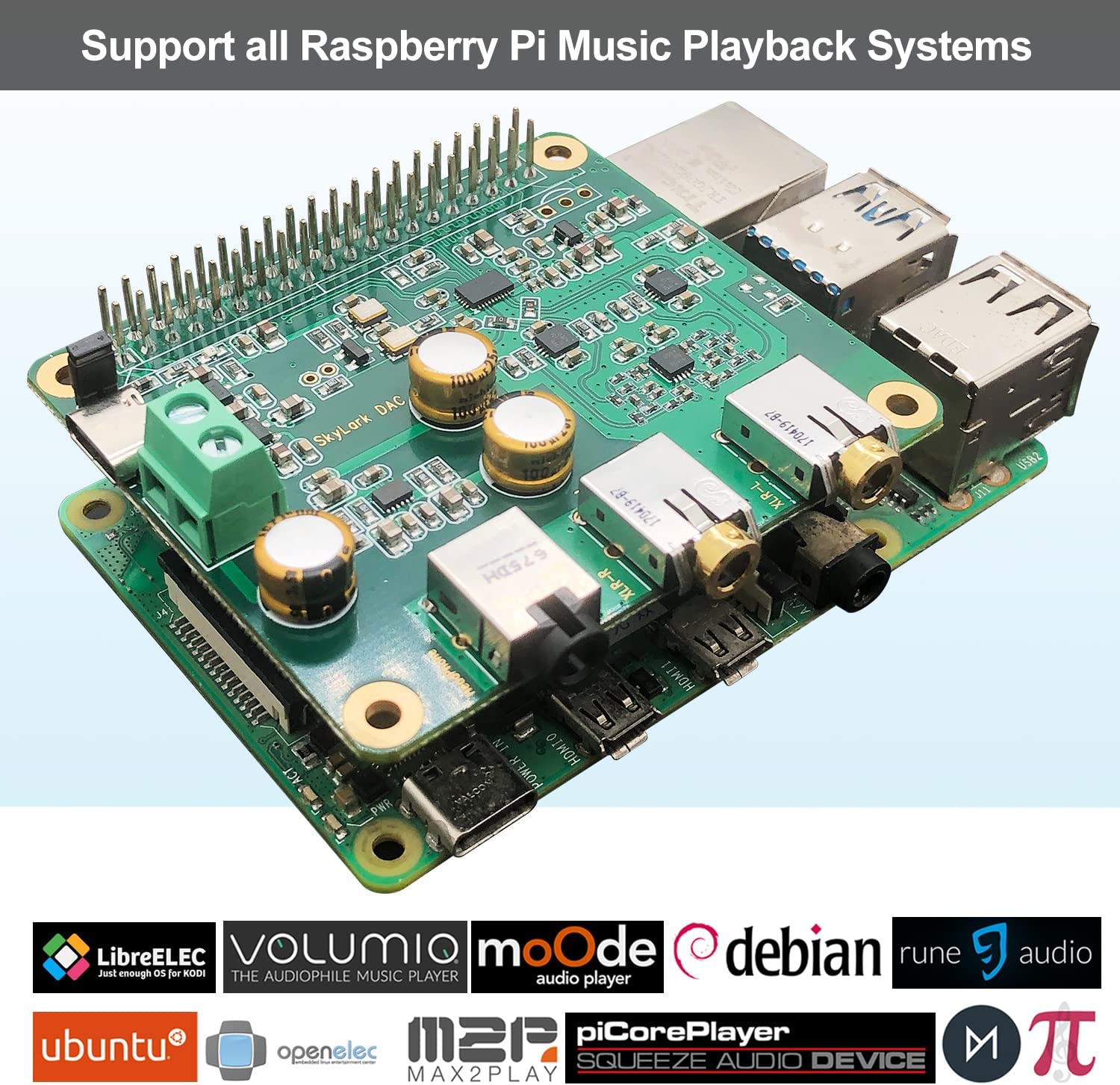

  • Support all Raspberry Pi music playback systems, LibreELEC, RuneAudio, Volumio, Moode, PiCorePlayer, OpenELEC, Raspbian, Ubuntu etc. Support playing music from a hard disk or over the network.
  • On-board a 3.5mm high-end headphone jack and two balanced out(X- ,X+) output, allow you free to play your music through Raspberry Pi to another terminals.
  • Comes with software, documents and friendly technology support. For more information please refer to our wiki(view the link on color page comes with the goods).

Datasheet

Quantity Discount (%) Price
1 - 9 $89.00
10 - 49 3.37 % $86.00
50 - 99 7.87 % $82.00
100+ 11.24 % $79.00
x
Category: SKU: 200 Tag:

Description

Raspberry Pi HiFi DAC Pro Hat ES9038Q2M Audio Card PCM DSD Lossless High Resolution Digital-to-Analog Converter Adapter for Raspberry Pi 4 3B+ 3B Zero w Zero


Product Description

Raspberry Pi HiFi DAC Pro Hat ES9038Q2M Audio Card PCM DSD Lossless High Resolution

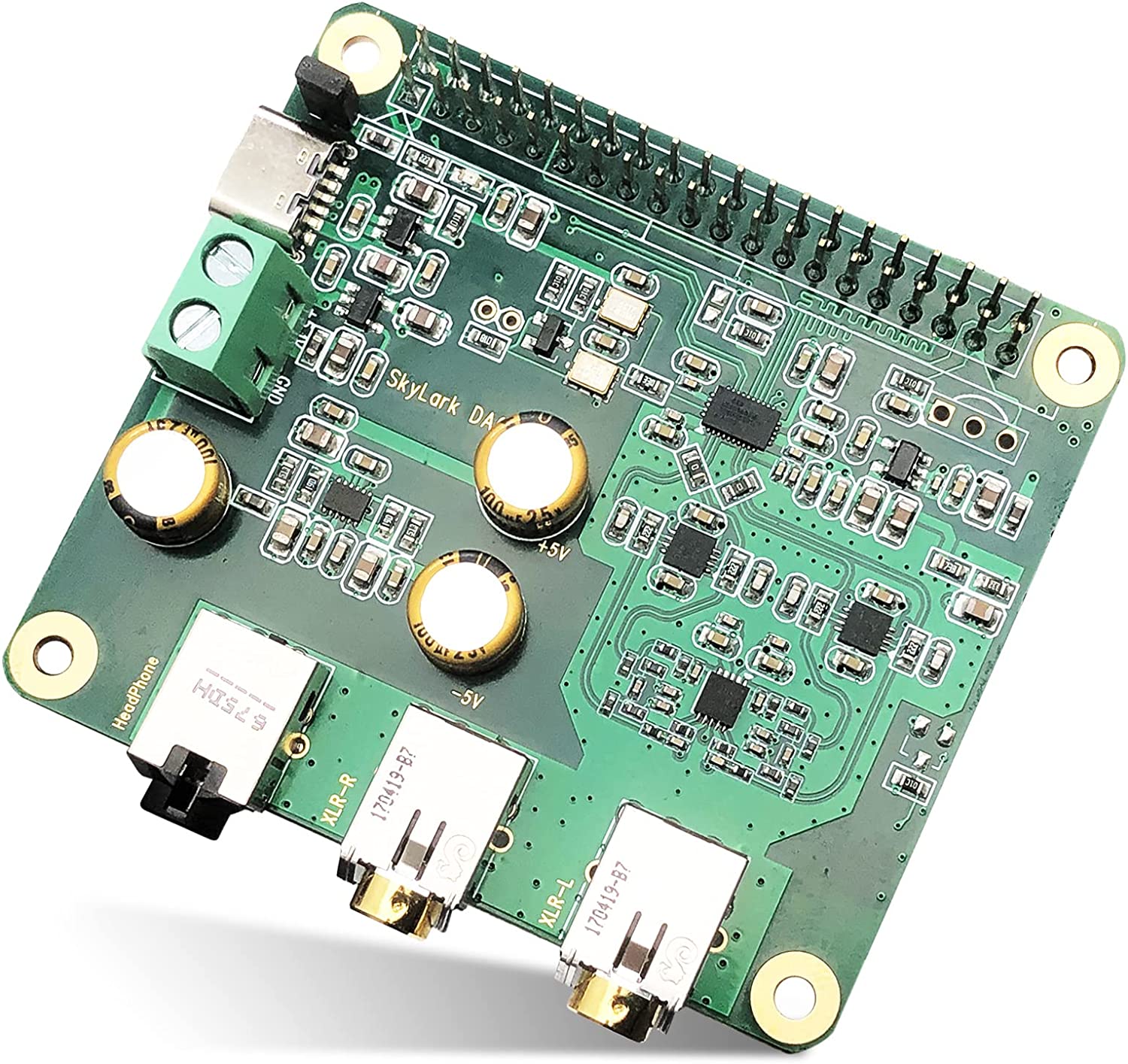

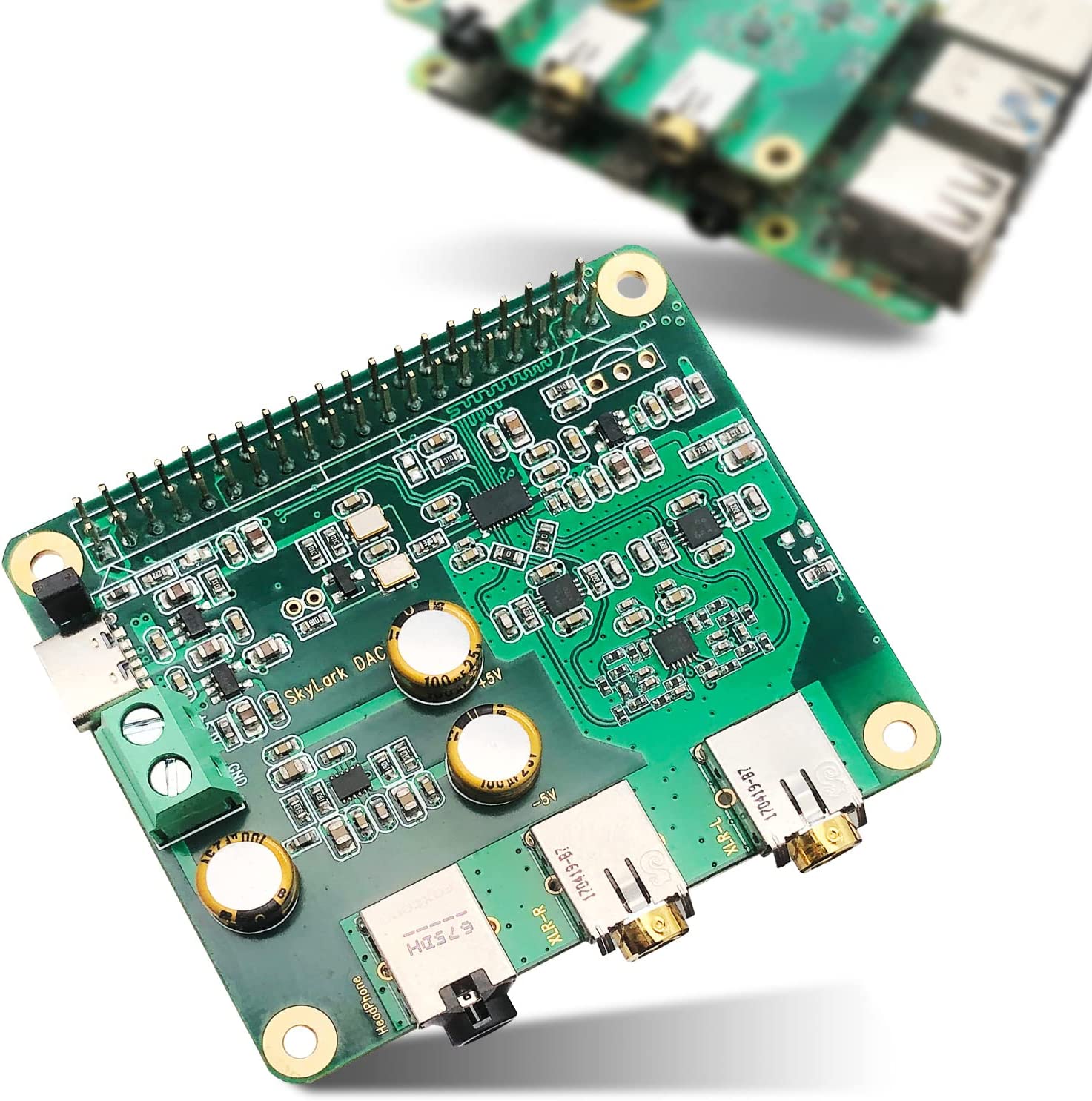

InnoMaker HiFi DAC Pro Hat

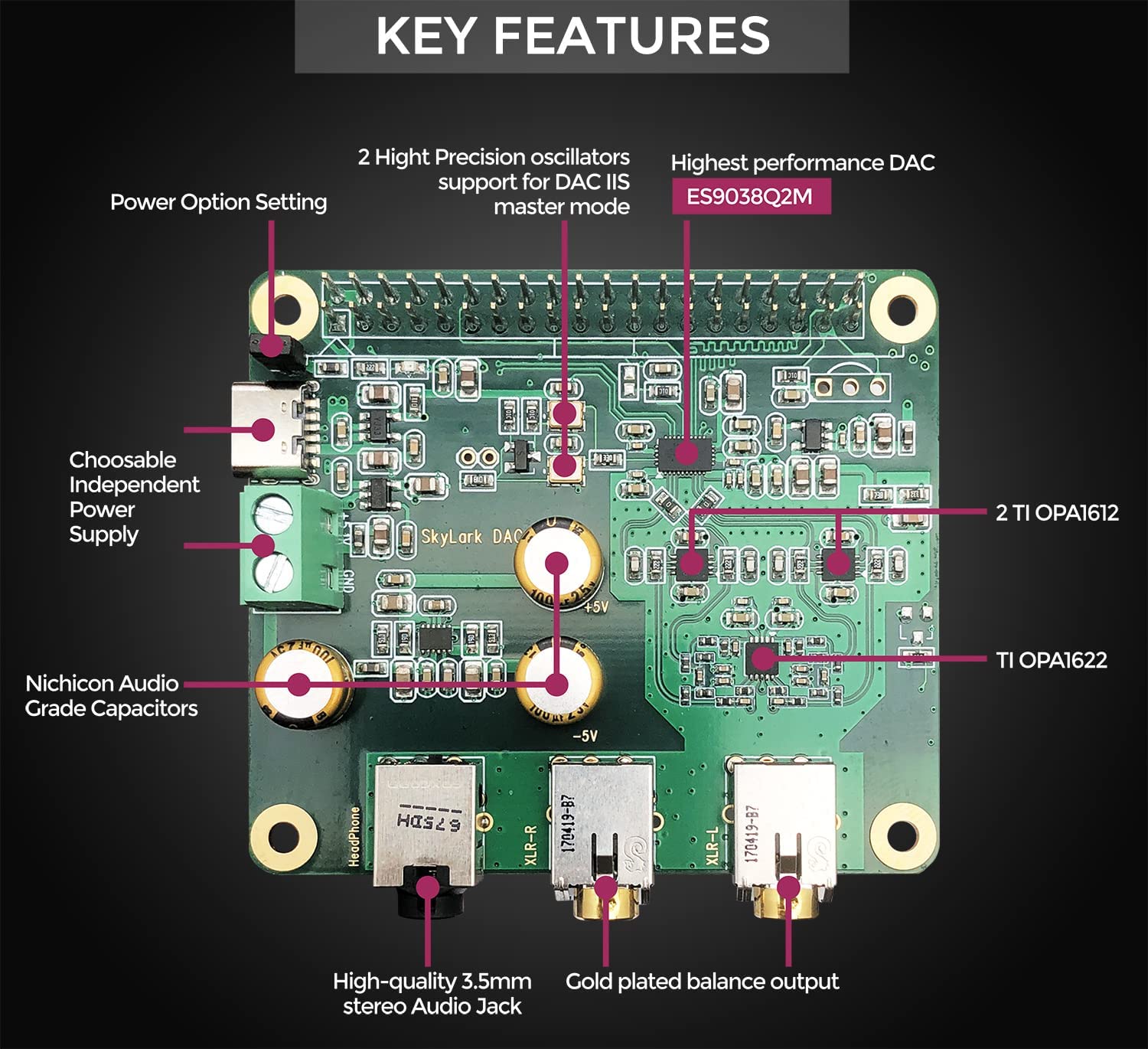

This Hat is based on a high performance audio DAC chip ES9038Q2M. The ES9038Q2M handles up to 32-bit/384kHz(PCM), DSD256 and DSD512 data in master or slave timing modes. It use the critically acclaimed ESS patented 32-bit HyperStream II DAC architecture and Time Domain Jitter Eliminator and delivers a DNR of up to 129dB and THD+N of -120db, a performance level that will satisfy the most demanding audio enthusiasts.

On-board two low jitter oscillators(45.158M and 49.152M) to support ES9038Q2M master mode, support more exact sample rate clocks of ES9038Q2M. Different from other DAC hat that forced user to use the IIS master clocks from Raspberry Pi which comes with a lot of jitter, just for save cost and design time.

aspberry Pi HiFi DAC Pro Hat ES9038Q2M Audio Card PCM DSD Lossless High Resolution





Quick Start For Raspberry PI5

1,Download files from github:

sudo git clone https://github.com/INNO-MAKER/DAC-PRO-HAT.git

2,Copy dtb files

  • $cd DAC-PRO-HAT/dtoverlay
  • $sudo chmod -R a+rwx *
  • $sudo cp inno-dac-pro.dtbo /boot/overlays

3,Modify config.txt

  • $sudo nano /boot/config.txt

add below content to last line, then save files and reboot.

  • dtoverlay=inno-dac-pro

4,Set DAC PRO As default Sound card

  • $alsamixer

Press F6 to list all sound card,choose Allo Katana

  • nano /etc/asound.conf

Set soud card as default, for example card 1 is Allo Katana

defaults.ctl.card 1
defaults.pcm.card 1
defaults.timer.card 1
