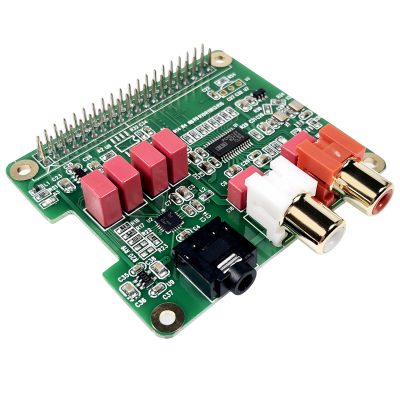

Rpi HiFi DAC Hat

$32.99

DATASHEET: https://github.com/INNO-MAKER/HIFI-DAC-Hat-For-Raspberry-Pi

  • The HiFi DAC Hat compatible with Raspberry Pi Zero, Zero W, 3B, 3B+, Pi 4 with the 40-pin connector. Connects directly to the Raspberry Pi board, no additional cables required, no soldering. Easy to get more beautiful and fantastic sound by this RPI+DAC HiFi suits.

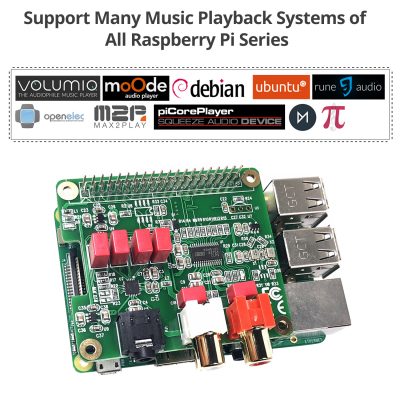

  • Absolutely perfect to support all Raspberry Pi music playback system, like OSMC, Max2Play, RuneAudio, Volumio, Moode, PiCorePlayer, PiMusicBox, OpenELEC, Debian, Ubuntu etc. Support playing music from a hard disk or over the network. Support DSD over PCM(DOP) mode.
  • Class-leading stereo audio DAC PCM5122, sample rates up to 384-KHz/32-Bit. Paired with stereo high fidelity headphone amplifier TPA6133. Provides 2.1Vrms ground-centered outputs coupled with Film capacitor.
  • On-board a pair of gold plated RCA (LEFT &Right) jacks and a 3.5mm high-end headphone jack output, allow you free to play your music through Raspberry Pi to another terminals.
  • Comes with software, document and friendly technology support. For more information,  please refer to our wiki(view the link on color page comes with the goods).

145 in stock

Quantity Discount (%) Price
1 - 49 $32.99
50 - 299 3.03 % $31.99
300 - 499 6.06 % $30.99
500 - 999 9.09 % $29.99
1,000+ 12.12 % $28.99
x
Category: SKU: hifi-dac-hat

Description

InnoMaker HiFi DAC Audio Hat for Raspberry Pi

  • The Innomaker HiFi DAC Hat maybe the best optimized partner for Raspberry Pi audio output.
  • Used on-board PCM5122 as the IIS clock master, instead of the clocks from RPI which comes with too much jitter.

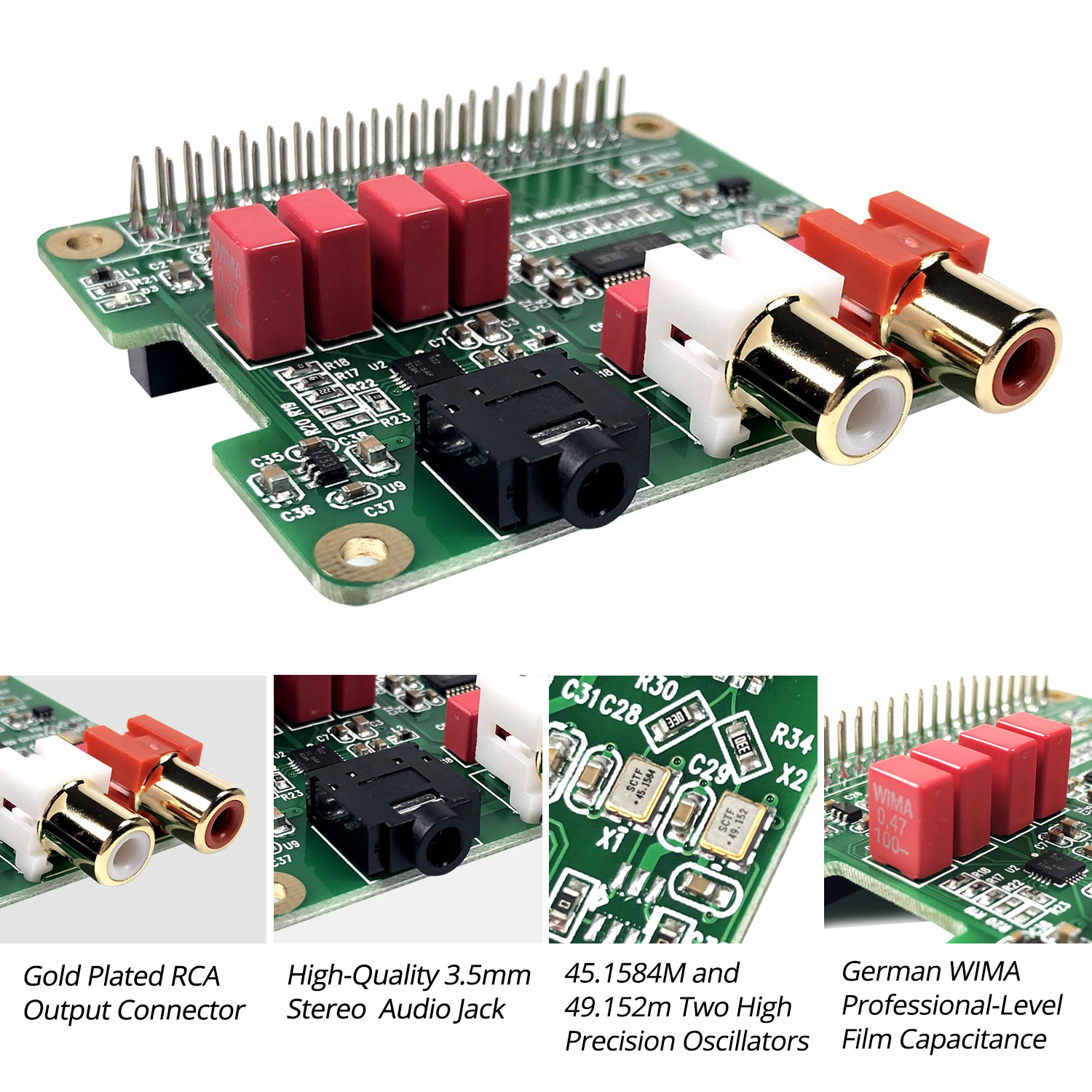

  • Added dual low jitter oscillators(45.158M and 49.152M) to support more exact sample rate clocks.
  • No soldering, no additional cables. Just plug it in and do some simple configuration,
  • You would get a high-class music player which is low-cost.

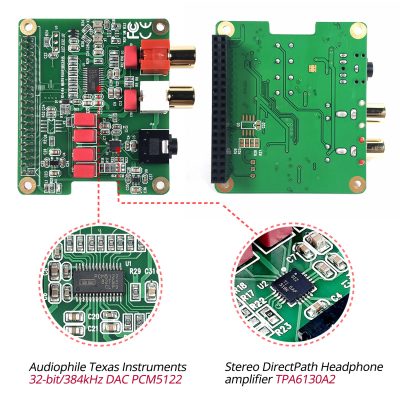

TI PCM5122 Chipset

Audiophile Texas Instruments 32bit/384KHz DAC PCM5122

  • DAC SNR is 112Db.
  • DAC THD+N @ -1 dBFS -78dB.
  • Full Scale Output of DAC is 2.1Vrms.
  • Dynamic Range of DAC is 112dB.
  • Sampling Frequency ranges from 8kHz to 384kHz.
  • Ultra-low noise voltage regulators for optimal audio performance.

TPA6130A2 Amplifier

Stero Directpath Headpfone Amplifier TPA6130A2

  • Integrated EEPROM for automatic configuration(Option).
  • Automatically switching frequencies according to the input I2S signals.
  • Dual low jitter crystal oscillators for Master Clock generation.
  • Infrared remote control connector (using GPIO26).
  • DAC output coupled with Film capacitor.

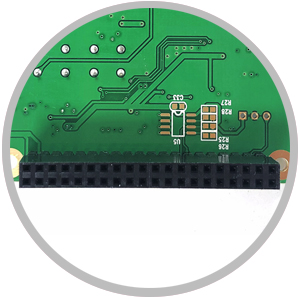

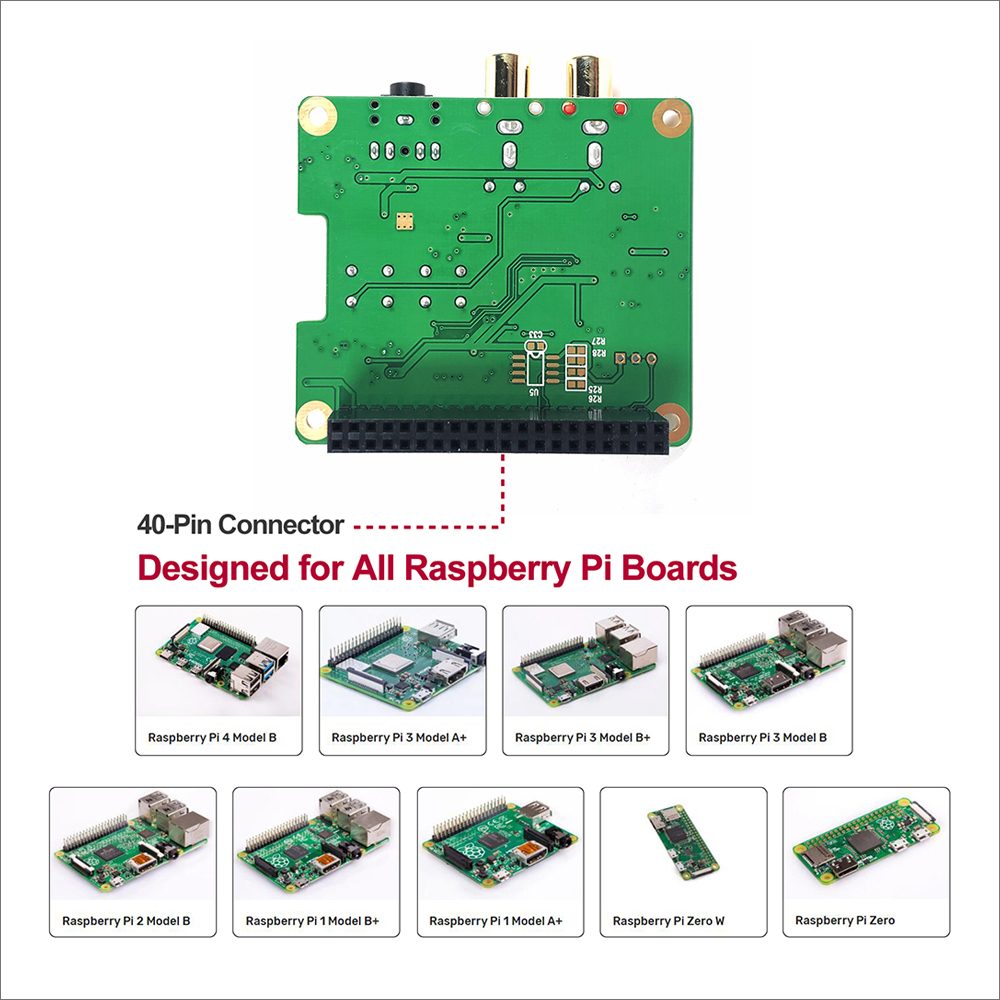

40-Pin Connector

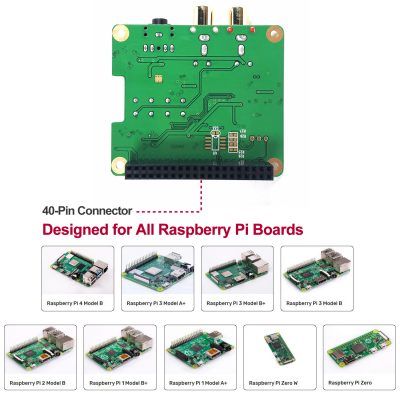

Compatible with Raspberry Pi 4, Zero, Zero W, 3B, 3B+, A+, A with the 40-pin connector.

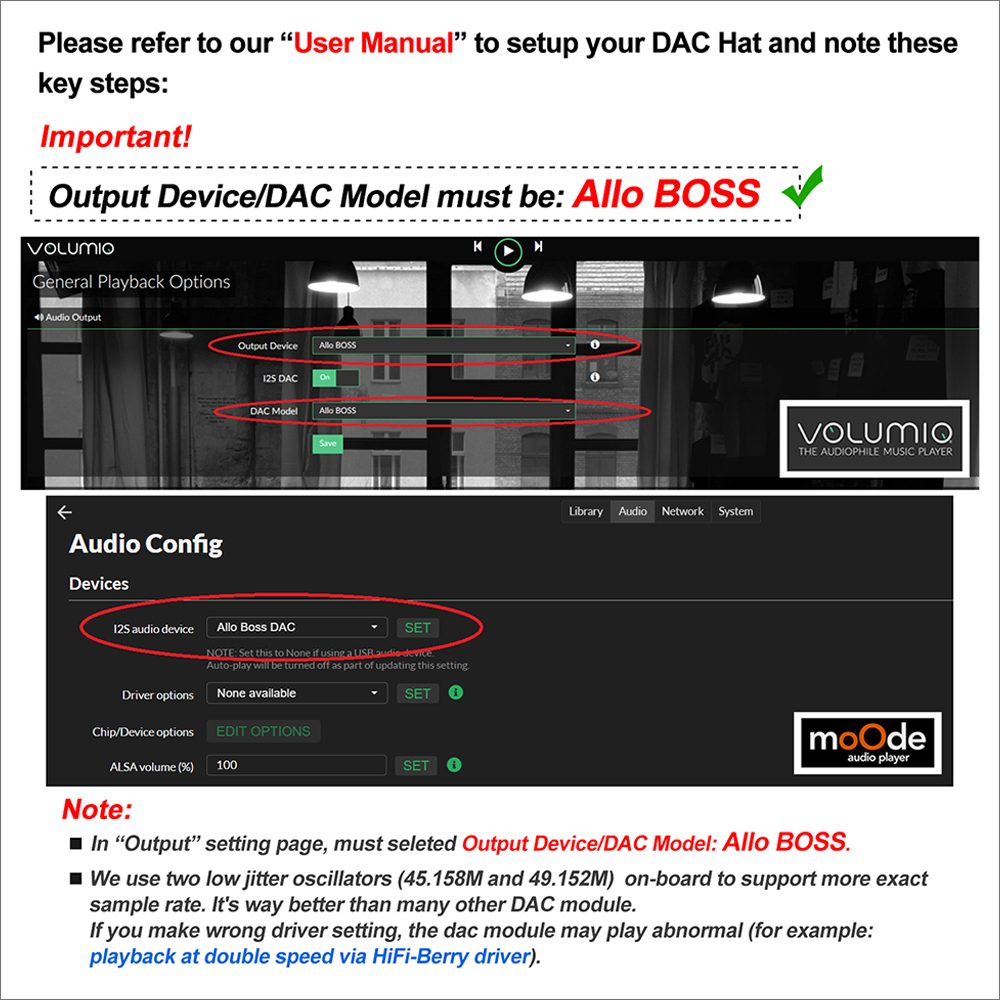

Raspberry_Pi_HiFi_DAC_HAT_PCM5122_HiFi_DAC_Audio_Card_Expansion_Board_Raspberry_Pii_4_3_B+_Pi_Zero_05
Raspberry_Pi_HiFi_DAC_HAT_PCM5122_HiFi_DAC_Audio_Card_Expansion_Board_Raspberry_Pii_4_3_B+_Pi_Zero_04
Raspberry_Pi_HiFi_DAC_HAT_PCM5122_HiFi_DAC_Audio_Card_Expansion_Board_Raspberry_Pii_4_3_B+_Pi_Zero_03
[UserManual&Software :]

[Features:]

  • Dedicated 384kHz/32bit high-quality DAC PCM5122 for best sound quality.
  • Audio output connectors: 2x RCA (LEFT &Right) &3.5mm head phone Jack.
  • With 138mw headphone Amplifier can directly drive headphone.
  • Work status indicators facilitate the understanding of the system working status.

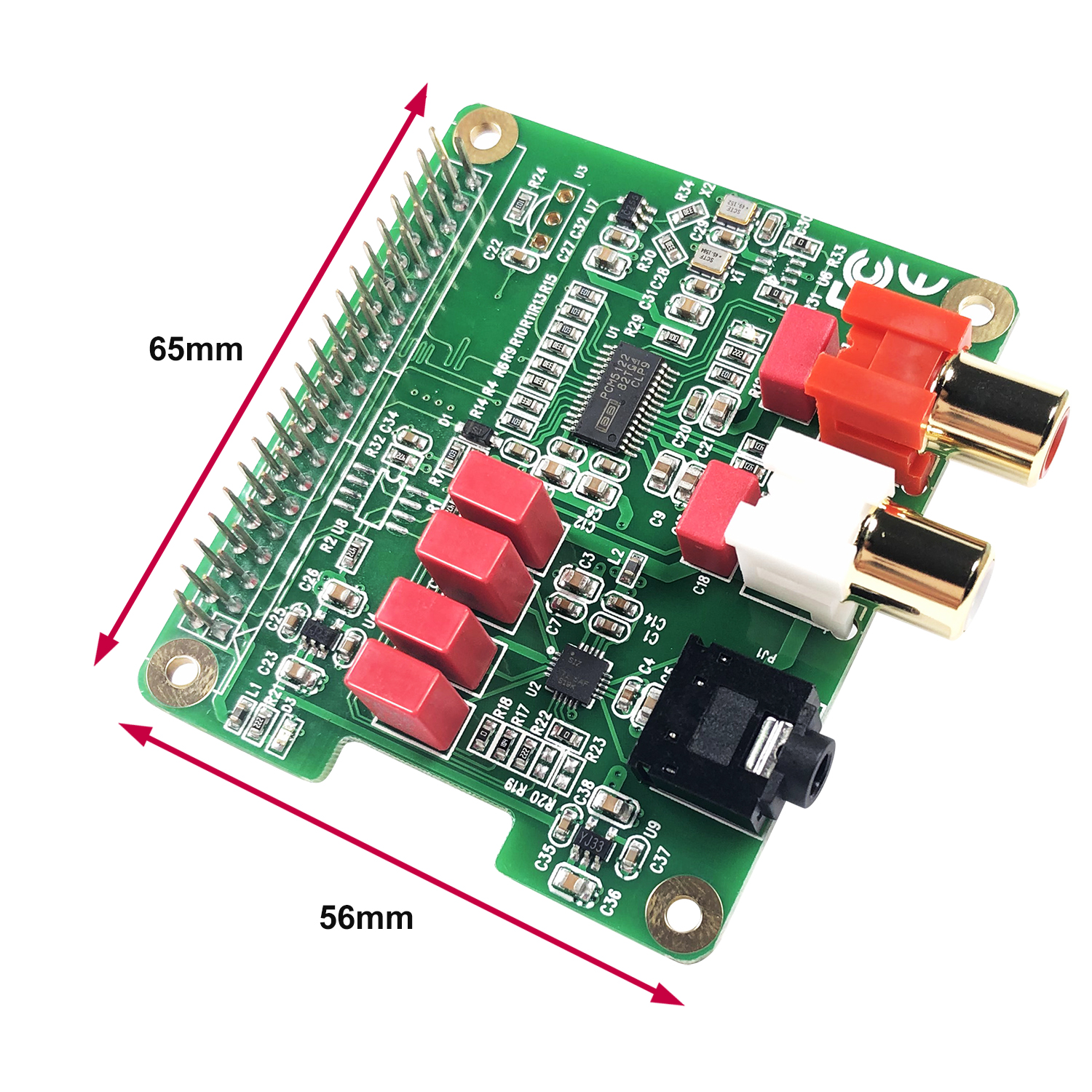

  • HAT size.
  • DAC SNR is 112Db.
  • DAC THD+N @ -1 dBFS -78dB.
  • Full Scale Output of DAC is 2.1Vrms.
  • Dynamic Range of DAC is 112dB.
  • Sampling Frequency ranges from 8kHz to 384kHz.
  • Ultra-low noise voltage regulators for optimal audio performance.
  • Integrated EEPROM for automatic configuration(Option).
  • Automatically switching frequencies according to the input I2S signals.
  • Dual low jitter crystal oscillators for Master Clock generation.
  • Infrared remote control connector (using GPIO26).
  • DAC output coupled with Film capacitor.

[Packing List:]

  • 1 x RPI-HIFI-DAC Module
  • Note: The raspberry pi 3 board is not included.
