Name: 100BASE-T1-TX
SKU: 100BASE-T1-TX
Price: 210.00 USD
Availability: InStock

100BASE-T1-TX

Features:

Establishes a direct point-to-point conversion between automotive ECU’s using 100BASE-T1/BroadR-Reach(100 Mbit/s Fullduplex,) and any standard Fast Ethernet (100 Mbit/s, 100BASE-TX) device with an standard ethernet RJ45 connector.
Comes with 1x Unshielded Twisted Pair (UTP) cable and 1x 12V power adapter.
By using the BCM BroadR-Reach PHY BCM89811B1AWMLG, ensure a trustworthy and effective tool to customers that are looking for a cost-efficient, quick and manageable solution for testing requirements, with no latency and no packet loss.

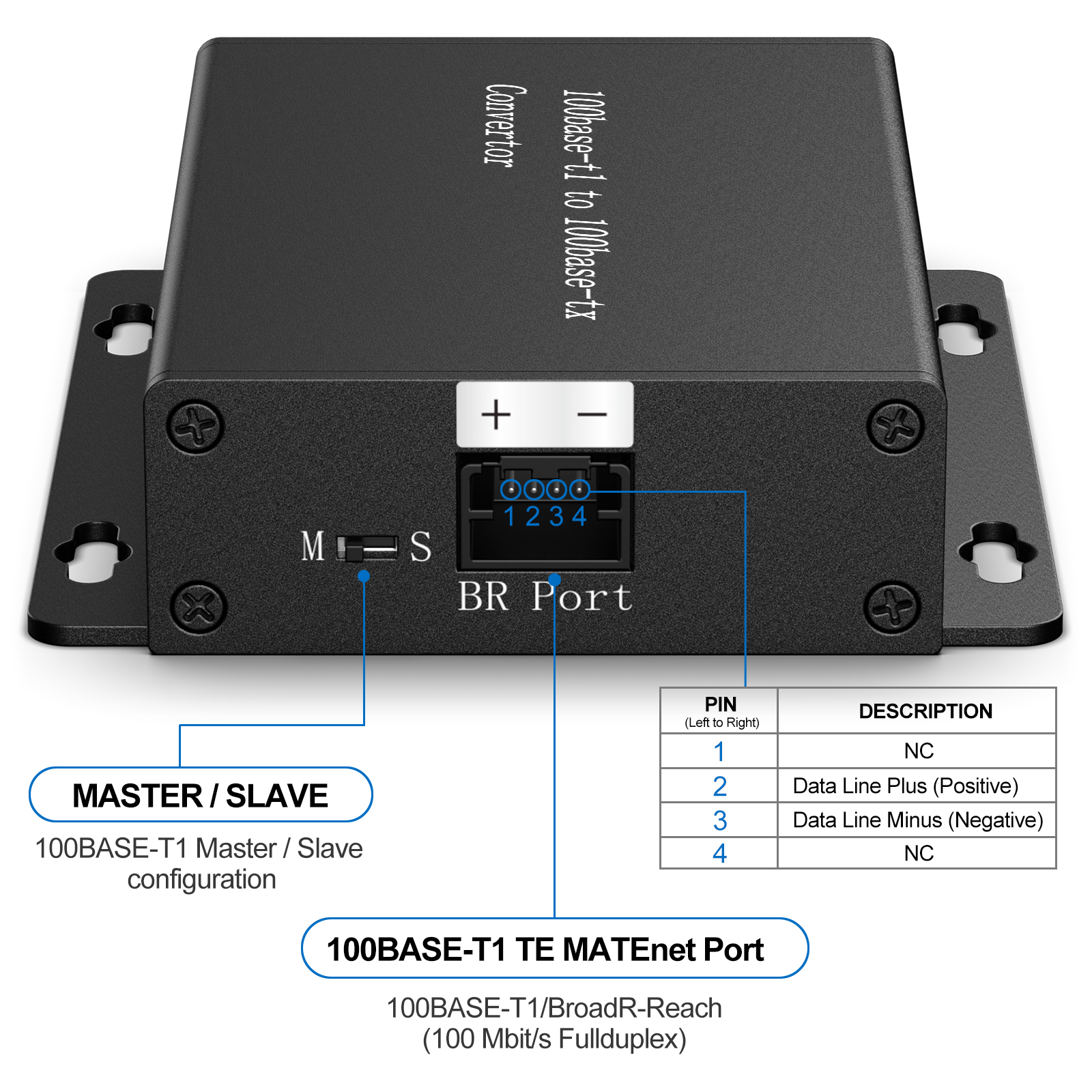

Features with 100BASE-T1 Master / Slave configuration and link LED.
Plug and Play, No need to install the drivers.

Github:

Description

Product Description

Ethernet Media Converter Device 2-wire Ethernet BroadR-Reach 100BASE-T1

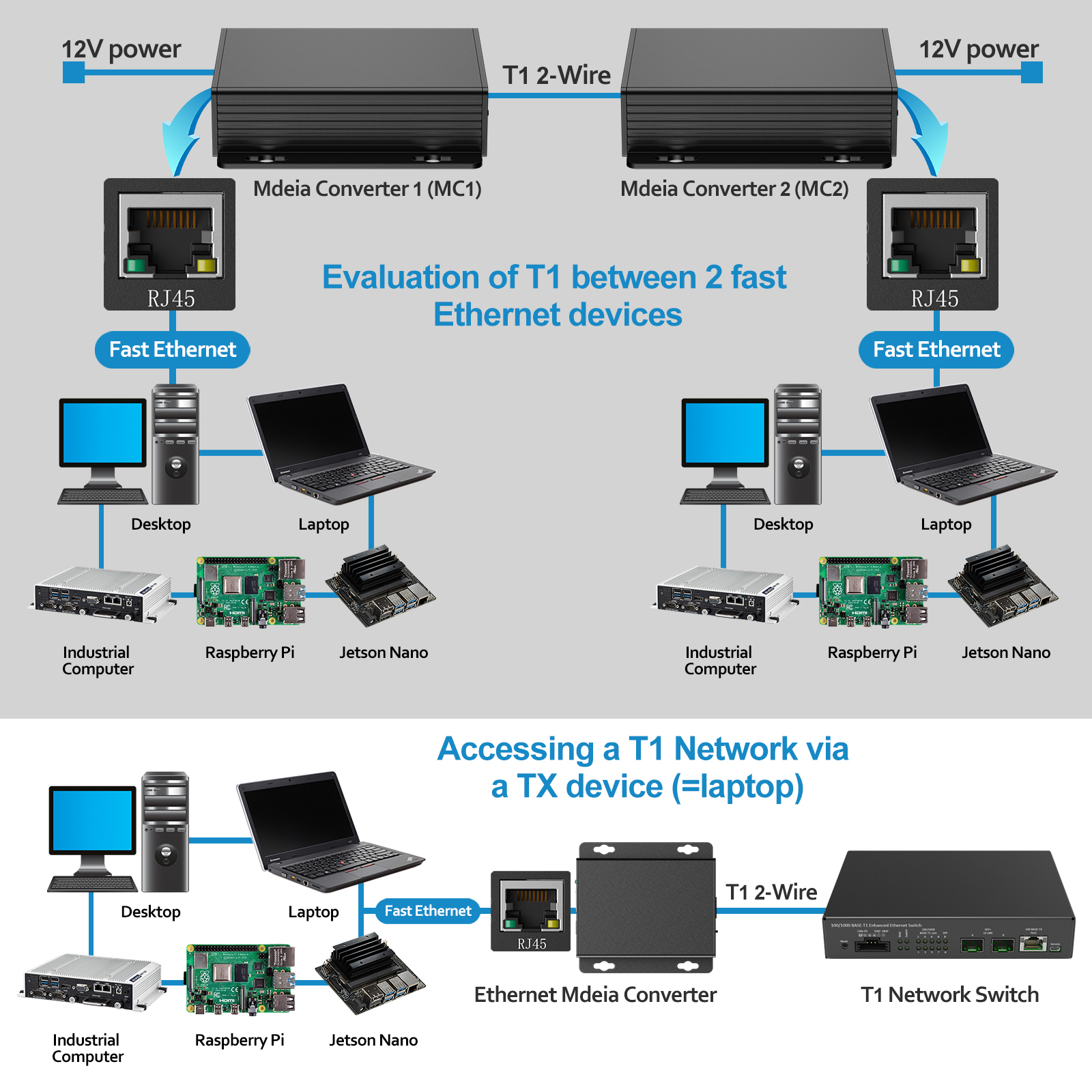

The device features bi-directional conversion between Standard Ethernet (100BASE-TX) and Automotive Ethernet (100BASE-T1).

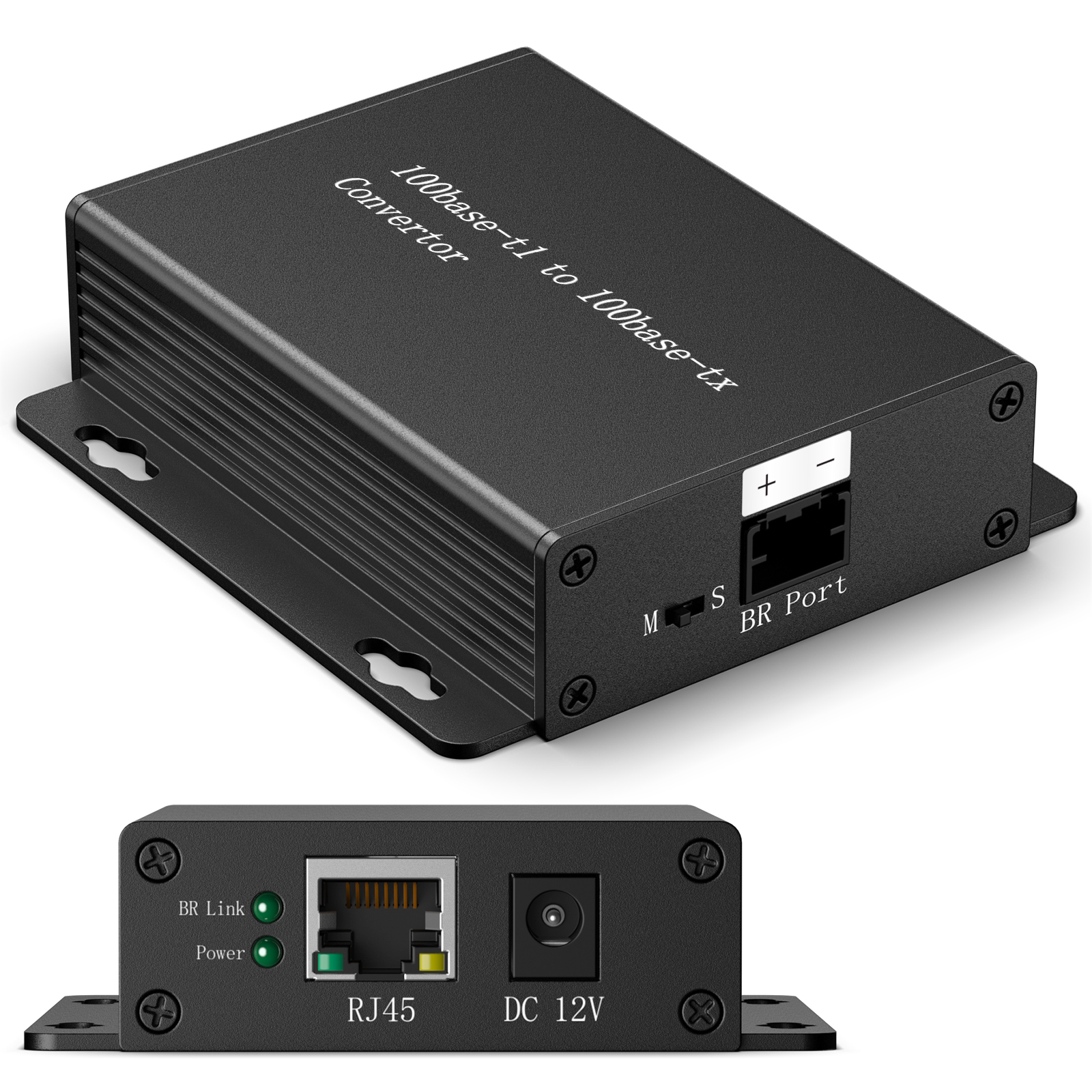

A massive stainless-steel housing, coupled with switches for ease of configuration enables the user to interact with the converter, effortlessly.
No customized driver is needed to interact with our 100BASE-T1 Media Converter. The device communicates with standard Ethernet through an RJ-45 connector.
It comes with a BR connector and a standard Ethernet RJ-45 connector.
The design makes it portable and easy to install in test racks. The galvanized sheet steel with black powder coating housing makes it robust.
The device is capable to function in a variating temperature range from 0 Celsius to +70 Celsius. With the in-built link LEDs, the operation of the device is transparent and adds the tester to detect Link up and data transmission visually.

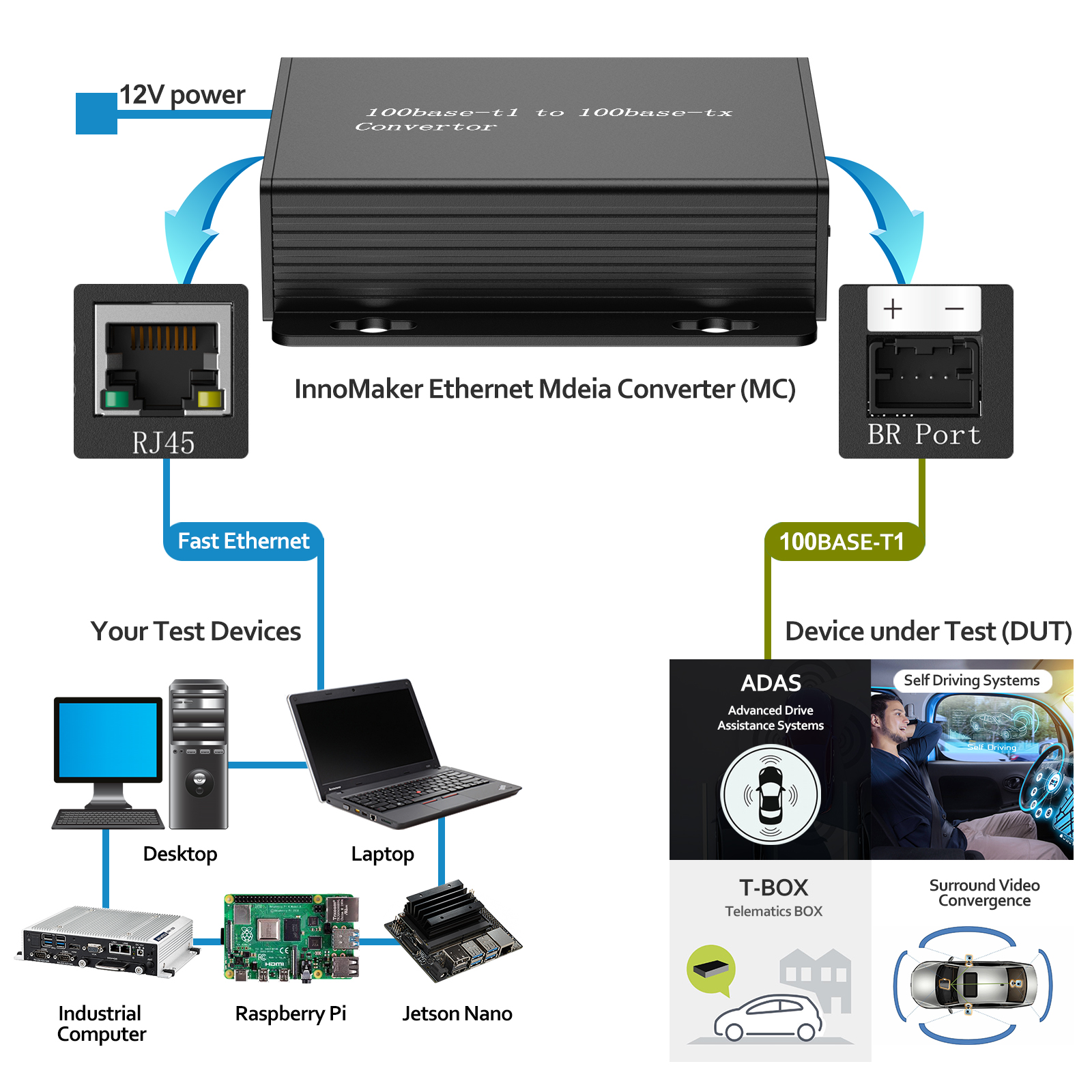

No extra hardware or software is needed to connect the device with a PC or a Laptop. The device can be coupled with any hardware or software tool that runs on standard Ethernet with an RJ-45 connector.
Thus, the 100BASE-T1 to 100BASE-TX Media Converter is the ideal solution for working quickly and efficiently with the new 100BASE-T1 technology without the hustle of extra- wiring, customized connectors, and vendor-specific tools.

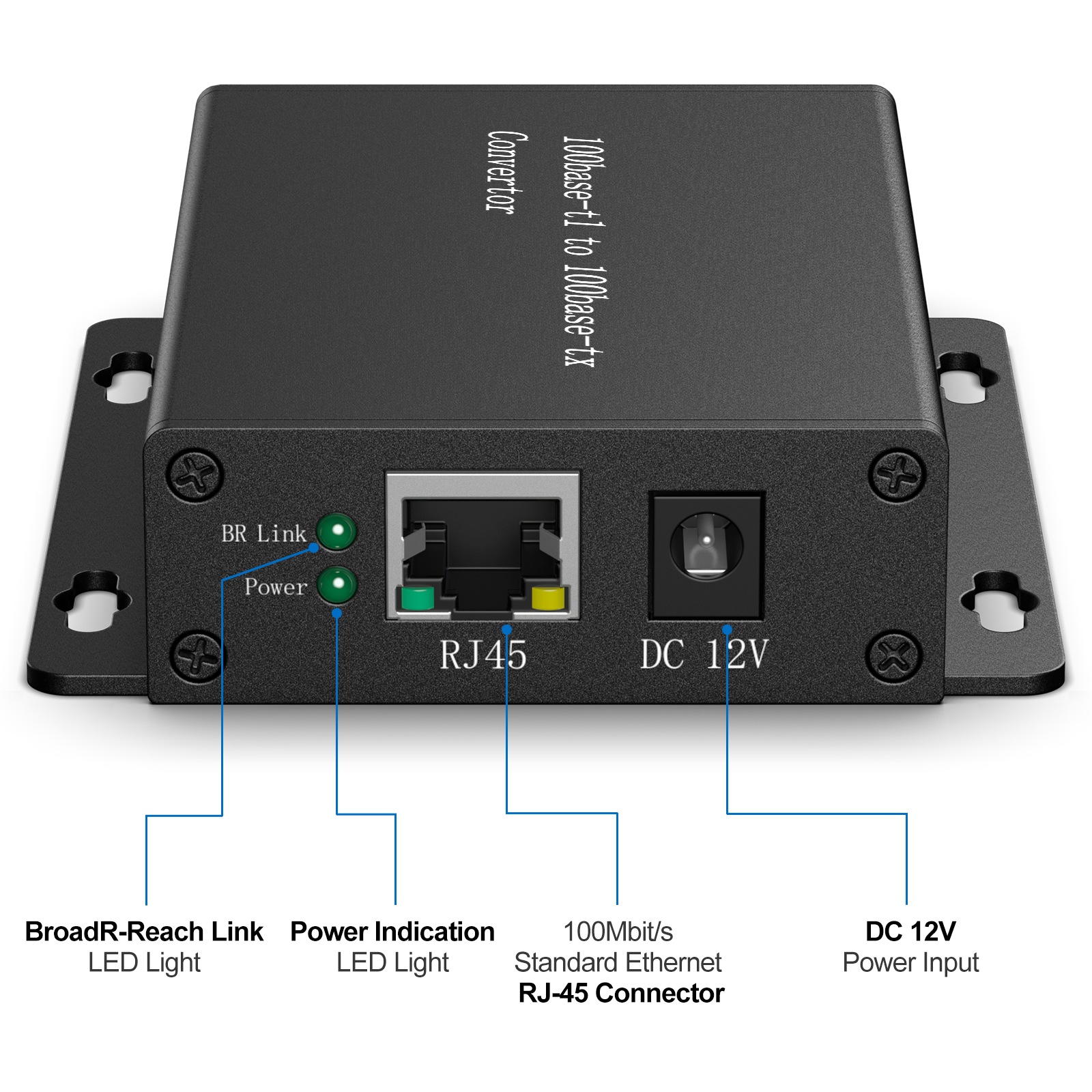

LED Indicators LED Lights for BroadR-Reach Link and Power Indicator	Aluminium Alloy Case Housing by Aluminium Alloy Case, Sturdy and Durable.	UTP Cable Comes with 1x Unshielded Twisted Pair (UTP) cable
