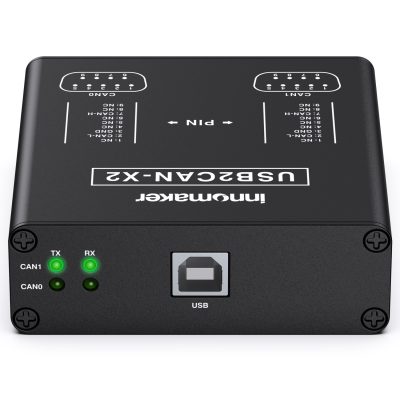

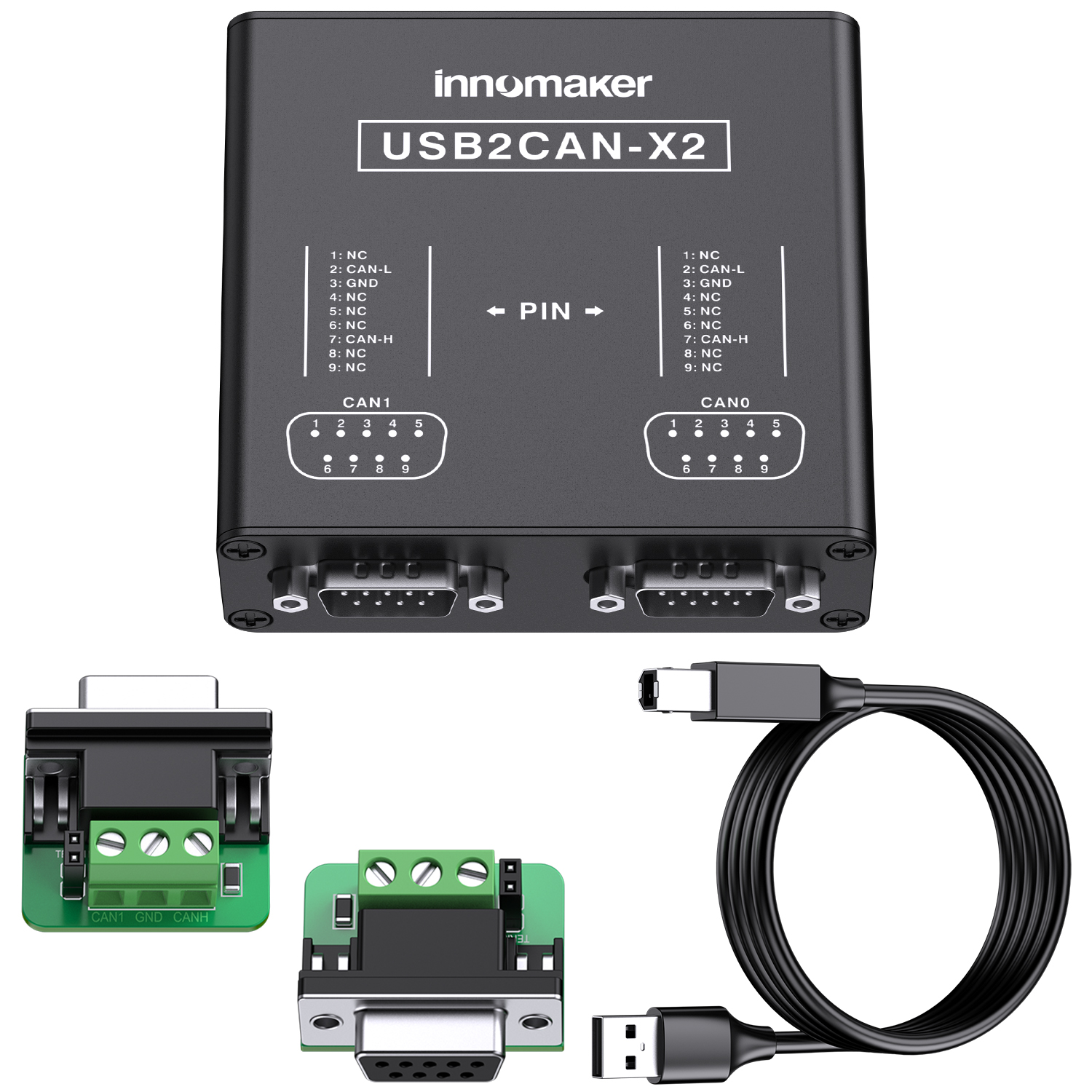

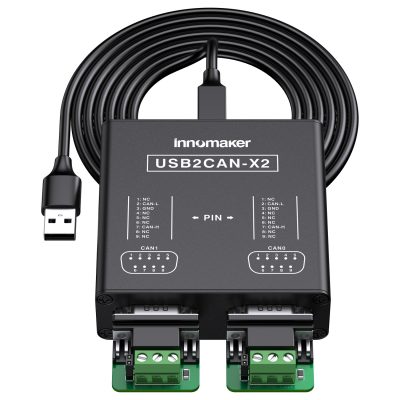

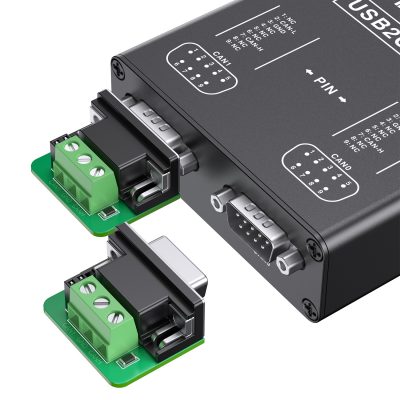

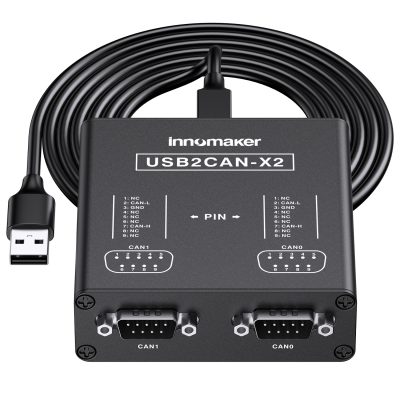

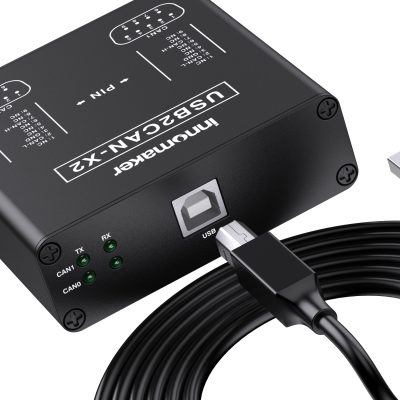

USB2CAN-X2-Device

$89.00

Datasheet：

https://github.com/INNO-MAKER/usb2can

Feature:

  • The Dual Channels Usb to Can Device compatible with all series Raspberry Pi/Jetson Nano/Tinker Board/any single board computer, desktop and laptop.
  • Support Windows System, Mac OS, Linux, Raspbian(v5.4 kernel) and Ubuntu.
  • Plug and Play USB CAN device. No external power required. CAN baud rate from 20Kbps to 1Mbps can be programmed arbitrarily. Support for CAN bus 2.0A and 2.0B specification.
  • Provides 3000VDC voltage isolation and 15kV Bus-Pin ESD protection.
  • Provide C/Python with Socket-CAN feature for Raspbian(Linux), C#/C++ demo for Windows, Dynamic library and demo with IOUSBKit for Mac Os(Big Sur).
Quantity Discount (%) Price
1 - 9 — $89.00
10 - 99 2.26 % $86.99
100 - 499 10.12 % $79.99
500 - 999 13.49 % $76.99
1,000+ 16.87 % $73.99
x
Compare
Category:

Description

Dual Channels USB to CAN Converter for Raspberry Pi4/Pi3B+/Pi3/Pi Zero(W)/Jetson Nano/Tinker Board/Any SBCs/Desktop and Laptop Support Windows Linux and Mac OS



  • The Dual Channels Usb to Can Device compatible with all series Raspberry Pi/Jetson Nano/Tinker Board/any single board computer, desktop and laptop.
  • Support Windows System, Mac OS, Linux, Raspbian(v5.4 kernel) and Ubuntu.
  • Plug and Play USB CAN device. No external power required. CAN baud rate from 20Kbps to 1Mbps can be programmed arbitrarily. Support for CAN bus 2.0A and 2.0B specification.
  • Provides 3000VDC voltage isolation and 15kV Bus-Pin ESD protection.
  • Provide C/Python with Socket-CAN feature for Raspbian(Linux), C#/C++ demo for Windows, Dynamic library and demo with IOUSBKit for Mac Os(Big Sur).

USB2CAN-X2 is a real ‘plug and play’ and bi-directional port powered USB to CAN converter which realizes long-distance communication between your Raspberry Pi/SBC/PC and other devices stably though CAN-Bus connection.
Dual channels can be setup independently, It’s a cost-effective solution that are safe and reliable for all your data-conversion/device-protection applications for any experienced engineer.
Interfacing to expensive industrial equipment yet simple enough for home use by an amateur hobbyist.

  • USB2CAN can also be applied to obtain the data of car via the OBD connector, but you need to configured and secondary development by yourself.
  • Support Linux system , It’s a socket-can device in Linux, not need to install any driver and fully compatible with other socket-can software in Linux such as can-utils.
  • Support Mac OS version equal or above 10.11 and provide development library for help customer develop own applications.
  • Support Win7/Win8/Win10 and provide C#/C++ demo and dynamic link libraries for help customer develop own applications.

Additional information

USB CAN

, , , ,
