Description
1 General
1.1 Description

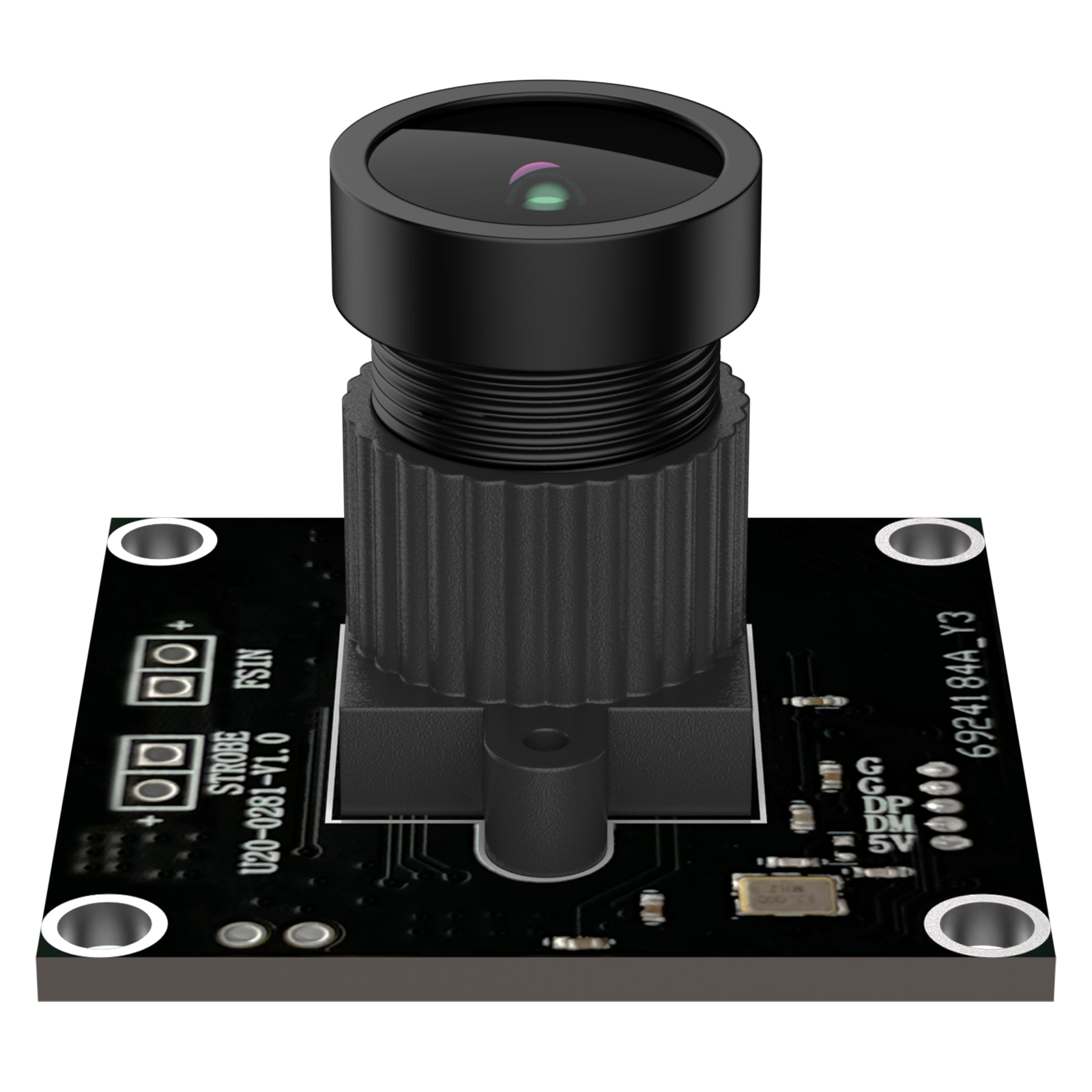

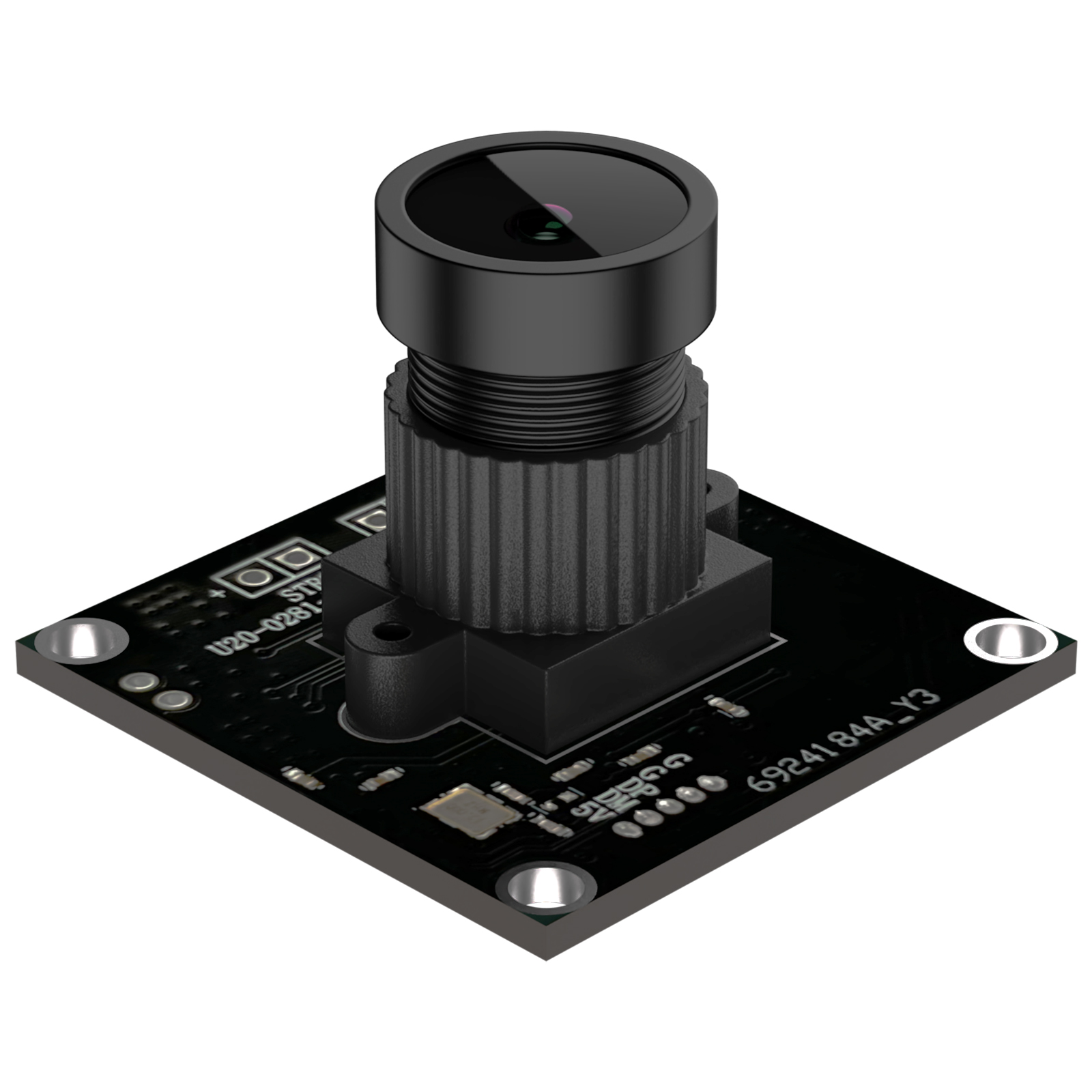

U20CAM-9281M is InnoMaker UVC Series Module with 1MP 1/4″ monochrome global shutter OV9281 image sensor,low distortion USB 2.0 camera.Feature with external hardware trigger and stobe function.Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, support trigger via external signal.)
1.2 Features
- U20CAM-9281M is a 1M global shutter UVC camera module by mono sensor ov9281;
- Compatible with USB2.0,USB3.0 plug and play for Windows,Linux,Mac Os devices;
- Support hardware external trigger mode and live streaming mode;

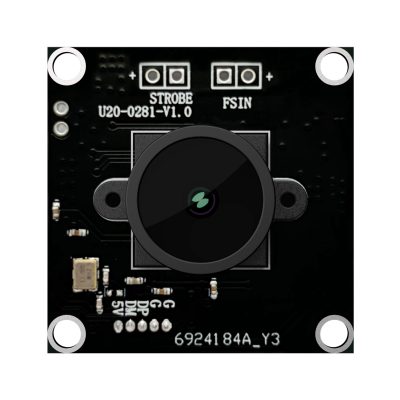

- Easily wire external trigger pins and strobe pins by 2.0mm pin headers;
- Featured with wide angle fixed M12 LEN FOV Up to 148 degree;
1.1 Specification
| Model Name | U20CAM-9281M |
| Dimension | 32mmx32mm |
| Sensor | Monochrome global shutter OV9281 |
| Pixel Size | 3μm*3μm |
| Resolution | 1MP 1280(H)x800(V) Frame rate MJPG Max 120fps,Default 30fps |
| Output Format | MJPG/YUY2 |
| Len | FOV148°（H） M12 18mm Len Seat No IR filter, sensitive to IR |
| Input Voltage | Power:5V Current:86mA 0.42W |
| Shutter Mode | Global Shutter |
| Image Color | Monochrome |
| USB Interface | Vendor：1.25mm-5P ZZ-MS，Shouhan |
| Auto Parameters | White Balance（Manual Option）,Exposure（Manual Option） |
| Controllable Parameters | Brightness,Contrast,Hue,Saturation,Sharpness,Gamma,White Balance,Backlight Comp,Gain,Exposure,PowerLine Frequency,Low Light Compensation |
| Support OS | Windows, Linux, Mac Os with UVC Drivers Devices |
| Cable Length | 1M |
| External Trigger | Support. Use UVC Parameters “Focus” |
| Working Conditions | Operating Temp: -20°C-70°C, Humidity:80-85% |
| MJPG Output
Resolution |
· 1280×800 120fps,30fps,15pfs,10fps
· 1280×720 120fps,60fps,30fps,20fps,15pfs,10fps · 800×600 120fps,60fps,30fps,20fps,15pfs,10fps · 640×360 120fps,60fps,30fps,20fps,15pfs,10fps · 640×400 120fps,60fps,30fps,20fps,15pfs,10fps · 640×480 120fps,60fps,30fps,20fps,15pfs,10fps · 320×240 120fps,60fps,30fps,20fps,15pfs,10fps · 320×200 120fps,60fps,30fps |
| YUY2 Output
Resolution |
· 1280×80 10fps
· 1280×720 10fps · 800×600 10fps · 640×400 30fps,20fps,15pfs,10fps · 640×480 30fps,20fps,15pfs,10fps · 320×240 60fps,30fps,20fps,15pfs,10fps · 320×200 60fps,30fps,20fps,15pfs,10fps |
1.4 Resolution Frame Rate
| Output Resolution And Frame Rate | |||
| Output Format | Resolution | Frame rate (FPS) | Maximum |
| MJPG | 1280×800 | 10,15,30,120 | 1280×800@120fps
|
| 1280×720(720p) | 10,15,20,30,60,120 | ||
| 800×600 | 10,15,20,30,60,120 | ||
| 640×360(360p) | 10,15,20,30,60,120 | ||
| 640×400 | 10,15,20,30,60,120 | ||
| 640×480 | 10,15,20,30,60,120 | ||
| 320×240 | 10,15,20,30,60,120 | ||
| 320×200 | 120,60,30 | ||
| YUY2 | 1280×800 | 10 | 1280×800@10fps |
| 1280×720(720p) | 10 | ||
| 800×600 | 10 | ||
| 640×400 | 10,15,20,30 | ||
| 640×480 | 10,15,20,30 | ||
| 320×240 | 10,15,20,30,60 | ||
| 320×200 | 10,15,20,30,60 | ||
