HIFI-DAC-MINI

Github: https://github.com/INNO-MAKER/HIFI-DAC-Hat-For-Raspberry-Pi

Features:

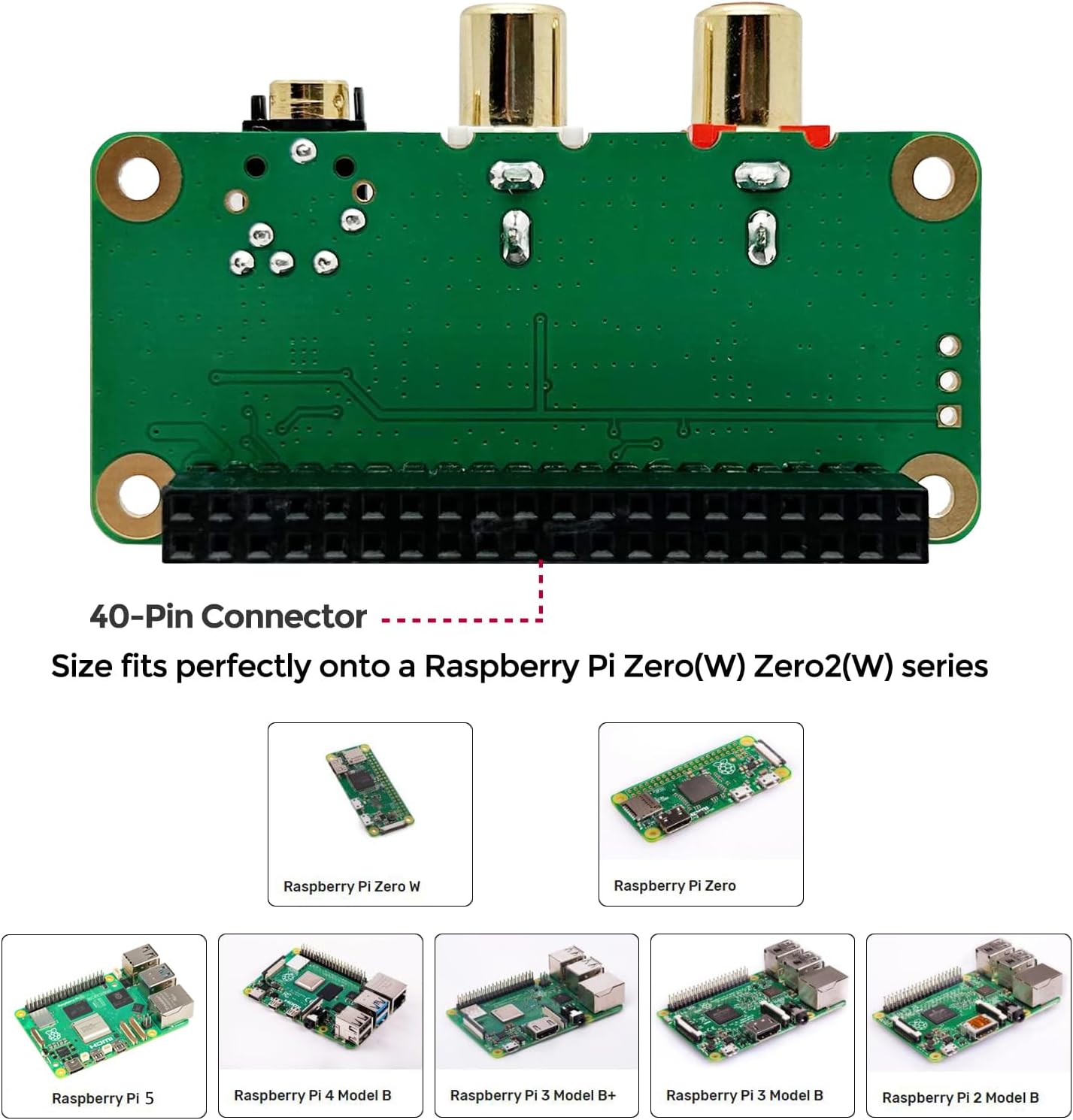

Size fits perfectly onto a Raspberry Pi Zero(W) Zero2(W) series, Compatible with all Raspberry Pi board through the 40-pin connector.

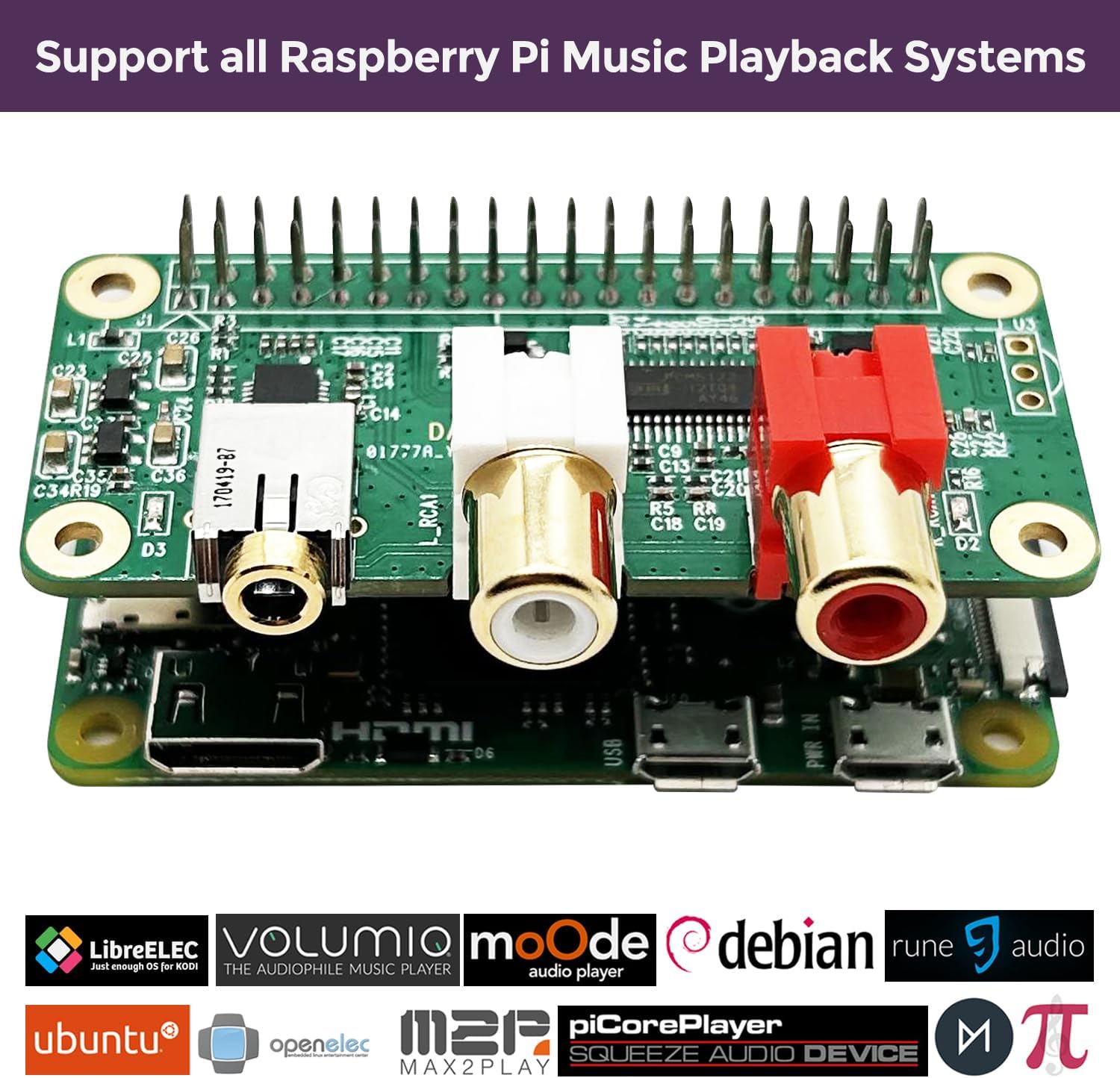

Absolutely perfect to support all Raspberry Pi music player system ,such as OSMC, Max2Play, RuneAudio, Volumio, Moode, Pi CorePlayer, Pi MusicBox, OpenELEC, Debian, Ubuntu etc.

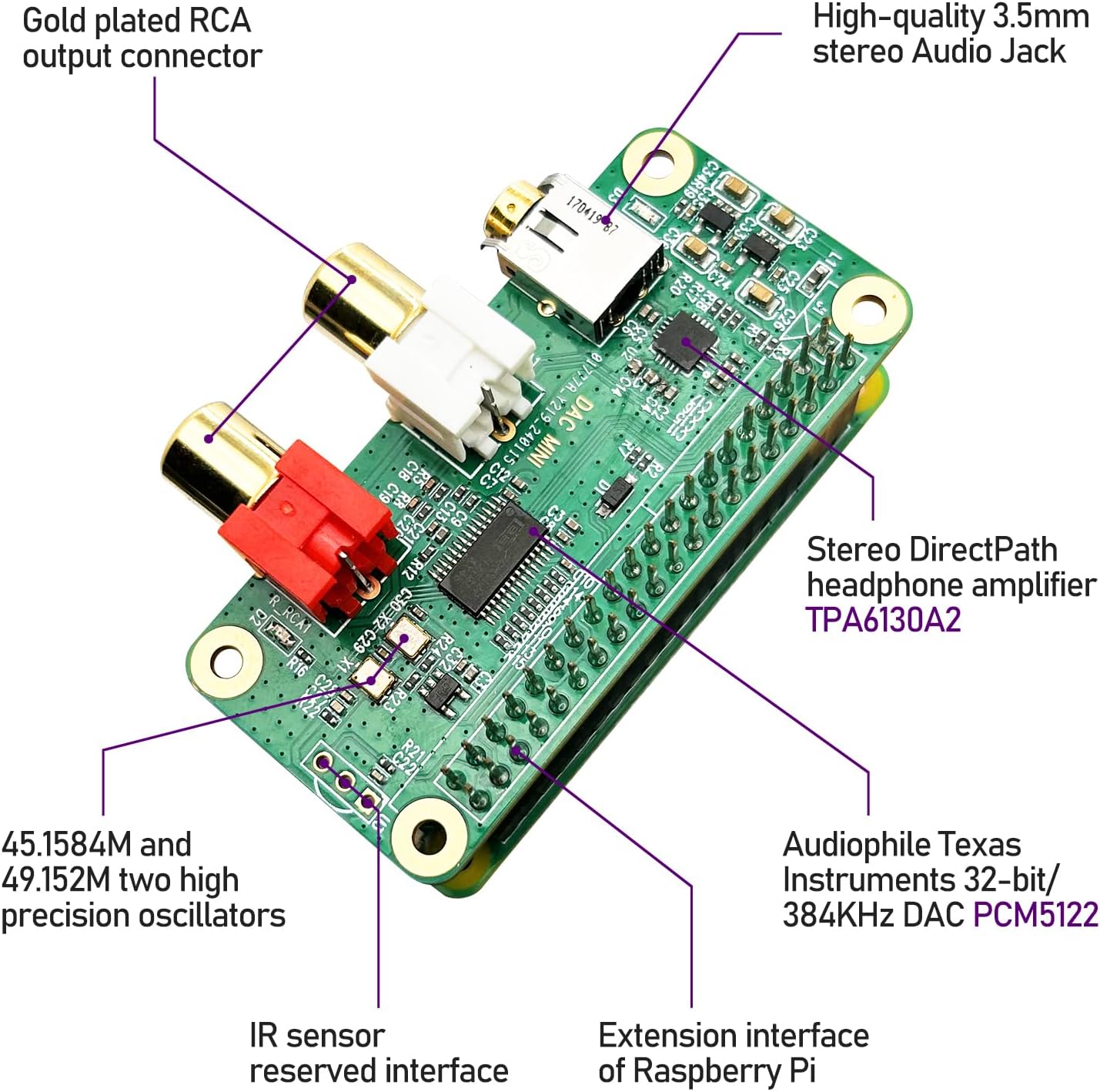

Class-leading stereo audio DAC PCM5122, sample rates up to 384-KHz/32-Bit. Paired with stereo high fidelity headphone amplifier TPA6133. Provides 2.1Vrms ground-centered outputs.

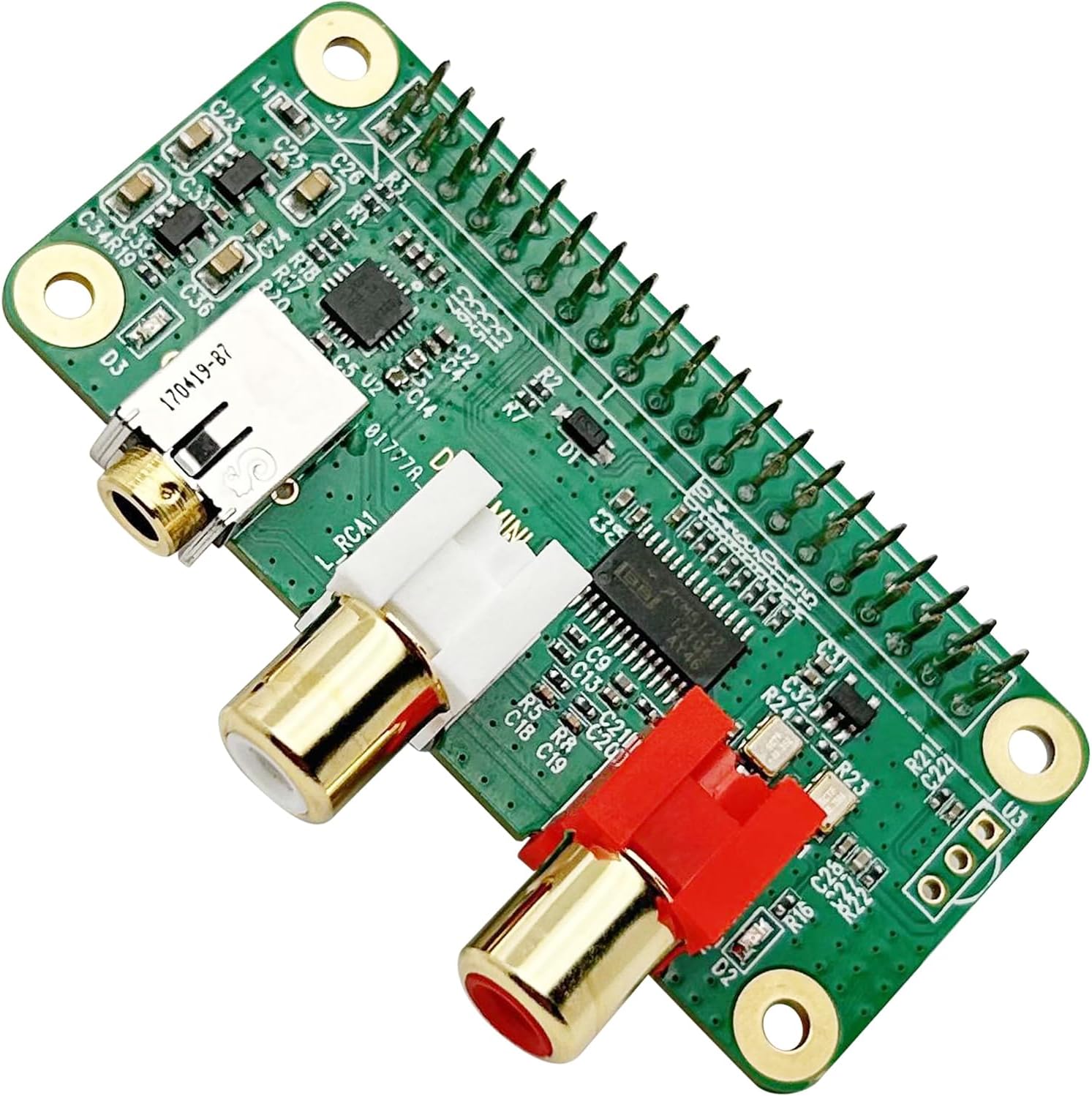

On-board a pair of gold plated RCA (LEFT &Right) jacks and a 3.5mm high-end headphone jack output, allow you free to play your music through Raspberry Pi to another terminals.
Great sound and low noise floor, eays to turn you raspebrry Pi into a DAC audio device that sounds as good as ones costing more than 100 times its price on the market.

Category: PI Audio SKU: HIFI-DAC-MINI

Description

innomaker Raspberry Pi HiFi DAC Mini HAT PCM5122 HiFi DAC Audio Card Expansion Board for Raspberry Pi Zero/Zero 2/Zero 2W/Pi5/PI4

Product Description

Name: HIFI-DAC-MINI
SKU: HIFI-DAC-MINI
Price: 25.99 USD
Availability: InStock

High-quality 3.5mm stereo audio jack. With 138mw headphone Amplifier can directly drive headphone.

DAC Chipset	High-quality DAC TI PCM5122 for best sound quality
Sample Rates	up to 384-KHz/32-Bit
Audio output connectors	2x RCA (LEFT &Right) &3.5mm head phone Jack
DAC SNR	112Db
Full Scale Output	2.1Vrms
DAC THD+N	-1 dBFS -78dB
Dynamic Range	112dB
Sampling Frequency ranges	8kHz to 384kHz
Ultra-low noise	Ultra-low noise voltage regulators for optimal audio performance
EEPROM	Integrated EEPROM for automatic configuration(Option).
I2S	Automatically switching frequencies according to the input I2S signals
Dual oscillators	Dual low jitter crystal oscillators for Master Clock generation
Remote control	Infrared remote control connector (using GPIO26)

Quantity	Discount (%)	Price
1 - 99	—	$25.99
100+	7.7 %	$23.99
