Description
[Product Selection of Logic Analyzer:]
| SUPPORT | LA1010 | LA1016 | LA2016 | LA5016 | LA5032 | MIPI16 |
| 1-Wire | √ | √ | √ | √ | √ | √ |
| Atmel SWI | √ | √ | √ | √ | √ | √ |
| CAN | √ | √ | √ | √ | √ | √ |
| DMX-512 | √ | √ | √ | √ | √ | √ |
| DHMI CEC | √ | √ | √ | √ | √ | √ |
| I2C | √ | √ | √ | √ | √ | √ |
| I2C/PCM | √ | √ | √ | √ | √ | √ |
| IR-NEC | √ | √ | √ | √ | √ | √ |
| JTAG | √ | √ | √ | √ | √ | √ |
| LCD1602/12864 | √ | √ | √ | √ | √ | √ |
| LIN | √ | √ | √ | √ | √ | √ |
| Manchester | √ | √ | √ | √ | √ | √ |
| MDIO | √ | √ | √ | √ | √ | √ |
| MIDI | √ | √ | √ | √ | √ | √ |
| MIPI-DSI LP | × | × | × | × | √ | √ |
| Modbus | √ | √ | √ | √ | √ | √ |
| Parallel | √ | √ | √ | √ | √ | √ |
| Parallel 8080 | √ | √ | √ | √ | √ | √ |
| Parallel 6800 | √ | √ | √ | √ | √ | √ |
| PS/2 Keyboard | √ | √ | √ | √ | √ | √ |
| QSPI | × | × | × | √ | √ | √ |
| SDIO | √ | √ | √ | √ | √ | √ |
| SMBus | √ | √ | √ | √ | √ | √ |
| SPI | √ | √ | √ | √ | √ | √ |
| SWD | √ | √ | √ | √ | √ | √ |
| UART/RS232/485 | √ | √ | √ | √ | √ | √ |
| UNI/O | √ | √ | √ | √ | √ | √ |
| USB LS/FS | √ | √ | √ | √ | √ | √ |
| Product Model | LA1010 | LA1016 | LA2016 | LA5016 | LA5032 |

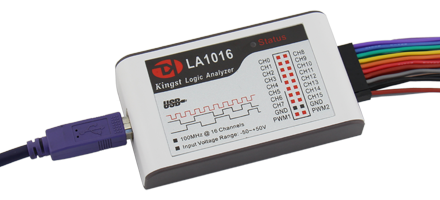

| Product Photo |
|
|
|
|
|
| Purchase Link | |||||
| Channel Number | 16CH | 16CH | 16CH | 16CH | 32CH |
| Max Sampling Rate | 100M@3CH, 50M@6CH 32M@9CH, 16M@16CH |
100M@16CH | 200M@16CH | 500M@16CH | 500M@32CH |
| Fastest Digital Signal | 20MHz | 20MHz | 40MHz | 80MHz | 80MHz |
| Min Pulse Width | 20ns | 20ns | 12.5ns | 6.25ns | 6.25ns |
| Hardware Memory Size | — | 1G bits | 1G bits | 2G bits | 4G bits |
| Hardware Sampling Depth (can be ensured) |
— | 50M Sas | 50M Sas | 100M Sas | 100M Sas |
| Max Compression Depth (can’t be ensured) |
10G Sas | 10G Sas | 10G Sas | 10G Sas | 10G Sas |
| Threshold Voltages | -4V ~ +4V | -4V ~ +4V | -4V ~ +4V | -4V ~ +4V | -4V ~ +4V |
[Packing List:]
- – 1 x Logic Analyzer
- – 3 x 9P Wire
- – 2 x 2P Wire
- – 20 x Test Hook Clip
- – 1 x USB2.0 Cable
- – 1 x CD-ROM</br
