Sale!

CAM-MIPIOV7251RAW

Original price was: $27.99.Current price is: $19.99.

Datasheet:

https://github.com/INNO-MAKER/cam-mipiov7251-trigger

Feature:

  • 1,OV7251 CMOS Sensor,1/7.5inch Optical Size,0.3 MPixels.
  • 2,Output formats: 8bit RAW BW and 10 bit RAW BW.
  • 3,Frame rate: 158fps.
  • 4,Optical coupled isolated external trigger input and flash output support
  • 5,Support 4 work mode
  • 6, Software trigger input support.
  • 7, driver feature support : gain,exposure,hflip,vflip
  • 8, Provide GPL Linux 5.15.32 driver source code.
  • 9,Active array size: 640×480 ,Global Shutter,External Trigger.



Datasheet

160 in stock

Quantity Discount (%) Price
1 - 9 $19.99
10 - 29 1.5 % $19.69
30 - 99 5 % $18.99
100 - 499 6.5 % $18.69
500+ 10.01 % $17.99
x
Category: SKU: cam-mipi7251raw

Description

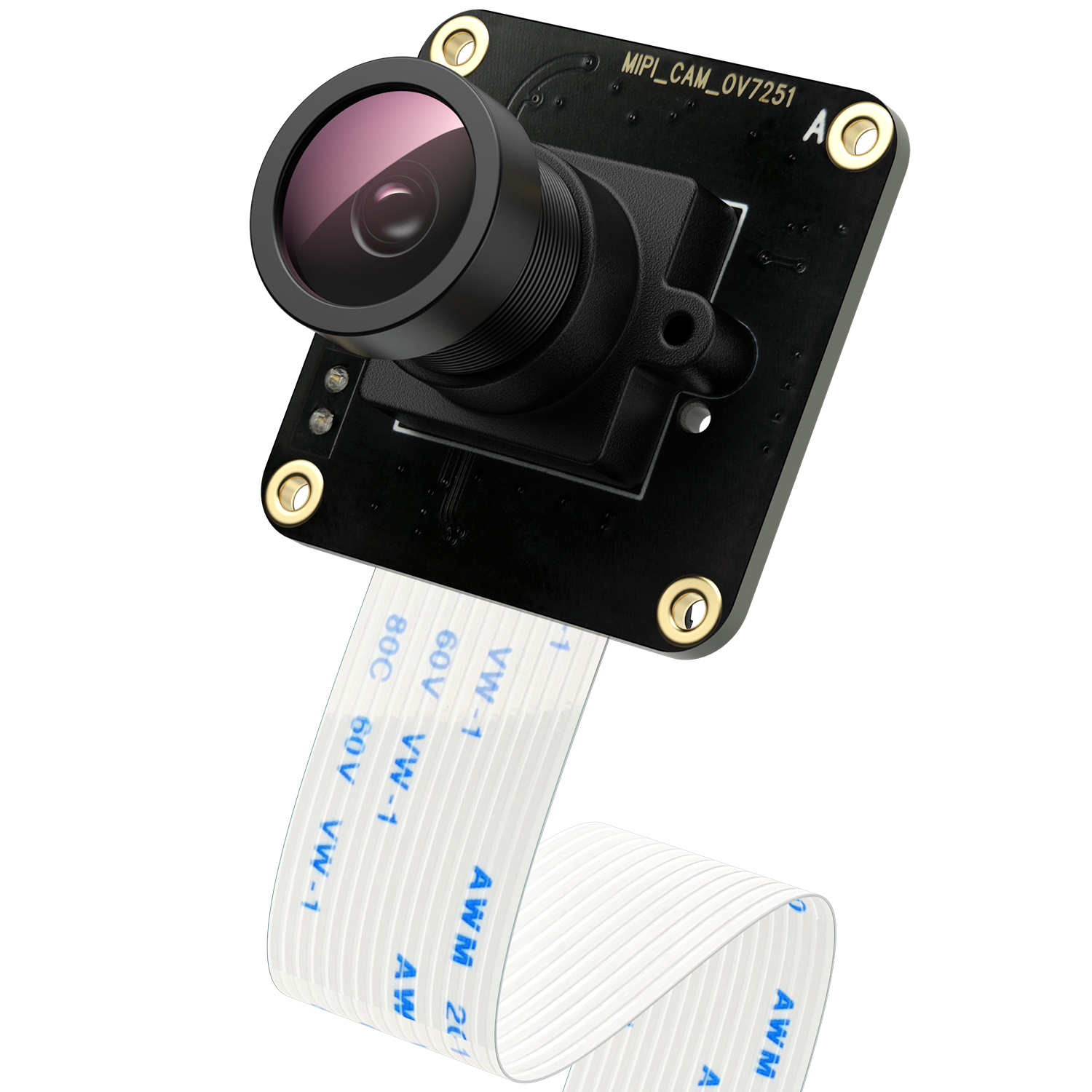

Innomaker low cost global shutter camera with external hardware and software trigger camera

resolution up to 640×480 frame rate up 153fps

7251-960x600

Description

Innomaker low cost global shutter camera with external hardware and software trigger camera resolution up to 640×480 frame rate up 153fps

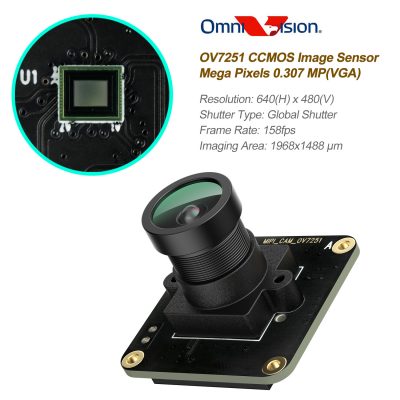

  • 1,OV7251 CMOS Sensor,1/7.5inch Optical Size,0.3 MPixels.
  • Active array size: 640×480 ,Global Shutter,External Trigger.
  • 2,Output formats: 8bit RAW BW and 10 bit RAW BW.
  • 3,Frame rate: 158fps.

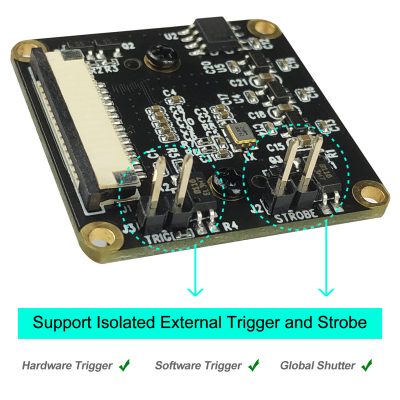

  • 4,Optical coupled isolated external trigger input and flash output support
  • 5,Support 4 work mode
  • 6, Software trigger input support.
  • 7, driver feature support : gain,exposure,hflip,vflip
  • 8, Provide GPL Linux 5.15.32 driver source code.



Working Mode Description:

Mode0  10 bit stream mode,resolution 640×480,frame rate 158fps
Mode1  8 bit stream mode,resolution 640×480,frame rate 158fps
Mode2 10 bit external trigger mode,resolution 640×480,frame rate   158fps
Mode3  8 bit external trigger mode,resolution 640×480,frame rate 158fps





Quick start by Using Raspberry PI OS Build In Driver:

  • Step1,Edit config.txt  sudo nano /boot/config.txt  add dtoverlay=ov7251 and save file and reboot.
  • Step2,Use libcamera-hello -t 0 to preview.



Quick Start by InnoMaker Driver:

  • Step1, download source code:
  • Step2, Install header file
sudo apt-get install raspberrypi-kernel-headers

  • Step3, Enter Driver Source Code folder and compiler drivers
$cd cam-mipiov7251-trigger
$sudo chmod -R a+rwx *
$cd ov7251_driver_source_code/source_code
$sudo make
  • Step4, After drivers compiler sucefully, then install drivers
$sudo makeinstall
  • Step5, System setting
$sudo nano /boot/config.txt
ADD
dtoverlay=inno_mipi_ov7251



Reboot



Normally we use python demo or VLC for preview.

Additional information

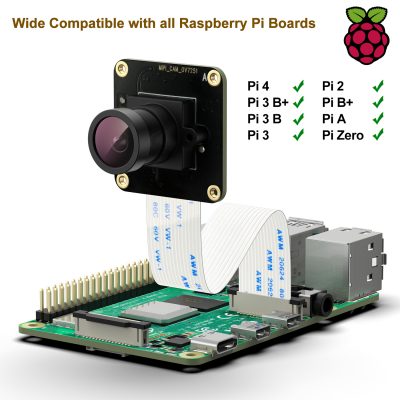

Raspberry PI
