100BASE-T1 Media Converter

$159.00

Features:

  • 100BASE Ethernet Media Converter establishes a direct point-to-point conversion between automotive ECU’s using 100BASE-T1(100 Mbit/s Fullduplex,) and any standard Fast Ethernet (100 Mbit/s, 100BASE-TX) device with an standard ethernet RJ45 connector.
  • 100BASE Ethernet Media Converter comes with 1x TE MATEnet and 1x MOLEX adapter. Do not provide the over unshielded twisted pair (UTP) cables. No extra hardware or software is needed to connect the device with a PC or a Laptop.
  • By using the NXP TJA1101 IEEE 802.3bw compliant ethernet PHY transceiver, ensure a trustworthy and effective tool to customers that are looking for a cost-efficient, quick and manageable solution for testing requirements, with no latency and no packet loss.
  • Features with 100BASE-T1 Master/Slave configuration and link LED. The design makes it portable and easy to install in test racks. The galvanized sheet steel with black powder coating housing makes it robust.
  • Plug and Play, No need to install the drivers. No customized driver is needed to interact with our 100BASE-T1-TX-N Media Converter. The device communicates with standard Ethernet through an RJ-45 connector.

Github:

  • https://github.com/INNO-MAKER/100BASE-T1TX-N

Datasheet

Quantity Discount (%) Price
1 - 4 $159.00
5 - 9 1.89 % $156.00
10 - 14 3.77 % $153.00
15 - 19 6.29 % $149.00
20+ 8.18 % $146.00
x
Category: SKU: 100BASE-T1

Description


Product Description

100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX

100BASE Ethernet Media Converter Device

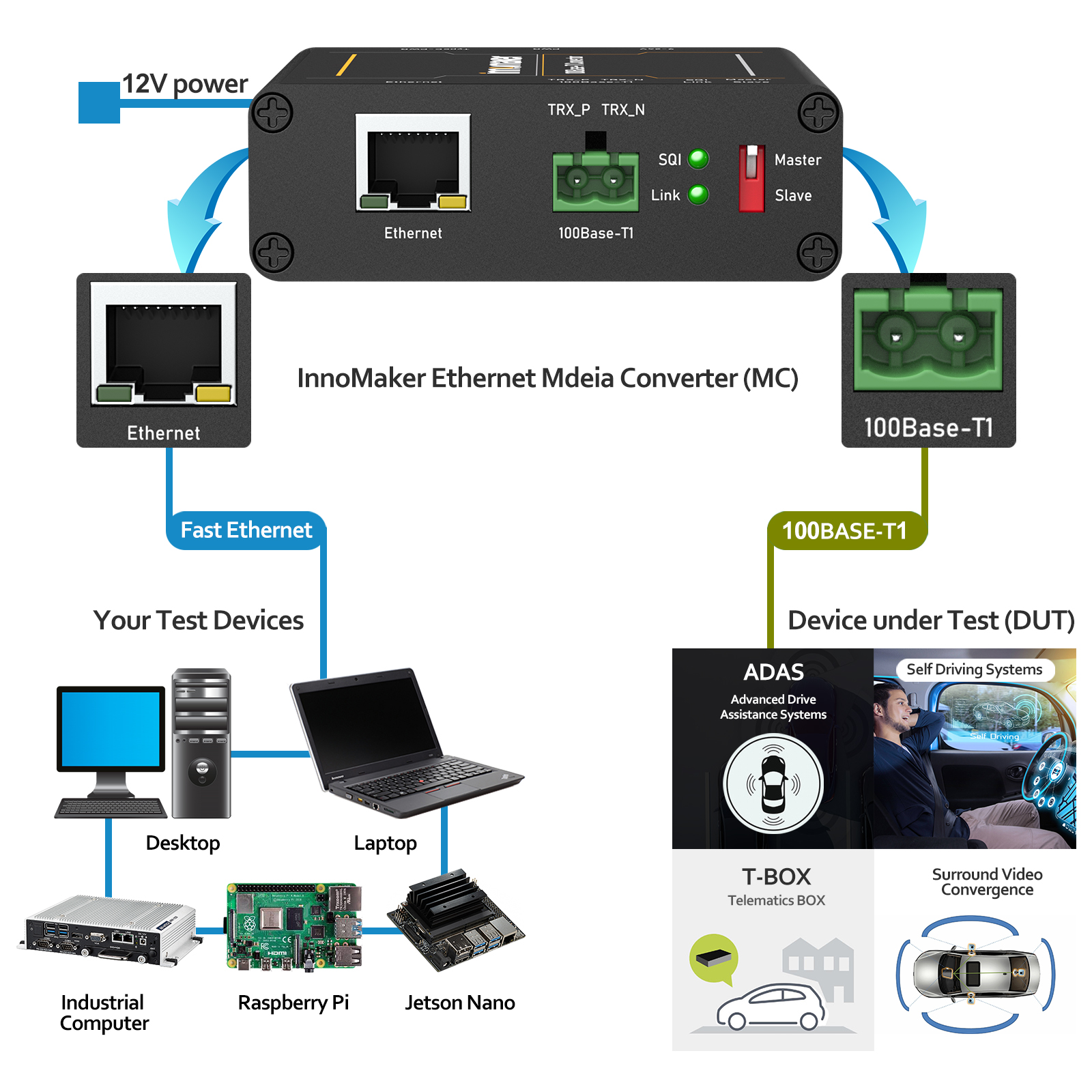

  • 100BASE Ethernet Media Converter Device features bi-directional conversion between Standard Ethernet (100BASE-TX) and Automotive Ethernet (100BASE-T1). A massive stainless-steel housing, coupled with switches for ease of configuration enables the user to interact with the converter, effortlessly.
  • No customized driver is needed to interact with our 100BASE-T1-TX-N Media Converter. The device communicates with standard Ethernet through an RJ-45 connector. Comes with a TE adapter and a MOLEX adapter,help the 100BASE-T1-TX-N Media Converter works well in different scenarios.
  • The design makes it portable and easy to install in test racks. The galvanized sheet steel with black powder coating housing makes it robust. The device is capable to function in a variating temperature range from 0 Celsius to +70 Celsius. With the in-built link LEDs, the operation of the device is transparent and adds the tester to detect Link up and data transmission visually.
  • No extra hardware or software is needed to connect the device with a PC or a Laptop. The device can be coupled with any hardware or software tool that runs on standard Ethernet with an RJ-45 connector.
  • Thus, the 100BASE-T1-TX-N Media Converter is the ideal solution for working quickly and efficiently with the new 100BASE-T1 technology without the hustle of extra- wiring, customized connectors, and vendor-specific tools.



100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX

100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX

100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX

RJ-45 Connector

100Mbit/s, 100BASE-TX Standard Ethernet

100BASE-T1 Port

2 pins and 5.08mm Pitch

LED Light / SQI LED



  • Link led will be lit when the 100BASE-T1-TX is paired with the DUT.
  • The led indicate the signal strength. The brighter the light, the stronger the signal.



100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX

100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX

100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX

Master/Slave configuration Key

In a 100BASE-T1 Link one device has to be set as Master, the other has to be set as Slave.

DC 9V-24V/1A

Power Input

Power Led

Red Power indicate led

100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX

100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX

100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX

5V/2A or 9V-12V/1A

Type-C Power Input

Aluminium Alloy Case

Housing by Aluminium Alloy Case, Sturdy and Durable.

100BASE Connector x2



  • 100Base Connector-Molex x1
  • 100Base Connector-TE x1



100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX
