CAM-MIPI290MONO

Original price was: $79.00.Current price is: $69.00.

Features:

  • CAM-MIPI290MONO module with SONY IMX290LLR Sensor, and connects via a ribbon cable to the CSI connector on the Raspberry Pi. It is a fully V4L2 compatible device.
  • CAM-MIPI290MONO module can be connected to a number of RPI boards, like Raspberry Pi 4 3B+ 3B Zero A+ CM3+ CM3.
  • CAM-MIPI290MONO is an Industrial Camera Module for Raspberry Pi 4 3B+ 3B Zero A+ CM3+ CM3.
  • Fully Compatible with Raspberry PI Build In Driver

Datasheet

Quantity Discount (%) Price
1 - 9 $69.00
10+ 5.8 % $65.00
x
Category: SKU: CAM-MIPI290MONO

Description

[Description:]

  • CAM-MIPI290MONO module with SONY IMX290LLR Sensor, and connects via a ribbon cable to the CSI connector on the Raspberry Pi. It is a fully V4L2 compatible device.
  • CAM-MIPI290MONO module can be connected to a number of RPI boards, like Raspberry Pi 4 3B+ 3B Zero A+ CM3+ CM3.
  • CAM-MIPI290MONO is an Industrial Camera Module for Raspberry Pi 4 3B+ 3B Zero A+ CM3+ CM3.
  • Sensor Type:

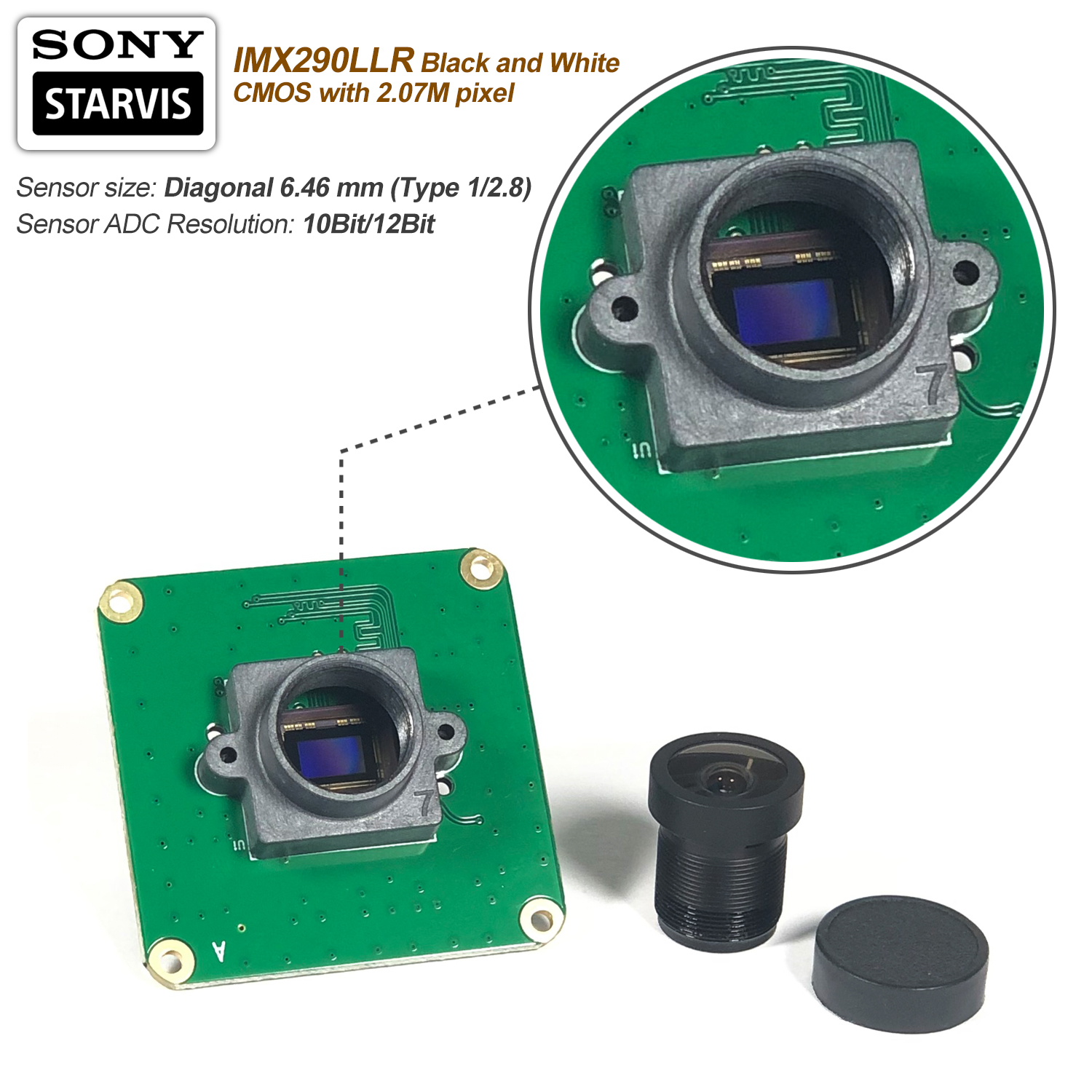

    • SONY STARVIS IMX290LLR Black and white CMOS with 2.07M pixel.
    • Pixel Size: 2.9(H)x2.9(V)um.
    • Sensor size: diagonal 6.46 mm (Type 1/2.8).
    • Sensor ADC Resolution: 10Bit/12Bit.
  • CAM-MIPI290MONO module connects via a ribbon cable to the CSI connector on the Raspberry Pi.
    • CSI-2 output: 2 lanes/RAW10 or RAW12.
    • CSI-2 default speed: 891Mbps/lane.
    • It is a fully V4L2 compatible device.
  • Fully Compatible with Raspberry PI Build In Driver



[Technical Parameters:]

  • Sensor type: SONY STARVIS IMX290LLR Black and white CMOS with 2.07M pixel.
  • Sensor size: diagonal 6.46 mm (Type 1/2.8).
  • Sensor ADC Resolution: 10Bit/12Bit.

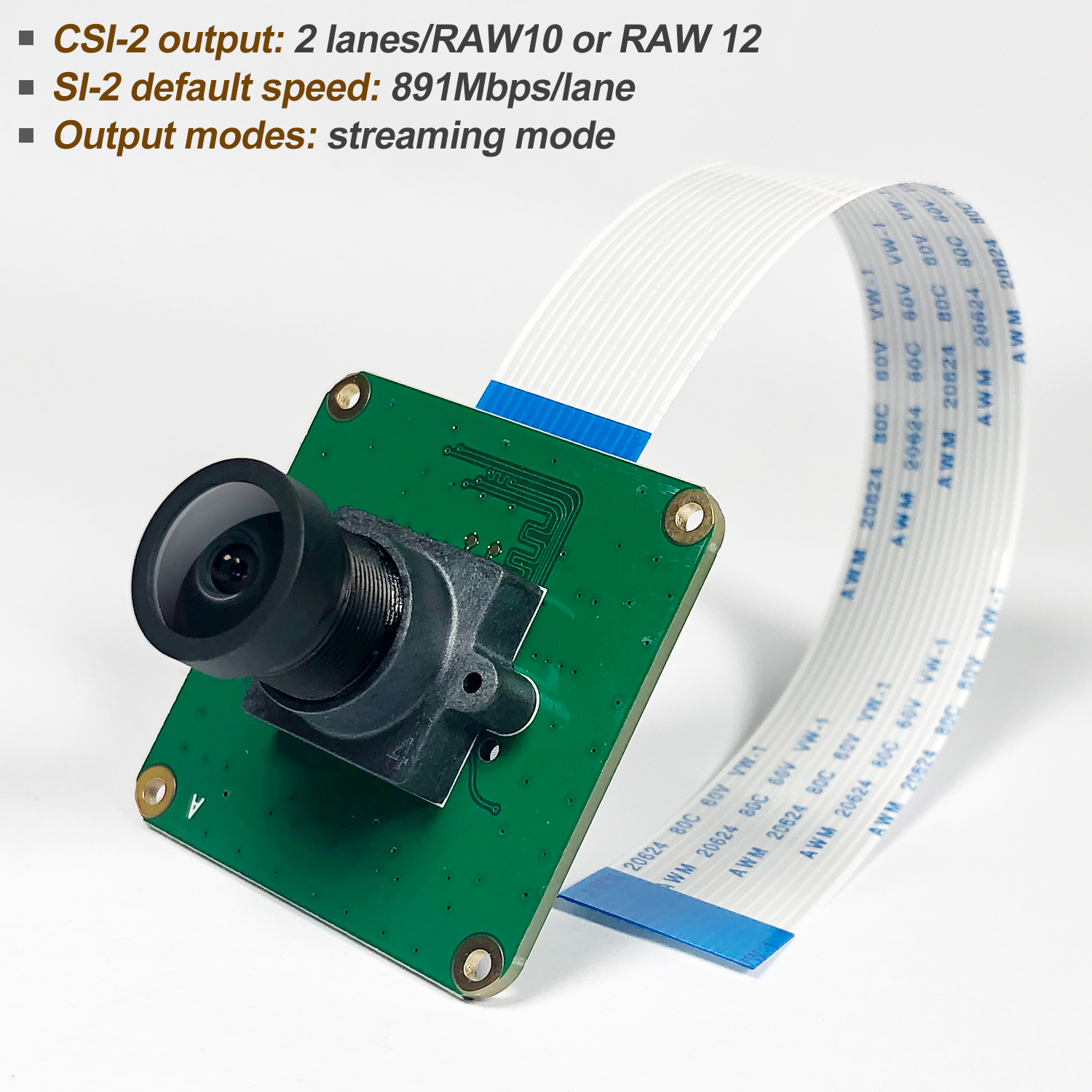

  • CSI-2 output: 2 lanes/RAW10 or RAW 12.
  • Pixel Count: 1920 x 1080.
  • Pixel Size: 2.9(H)x2.9(V)um.
  • CSI-2 default speed: 891Mbps/lane.
  • Output modes: streaming mode.
  • Shutter resolution: 1 horizontal unit.
  • Gain: 0—72dB.
  • Board Size:39mm x39mm.
  • Connector: 15PIN 1.0mm FPC cable.
  • Mounting Holes: 4XD2.2mm.

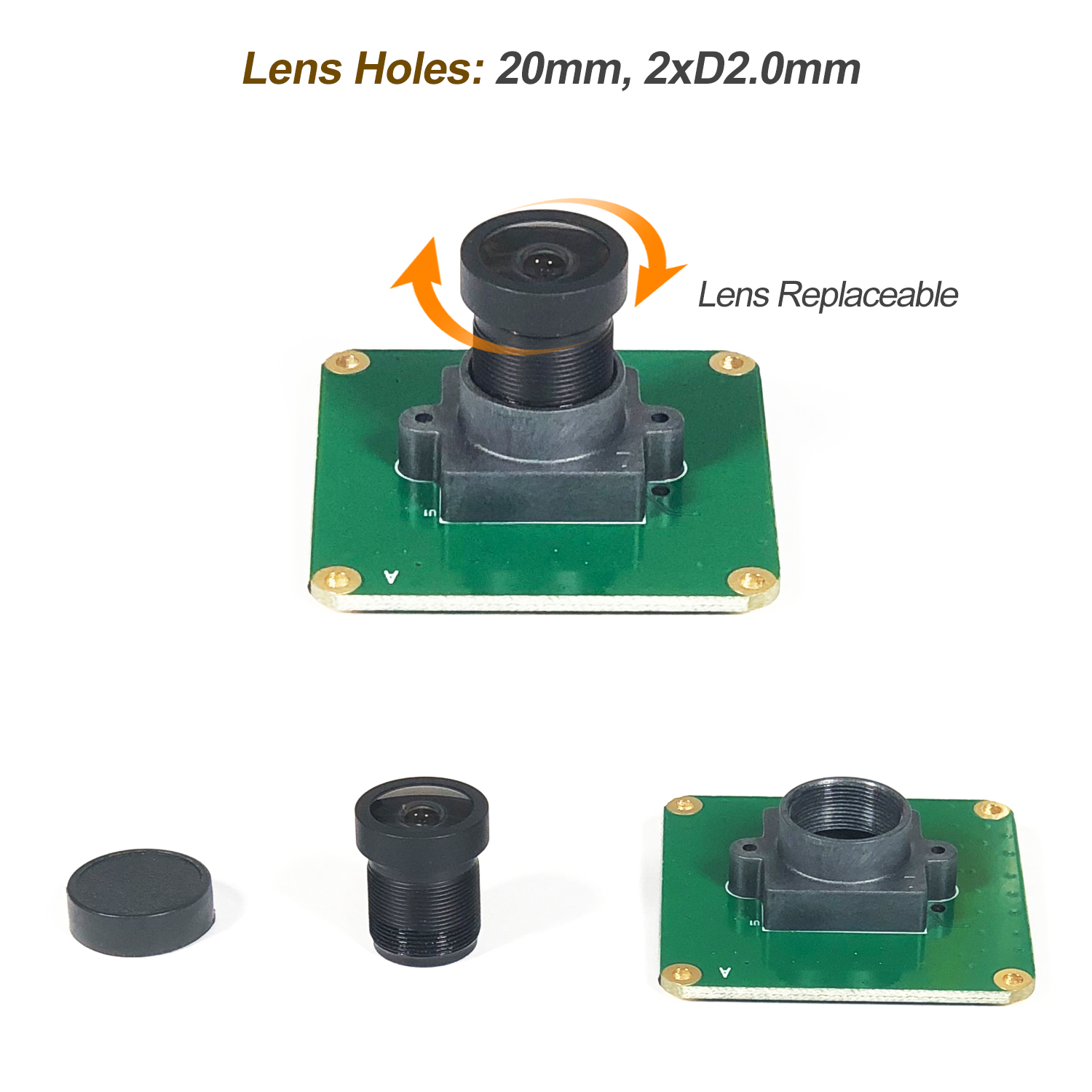

  • Lens Holes: 20mm,2xD2.0mm



[Packing List:]

  • 1 x CAM-MIPI290MONO Camera Module
  • 1x 15PIN Ribbon Cable



[Quick Start]

  • Modify config.txt by command :  sudo nano /boot/config.txt
  • Add content and save config.txt, reboot:

dtoverlay=imx290,clock-frequency=74250000

  • Preview: libcamera-hello -t 0



To override the automatic camera detection, you will need to delete the entry camera_auto_detect=1 if present in the config.txt file. Your Raspberry Pi will need to be rebooted after editing this file.

NOTE
Setting camera_auto_detect=0 disables the boot-time detection completely.

Additional information

Options

NO LEN, FN2.8-2.6NOIRFilter-FOV140, M12-FN2.8-2.4NOIR-FOV100-Distortion0
