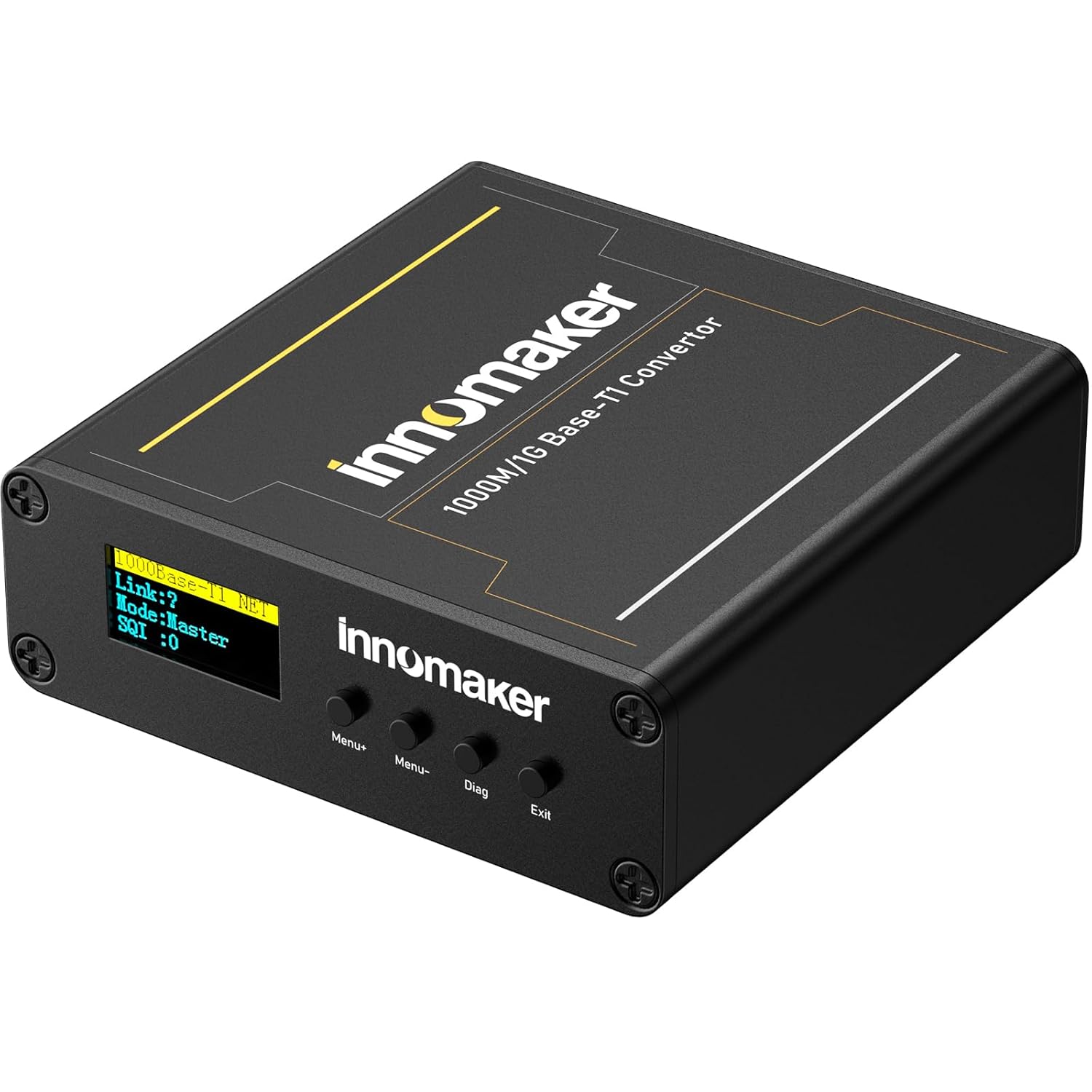

1000Base-T1-TX Media Converter

About this item

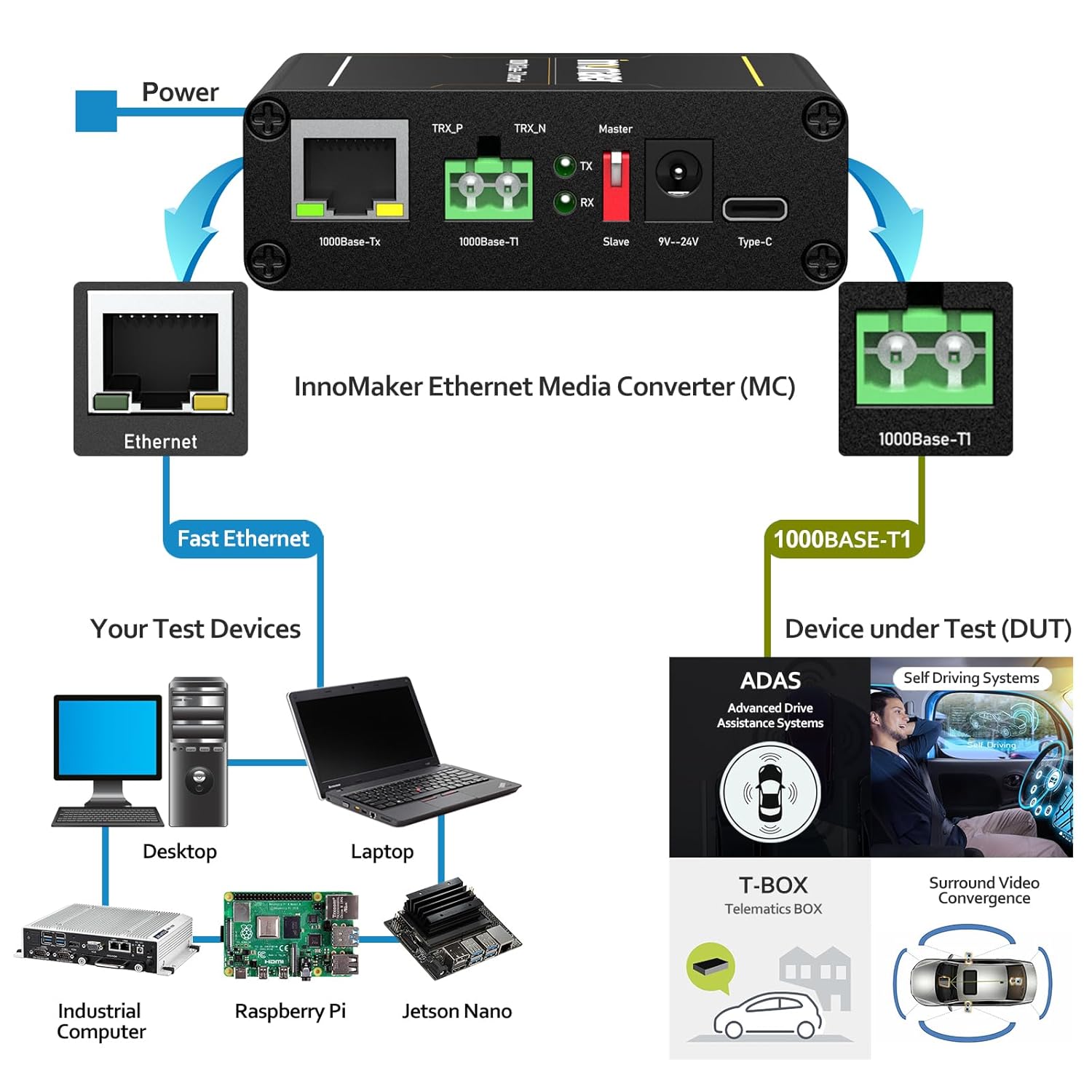

  • Establishes a direct point-to-point conversion between automotive ECU’s using 1000BASE-T1(1000 Mbit/s Fullduplex,) and any standard Fast Ethernet (1000 Mbit/s, 1000BASE-TX) device with an standard ethernet RJ45 connector. Only supports 1000BASE communication, not compatible with 100BASE.
  • By using the AEC-Q100 qualified TI DP83TG720SWRHATQ1 IEEE 802.3bp and Open Alliance compliant automotive Ethernet physical layer transceiver, ensure a trustworthy and effective tool to customers that are looking for a cost-efficient, quick and manageable solution for testing requirements, with no latency and no packet loss.
  • Comes with 1x TE MATEnet and 1x MOLEX adapter. Do not provide the over unshielded twisted pair (UTP) cables.

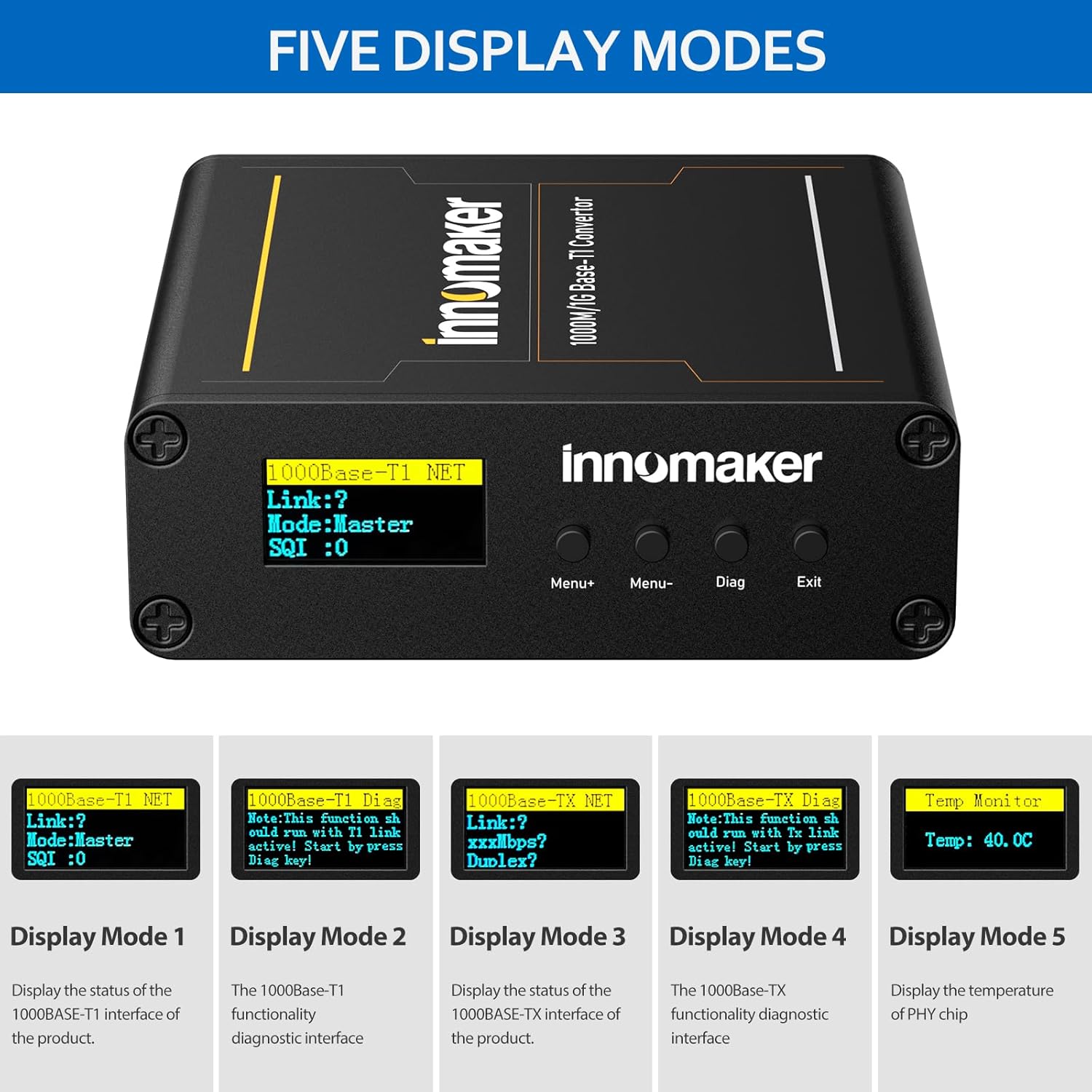

  • Features with 1000BASE-T1 Master / Slave configuration and an OLED screen. Support Cable open and short fault detection.
  • Plug and Play, No need to install the drivers.Data pass-through is conducted without disrupting any network protocols.

Description

Product Description

1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX
1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX
1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX

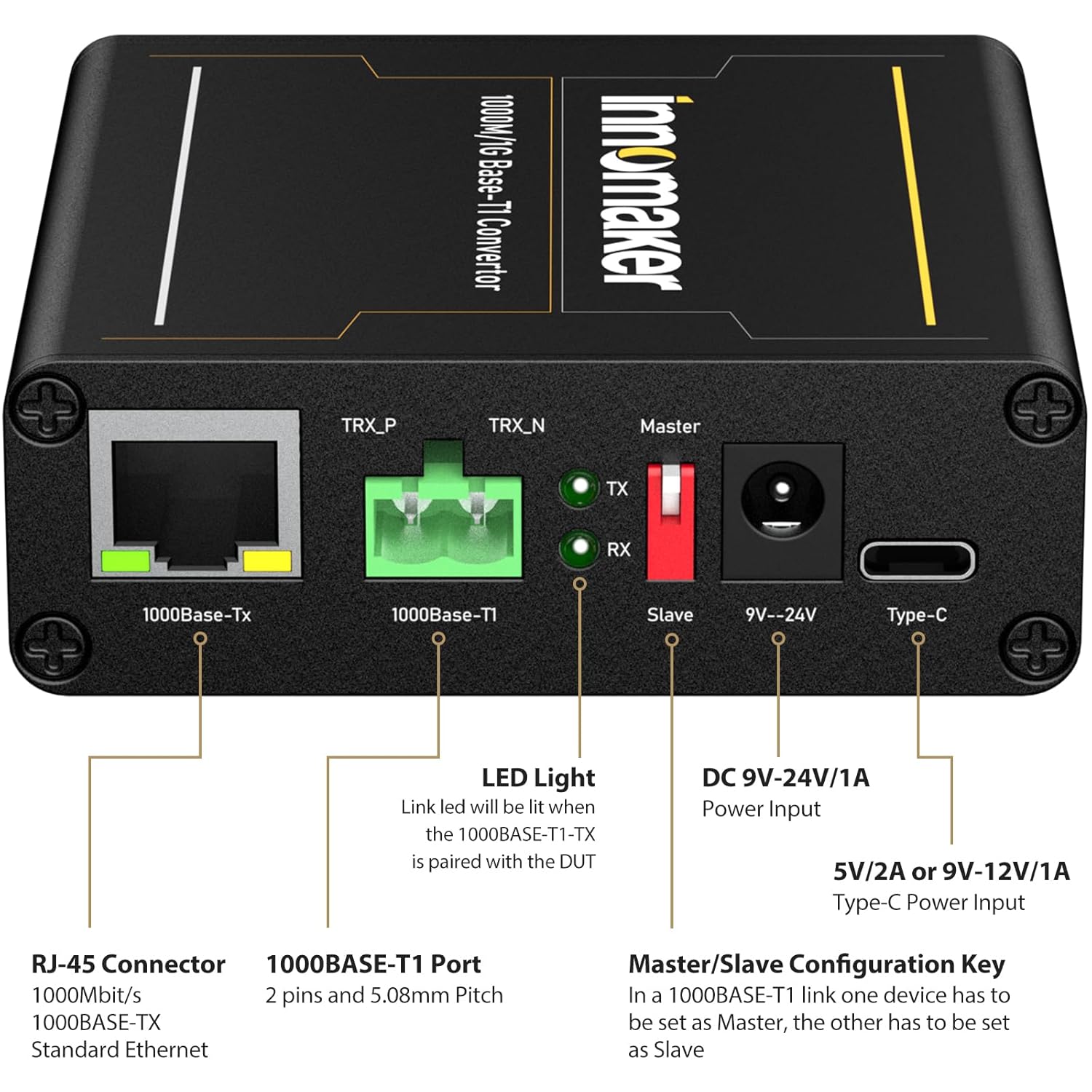

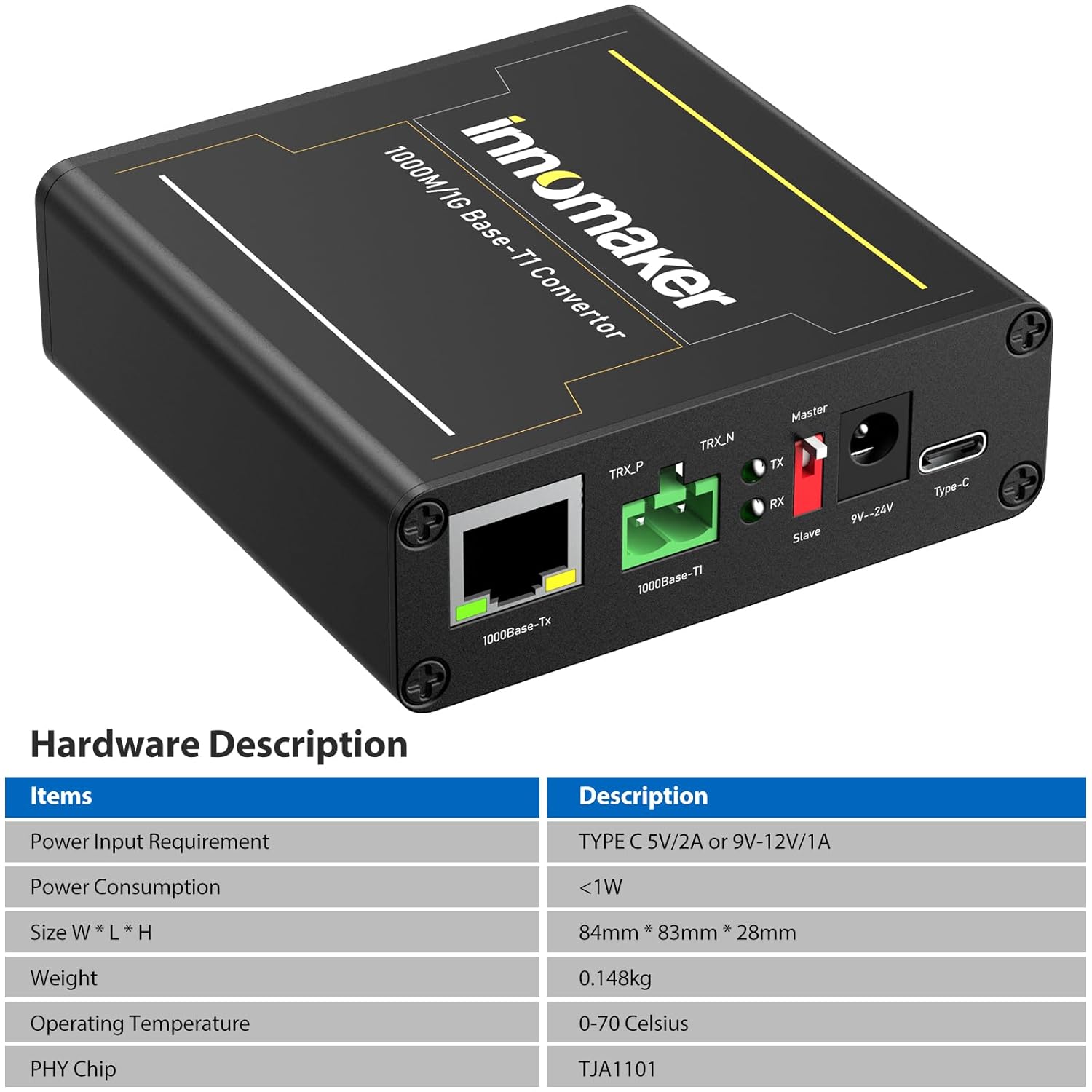

RJ-45 Connector

  • 1000Mbit/s, 1000BASE-TX
  • Standard Ethernet



1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX

1000BASE-T1 Port

  • 2 Pins and 5.08mm Pitch



1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX

Master/Slave Configuration Key

  • In a 1000BASE-T1 link one device has to be set as Master, the other has to be set as Slave



1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX

LED Light

  • Link led will be lit when the 1000BASE-T1-TX is paired with the DUT



1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX

DC 9V-24V/1A

  • DC power input



1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX

5V/2A or 9V-12V/1A

  • Type-C power input



1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX

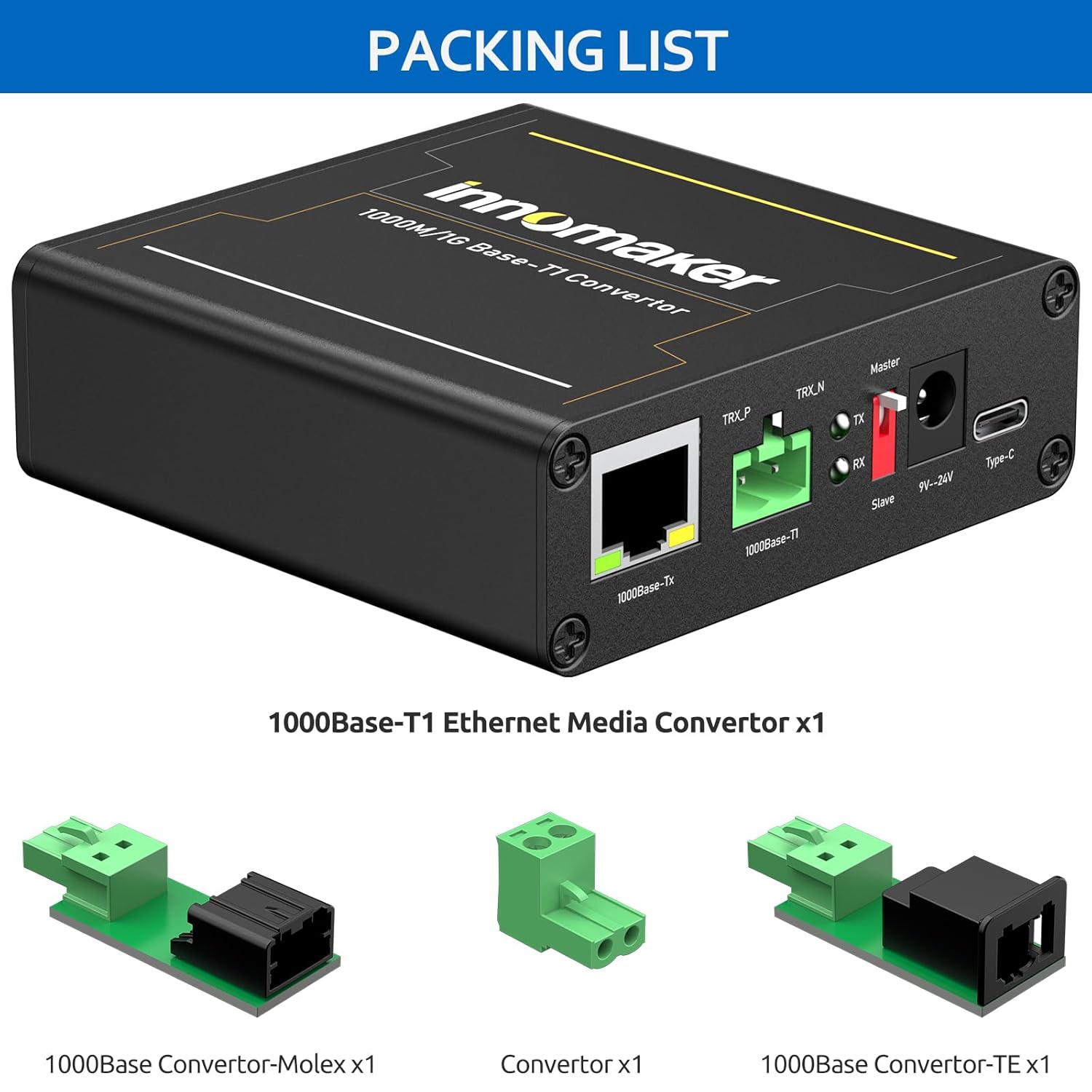

MOLEX Adapter

  • 1000Base convertor-Molex x1



1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX

TE MATEnet Adapter

  • 1000Base convertor-TE x1



1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX
1000BASE Ethernet Media Converter 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX
