- Raspberry Pi Camera CAM-MIPI462RAW is an Industrial Camera Module for all Raspberry Pi.
- Sensor Type: STARVIS IMX462LQR Color CMOS Active Pixel type Solid-state Image Sensor with Square Pixel Array 2 MP Effective Pixels. Diagonal 6.46 mm (Type 1/2.8). Pixel count: 1920×1080. High to 60 fps.
- This IMX462 module connects to the CSI connector on the Raspberry Pi directly. Using the build-in driver same as imx290(74.25M Hz).
- Match a wide angle Lens. Fov(D)=148 degrees, Fov(H)=118 degrees. Focal distance is adjustable.
- Comes with user manual, test demo and friendly technology support. We offer custom-design service.

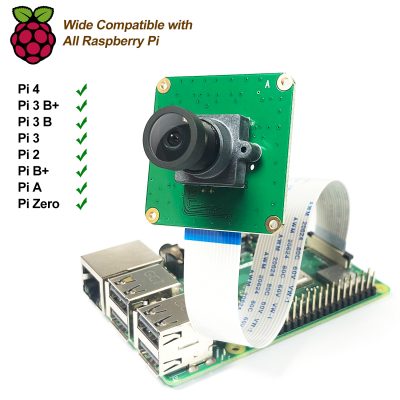

CAM-MIPI462RAW is an Industrial Camera Module for Raspberry Pi 4 3B+ 3B Zero A+ CM3+ CM3 to get raw-sensor data by pluging into the CSI-2 Pi camera interface directly.
It could be used in machine vision, low-light dynamic identification, low-light object recognition system.
Mode0——————-1920×1080 30fps SRGGB10P(option with 37.125MHZ OSC)
Mode1——————-1920×1080 60fps SRGGB10P
Mode2——————-1920×1080 50fps SRGGB12P
STARVIS IMX462LQR Color CMOS Sensor
CAM-MIPI462RAW is a low-cost wider angle Lens excellent low illumination and High dynamic range(HDR) camera module.
On-board IMX462LQR-C is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13M effective pixels. This chip operates with analog 2.9V, digital 1.2V, and interface 1.8V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters.
This chip features an electronic shutter with variable charge-integration time. Applications for: Surveillance cameras, FA cameras, Industrial cameras.
Support Raspbian build-in driver and Bullseye libcamera. Driver same as IMX290(74.25M Hz option). dtoverlay=imx290, clock-frequency=74250000.
We support customozed production service, Fast redesign and Fast delivery. If you have especial demand, feel free to contac us.
|Sensor type||STARVIS IMX462 Color CMOS Sensor 2M pixel|

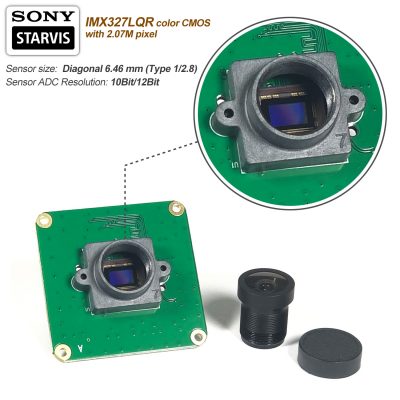

|Sensor size||Diagonal 6.46 mm (Type 1/2.8)|
|Sensor ADC Resolution||10Bit/12Bit|

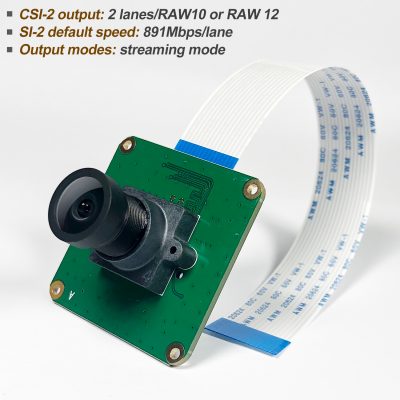

|CSI-2 output||2 lanes|
|Pixel Count||1920 x 1080|
|CSI-2 default speed||891Mbps/lane|
|Output modes||streaming mode|
|Shutter resolution||1 horizontal unit|

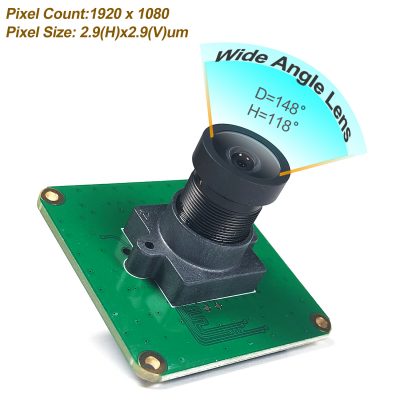

|Angle of View||D=148 degrees, H=118 degrees|

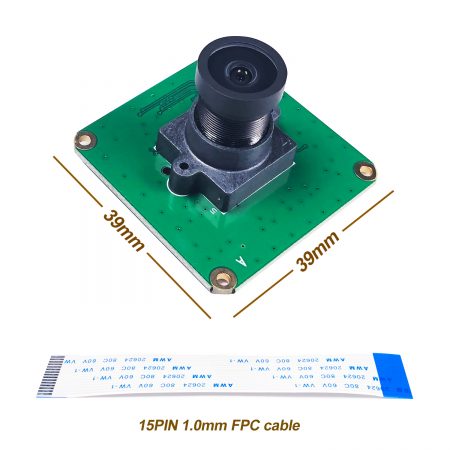

|Board Size||39mm x39mm|
|Connector||15PIN 1.0mm FPC cable|

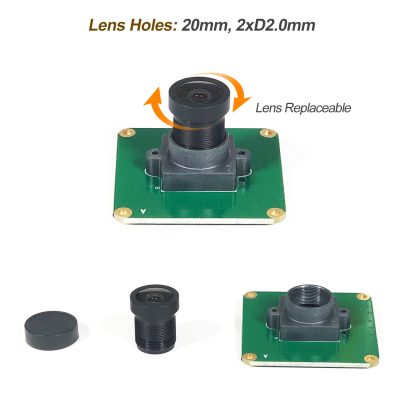

|Lens Holes||20mm 2xD2.0mm|
