CAM-IMX296Color-GS, Raspbery PI GS Camera With Color Sensor Support External Trigger

Original price was: $49.00.Current price is: $43.00.

Datasheet: https://github.com/INNO-MAKER/cam-imx296raw-trigger

Features:

  • Support up to 60fps at 1456×1088 Pixels, Compatible with rasberry pi GS camera;
  • Support c/cs mount Lens, 20mm distance Lens seat with filter;

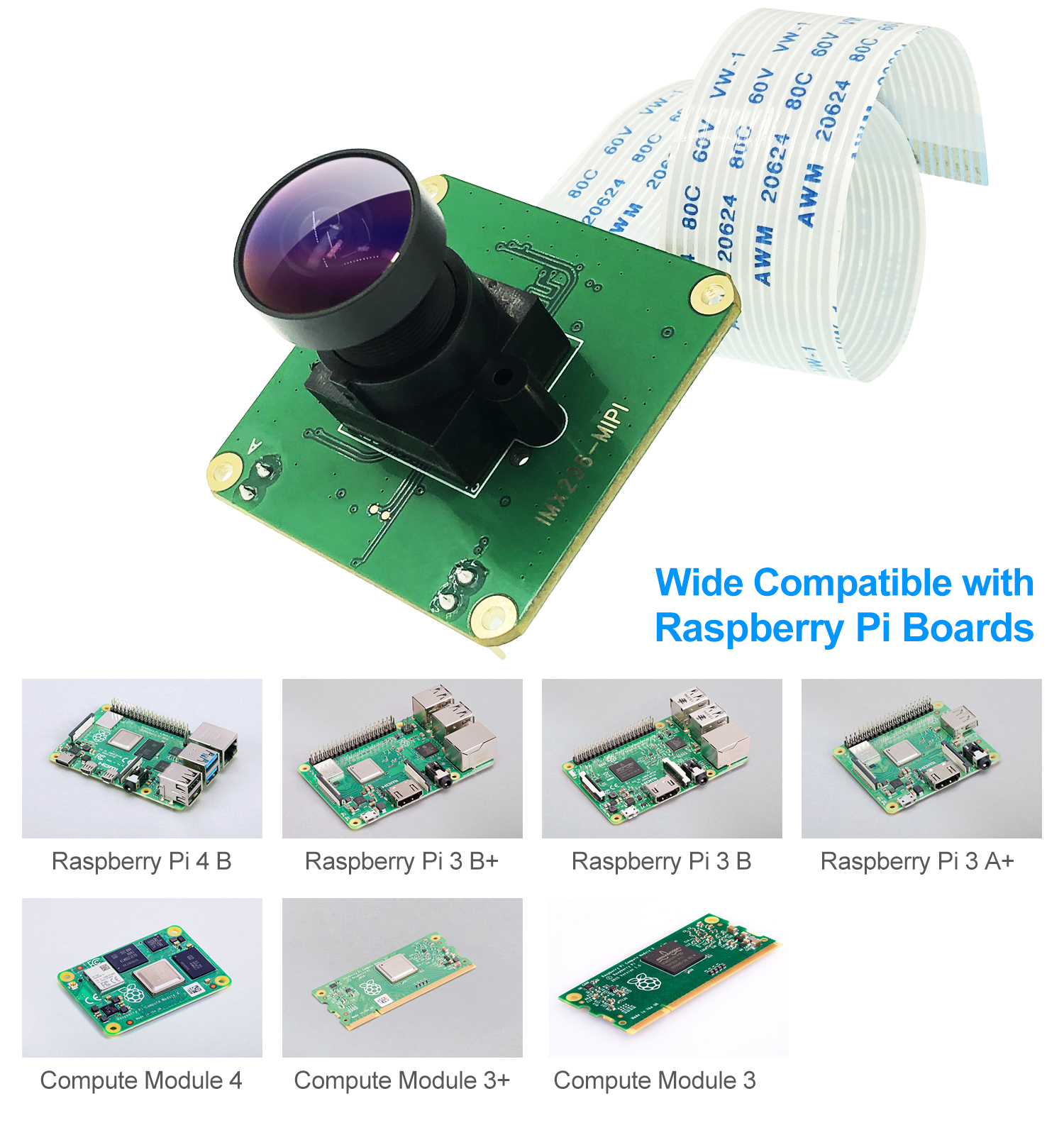

  • Compatible with Raspberry PI5/Pi4/PI3B+/PI3/PI2/PI B+/PI A/PI ZERO/CM4/CM3+/CM3/Jetson Nano.
  • Output format YUV with Resolution 1456*1088 up to 60fps;(Raspberry PI OS Driver);
  • Board Size 38mm x 38mm.
  • Packing List: cam-imx296color, FPC Cable x2
Quantity Discount (%) Price
1 - 9 $43.00
10 - 49 2.33 % $42.00
50 - 99 4.65 % $41.00
100+ 6.98 % $40.00
x
Categories: , SKU: CAM-IMX296Color

Description

1,Description

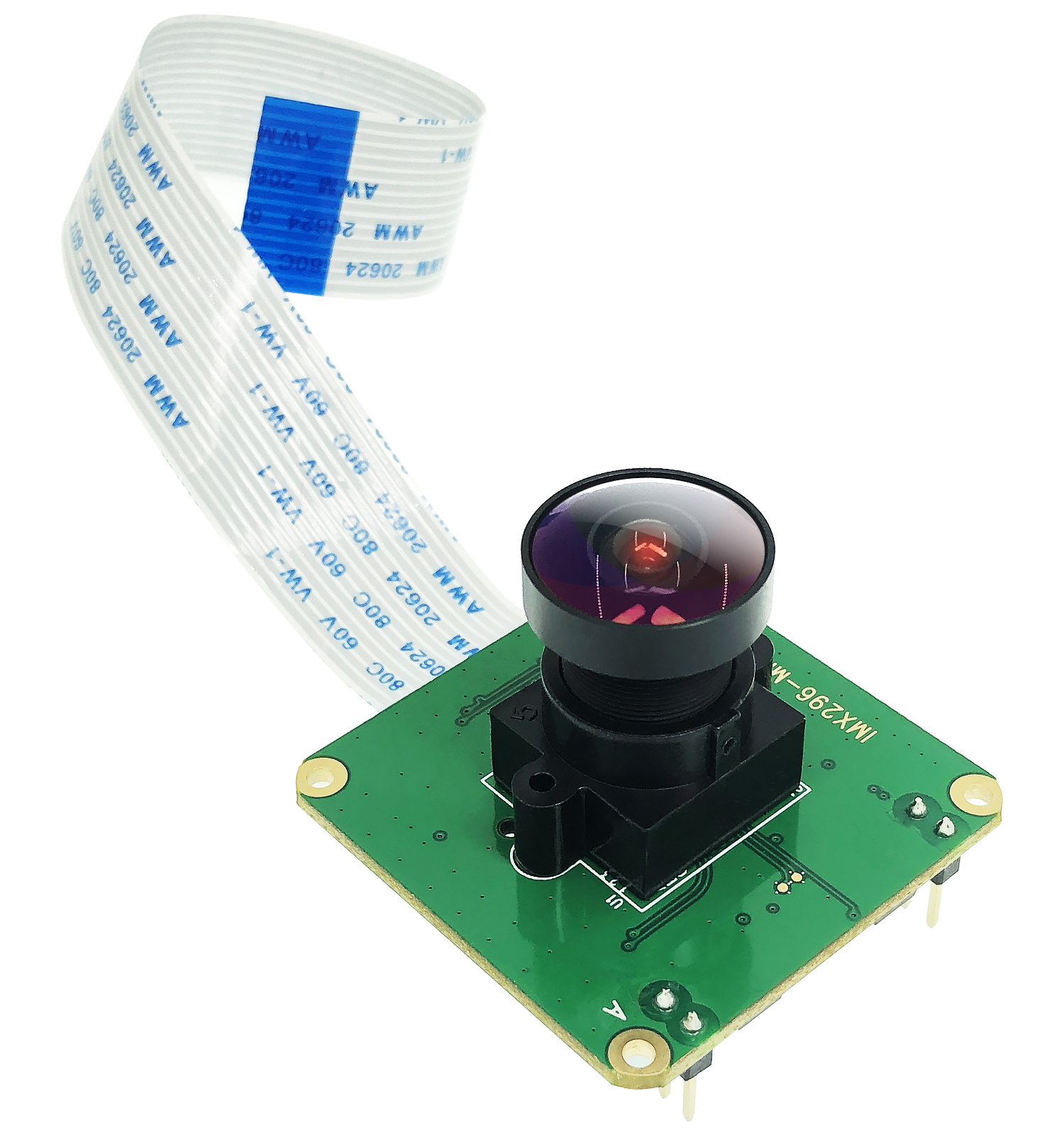

Innomaker low cost gs camera module CAM-MIPI296Color is a Global Shutter Camera with IMX296 CMOS Sensor support external hardware trigger support cs and c camera lens replace raspberry pi gs camera

  • Support up to 60fps at 1456×1088 Pixels, Compatible with rasberry pi GS camera;
  • Support c/cs mount Lens, 20mm distance Lens seat with filter;
  • Compatible with Raspberry PI5/Pi4/PI3B+/PI3/PI2/PI B+/PI A/PI ZERO/CM4/CM3+/CM3/Jetson Nano.
  • Output format YUV with Resolution 1456*1088 up to 60fps;(Raspberry PI OS Driver);, Board Size 38mm x 38mm.
  • Packing List: cam-imx296color, FPC Cable x2

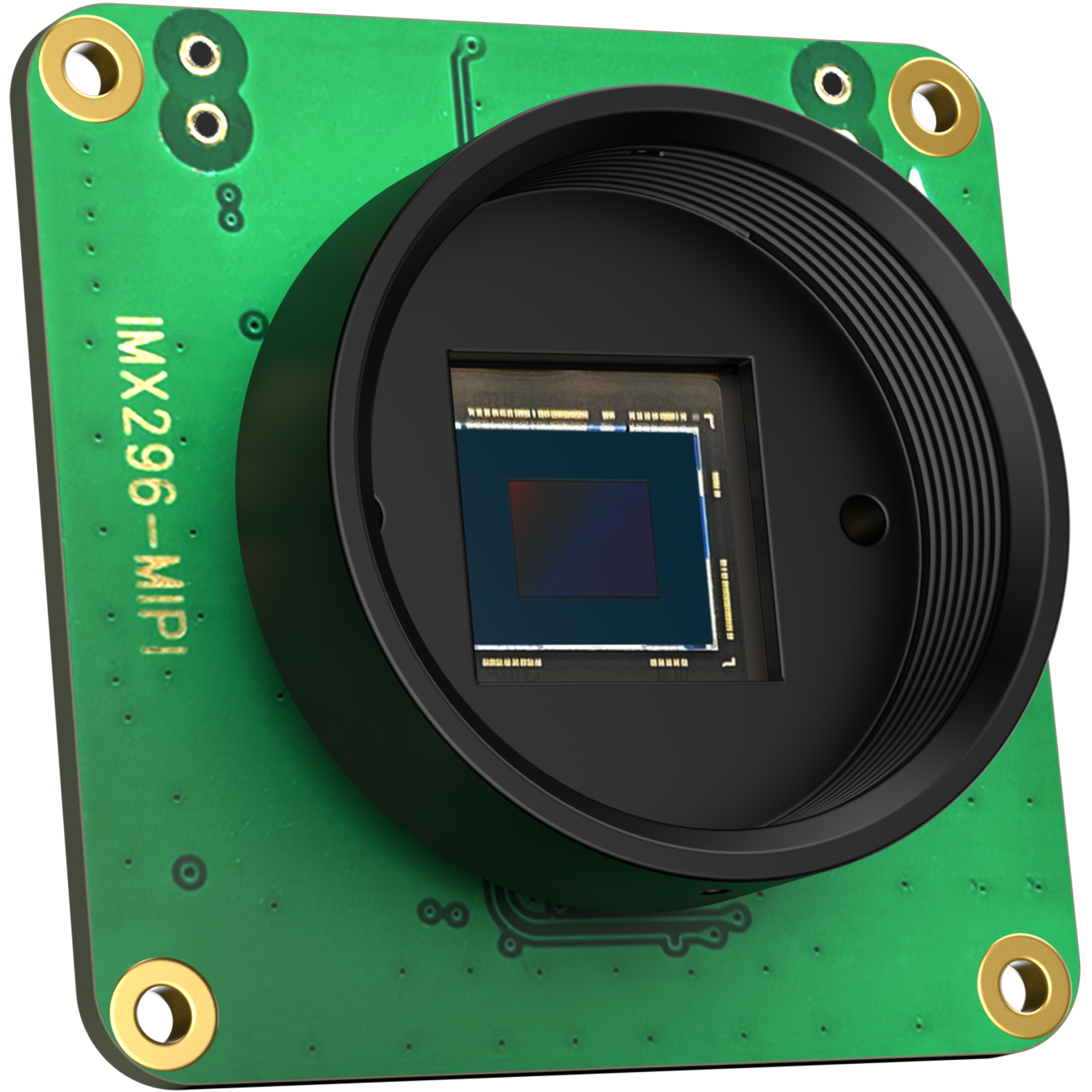

CAM-MIPI296Color is a Global Shutter Camera with IMX296 CMOS Sensor Module

support up to 60fps at 1456×1088 Pixels operate with shorter exposure times down to 30µs, given enough light than a rolling shutter camera, which makes it useful for high-speed photography.

Support Raspberry Pi OS Build In Drivers totally compatible raspberry pi official gs camera module with libcamera tools for all pi boards



2, Specification

GS Camera
Net price
Size 38 x 38
Weight
Still resolution 1.58 Megapixels
Video modes 1456 x 1088p60
Sensor Sony IMX296 Color version
Sensor resolution 1456 x 1088 pixels
Sensor image area 6.3mm diagonal
Pixel size 3.45 µm x 3.45 µm
Optical size 1/2.9″
Focus Adjustable
Depth of field N/A
Focal length Depends on lens
Horizontal Field of View (FoV) Depends on lens
Vertical Field of View (FoV) Depends on lens
Focal ratio (F-Stop) Depends on lens
Maximum exposure times (seconds) 15.5
Lens Mount C/CS



3,Packing List

  • 1xCAM-IMX296Color
  • 1x15PIN To 15PIN FPC Cable(1mm)
  • 1x15PIN To  22PIN FPC Cable (0.5mm)

4, Quick Start

Step1,  Add dtoverlay=imx296 to config.txt

Step2, Set camera_auto_detect=0

Step3, Reboot and preview by libcamera-hello -t 0

5,C/CS LENS

CW-16MM-LENS-BLUE CW-16MM-LENS CW-6MM-LENS
Focal Length: 16.0mm 16.0mm 6.0mm
Optical Format: 1″(Φ16、12.8×9.6) 1″(Φ16、12.8×9.6) 1/2″
F/N: N/A N/A 1.2mm
D/f’: F1.4-16 1:1.4 N/A
Mount: C/CS C/CS Mount C/CS
FOV 1″:44.6°*33.6°
2/3″:30.0°*23.2°
1/1.8″:24.7°*18.6°
1/2″:21.8°*16.4°
1″:44.6°*33.6°
2/3″:30.0°*23.2°
1/1.8″:24.7°*18.6°
1/2″:21.8°*16.4°
63°
Back Focal Length: 17.53mm 17.53mm 7.53mm
Optical length: 69.53mm N/A N/A
Distortion: 1″ sensor (-0.7%),
1/2″ sensor(-0.5%),
1/3″ sensor(-0.15%)
0.05% N/A
Iris Type: Manual Manual Manual
MTF: 10Mega Pixel 10Mega Pixel 3Mega Pixel
M.O.D: 0.2m 0.20m~∞ 0.2m
Dimension: Φ39.0*50.00 Φ36.0*52.00 mm Φ30*34
Weight: 135.3g 110g 53g
Operation: Zoom: Manual; Iris Type: Manual; Focus: Manual; N/A N/A
Structure: Aluminum alloy+9G Aluminum alloy+9G Aluminum alloy+6G



Option For Mono Version
