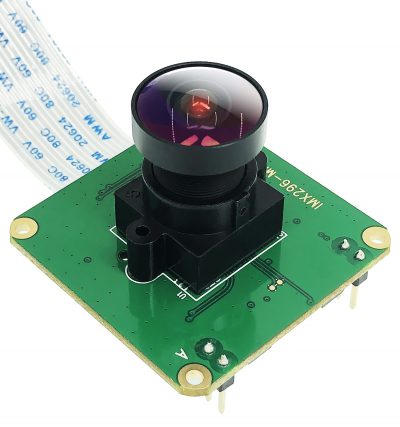

CAM-MIPI296RAW-Mono

Original price was: $49.00.Current price is: $43.00.

Datasheet: https://github.com/INNO-MAKER/cam-imx296raw-trigger

Features:

  • Support up to 60fps at 1456×1088 Pixels,Compatible with rasberry pi GS camera;

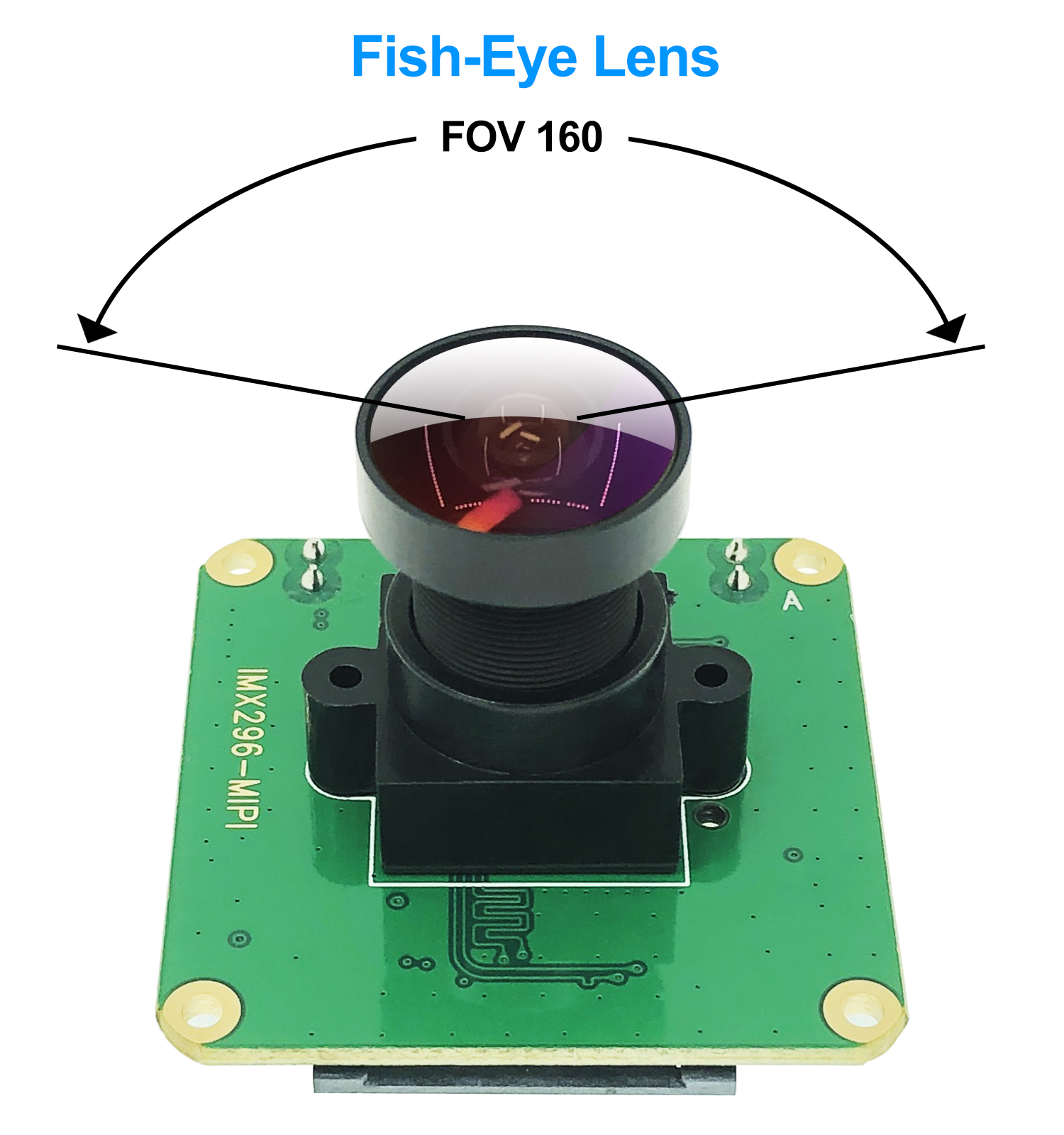

  • Comes with 1x M12 Len-seat and 1xCS Len-Seat, 1x M12 wide angle Len;

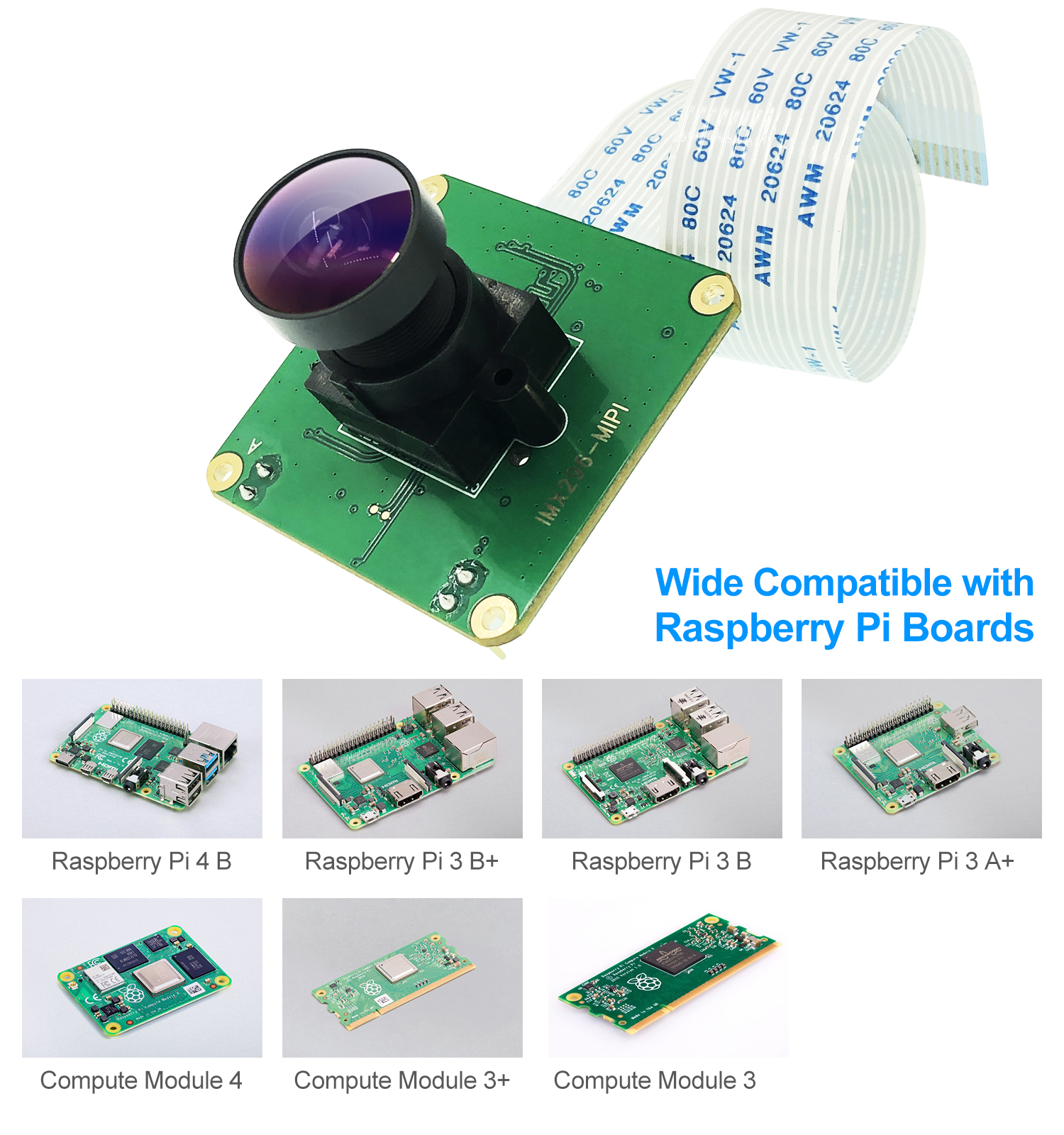

  • Support Pi 4B/Pi 3B+/Pi 3B/Pi 3A+/CM4/CM3+/CM3 Directly with libcamera tools;
  • Output format Y10 with Resolution 1456*1088 up to 60fps (InnoMaker Driver);
  • Output format YUV with Resolution 1456*1088 up to 60fps;(Raspberry PI OS Driver);
  • Support Raspberry Pi OS Build In Drivers totally compatible raspberry pi official gs camera module with libcamera tools for all pi boards
  • Support Innomaker driver with isolated hardware External Trigger And isolated Strobe function, control by v4l2-ctl -l tools.(InnoMaker Driver did not support libcamera and only support specify system version)
Quantity Discount (%) Price
1 - 9 — $43.00
10 - 49 2.33 % $42.00
50+ 6.98 % $40.00
x
Category: SKU: CAM-IMX296RAW

Description

CAM-MIPI296RAW

1,Description

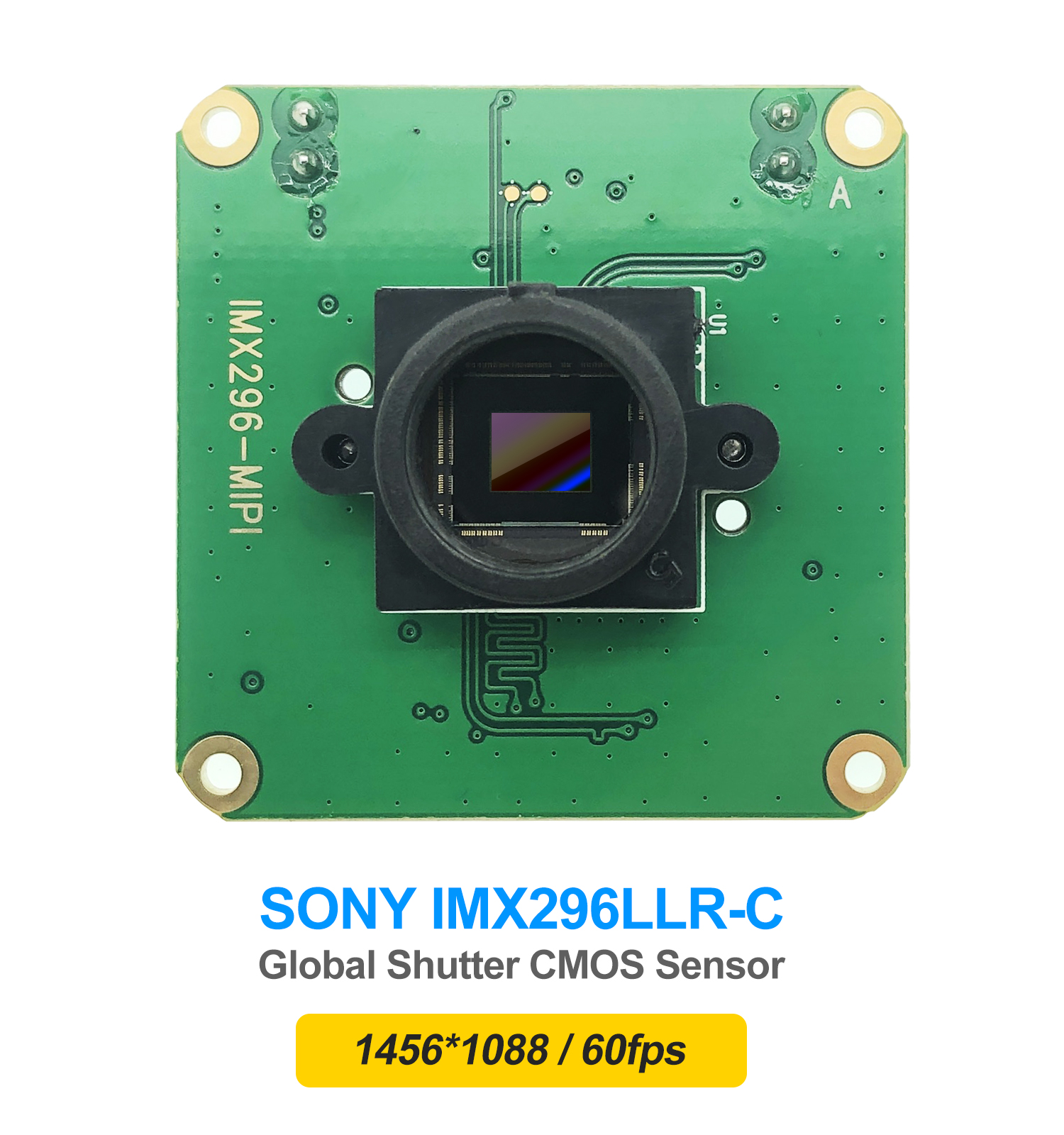

CAM-MIPI296RAW is a Global Shutter Camera with IMX296LLR-C CMOS MONO Sensor Module

support up to 60fps at 1456×1088 Pixels operate with shorter exposure times down to 30µs, given enough light than a rolling shutter camera, which makes it useful for high-speed photography.

  • Support Raspberry Pi OS Build In Drivers totally compatible raspberry pi official gs camera module with libcamera tools for all pi boards

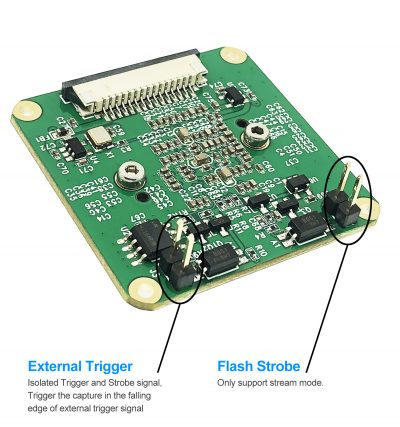

  • Support Innomaker driver with isolated hardware External Trigger And isolated Strobe function, control by v4l2-ctl -l tools.
  • (InnoMaker Driver did not support libcamera and only support specify system version)



2,Module Features

  • Support up to 60fps at 1456×1088 Pixels,Compatible with rasberry pi GS camera;
  • Comes with 1x M12 Len-seat and 1xCS Len-Seat, 1x M12 wide angle Len;
  • Support Pi 4B/Pi 3B+/Pi 3B/Pi 3A+/CM4/CM3+/CM3 Directly with libcamera tools;
  • Output format Y10 with Resolution 1456*1088 up to 60fps (InnoMaker Driver);
  • Output format YUV with Resolution 1456*1088 up to 60fps;(Raspberry PI OS Driver);
  • This chip operates with analog 3.3V, digital 1.2V, and interface 1.8V triple power supply :
  • low power consumption.
  • High sensitivity, low dark current and low PLS characteristics are achieved. (Applications: Sensing)



3, Specification

GS Camera

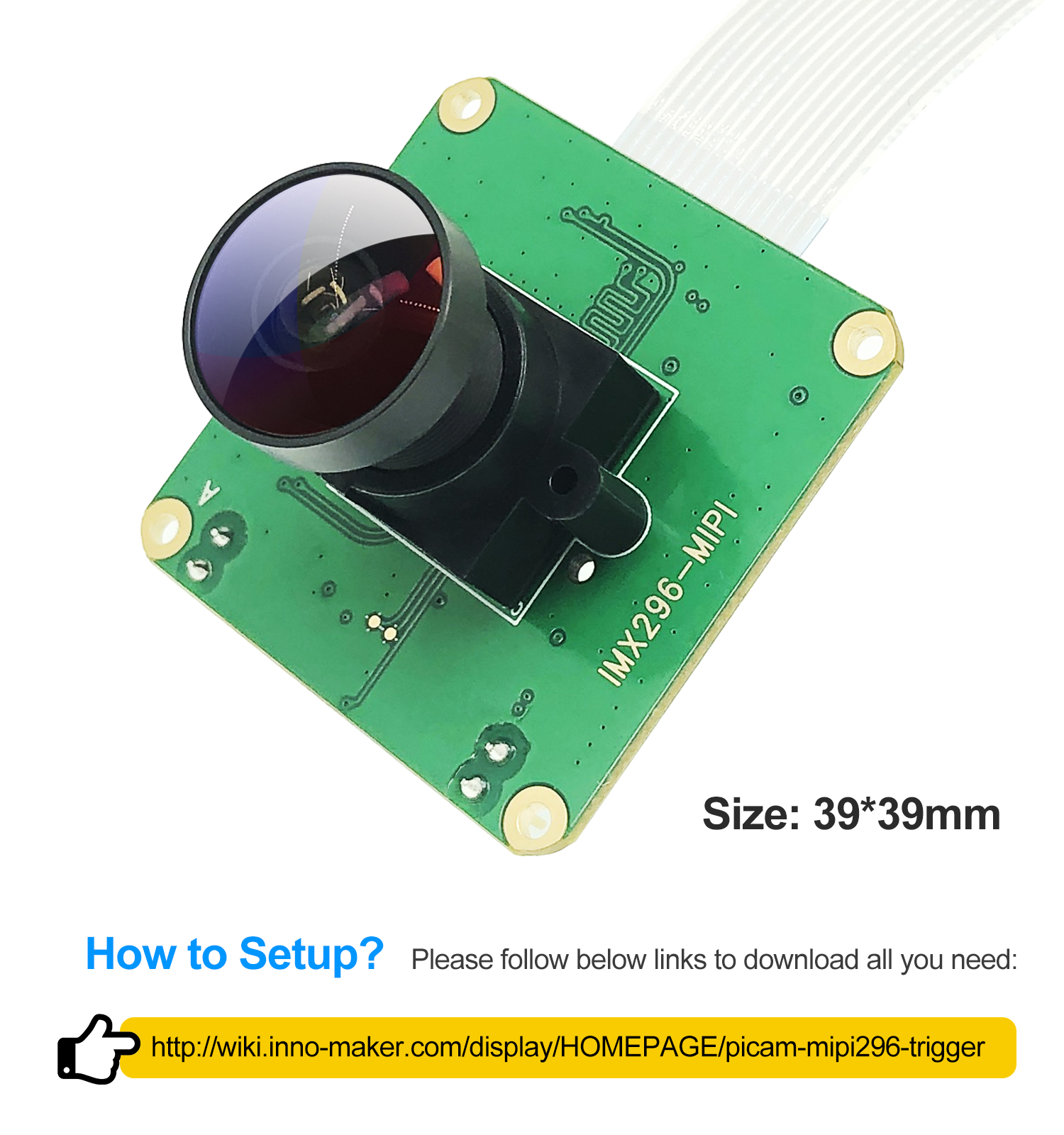

Size 39×39
Still resolution 1.58 Megapixels
Video modes 1456 x 1088p60

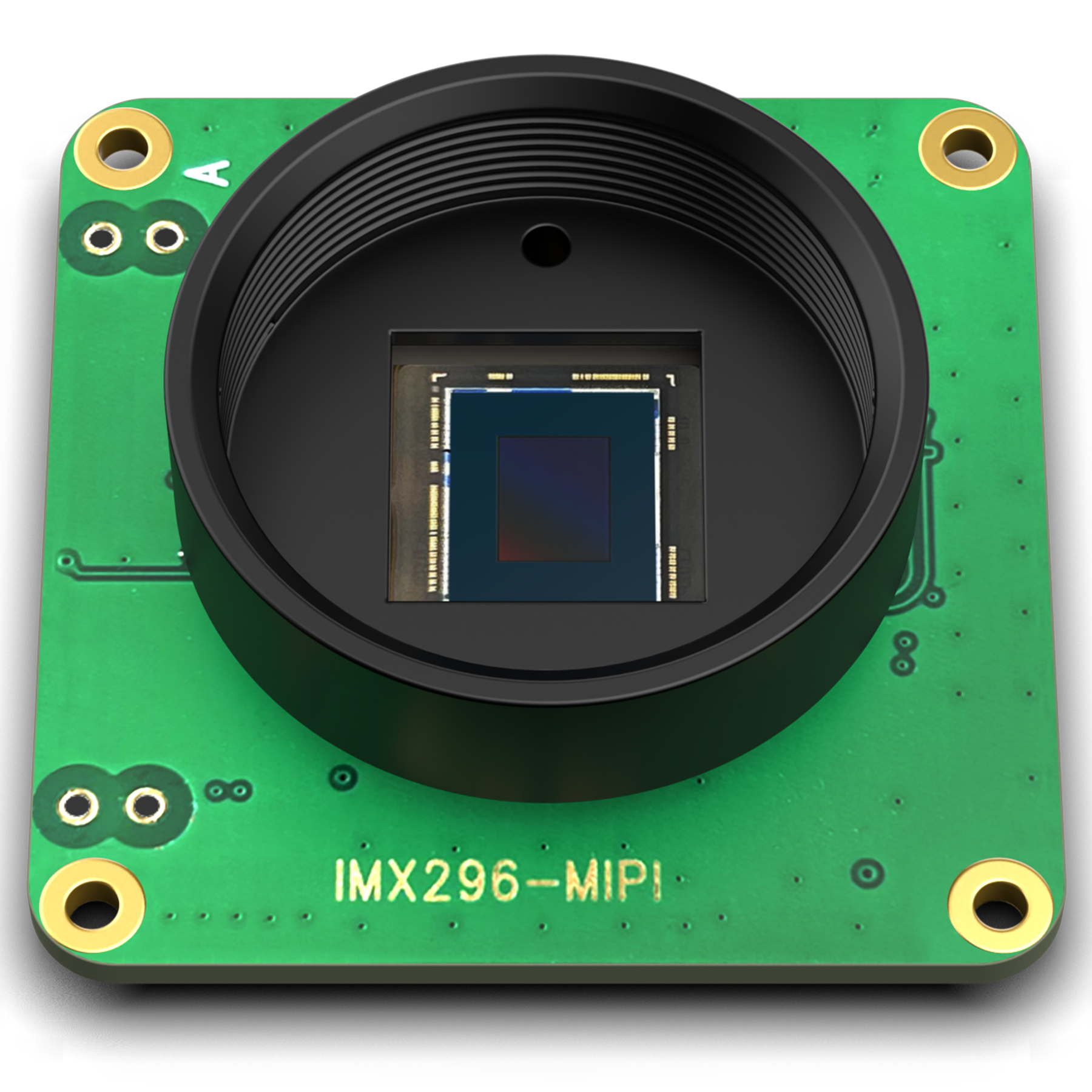

Sensor Sony IMX296 Mono Version
Sensor resolution 1456 x 1088 pixels
Sensor image area 6.3mm diagonal
Pixel size 3.45 µm x 3.45 µm
Optical size 1/2.9″
Focus Adjustable
Depth of field N/A
Focal length Depends on lens
Horizontal Field of View (FoV) Depends on lens
Vertical Field of View (FoV) Depends on lens
Focal ratio (F-Stop) Depends on lens
Maximum exposure times (seconds) 15.5
Lens Mount C/CS

Quick Start:

  • step1, “sudo nano /boot/config.txt”,add “dtoverlay=imx296” to the last line;
  • step2, “sudo nano /boot/cmdline.txt”,add “cma=128M” to the last line; Save and Reboot.
  • step3, “libcamera-vid –width 1456 –height 1088 -t 0” for review

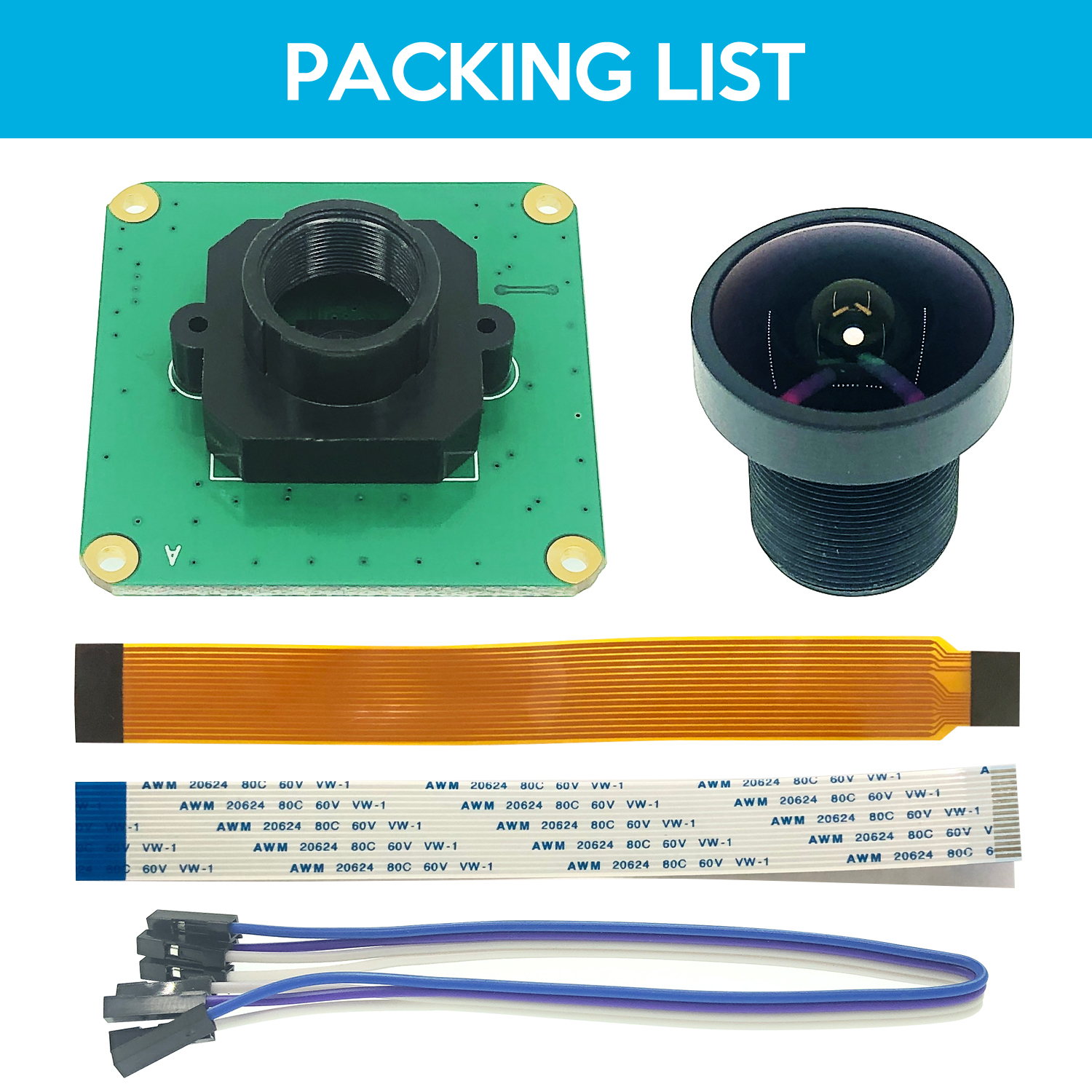

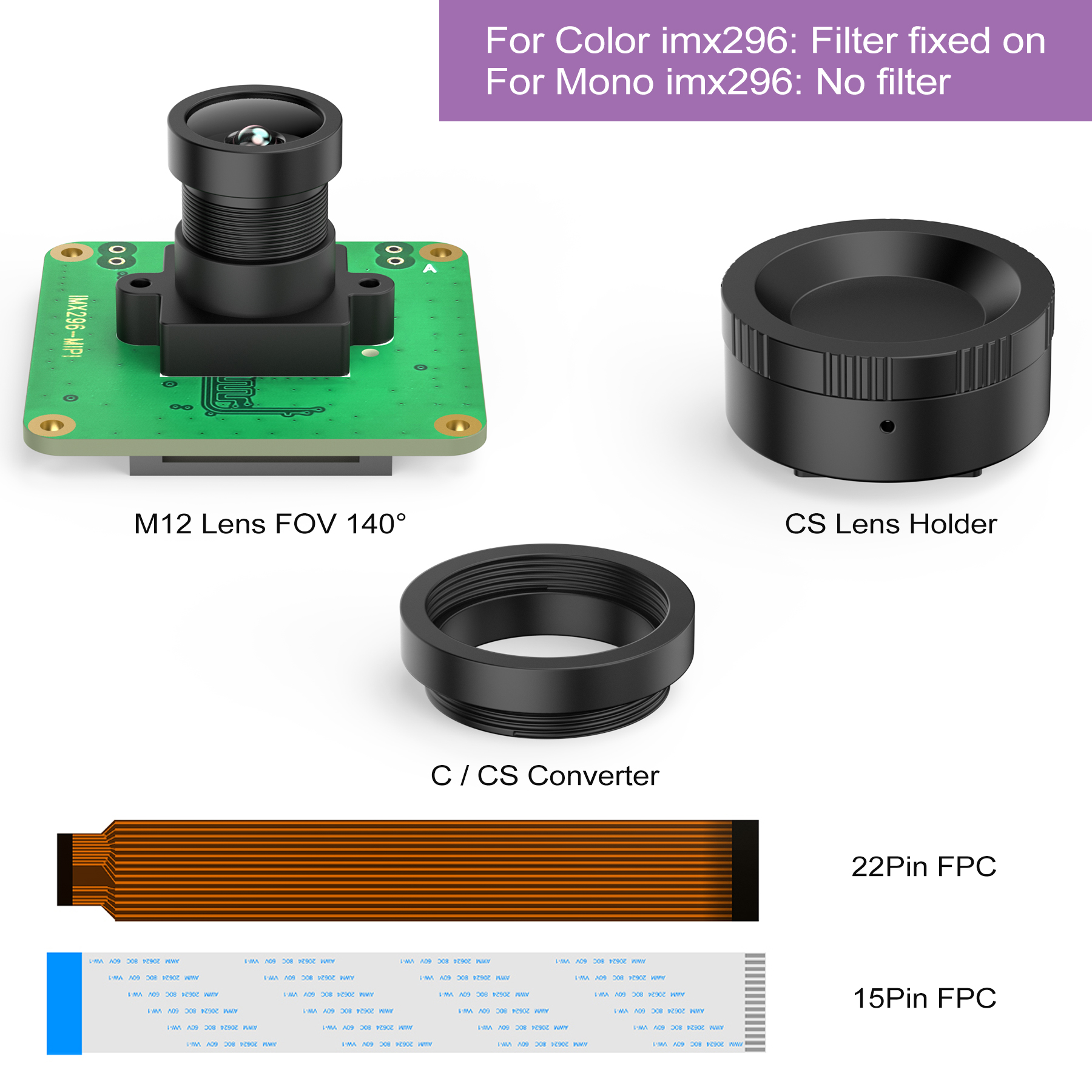

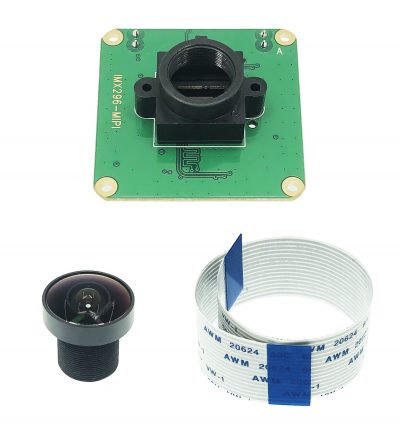

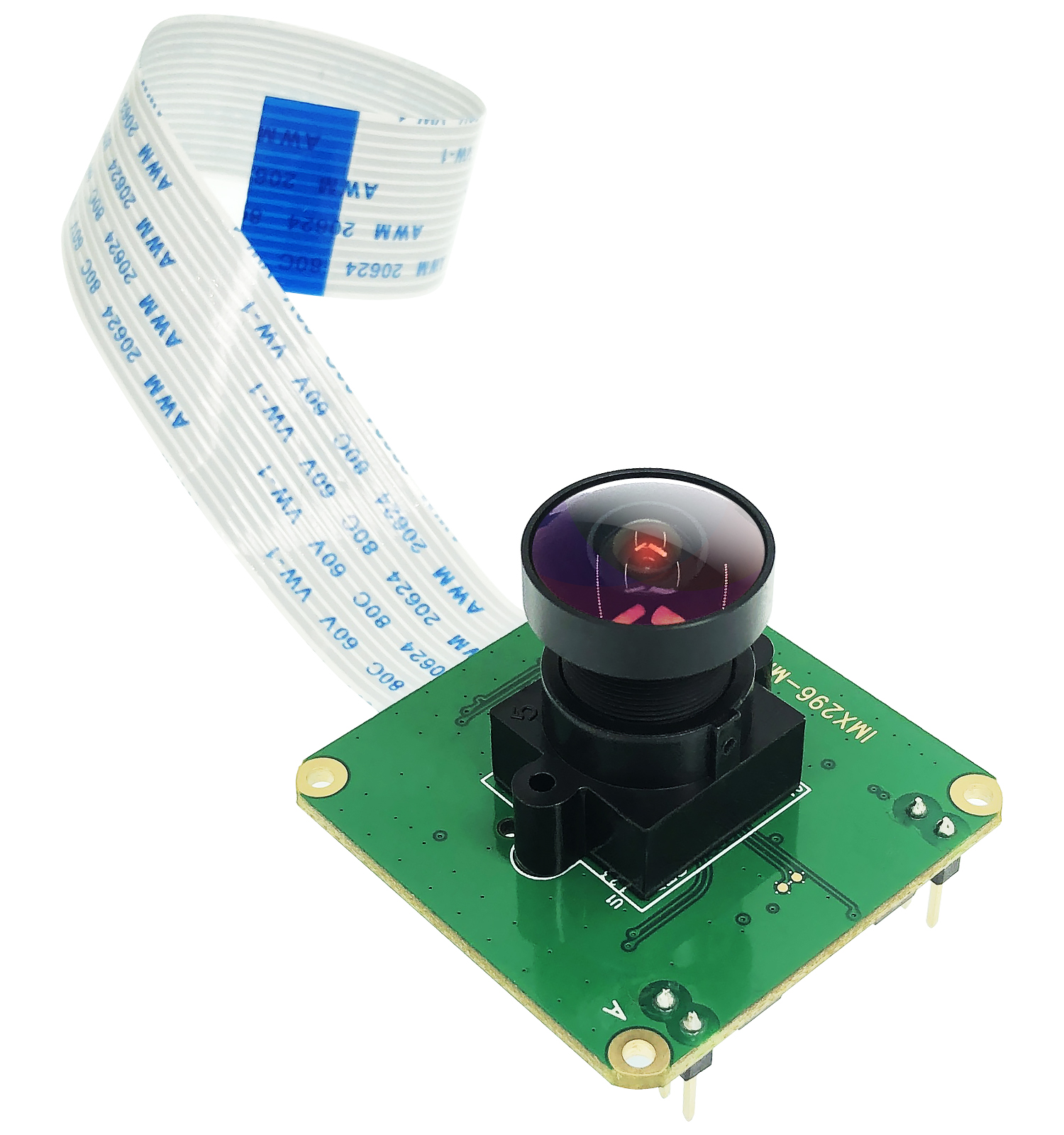

Packing List

  • 1xCAM-IMX296RAW Module
  • 1xM12 Lens
  • 1xCS Lens Seat
  • 2xFPC Cable
