3.5 Inch SPI Display-Capacitive Touch

$32.00

DATASHEET:  http://wiki.inno-maker.com/display/HOMEPAGE/3.5-inch-lcd-c

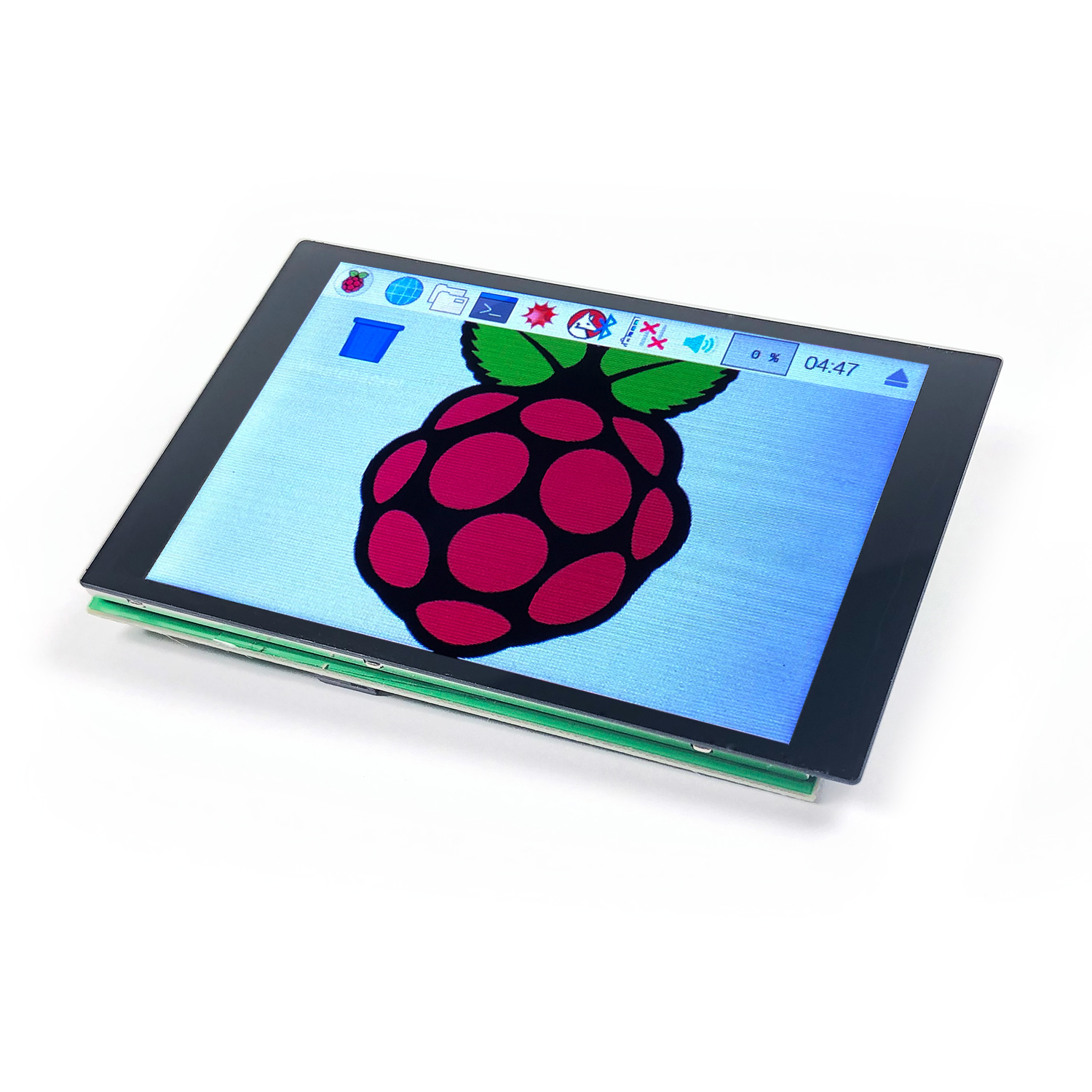

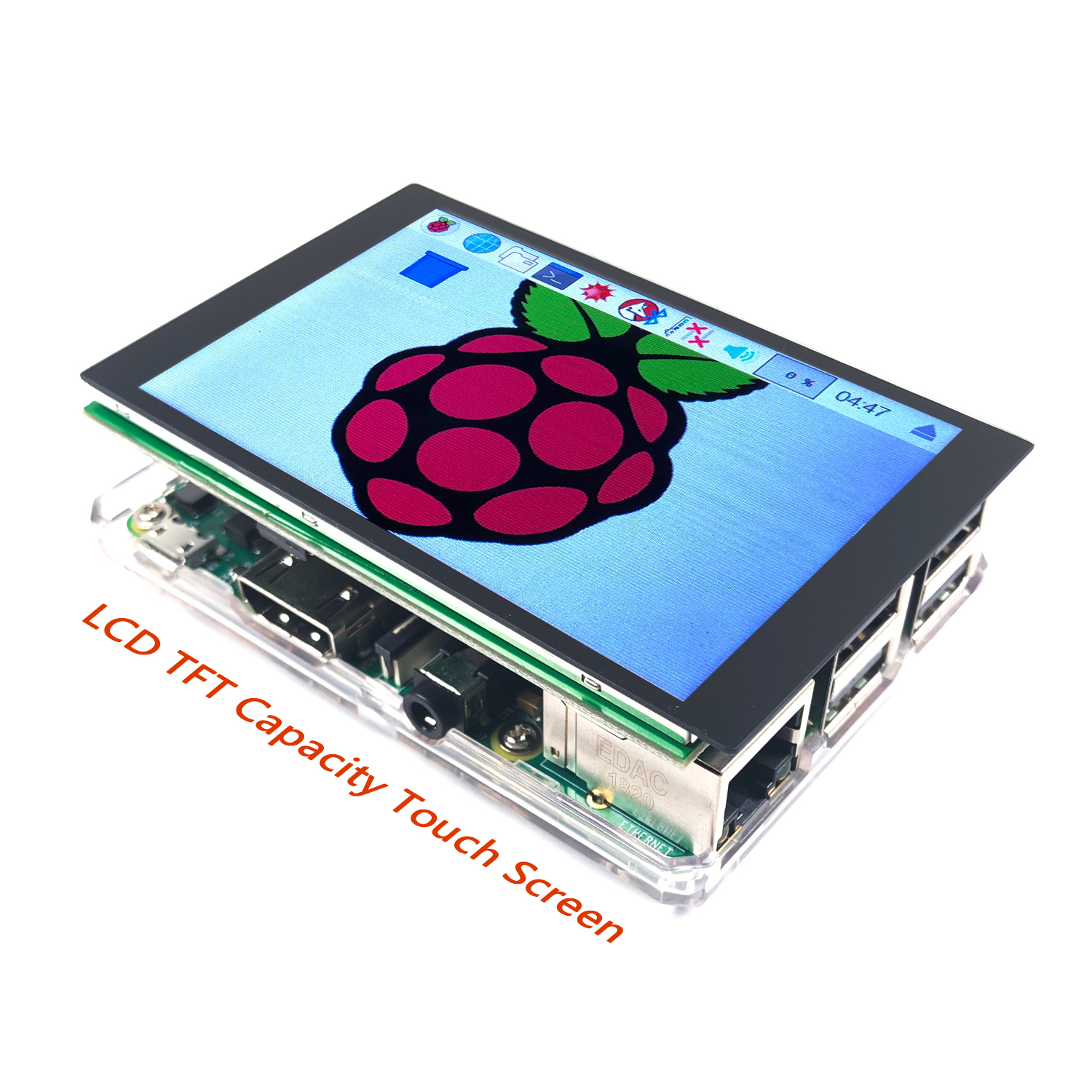

  • The 3.5 inch RPI lcd display TFT Capacitive Touch Screen is a display module can be applied to Raspberry pi 3 B+ Pi Zero etc. It can be used as raspberry pi x window display terminals.
  • Use the Raspberry pi high-speed SPI interface transfer Linux frame buffer data to the TFT capacity touch screen RPI LCD display module. The SPI clock can reach as high as 63Mbps.
  • The 3.5 inch LCD panel with this module have 16bit/pixel 320×480 high-resolution.
  • The TFT Touch Screen RPI lcd display module equipped with high accuracy DS3231 hardware RTC unit make your Raspberry Pi system time no longer depend on the network.
  • The RPI lcd display module can equip with resistive or capacitive tft touch screen. Two types of touch screen module can use the same software package.
  • The TFT Touch Screen RPI lcd display module used SPI, I2C and some GPIO signal from Raspberry pi 40PIN interface. Other resource in 40PIN interface can be defined by users. Same size as Raspberry pi can be directly plugged on Raspberry pi.

150 in stock

Quantity Discount (%) Price
1 - 9 $32.00
10 - 99 9.38 % $29.00
100+ 12.5 % $28.00
x
Category: SKU: 3.5 Inch SPI Display-Capacitive Touch

Description

[UserManual&Software:]

http://wiki.inno-maker.com/display/HOMEPAGE/3.5-inch-lcd-c

[Descriptions:]

The 3.5 inch RPI lcd display TFT Capacitive Touch Screen is a display module can be applied to Raspberry pi 3 B+ Pi Zero etc. It can be used as raspberry pi x window display terminals.

[Features:]

  • 1. This RPI lcd display TFT capacity touch screen compatilble with Raspberry pi 3 modle B / Pi 2B / B+ / Pi Zero / etc.
  • 2. 16bit/pixel, 320×480 resolution and large view angle.
  • 3. This RPI lcd display support resistive and capacitive touch specifications, the software fully compatible.
  • 4. This RPI lcd display provide preset raspbian-jessie system image and a separate installation package.
  • 5. This RPI lcd display provide accurate DS3231 RTC unit to ensure that the system time is accurate.
  • 6. LCD Backlight can be controlled.
  • 7. Hardware and software is compatible with any version of the raspberry pi.

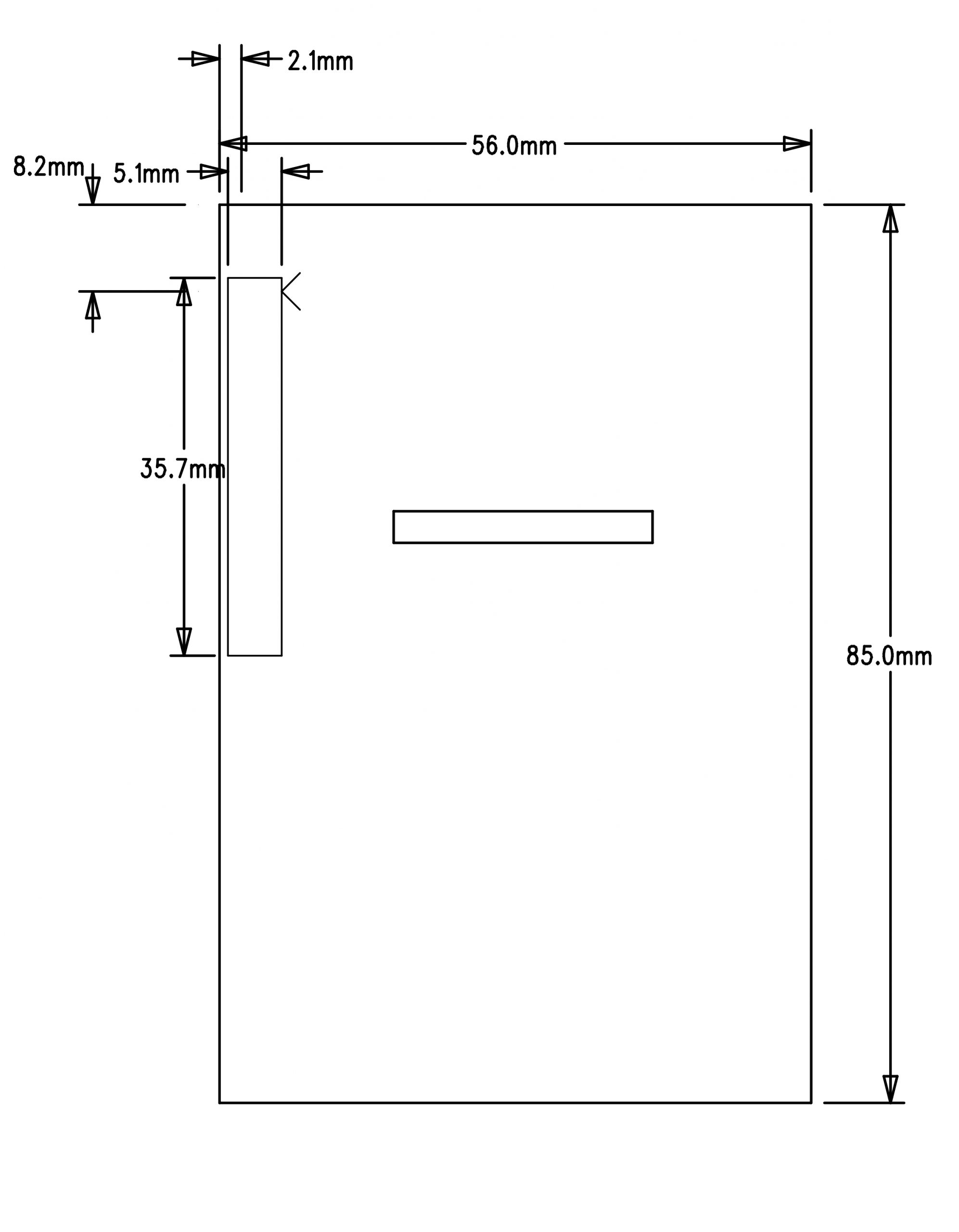

  • 8. This RPI lcd display module have the same size as standard raspberry pi.

[Hardware connection:]

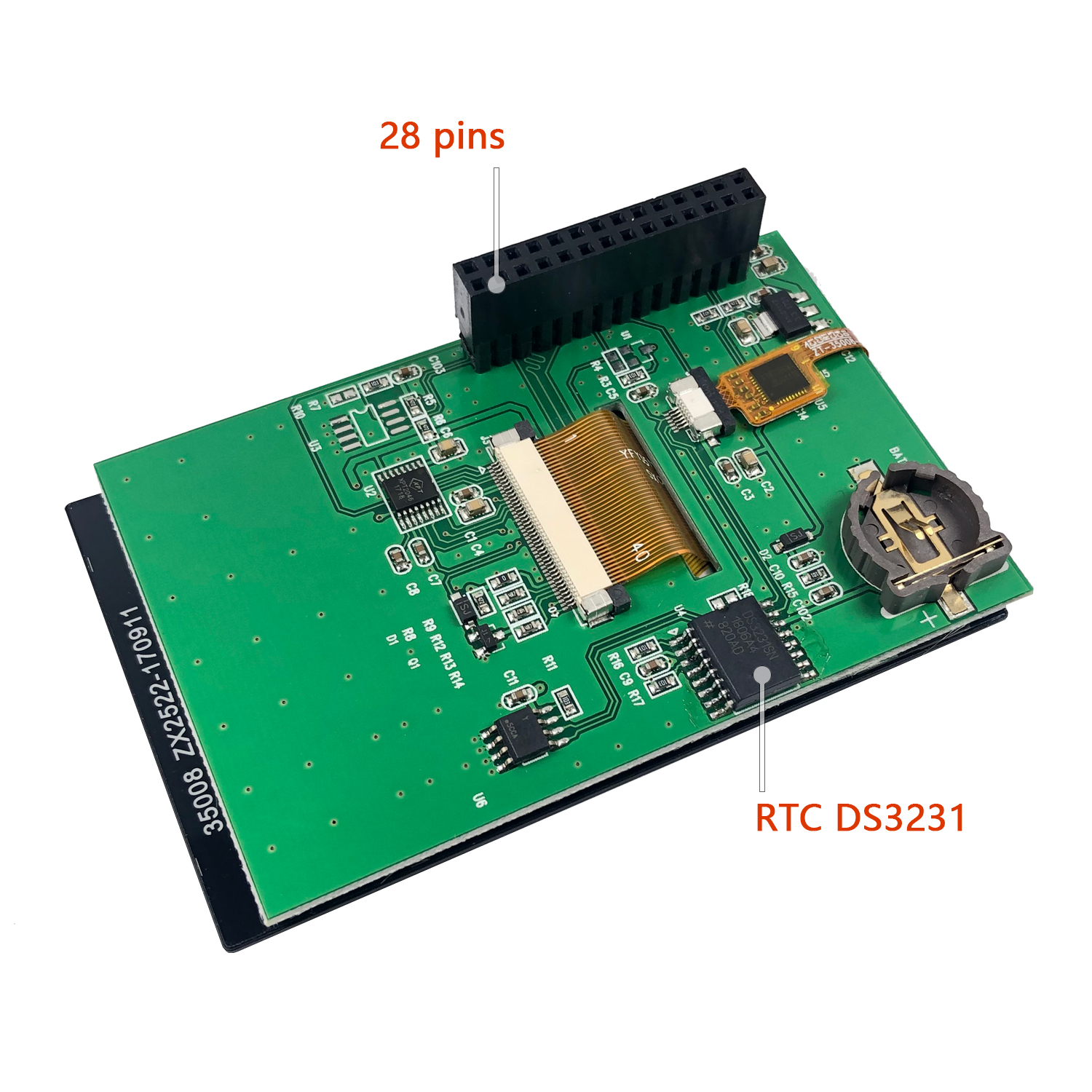

The RPI LCD Display TFT Capacity Touch Screen Modules used 28 pins out of raspberry pi 40 pin. When installing the module attention to align the first leg of the raspberry pi and LCD module.

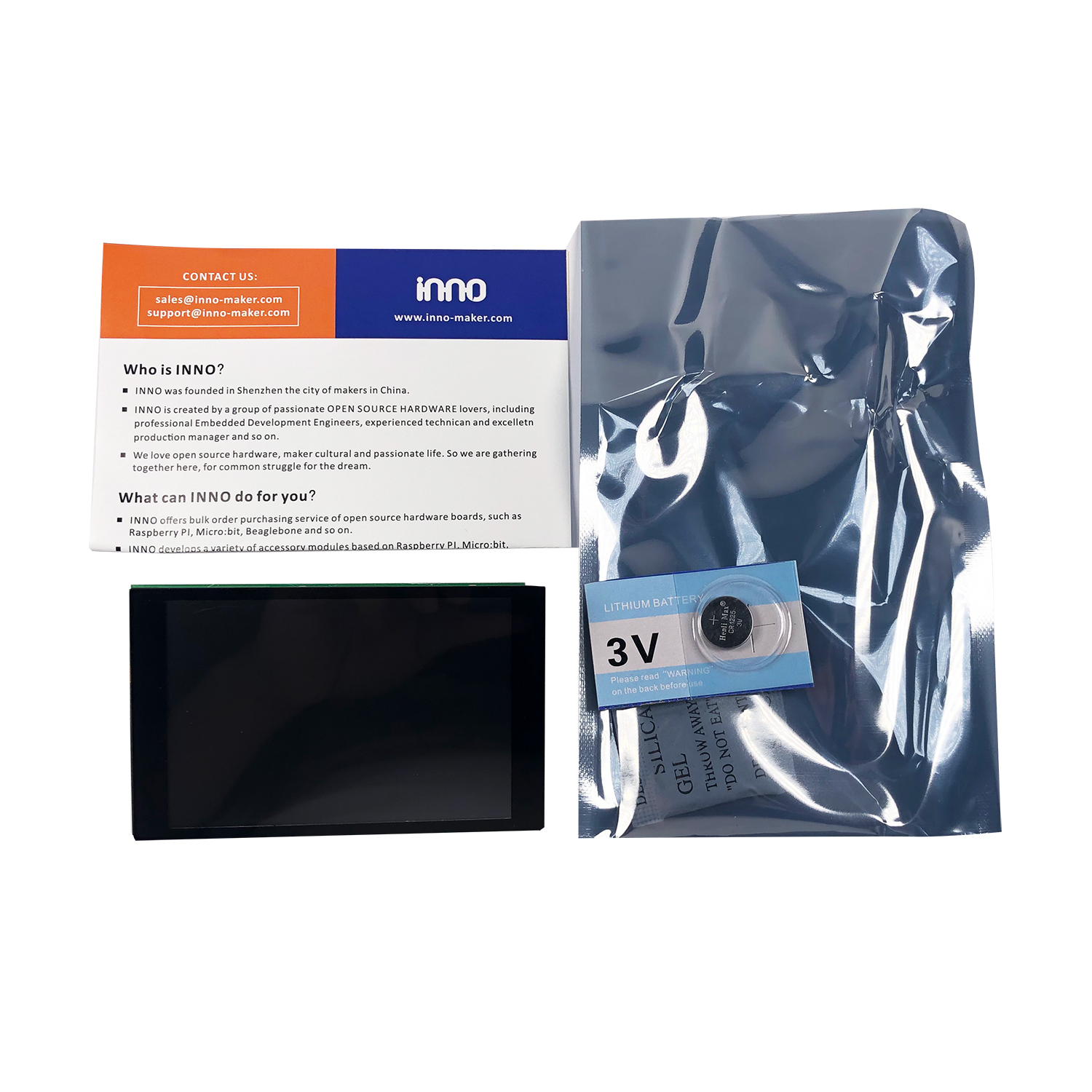

[Packing List:]

  • 1 x Amplifier HIFI AMP Expansion Board; (Note: the raspberry pi 3 board is not included.
  • 1 x 3.5 Inches 320×480 TFT Display Capacity Touch Screen
  • Note: The raspberry pi 3 board is not included.

Additional information

Options

Capacitive Touch, Resistance Touch
