CAM-MIPI9281RAW-V1

Original price was: $39.99.Current price is: $36.99.

DATASHEET: https://github.com/INNO-MAKER/cam-mipi9281raw-v1

This product is update to Version2 with size 32×32, if any requst for the legacy version, please contact us by email: sales@inno-maker.com

Options

Out of stock

Category: SKU: CAM-MIPIOV9281

Description

[Descriptions]

  • We support customozed production service, Fast redesign and Fast delivery. If you have especial demand, feel free to contact us.
  • CAM-MIPIOV9281 is with OmniVision OV9281 Sensor, and connects via a ribbon cable to the CSI connector on the Raspberry Pi. It is a fully V4L2 compatible device.

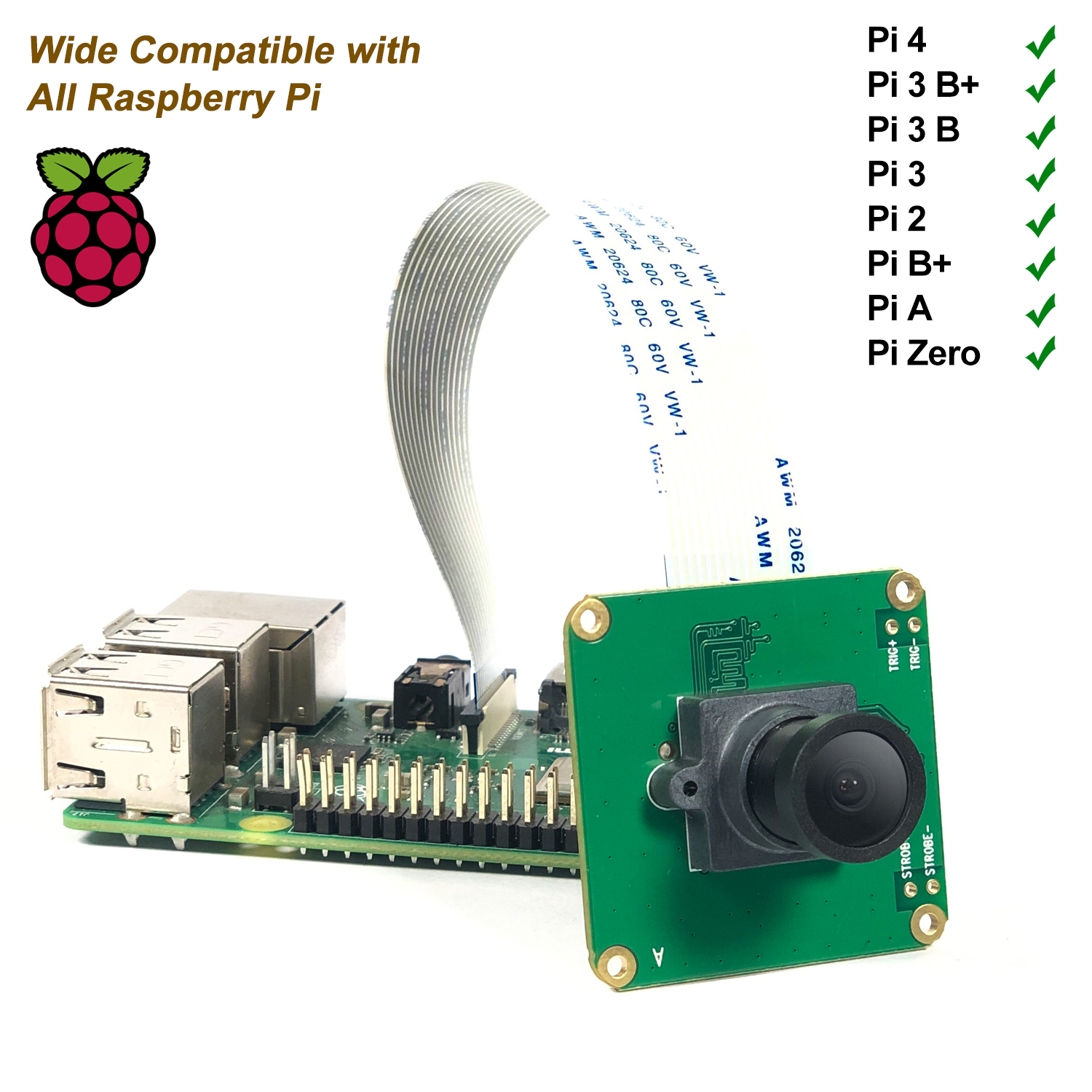

  • CAM-MIPIOV9281 can be connected to a number of Raspberry Pi Boards boards, like Raspberry Pi 4 3B+ 3B Zero A+ CM3+ CM3.
  • Support for external trigger mode, LED and flash strobe mode and gain programmable.
  • CAM-MIPIOV9281 is an Industrial Camera Module for Raspberry Pi 4/3B+/3B/3A+/CM3/CM3+/Zero/ZeroW;

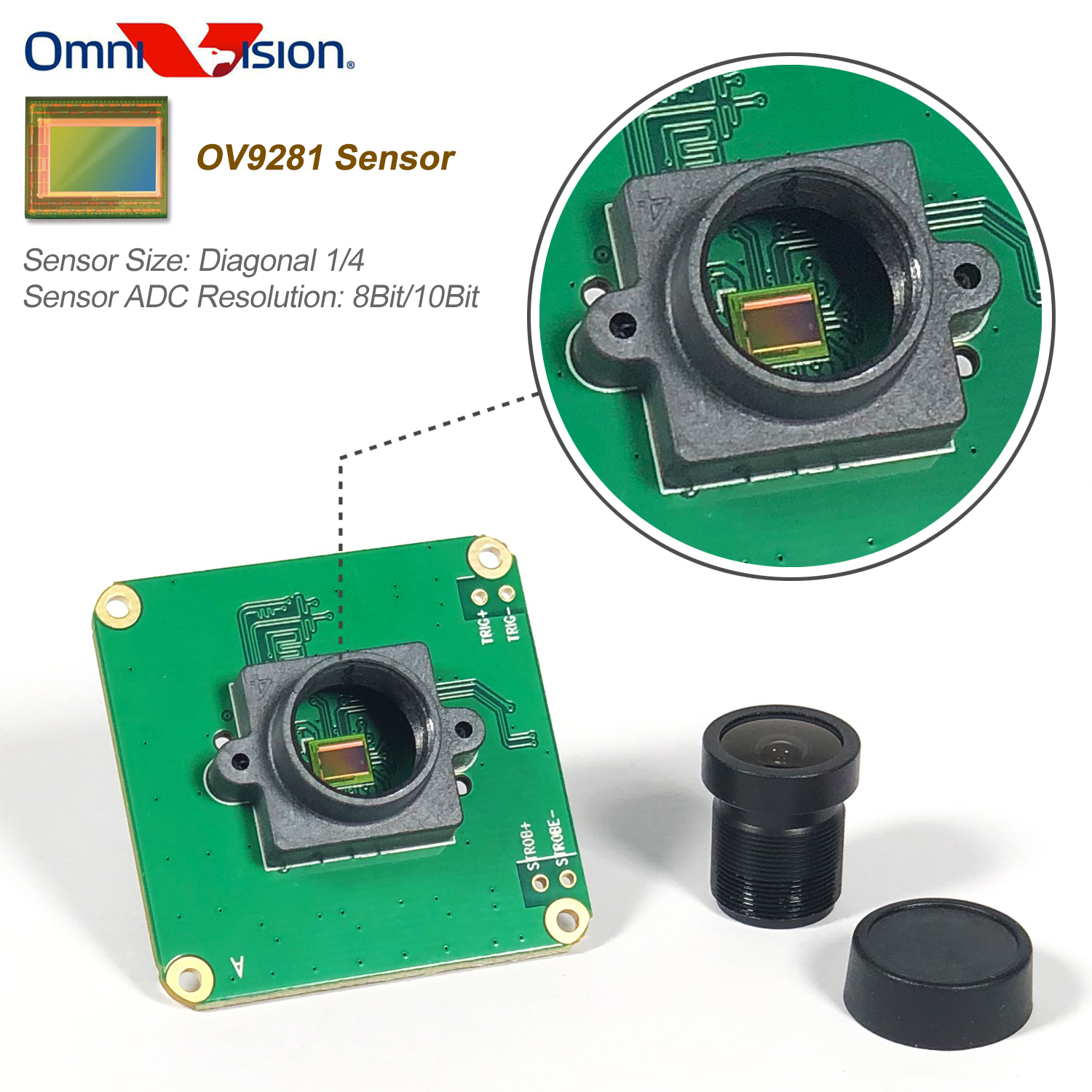

  • On-board OmniVision OV9281 Monochrome(Black&White) global shutter CMOS Sensor, 1M Pixel;
  • Support 12 working mode,Output RAW8/RAW10 choosable.Support from 640×400@253fps to 1280×800@144fps;
  • Fully V4L2 ( Video4Linux) compatible device. Support for external trigger mode, LED and flash strobe mode and gain programmable. Uses the technique of optical coupling isolation TLP281;

[Technical Parameters:]

  • Sensor size: diagonal 1/4
  • Sensor ADC Resolution: 8Bit/10Bit

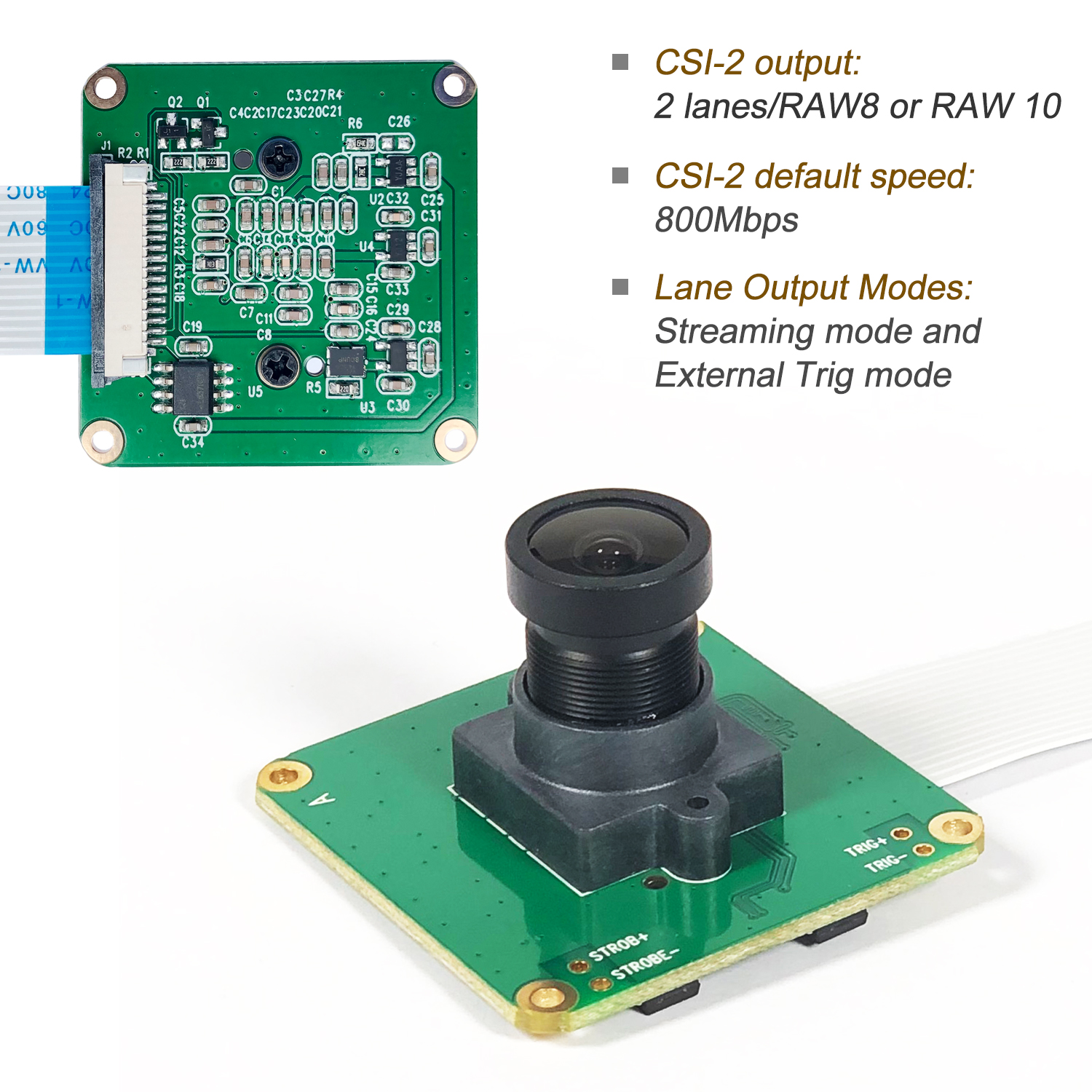

  • CSI-2 output: 2 lanes/RAW8 or RAW10
  • Pixel Count:1280 x 800
  • Pixel Size: 3(H)x3(V)um
  • CSI-2 default speed: 800Mbps
  • Lane Output modes: streaming mode and external Trigger mode
  • Shutter resolution: 1 horizontal unit
  • Board Size: 39mm x39mm
  • Connector: 15PIN 1.0mm FPC cable
  • Mounting Holes: 4XD2.2mm

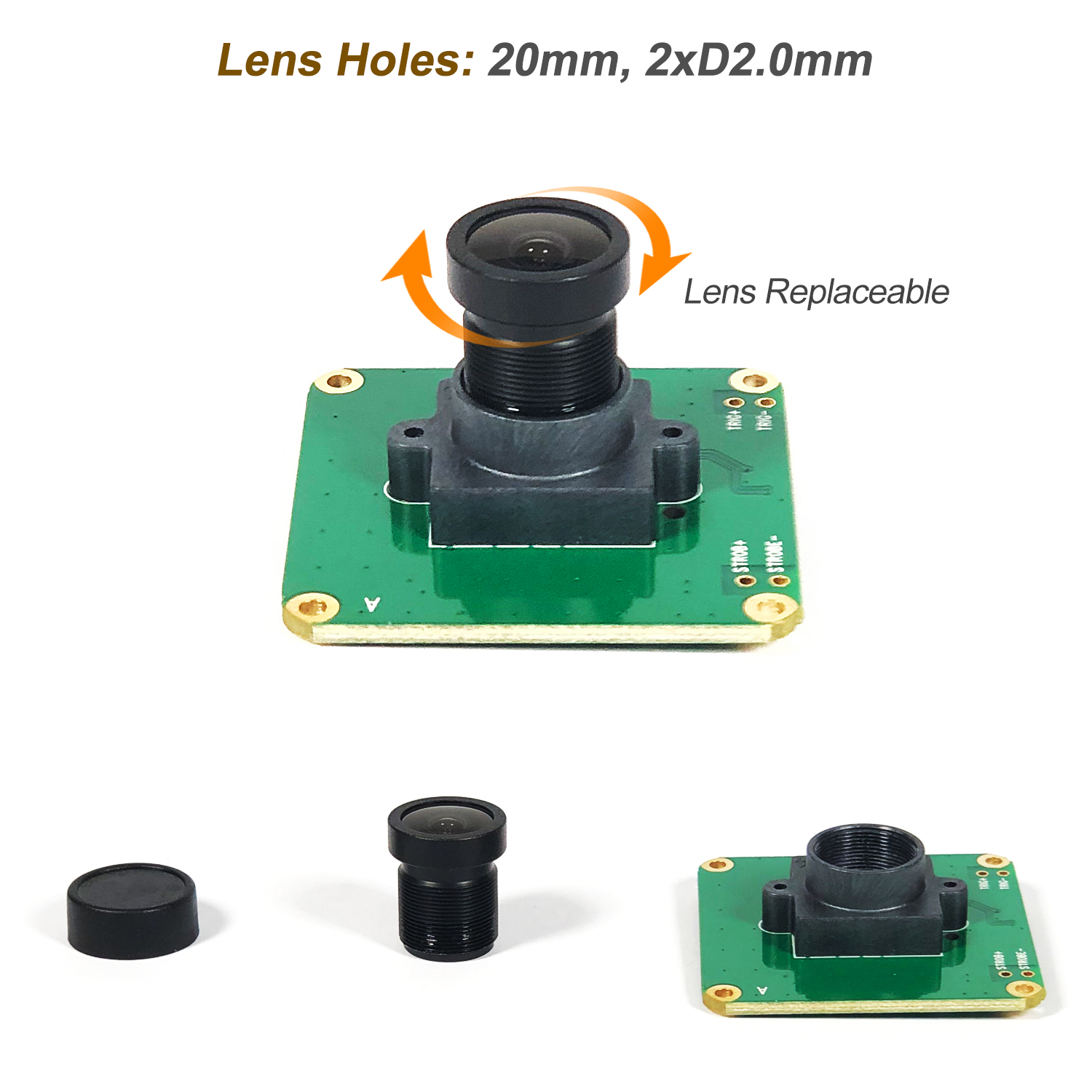

  • Lens Holes: 20mm,2xD2.0mm

Support 12 working mode, Suitable for various applications:

Mode Resolution Ratio Data Format Frame Rate

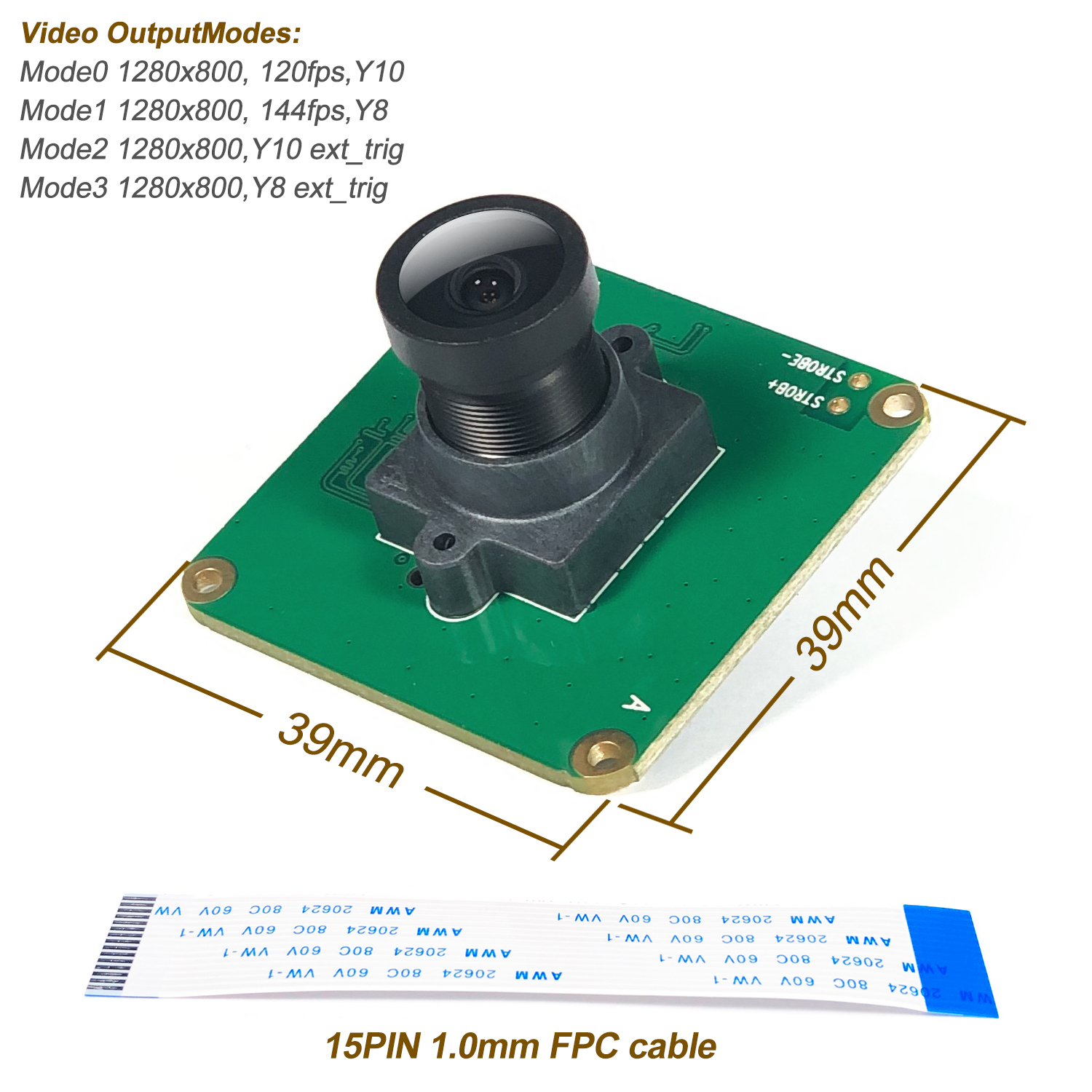

Mode0 1280×800 Y10 120fps
Mode1 1280×800 Y8 144fps
Mode2 1280×800 Y10 EXT_TRIG
Mode3 1280×800 Y8 EXT_TRIG
Mode4 1280×720 Y10 120fps
Mode5 1280×720 Y8 144fps
Mode6 1280×720 Y10 EXT_TRIG
Mode7 1280×720 Y8 EXT_TRIG
Mode8 640×400 Y10 210fps
Mode9 640×400 Y8 253fps
Mode10 640×400 Y10 EXT_TRIG
Mode11 640×400 Y8 EXT_TRIG



[Packing List:]

  • 1 x CAM-MIPIOV9281 Camera Module
  • 1x 15PIN Ribbon Cable
