Description
MV-MIPI-IMX178M

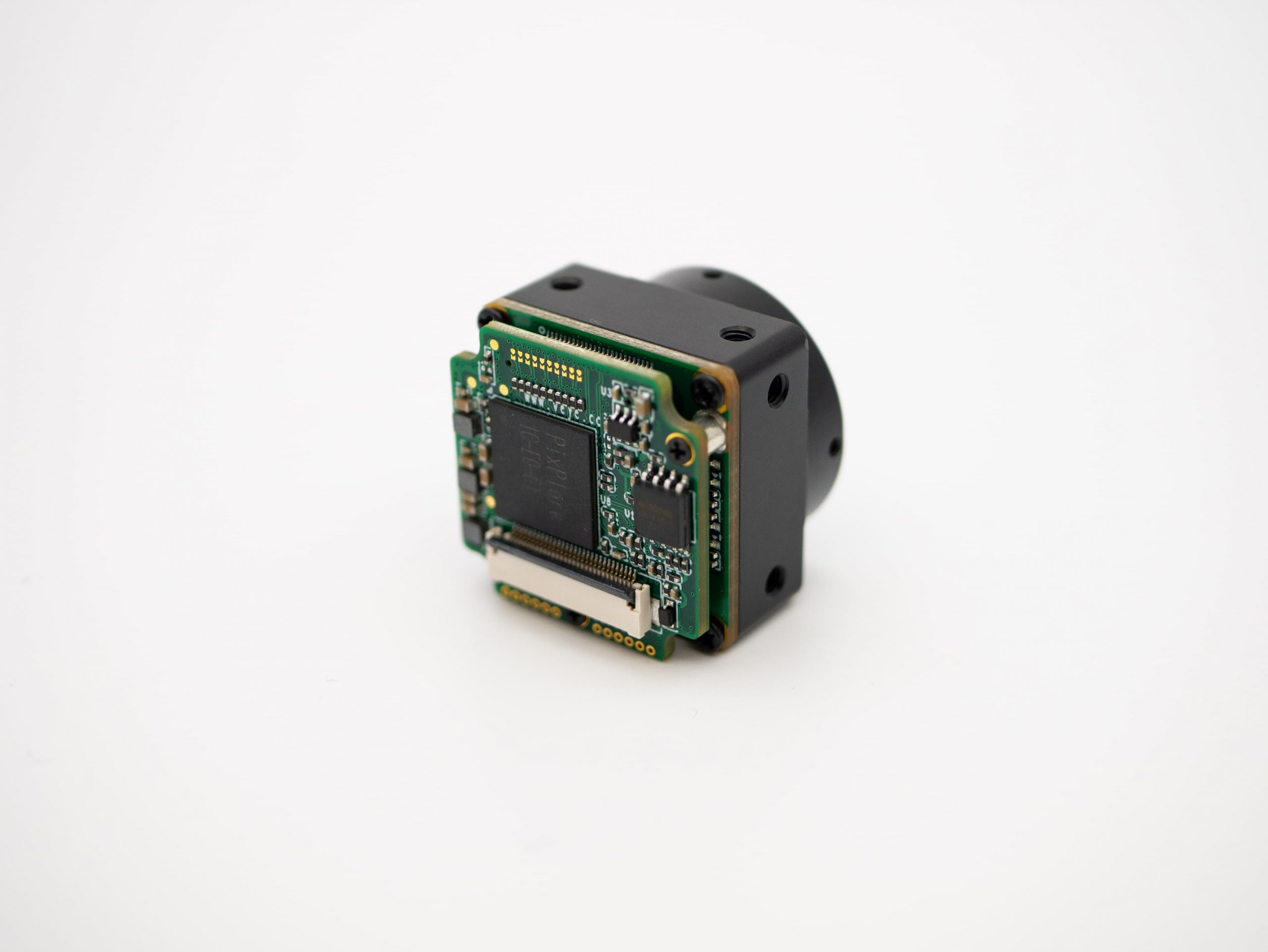

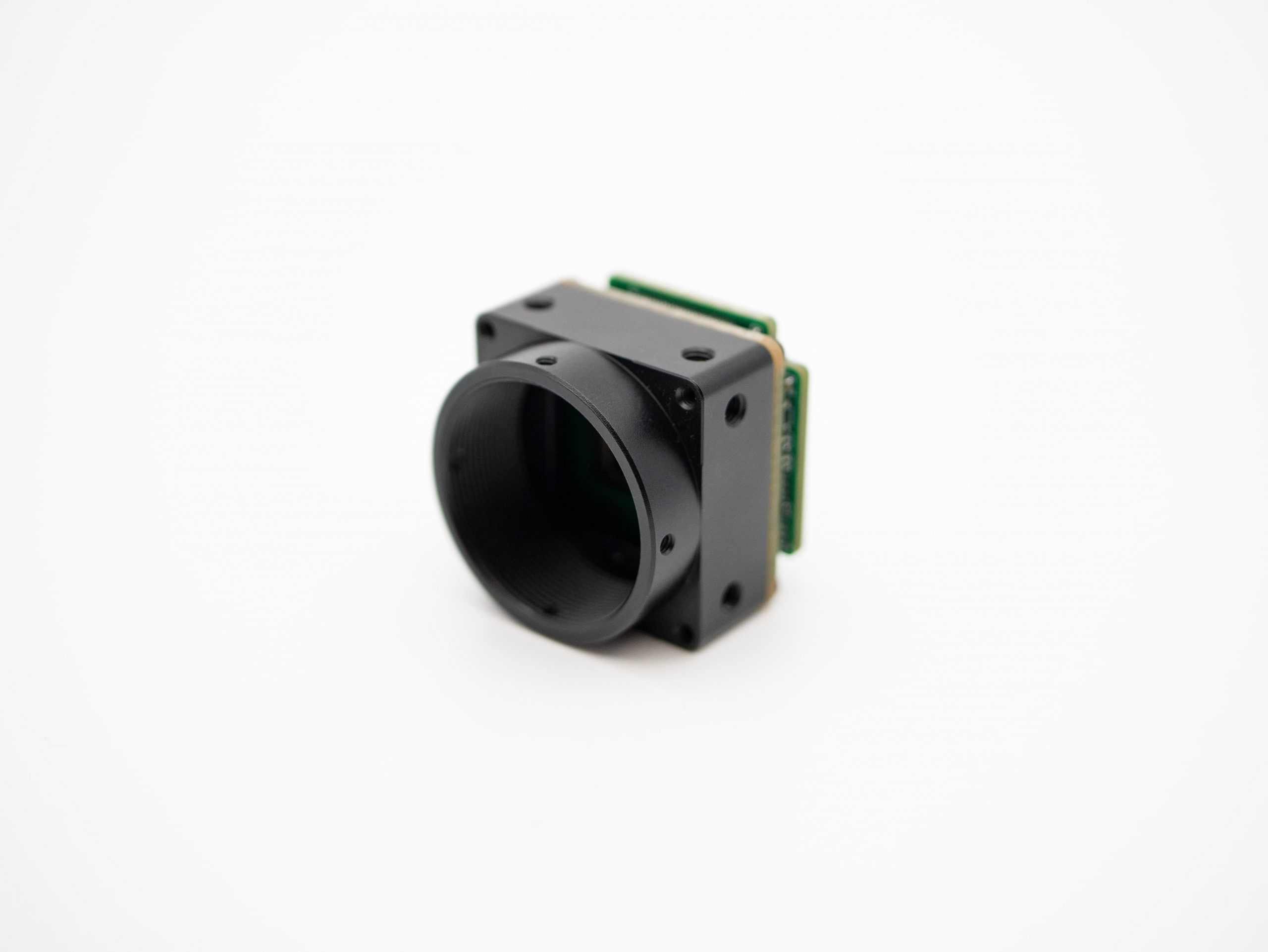

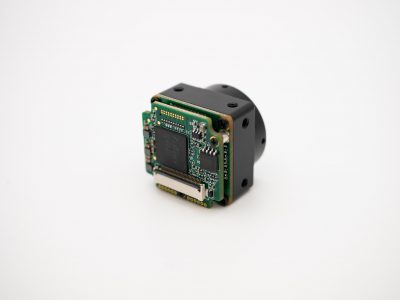

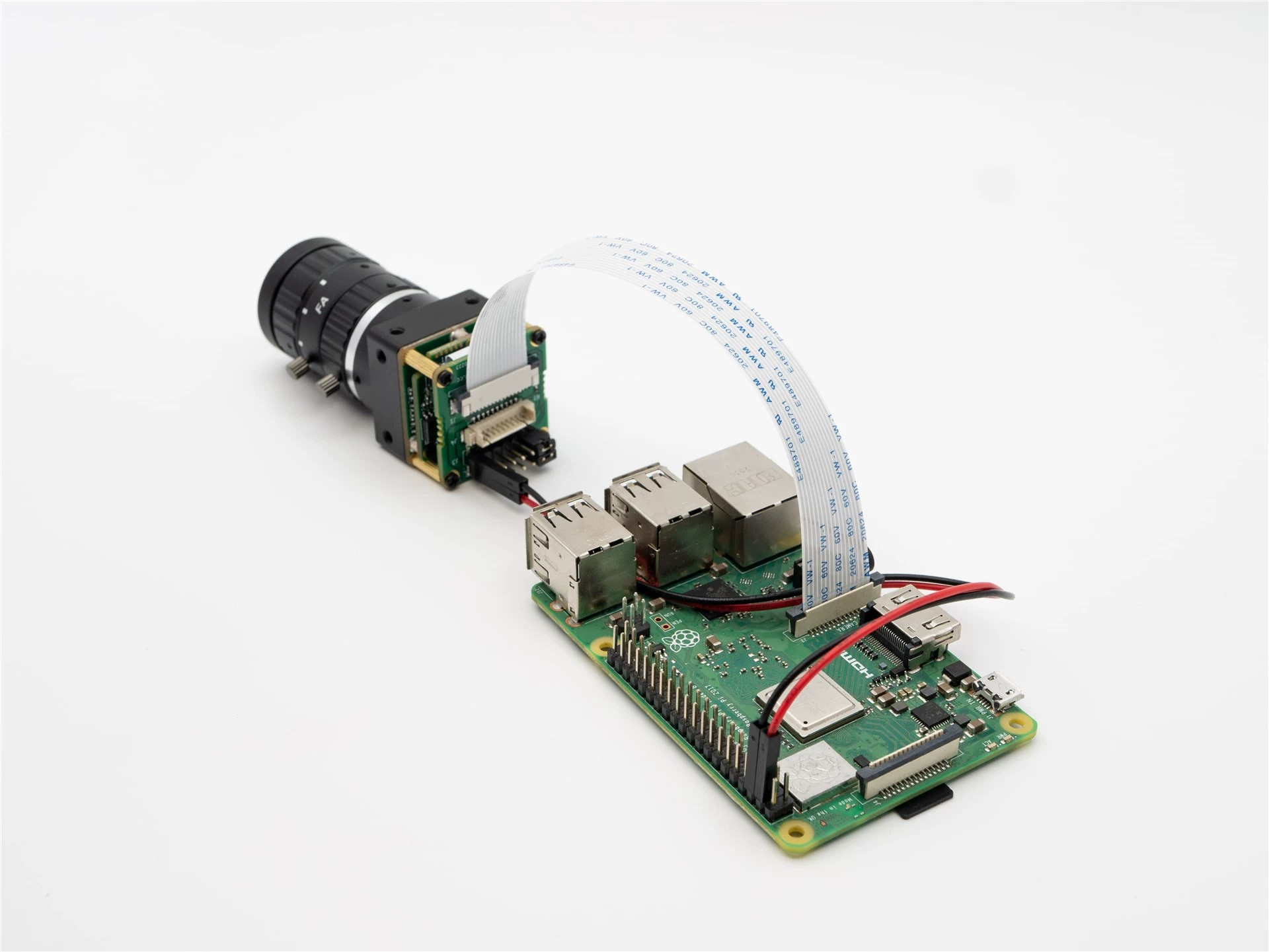

MV-MIPI-IMX178M is a 6 million MONO industrial camera with MIPI interface.This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component.
Technical Details
| Technical Details | |
| Sensor Type | CMOS |
| Shutter Mode | Rolling Shutter |
| Sensor | SONY IMX178LLJ-C STARVIS |
| Color | MONO |
| Image Size | 1/1.8” |
| Unit Cell Size | 2.4μm × 2.4μm |
| Resolution | 3088（H） × 2064（V） |
| Max Frame Rate | 3088 × 2064@22.3 fps |
| Gain | 0-48dB（again+dgain），0-24dB（again），0.1dB step |
| Exposure Time | ≤ 1/（max frame rate） |
| Shutter Mode | AE，ME，AE Once |
| ISP | Bad Pixel Correction，8bit GAMMA，User Lookup Table |
| ADC Resolution | 12 bit |
| Pixel Format | Mono8，Mono10，Mono12，UYVY 8bit |
| ROI | Support |
| Mirror Image | Mirror and Flip |
| Working Mode | Hardware Trigger，Software Trigger，Video streaming mode（Free Running） |
| Trigger Mode | Trigger Filtering，Trigger Delay，Trigger Polarity Control |
| Strobe Mode | Strobe Output Control，Strobe Delay，Strobe Polarity Control |
| Electrical characteristics | |
| Data Interface | CSI-2 : 2 Data LanesData Rate / lane：1.5Gbps |
| Communication Interface | I2C 3.3V |
| Digital IO | Non-isolation IO：1 Trigger in，2 Multi-function output，3.3V Level |
| Power Supply | 5VDC |
| Power Consumption | 0.9W@ 5VDC |
| Structure | |
| Size | Length * width * height = 29*29*11mm |
| Lens Mount | C-MOUNT01 |
| Operating Conditions | |
| Temperature | Operating temperature：-30℃~ 60℃ |
| Humidity | Humidity 95% or less |
Packing List
- 1XMV-MIPI-IMX178M Module;
- 1xAdapter Board;
- 1xCase;
- NXScrews;
- 1xUser Guide
- Note: CS LEN Not Include;
Documents:
- wiki document
- MV-MIPI-IMX178M Data Sheet
- MV Series MIPI Camera Register Map
- MV Series MIPI Camera Manual
- mv_mipi_i2c.sh user guide
- Firmware upgrade user manual
- Raspberry Pi Application Notes Index
- Nvidia Jetson Application Notes Index
