Description
1 Evaluation Mainboard Introduction

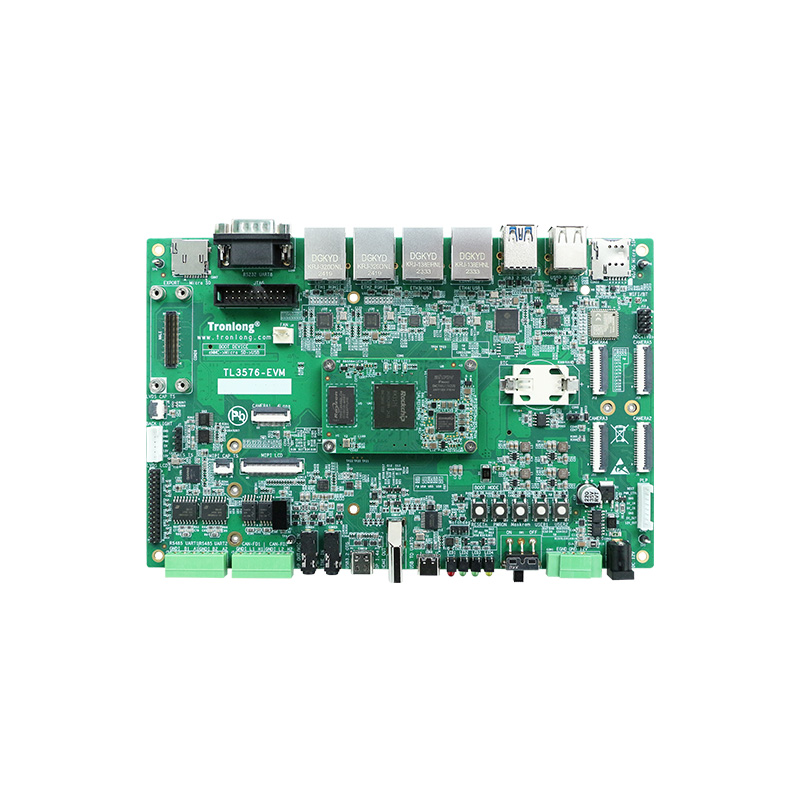

- The TL3576-EVM, designed by Tronlong, is a Quad-core ARM Cortex-A72 + Quad-core ARM Cortex-A53 + Single core ARM Cortex-M0 industrial Evaluation Mainboard based on the high- performance processor RK3576J/RK3576 from Rockchip. The Cortex-A72 core has a maximum clock frequency up to 2.2GHz, while the Cortex-A53 core has a maximum clock frequency up to 2.0GHz. The TL3576-EVM consists of a System on Module and an Evaluation Carrier Board. All the components of the SOM, such as CPU, ROM, RAM, power supply, crystal, and connectors are industrial-grade solutions. At the same time, most of the components on the Evaluation Carrier Board also adopt industrial-grade solutions. The SOM has professional PCB Layout and has passed high and low temperature test from -40℃ to 85℃. Due to its stable and reliable quality, which can meet the requirements of various industrial application environments.
- The TL3576-EVM offers a wide range of interfaces, including 4-channel Ethernet, 3-channel USB3.2, 2-channel CAN-FD, 2-channel RS485, PCIe 2.1, and other communication interfaces. It also provides MIPI CSI, LVDS OUT, MIPI DSI, DP(DisplayPort), HDMI OUT, MIC IN, HP OUT, LINE
- IN for audio, video and multimedia applications. The TL3576-EVM supports three-screen different displays, 4K@60fps H.265/H.264 video encoding and 8K@30fps H.265/4K@60fps H.264 video decoding. It is equipped with an on-board WiFi/Bluetooth 2-in-1 module, and supports optional 4G/5G module, NVMe SSD, PLP power outage protection module. It supports optional enclosure and can be directly applied to the industrial field, facilitating users to quickly conduct the product program evaluation and technology pre-study.
2 Hardware Specifications
3 Packing List:
- TL3576-EVM Evaluation Mainboard 1
- 12V2A Power Adapter 1
- Micro SD Card 1
- Card Reader 1
- HDMI Cable 1
- Ethernet Cable 1
- Type-C Cable 1
- RS232 Crossover Serial Female-Female Cable 1
- USB to RS232 Male Serial Cable 1
- 2.4G Antenna 1
