Description
1.Description

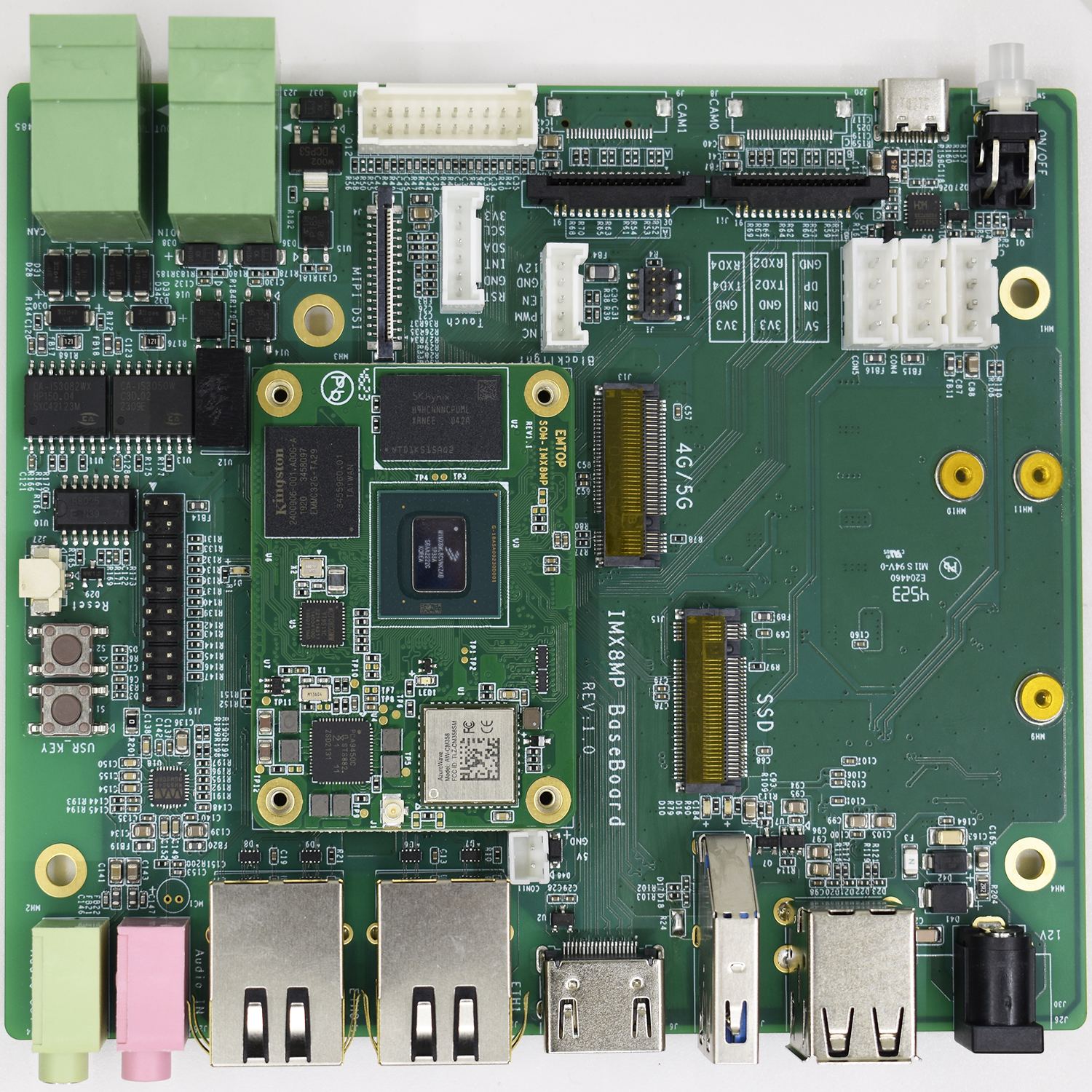

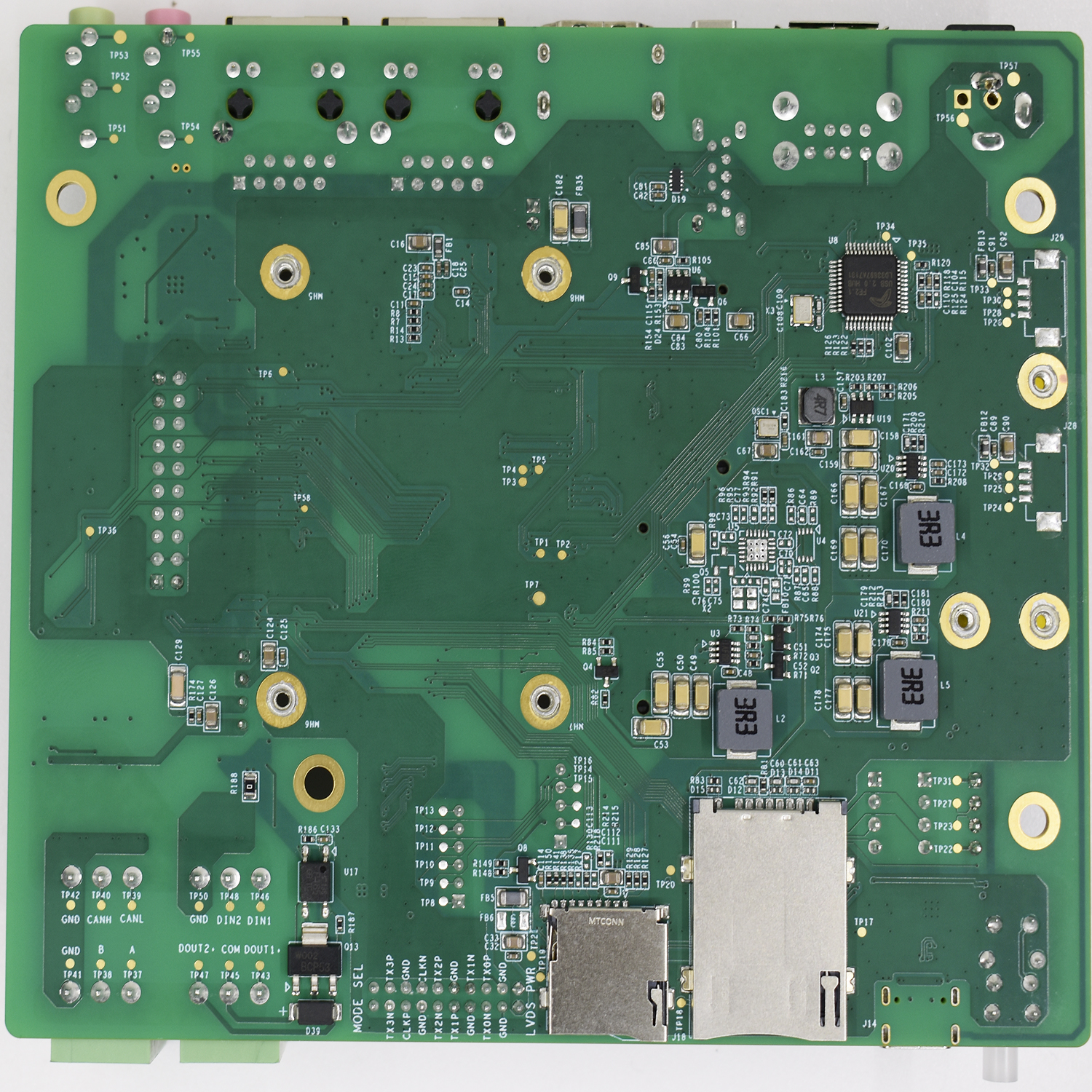

SBC-IMX8MP is a single board computer including carrier board and SOM-IMX8MP.Feature with 4GB LPDDR4,32GB EMMC.
2. Specification listed for the SBC:
2.1 SOM-IMX8MP Features
CPU(IMX8M Plus):
- 2x or 4x Cortex A53 up to 1.8GHz (default 4xCortex-A53)
- 1x Cortec M7 up to 800MHz
- 375 Mpixel/s HDR ISP
- GC7000UL with OpenCL and Vulkan support
- Video Decode and Encode
- Optional 2.3 TOP/s NPU(default 2.3TOP/s NPU)
Memory:
- Up to 8GB LPDDR4 RAM (4GB default)
Storage:
- 4~64GB eMMC(32GB default)
Connectivity:
- WiFi/BT Combo
- 2x30Pin Double Row 0.4mm Pitch BTB
- 2x100Pin Double Row 0.4mm Pitch BTB
Power supply:
- 5V/2A typical
Mechanical:
- 55*40mm
2.2 Carrier Board Features:
Connectivity:
- WiFi/BT Combo(on SOM)
- 2x GbE LAN port
- 1x RS485
- 1x CAN
- 1x PCIe(M2 Key M)
I/O Interfaces:
- 14x GPIOs
- 2x DIN
- 2x DO
USB:
- 2x USB2.0 host
- 1x USB3.0 host
- 1x USB3.0 host (M2 Key B)
Display:
- 1x HDMI2.0A(1920 x 1080p60)
- 1x MIPI DSI
- 1x LVDS (single channel)
Media:
- 2x MIPI CSI
- Audio IN/Out
Power supply:
- 12V/2A typical
Mechanical:
- 135.3x113mm
