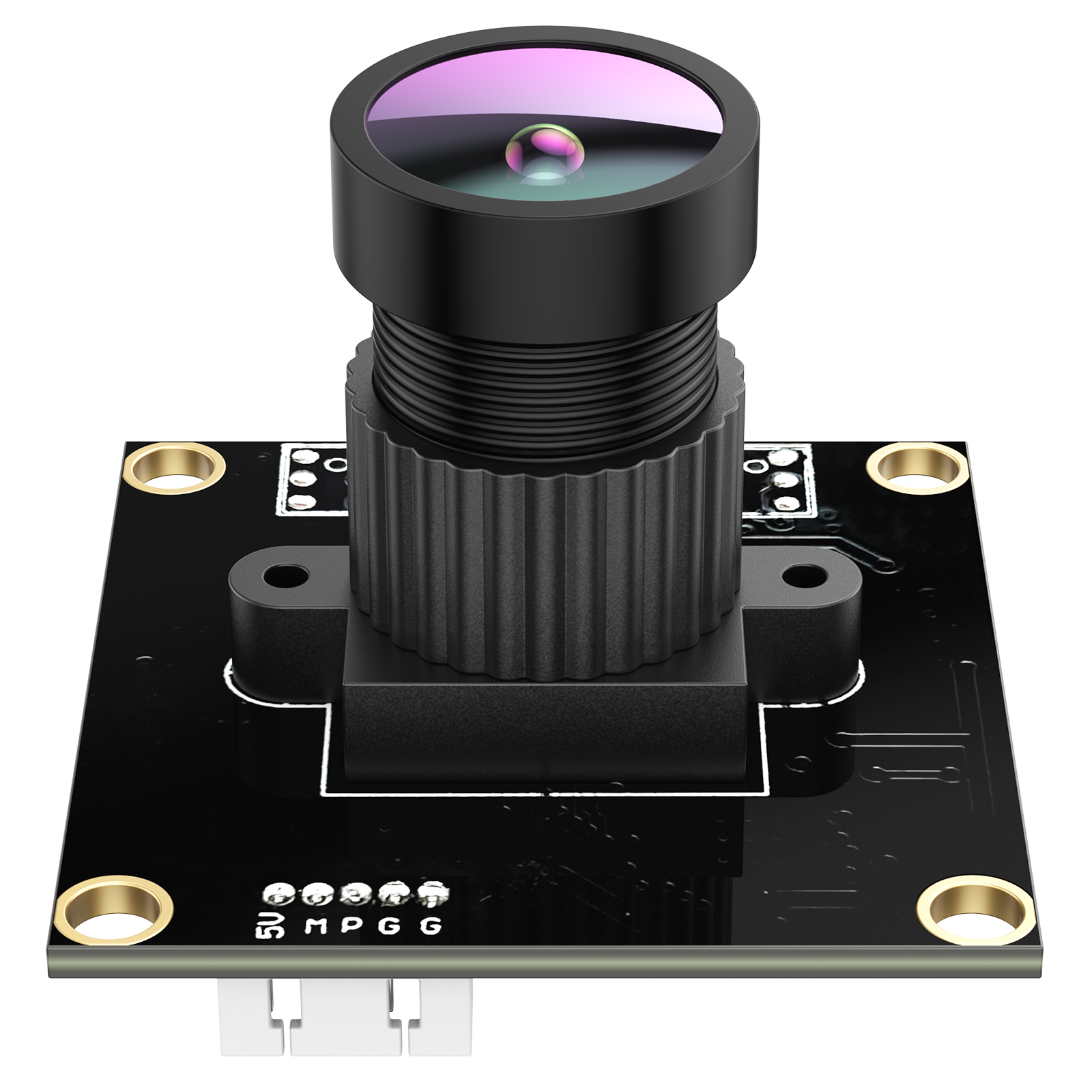

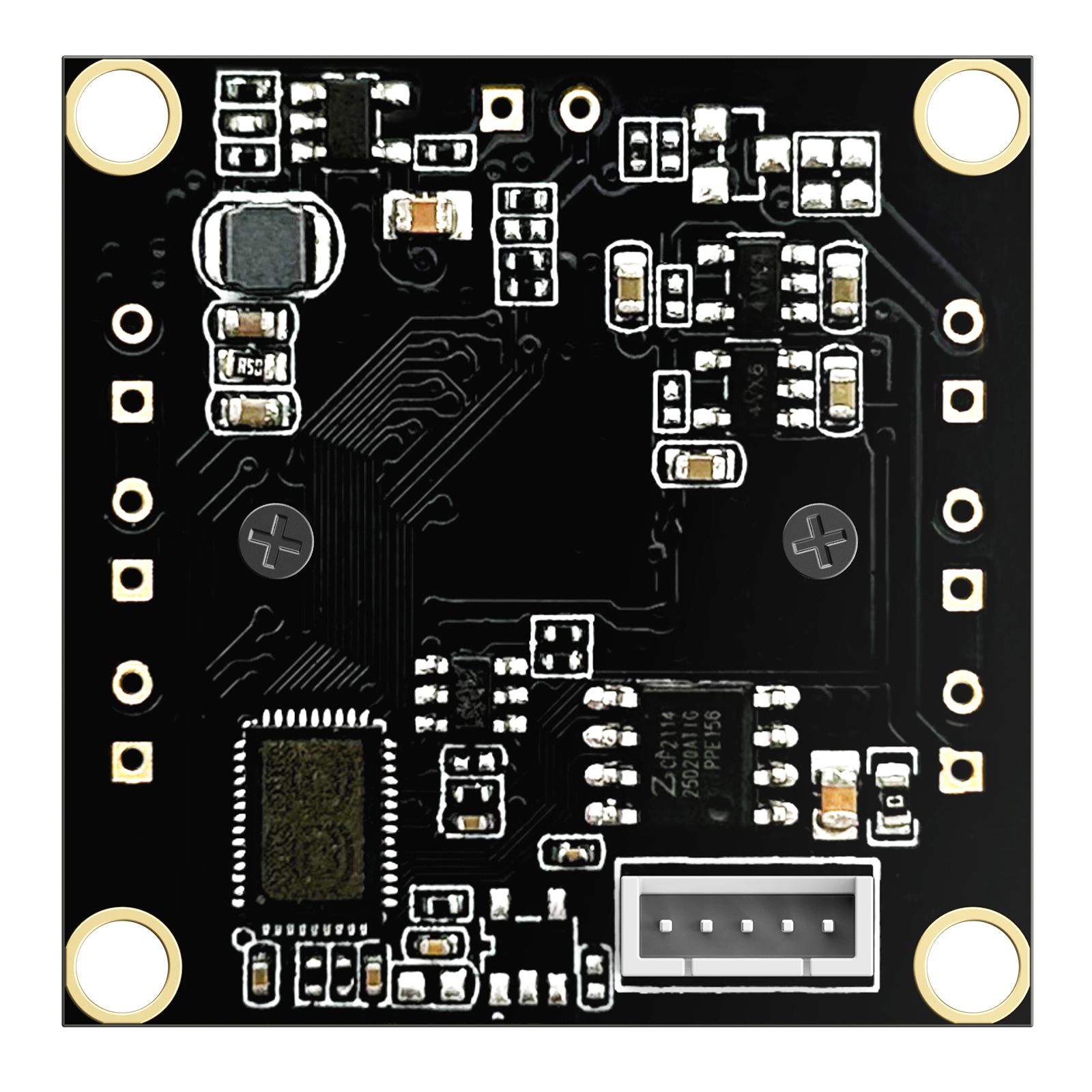

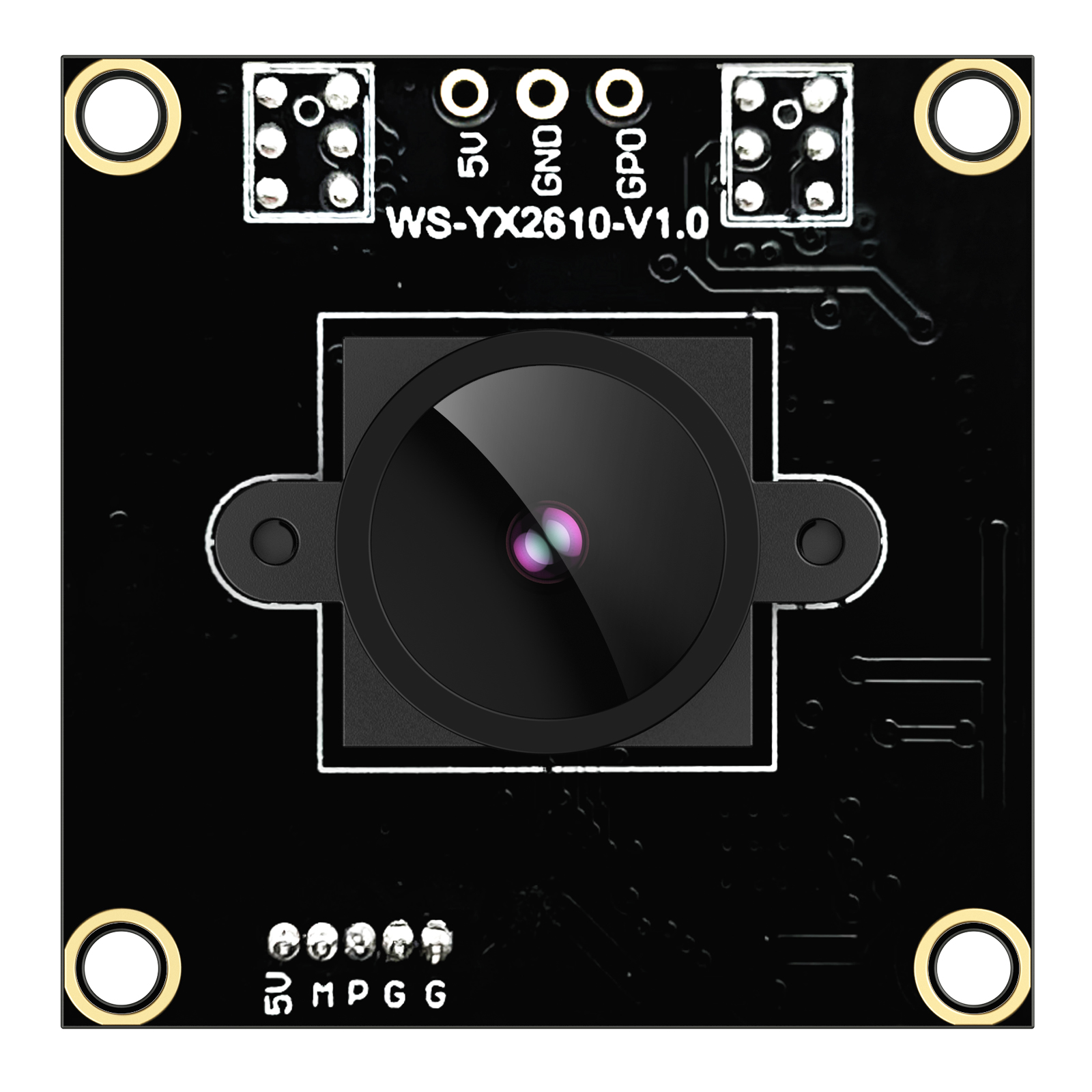

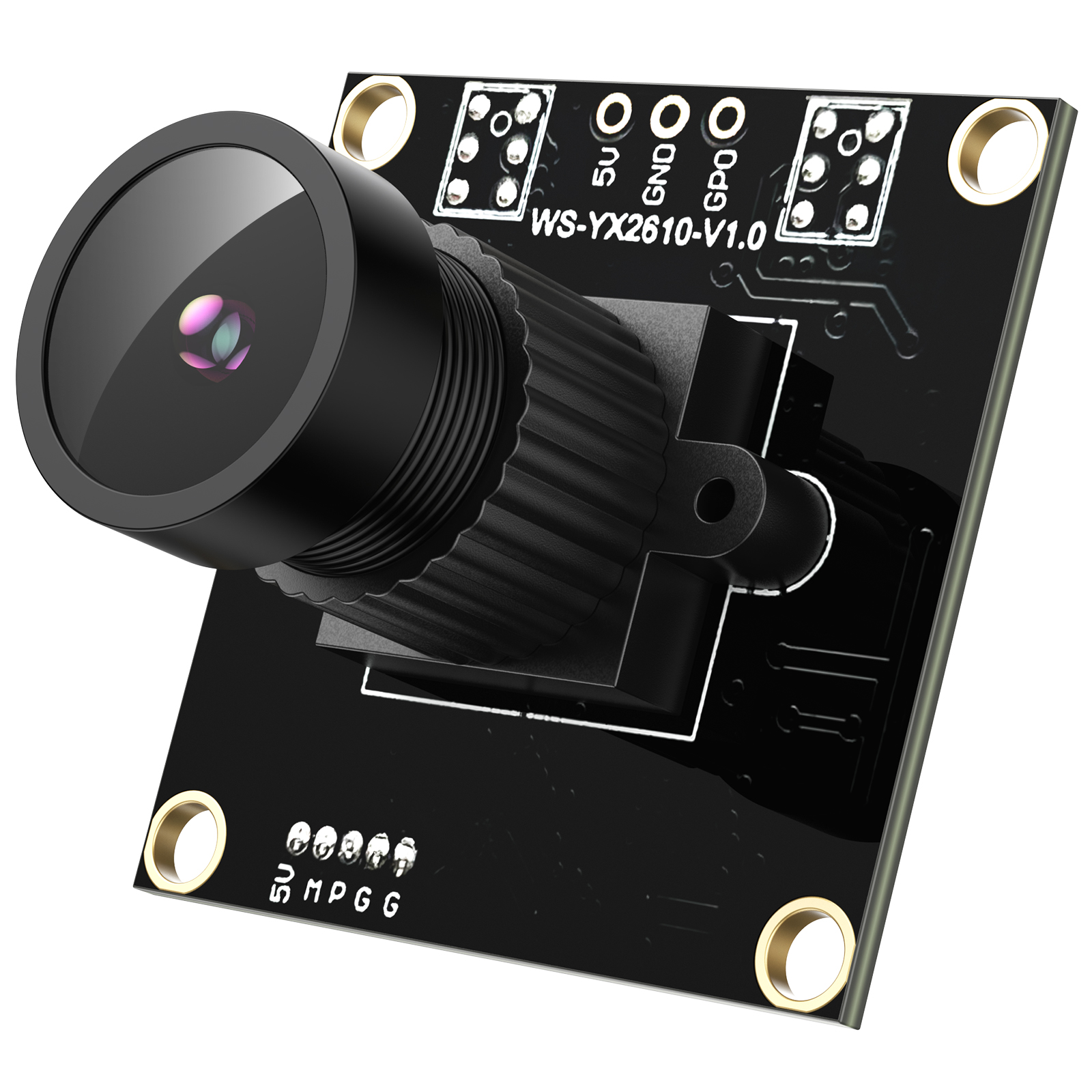

innomaker WDR 2MP UVC Camera Module with PS5268 Sensor
Description:
- U20CAM-PS5268 is 2MP resolution with PS5268 sensor, which features high sensitivity of 5800 mV/Lux-sec and wigh dynamic range (wDR) of 85dB, and can be used for all kinds of lighting conditions.
- Our camera module size is 32mmx32mm and can be customized as per your requirement;
- Also, A wide range of different lenses are available, with focal length from 2.8mm to 12mm, with view angle from
Customized Design:
- We have a wide variety of lens options for you to choose, with FOV from 40° to 220°, with focal length from 2.8mm to 16mm, etc
- This camera module is widely used for many applications like security, surveillance, CCTV, industrial automation, automotive, factory automation, monitoring, access control, artificial intelligence (AI), machine vision, robotics, robots, computer vision, agriculture, education, 3D, detection, vision system, imaging, etc
Module Specification
| Sensor | 1/2.7’’ PS5268 Sensor,2 Mega Pixel,1920(H) x 1080(V),3.0µm x 3.0µm,Color |
| Output Parameter | MJPG 1920X1080 30fps |
| Shutter Type | Electronic rolling shutter |
| Dynamic range(WDR) | 85dB |
| Sensitivity | 5800mV / lux-sec |
| Focus type | Fixed focus / Manually adjustable |
| Output Format | MJPG/YUY2 |
| MJPG Resolution & Frame rate | 1920×1080@30fps/1280×960@30fps/1280×720@30fps/768×1024@30fps,20fps,15fps,10fps,5fps/720×1080@30fps,20fps,15fps,10fps,5fps/ 640×1080@30fps,20fps,15fps,10fps,5fps/ 640×480@30fps,25fps,20fps,15fps,10fps,5fps/ 480×640@30fps,20fps,15fps,10fps,5fps/ |
| YUY2 Resolution & Frame rate | 1920×1080@5fps/1280×960@5fps/1280×720@10fps/768×1024@5fps/720×1080@10fps /640×1080@5fps/640×480@30fps/480×640@30fps |
| Auto Parameters | Auto Exposure Control (AEC) /Auto White Balance (AEB) /Auto Gain Control (AGC) |
| Controllable Parameters | Brightness,Contrast,Hue,Saturation,Sharpness,Gamma,White Balance,Backlight Comp, Gain, Exposure ,PowerLine Frequency,Low Light Compensation |
| USB Type | USB2.0 High Speed USB2.0 OTG USB Video Class（UVC） |
| Cable Length | 1M |
| Support Os | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
| S/N Ratio | 41dB |
Working Condition
| Power | DC 5V, 500mA |
| Operating Temperature: | 0°C-70°C, |
| Storage temperature | -20°C to 70°C |
| Dimension | 32mmx32mm |
Key Feature:
- 2MP resolution (1920×1080) with PS5268 Sensor
- Wide Dynamic Range (WDR) up to 85dB
- High sensitivity of 5800 mV/Lux-sec
- UVC compliant, Plug & Play
- Support Linux, Android, Mac and Windows
- A wide range of different lenses are available
- Customization is fully supported
Lens Specification
| F/N | 2.3 |
| Focus Length | 3mm |
| CRA | 14° |
| Disortion | 25％ |
| FOV | 135（H）x110(V)x58(D) |
| Lens Seat distance | 18mm |
| Fixed Type | Fixed Len |
| IR | 650±10nm |
