CAM-IMX219

$24.99 $21.99

Datasheet: http://wiki.inno-maker.com/display/CAMIMX219

Category: SKU: cam-imx219

Description

Key Feature

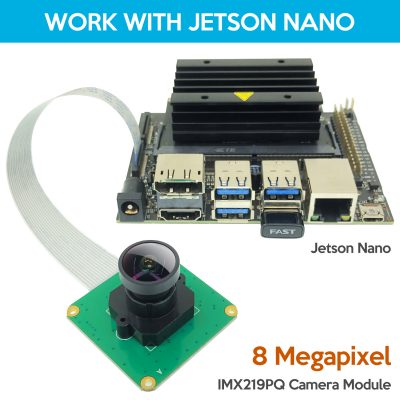

  • Support Jetson Nano,CM3+/CM3/CM1

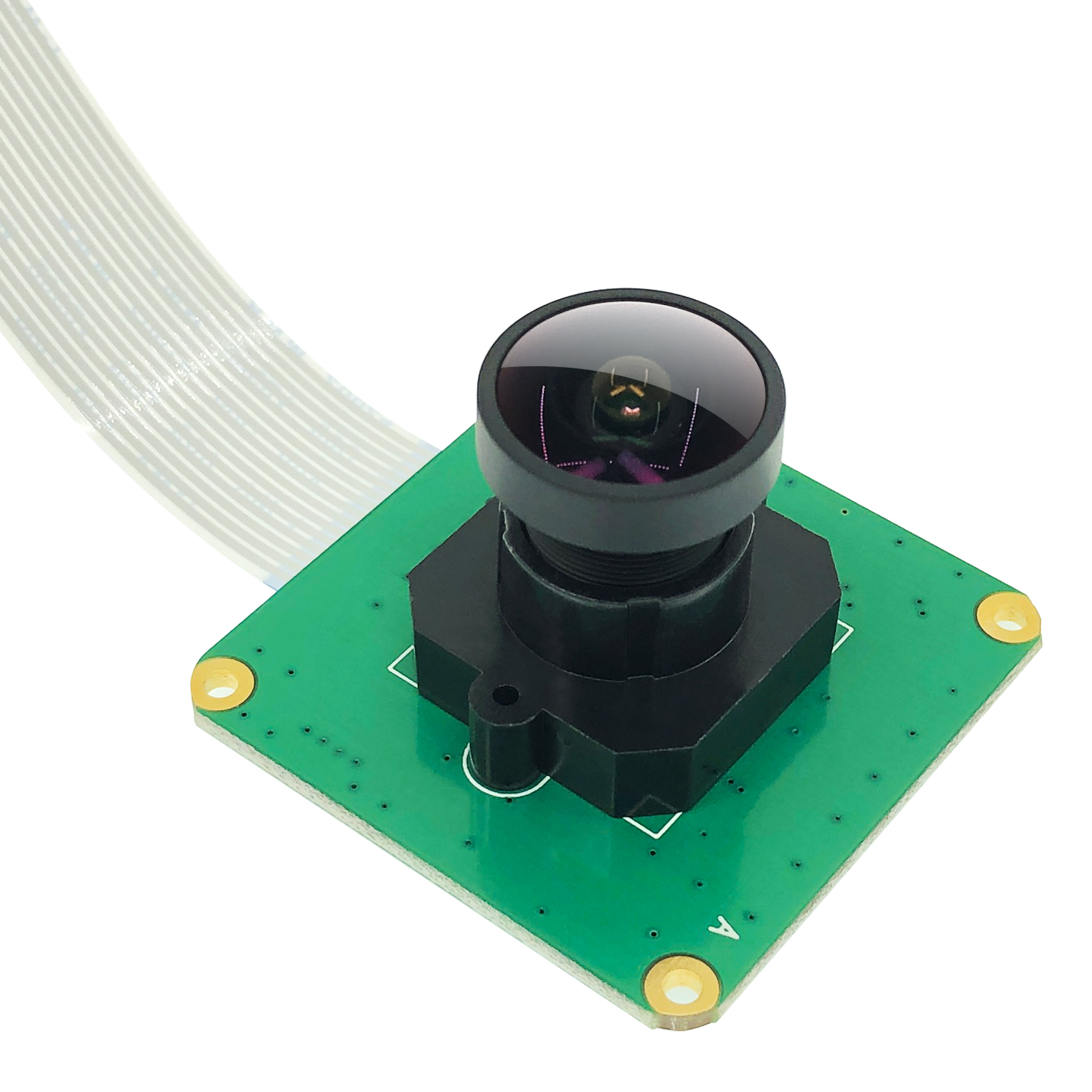

  • CAM-IMX219 is a low-cost Fisheye Lens, wider Field View,Camera module

Sensor

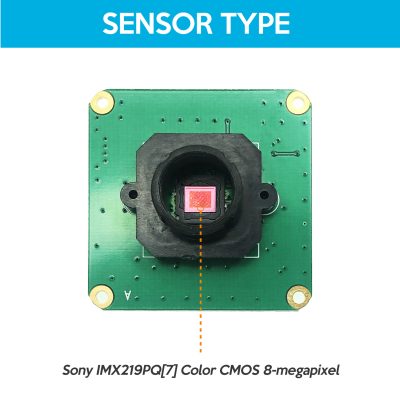

  • Sensor type: Sony IMX219PQ Color CMOS 8-megapixel
  • Sensor size: 3.674 x 2.760 mm (1/4″ format)
  • Pixel Count: 3280 x 2464 (active pixels) 3296 x 2512 (total pixels)
  • Pixel Size: 1.12 x 1.12 um
    • 1 – 1080P30 cropped (680 pixels off left/right, 692 pixels off top/bottom), up to 30fps
    • 2 – 3240×2464 Full 4:3, up to 15fps
    • 3 – 3240×2464 Full 4:3, up to 15fps (identical to 2)
    • 4 – 1640×1232 binned 4:3, up 40fps
    • 5 – 1640×922 2×2 binned 16:9 (310 px crop T/B before binning), up to 40fps
    • 6 – 720P bin+crop (360 px L/R, 512 px T/B before binning), 40..90fps (OC: 120fps)
    • 7 – VGA bin+crop (1000 px L/R, 752 px T/B before binning), 40..90fps (OC: 120fps)

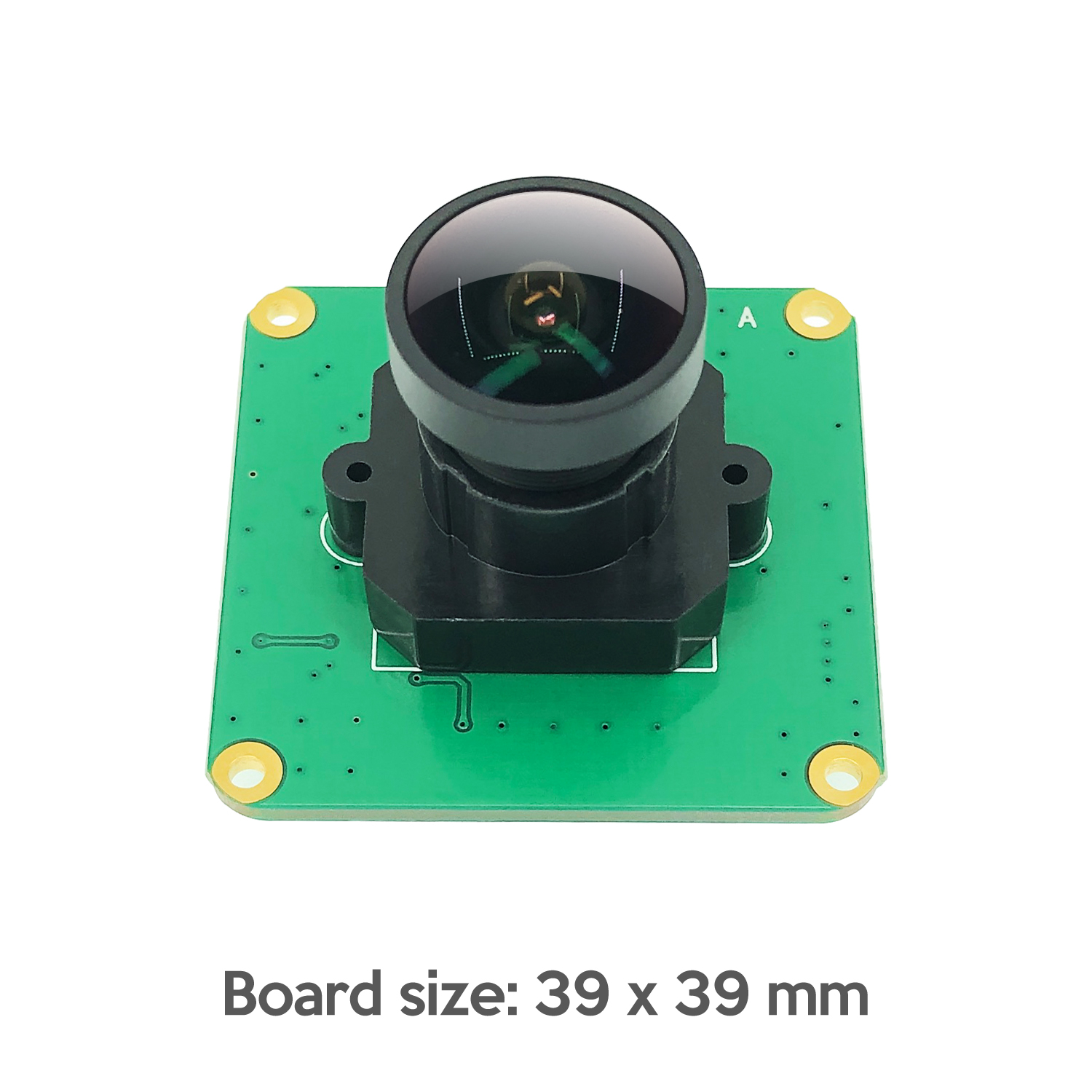

  • Board size: 39 x 39 mm
  • Mounting Holes: 4xD=2.20 mm

 LENS Features

  • FOCAL LENGTH: 2.8
  • LENS DIAMETER:12mm
  • Lens Seat Spacing:22mm
  • F/NO :2.2

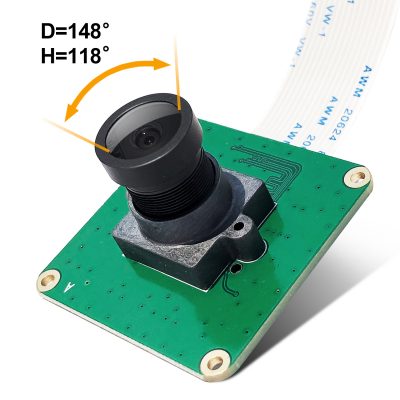

  • FIELD OFVIEW: D=148° H=118°
  • TV DISTORTION: <-17%
  • Element:4G+IR
  • CRA:10°
  • Relative Illumination: 52%
