Description
CAM-IMX335-5MP
About this item
5MP Camera Module for Raspberry Pi Genuine STARVIS IMX335 Sensor, 2592×1944@30FPS, 99° Wide Angle FOV, IR Filter, MIPI CSI-2 for Pi 5/4B/3B+/Zero/CM4/CM5
- 📷【Genuine IMX335 STARVIS Sensor】True 5MP (2592×1944) back-illuminated CMOS with electronic rolling shutter, starlight full-color imaging down to 0.1 Lux, 71dB dynamic range (up to 110dB DOL-HDR), and 37dB max SNR – ideal for AI vision, surveillance, machine vision, and scientific imaging.
- 🌐【Wide-Angle Lens with IR Filter】H86.7°/V48.8°/D99.5° FOV for broad coverage, built-in IR for accurate daytime color and enhanced low-light performance without distortion.
- 🔌【Seamless Raspberry Pi Integration】MIPI CSI-2 interface with full 2-lane bandwidth on Pi 5, compatible with Raspberry Pi 5/4B/3B+/3B/Zero 2W/Zero W/CM4/CM5, includes 150mm flex cables and 4x M2 mounting holes for official cases.
- ⚙️【Easy Setup with Libcamera Support】Requires recompiling libcamera/rpicam-apps (scripts and pre-compiled IMG files provided), native support via dtoverlay=imx335 and tuning file for preview, photo, and video capture up to 30FPS.
- 🌡️【Rugged & Low-Power Design】Operates from -20°C to +70°C, USB-powered from Pi CSI port (3.3V), compact 32x32mm module weighing 12-15g – perfect for industrial AOI, time-lapse, and embedded projects.
Product Description

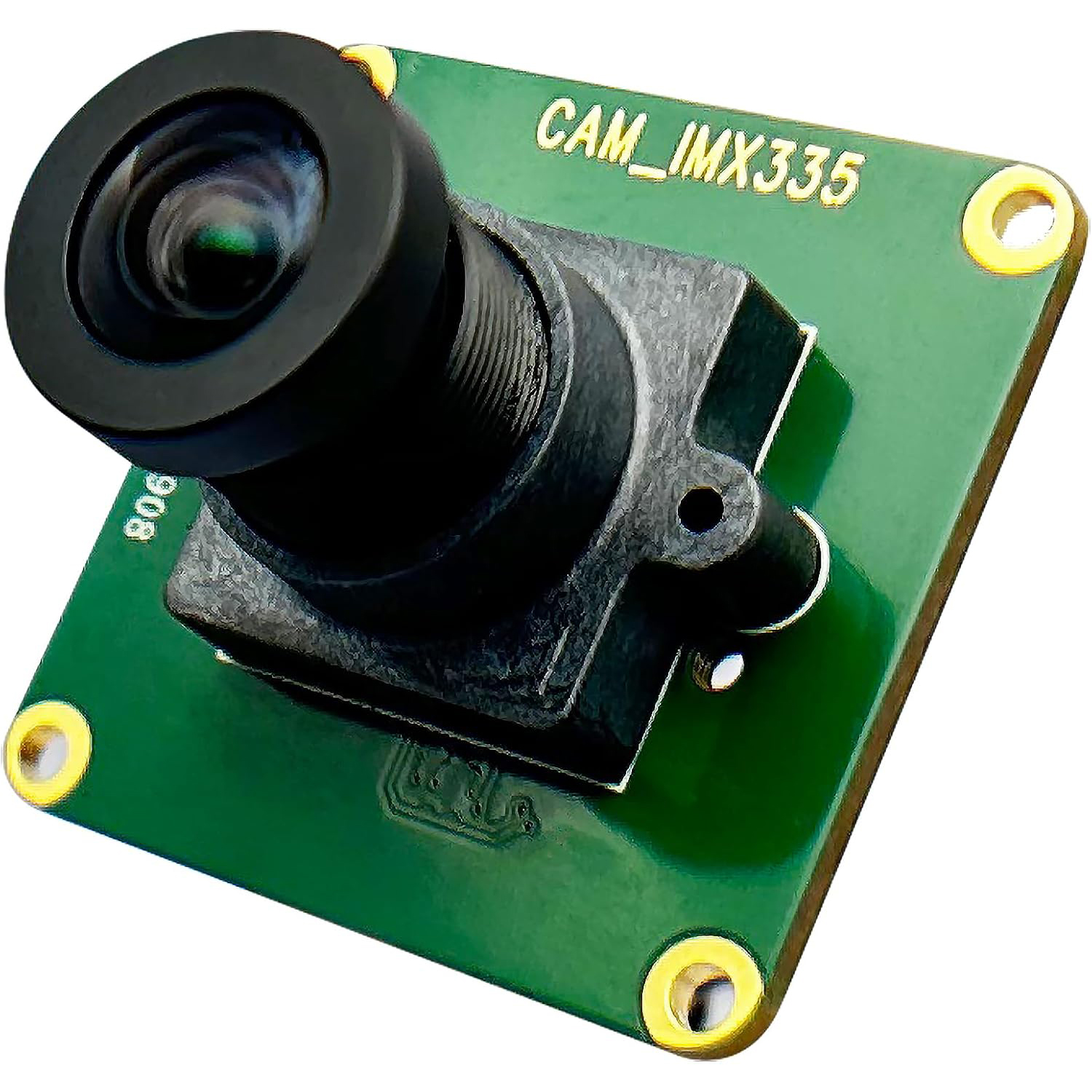

InnoMaker High-Performance 5MP Raspberry Pi Camera Module with IMX335 STARVIS Sensor
Unlock True 5MP Starlight Imaging on Raspberry Pi
Engineered exclusively for Raspberry Pi platforms (5/4B/3B+/3B/Zero2W/Zero W/CM4/CM5), the CAM-IMX335-5MP features the authentic STARVIS IMX335 back-illuminated sensor for genuine 5.14MP resolution.
Delivers crystal-clear 2592×1944 at 30FPS with starlight-level full-color sensitivity down to 0.1 Lux – no more washed-out low-light shots.
Factory-optimized tuning file ensures seamless integration; ideal for high-resolution AI vision, surveillance, industrial AOI, machine vision, scientific imaging, and long-term time-lapse applications.
Premium Wide-Angle Optics with IR
Equipped with a high-quality lens offering expansive fields of view (H86.7°/V48.8°/D99.5° FOV) for broad scene coverage without edge distortion.
Built-in IR filter maintains vivid colors during the day and boosts low-light performance, making it versatile for indoor/outdoor use.
Effortless Setup & Native Software Support
Connect via MIPI CSI-2 with included 150mm 15-pin and 22-pin flex cables.
Requires libcamera/rpicam recompilation to enable IPA helper (we provide scripts for latest Raspberry Pi Trixie and pre-compiled system IMG files).
Add dtoverlay=imx335 to config.txt for instant recognition. Test with commands like rpicam-hello for live preview, rpicam-still for photos, or rpicam-vid for videos.
Key Technical Specifications
Sensor: IMX335 1/2.8″ Back-Illuminated CMOS, 2.0μm Pixels, RAW10/RAW12 Output
Resolution & FPS: 2592×1944 @ 30FPS (official mode)
Dynamic Range: 71dB Standard / 110dB DOL-HDR | SNR: 37dB
Interface: MIPI CSI-2, I2C Control, 3.3V Power from Pi
Dimensions: 32×32mm Module, ≤20mm Height, 12-15g Weight
Environmental: -20°C to +70°C Operating, -30°C to +85°C Storage

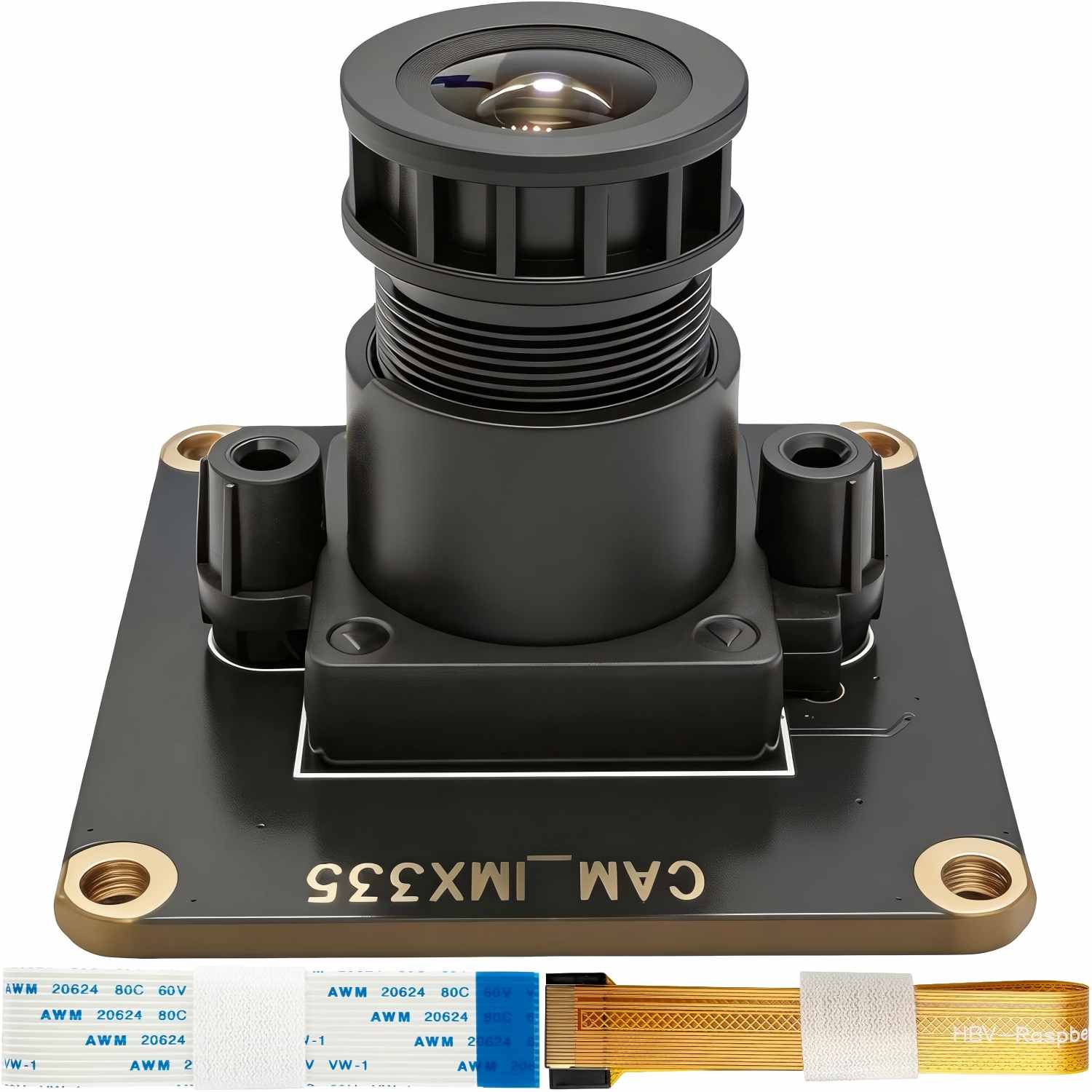

Package Includes
1 × CAM-IMX335-5MP Camera Module
1 × 150mm 15-Pin 1.0mm Flex Cable
1 × 150mm 22-Pin 0.5mm Flex Cable
Elevate your Raspberry Pi projects with professional-grade 5MP imaging – from AI experiments to industrial automation!
