Description
CAM-IMX415-8MP
About this item
4K 8MP Camera Module for Raspberry Pi, Genuine STARVIS IMX415 Sensor 3864×2192@30FPS, IR Filter, MIPI CSI-2 for Pi 5/4B/3B+/Zero/CM4/CM5
- 📷【Authentic IMX415 STARVIS Sensor】True 4K (3864×2192) back-illuminated CMOS with electronic rolling shutter, starlight full-color imaging down to 0.01 Lux, 71.3dB dynamic range (up to 110dB DOL-HDR) and 37.1dB max SNR – perfect for AI vision, surveillance, machine vision, and scientific imaging.
- 🌐【Wide Angle Lens with Dual IR Filter】H 70.2° / V 39.5° / D 80.6° for extensive coverage, built-in IR ensures accurate colors and superior low-light performance.
- 🔌【Plug & Play Raspberry Pi Compatibility】MIPI CSI-2 interface (2-lane on Pi 5), works with Raspberry Pi 5/4B/3B+/3B/Zero 2W/Zero W/CM4/CM5, includes 15-pin and 22-pin flex cables, 4xM2 mounting holes for easy integration.
- ⚙️【Native Libcamera Integration】Built-in Raspberry Pi OS tuning file, enable with dtoverlay=imx415 in config.txt for seamless preview, photo and video capture at 30FPS using rpicam-apps.
- 🌡️【Durable Low-Power Build】Compact 32x32mm module at 15g, operates from -20°C to +70°C, powered directly from Pi CSI port (3.3V) – ideal for industrial AOI, time-lapse and embedded applications.
Product Description

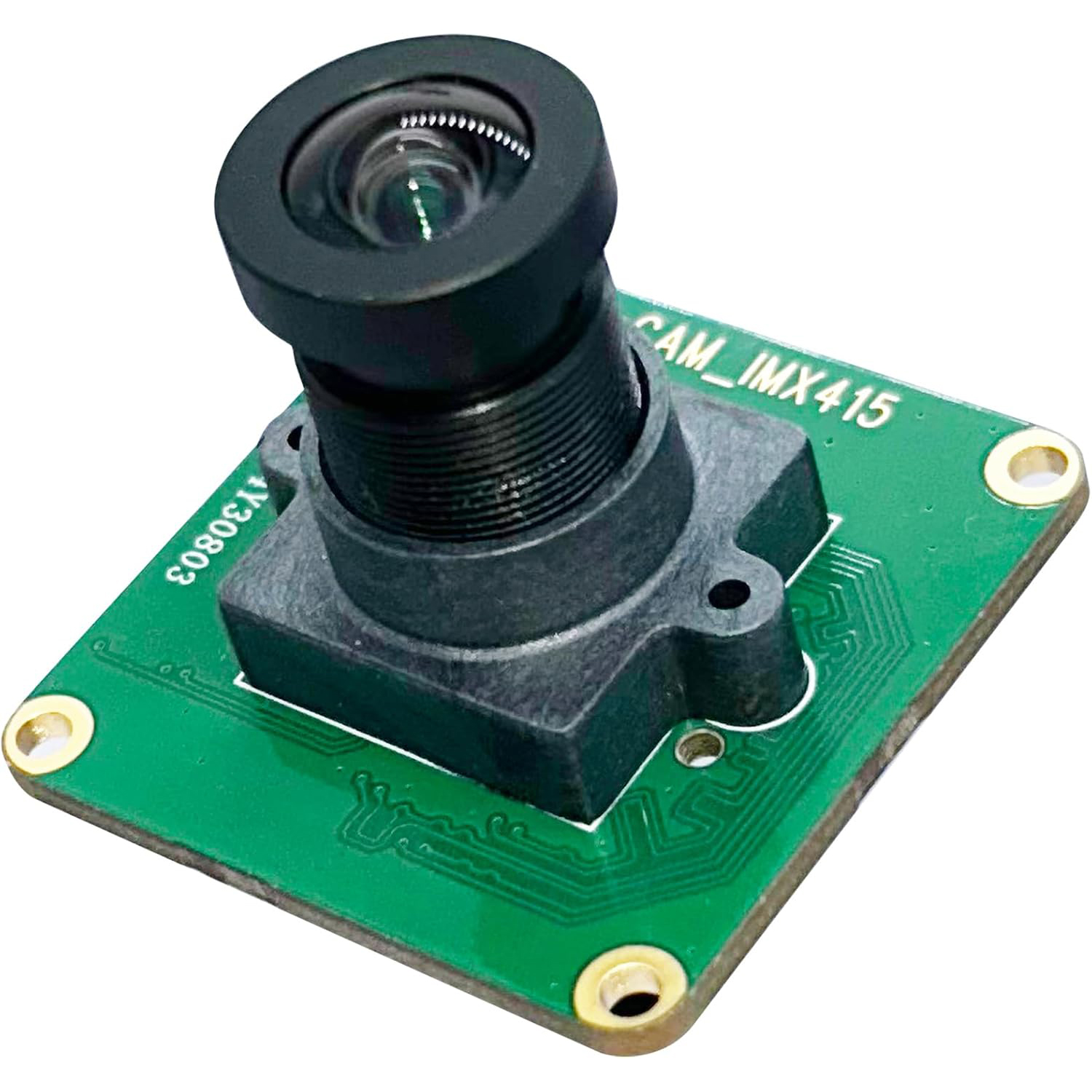

InnoMaker True 4K 8MP Raspberry Pi Camera Module with IMX415 STARVIS Sensor for Raspberry Pi
Experience Genuine 4K Starlight Imaging on Raspberry Pi, designed specifically for Raspberry Pi platforms (5 / 4B / 3B+ / 3B / Zero 2W / Zero W / CM4 / CM5), the CAM-IMX415-4K leverages the real STARVIS IMX415 back-illuminated sensor for 8.46MP resolution.
Achieves sharp 3864×2192 at 30FPS with exceptional starlight sensitivity down to 0.01 Lux – eliminating noise in dim environments.
Includes a Raspberry Pi OS tuning file for optimal performance; suited for 4K AI vision, high-res surveillance, industrial AOI, machine vision, scientific applications, and extended 4K time-lapse projects.
High-Quality Wide-Angle Optics with IR-Filter
Features a premium lens with broad fields of view (H 70.2° / V 39.5° / D 80.6°) for comprehensive scene capture without distortion.
Built-in IR filter delivers true-to-life colors by day and enhanced clarity in low light.
Simple Setup & Official Software Support
Connect using MIPI CSI-2 with provided 15-pin 1.5mm and 22-pin 1mm flex cables.
Native integration via libcamera/rpicam-apps: Add camera_auto_detect=0 and dtoverlay=imx415 to config.txt, reboot, and use commands like rpicam-hello for preview, rpicam-still for 4K photos, or rpicam-vid for videos.
Key Technical Specifications:
Sensor: IMX415 1/2.8″ Back-Illuminated CMOS, 1.45μm Pixels, RAW10/RAW12 Output
Resolution & FPS: 3864×2192 @ 30FPS (validated mode)
Dynamic Range: 71.3dB Standard / 110dB DOL-HDR | SNR: 37.1dB
Interface: MIPI CSI-2 (2-Lane), 3.3V Power from Pi
Dimensions: 32×32mm Module, 15g Weight
Environmental: -20°C to +70°C Operating, -30°C to +85°C Storage

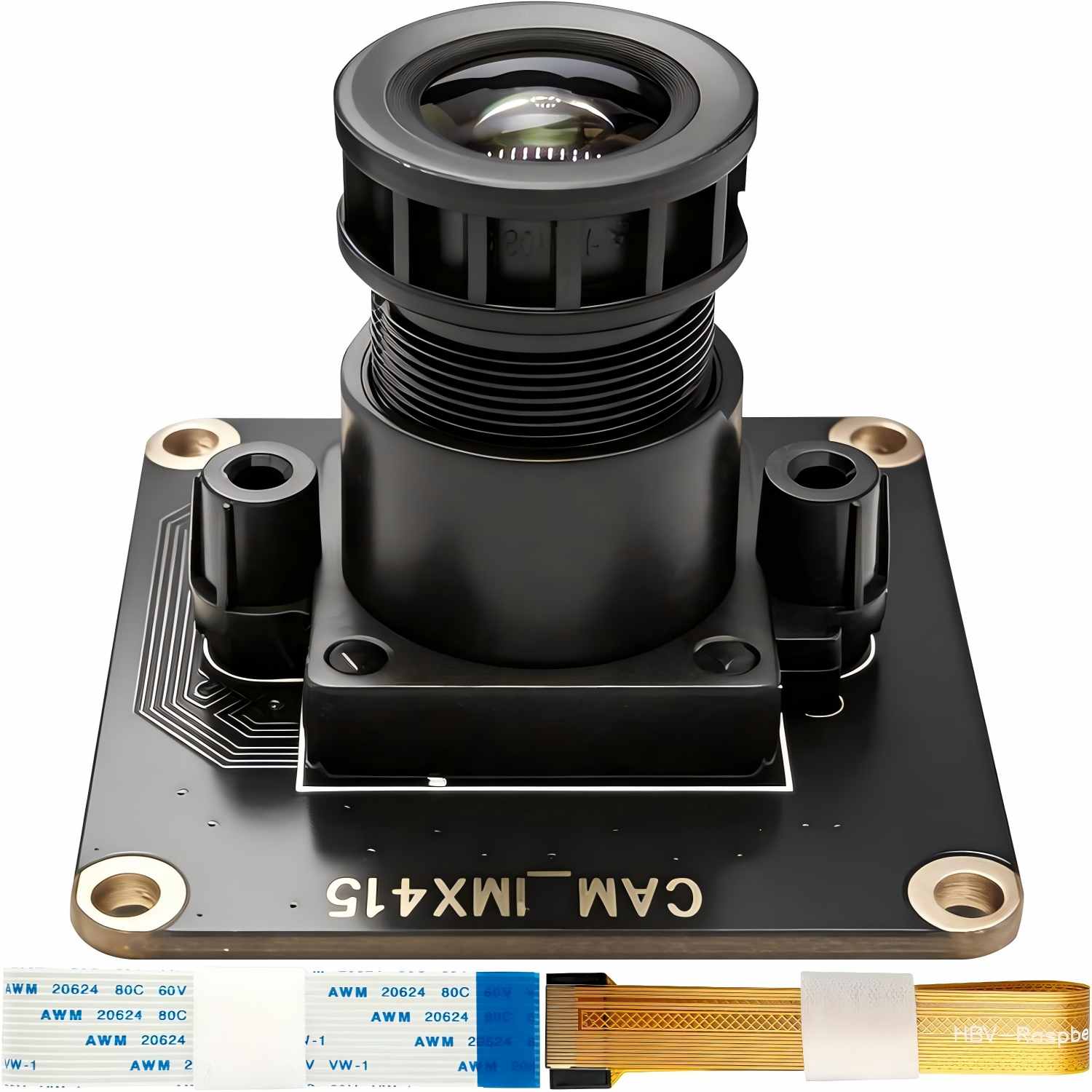

Package Iist:
1 × CAM-IMX415-4K Camera Module
1 × 15-Pin to 15-Pin 1.5mm Flex Cable
1 × 15-Pin to 22-Pin 1mm Flex Cable
