Description
1 General
1.1 Description

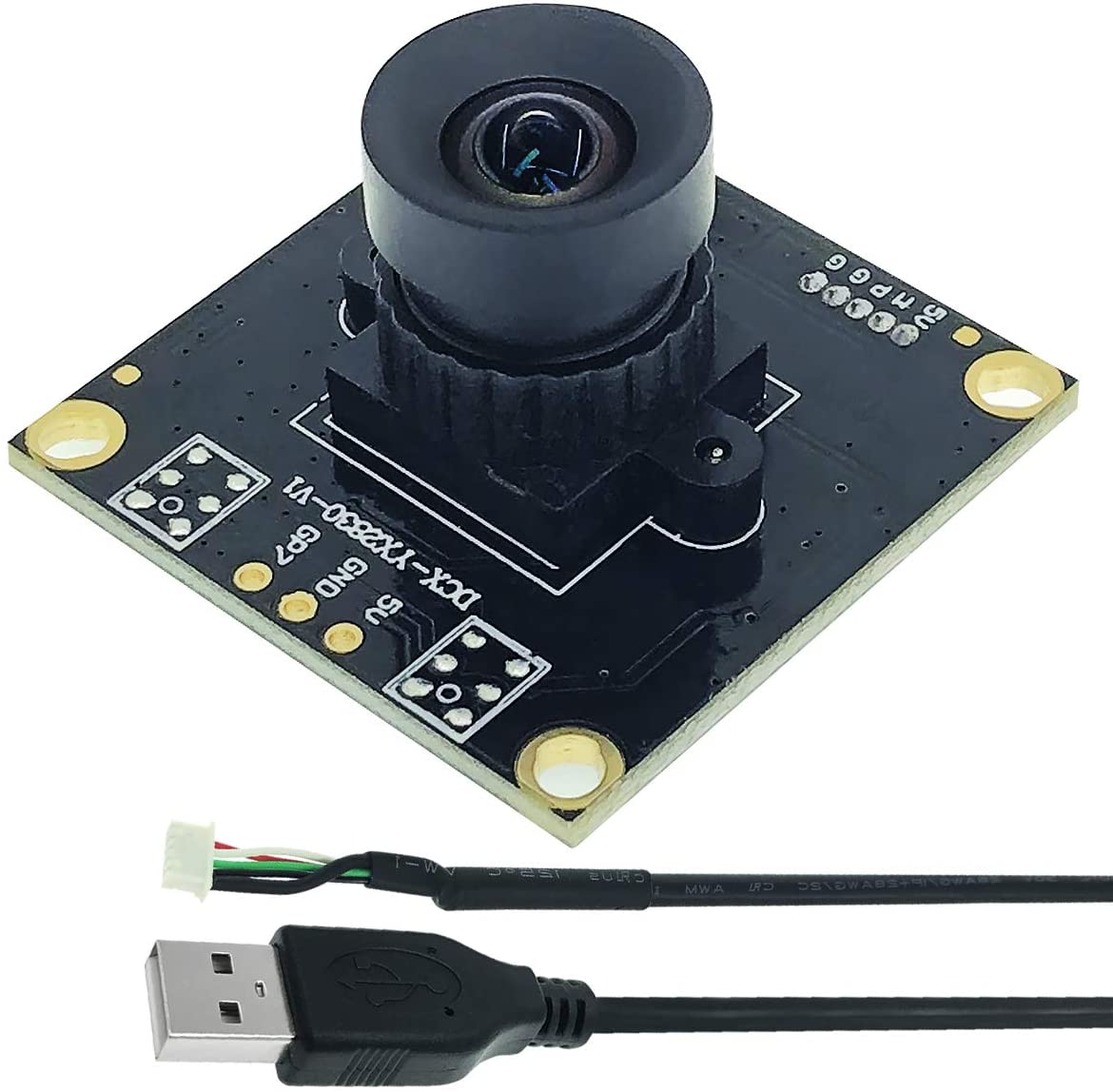

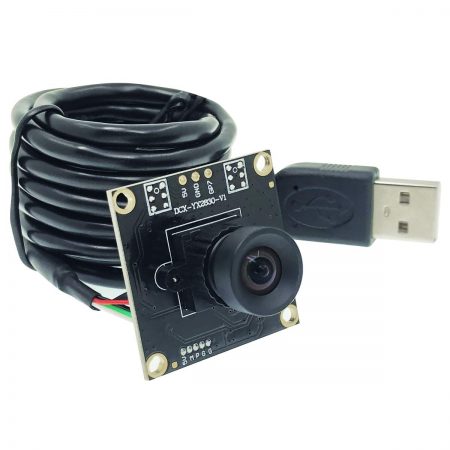

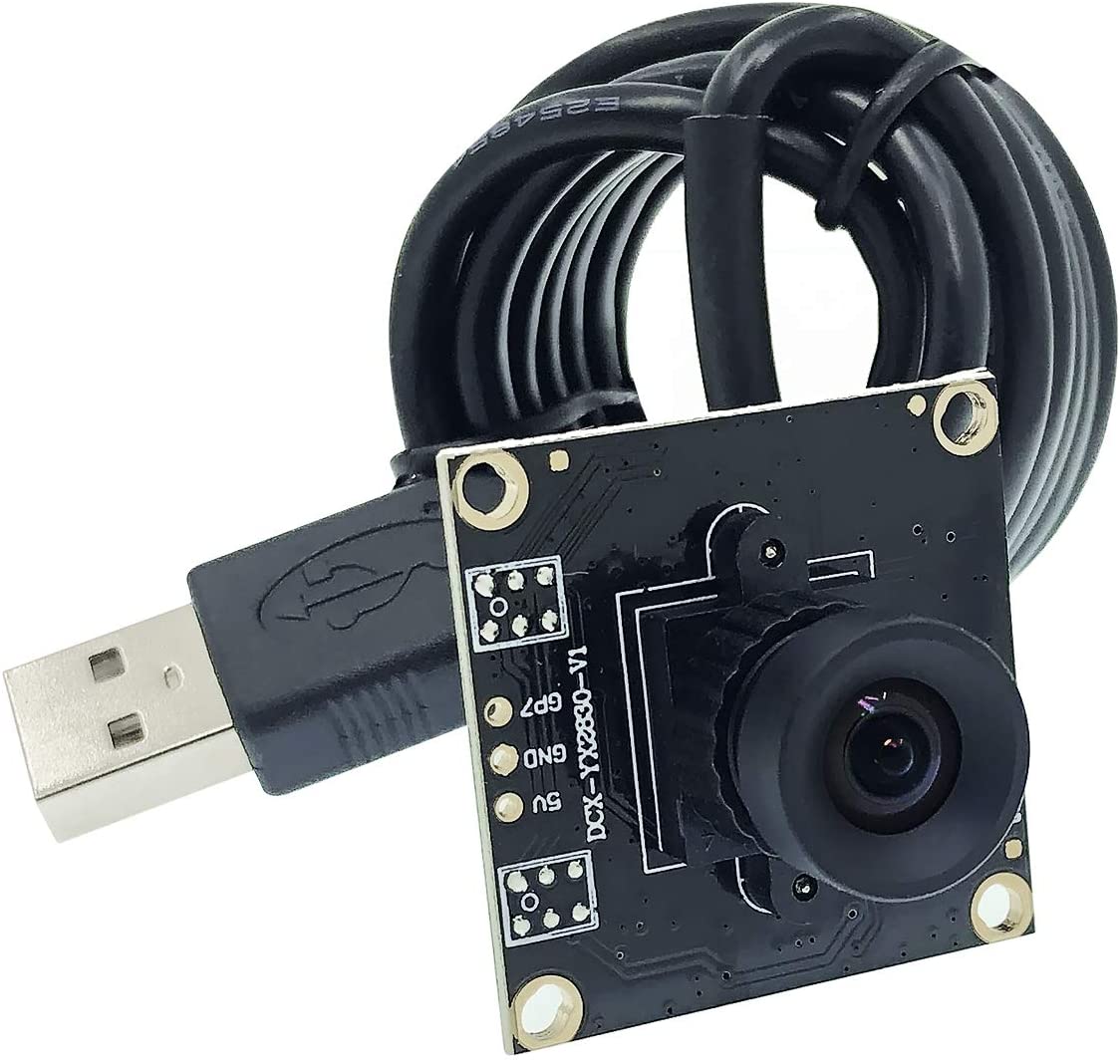

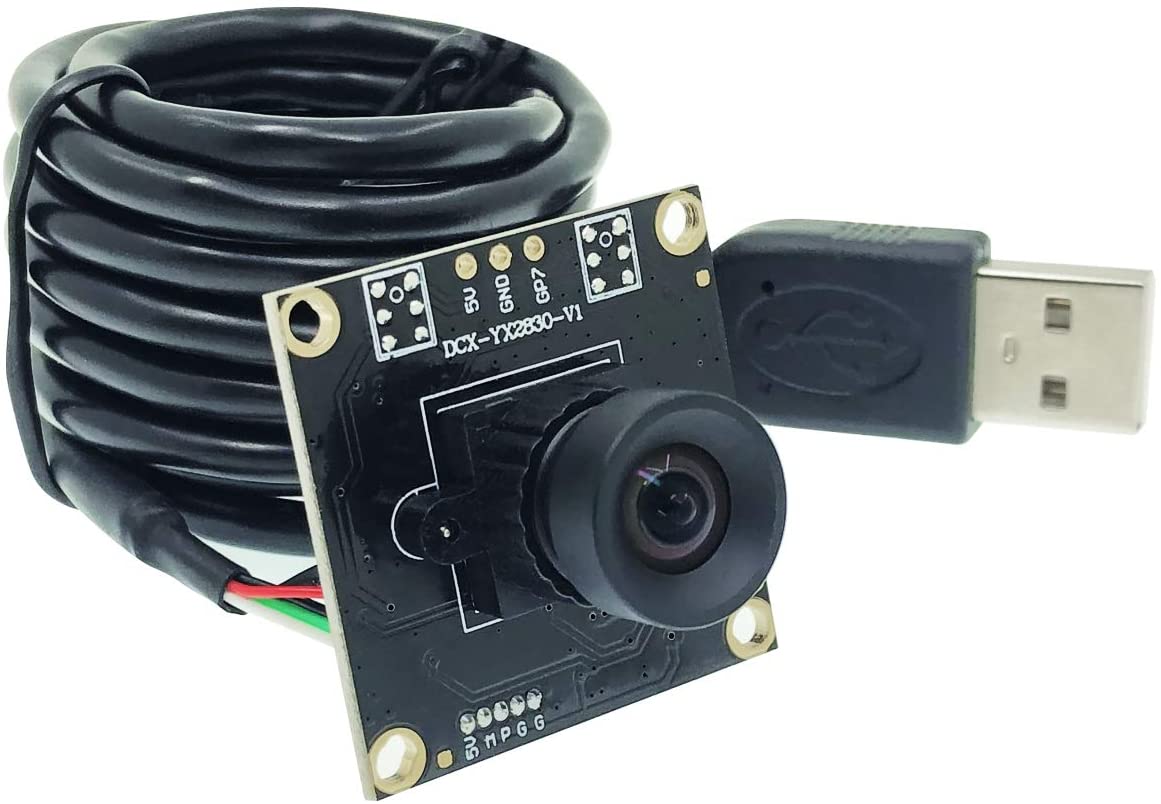

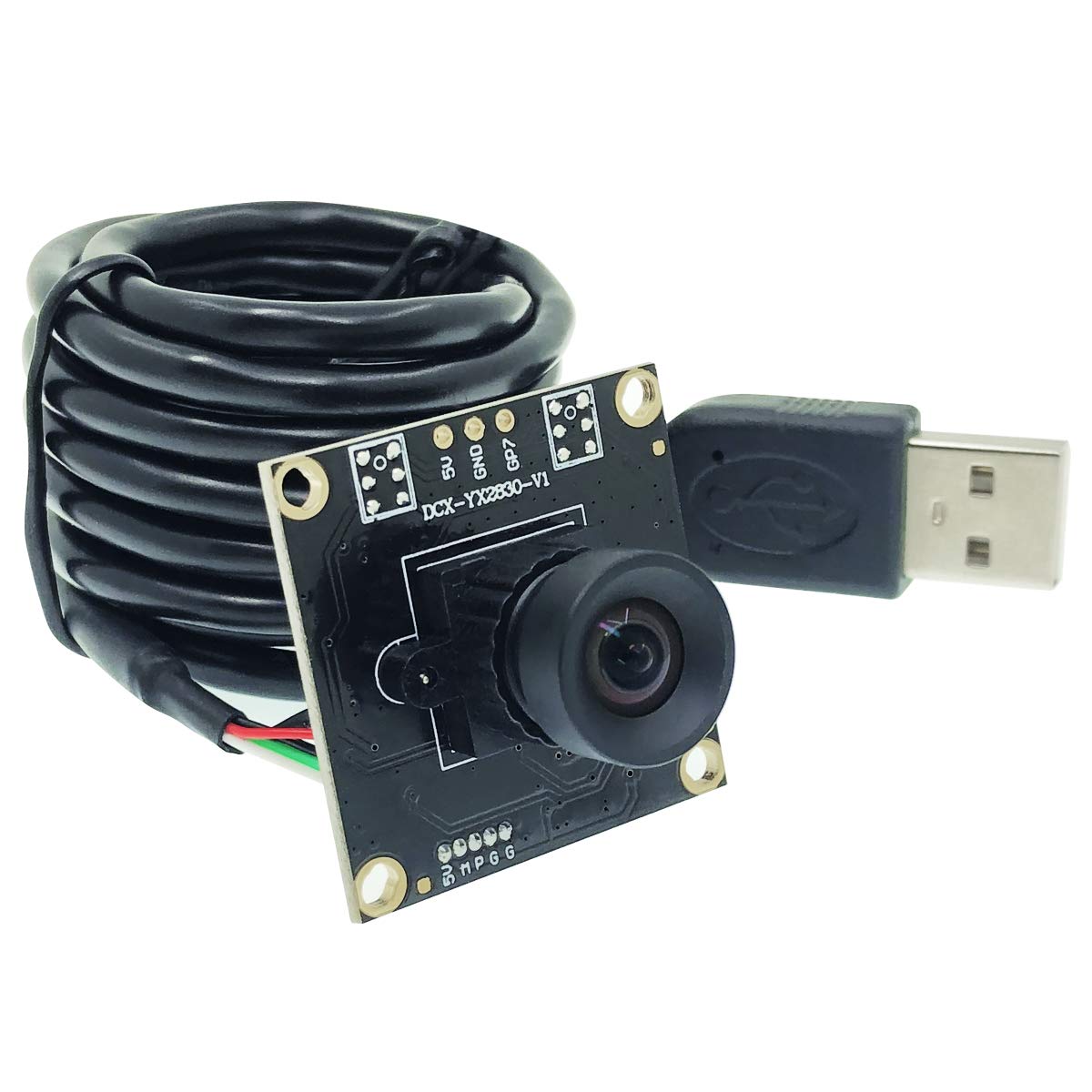

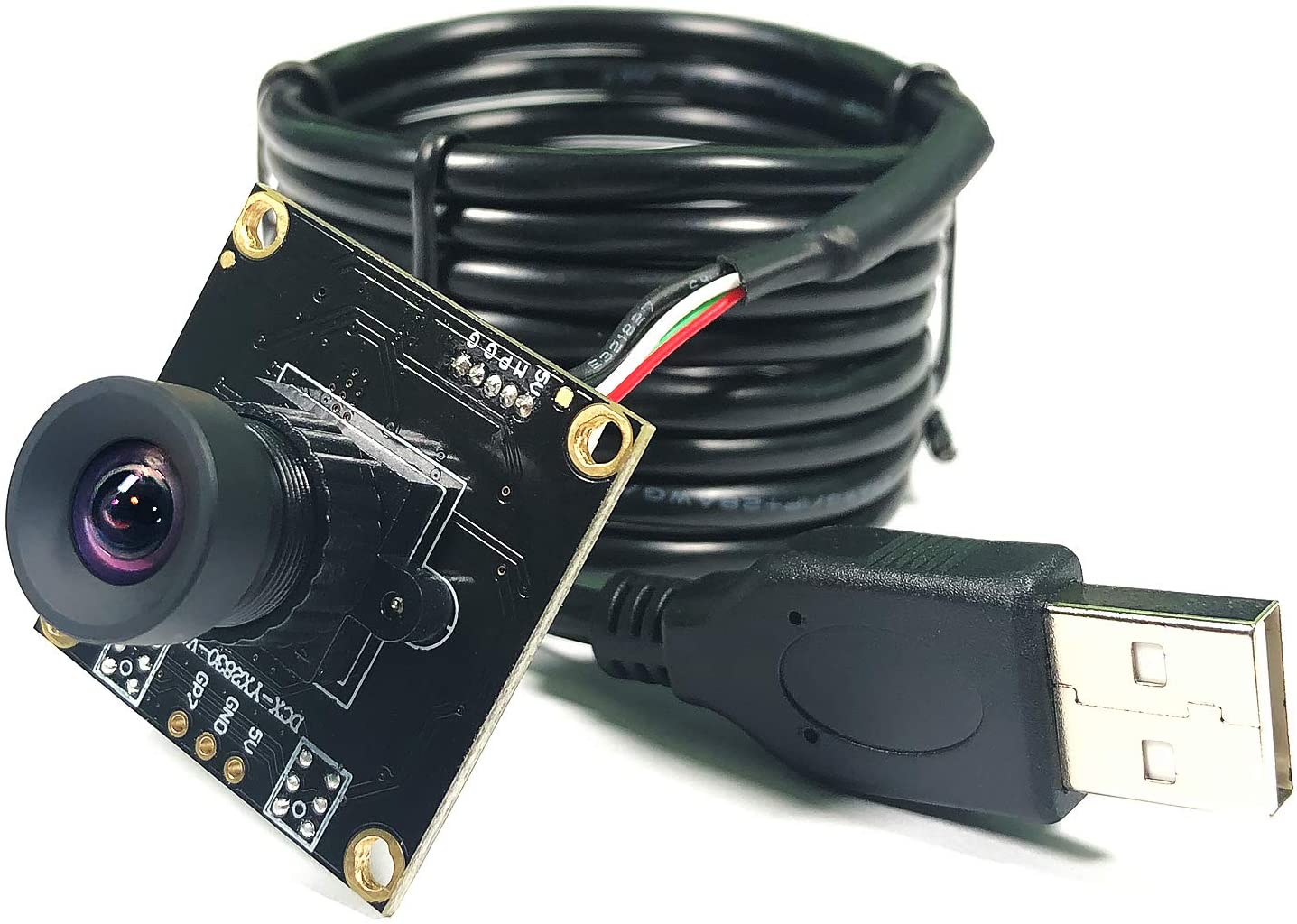

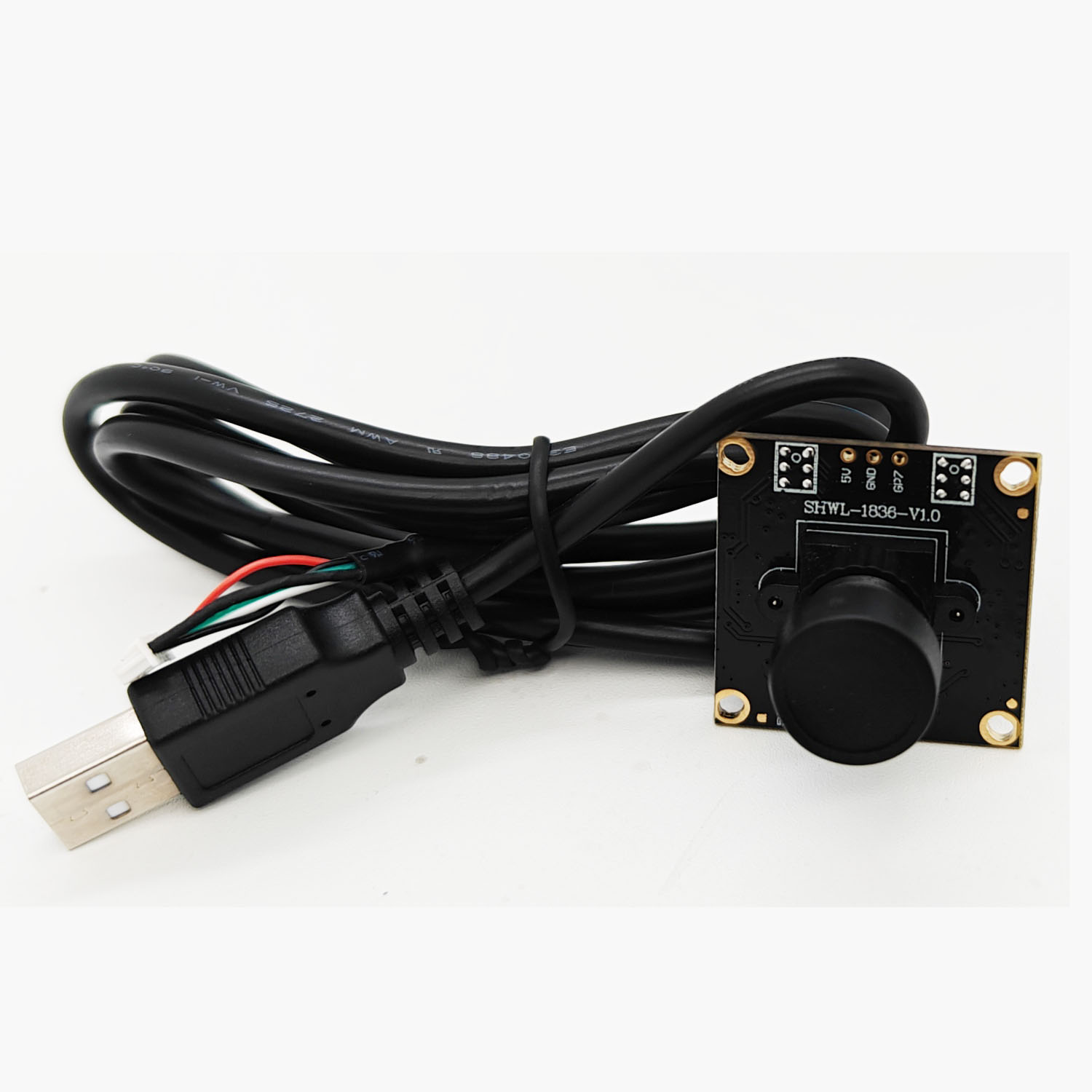

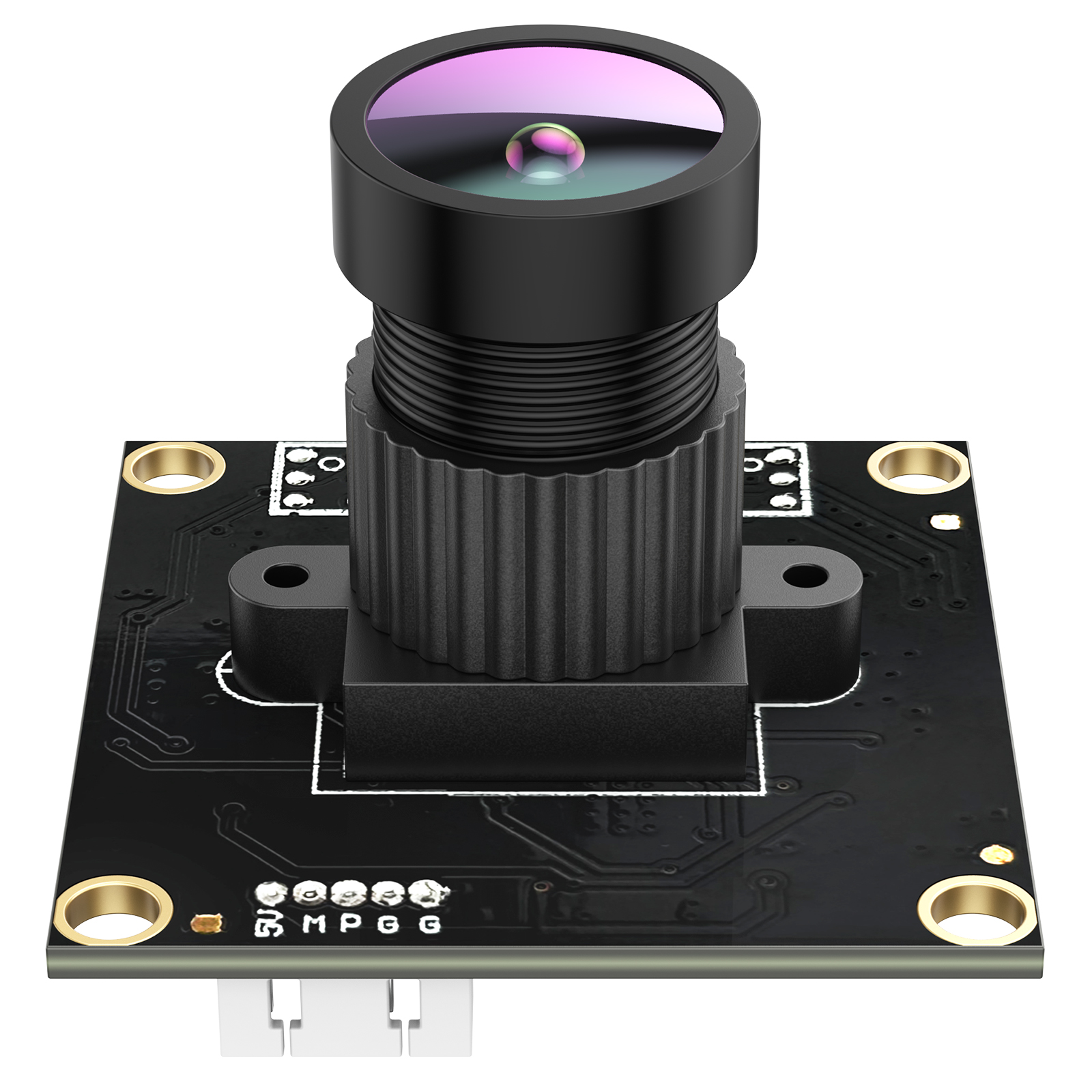

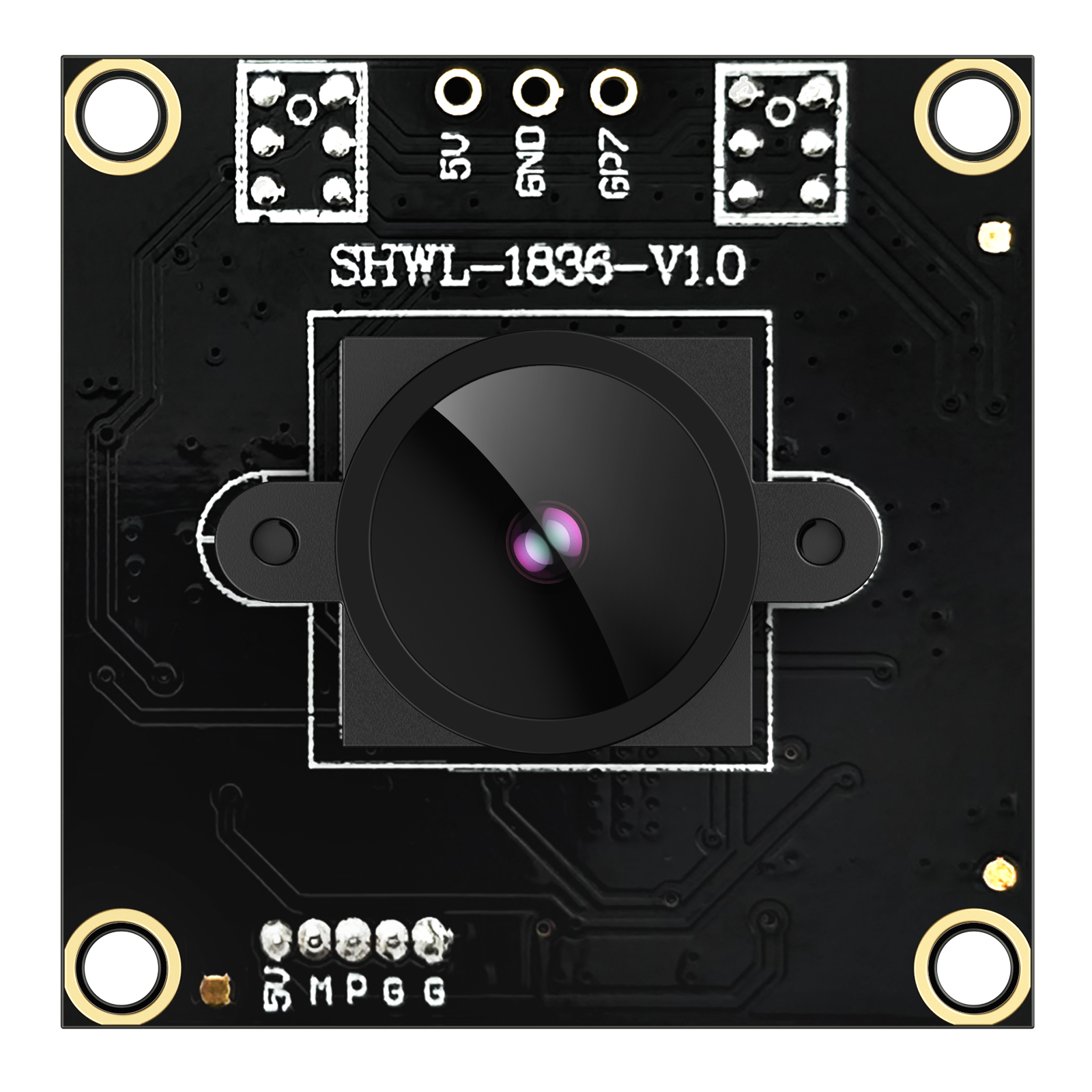

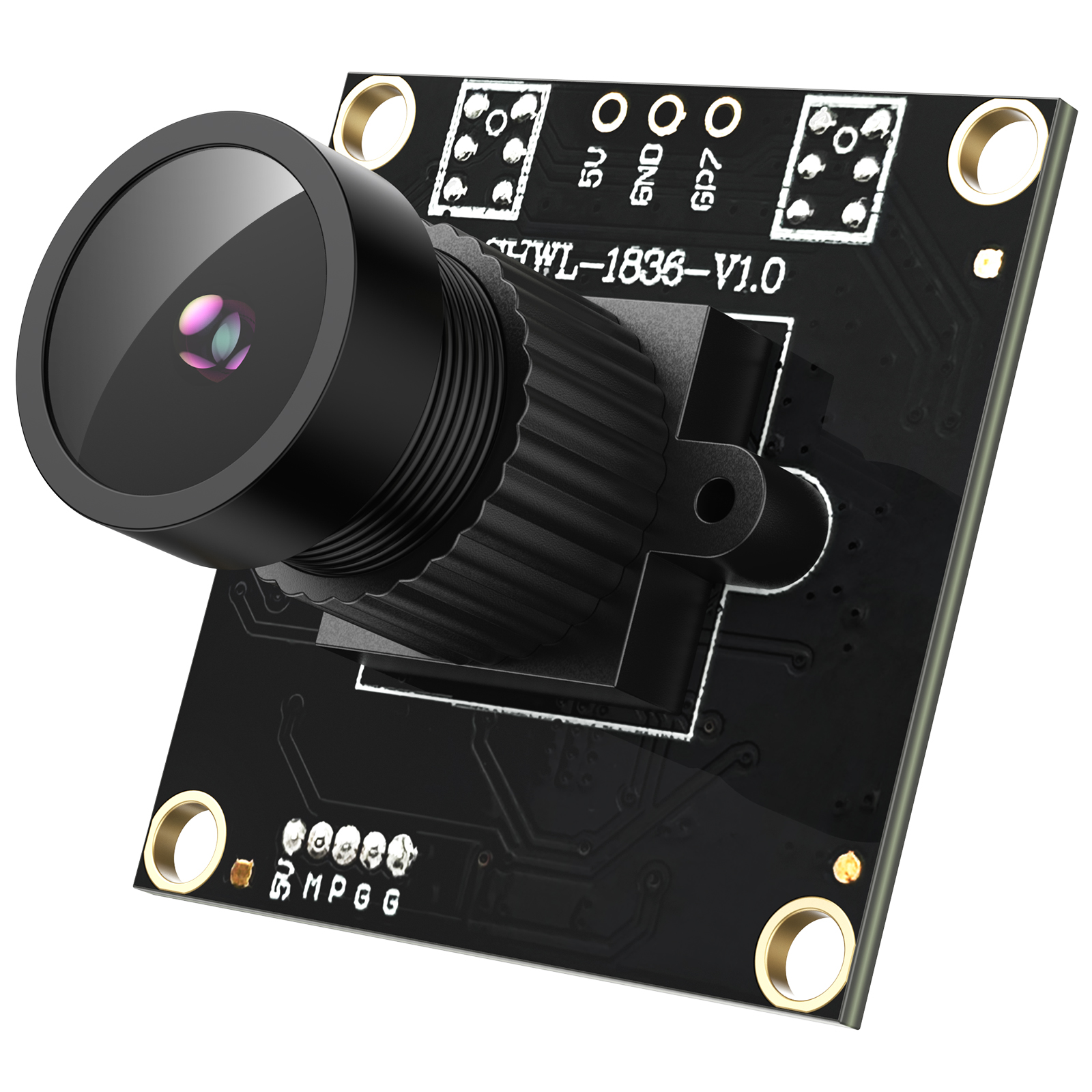

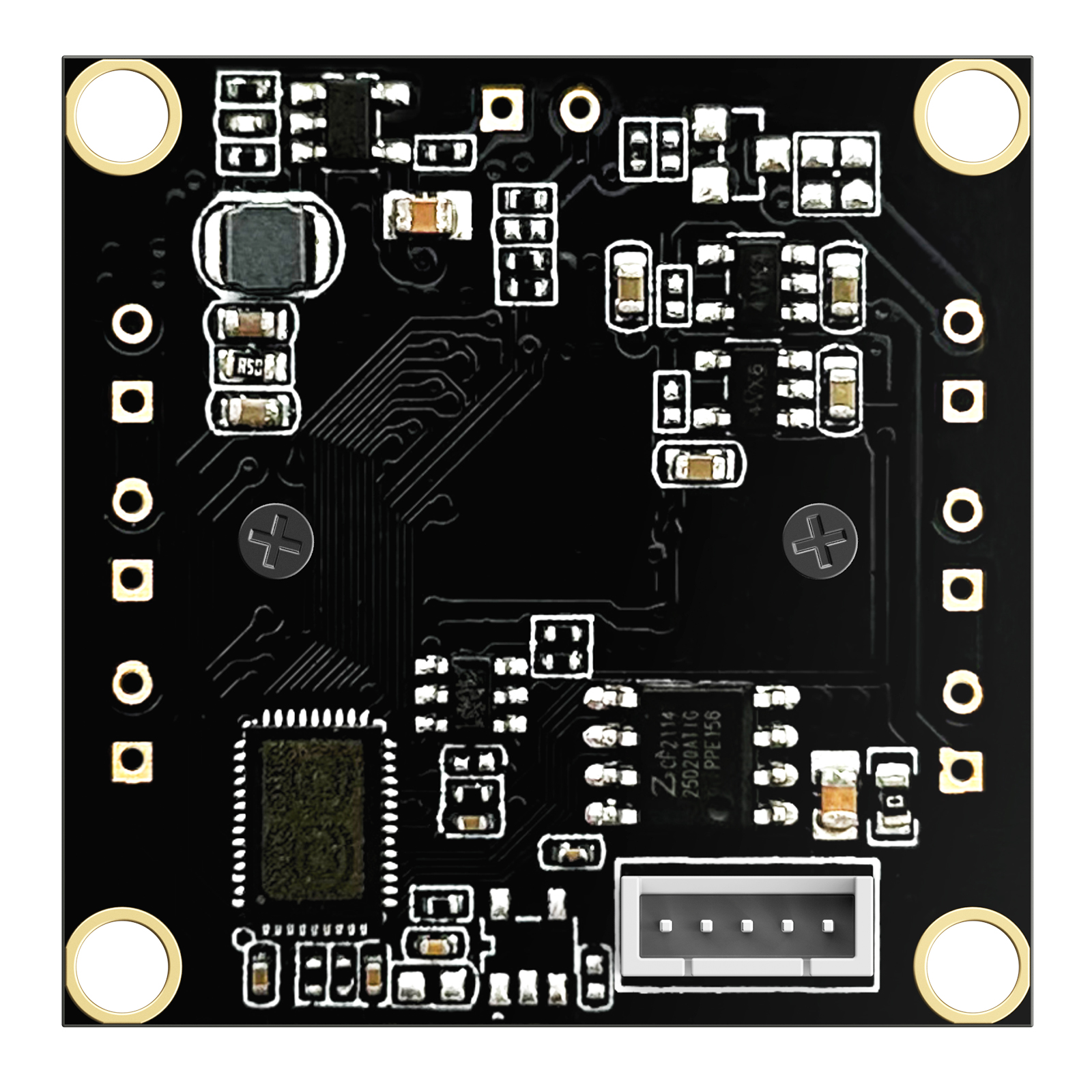

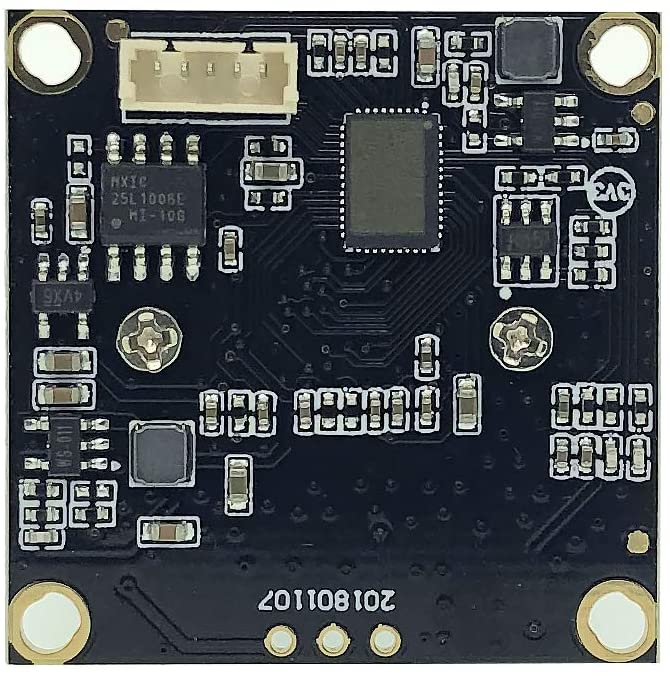

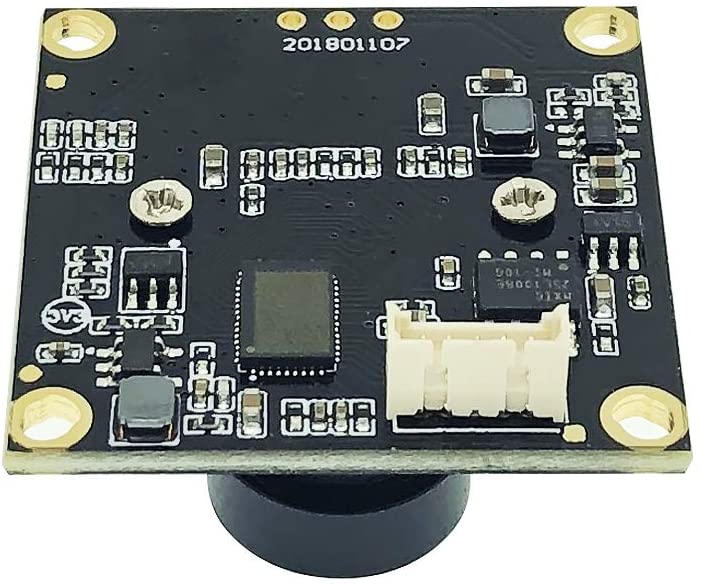

InnoMaker USB 2.0 UVC Camera Module U20CAM-AR0230 is a High Performance 1080P HDR Camera Module, Feature with 2MP Low-light Sensitivity sensor AR0230, Compatible Windows, Linux, Mac OS, Android OS with UVC Drivers. Support Raspberry PI,Jetson Orin Nano,Bealgeboard,etc…
1.2 Features
- HD Resolution and WDR: This camera adopts 2MP AR0230 Color COMS sensor with a 105dB wide dynamic range.
- Frame Rates Default:
- MJPG 1920X1080@30FPS; (default)
- YUY2 1280X1024@5FPS; (default)
- Plug&Play: UVC-compliant, support Windows, Linux, Mac OS and Andriod device with UVC, just connect the camera to PC, laptop or Raspberry Pi with the USB cable without extra drivers to be installed.

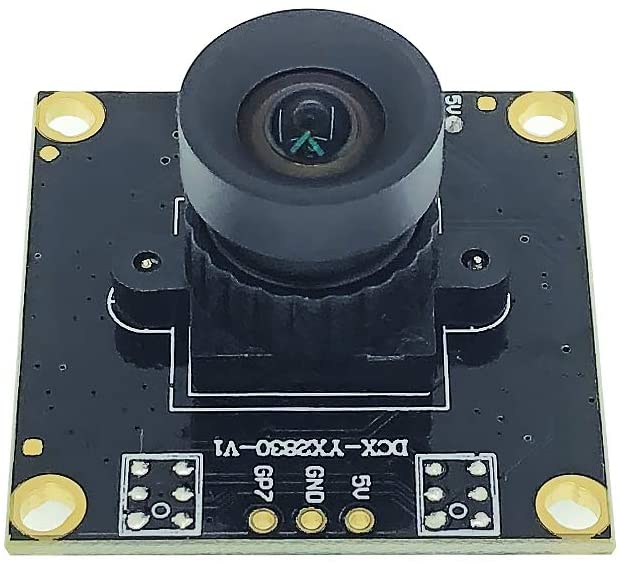

- Applications: this tiny 32mmx32mm camera board can be installed in the most hidden and narrow position for a home video surveillance system, day&night low light vision camera system, dashcam or other machine vision application.
- U20CAM-AR0230 camera module captures images in either linear or high dynamic range modes, with rolling-shutter readout.
- It includes sophisticated camera functions such as in-pixel binning, windowing and both video and single frame modes.
- It is designed for both low light and high dynamic range scene performance.
- The AR0230 produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications.
2 Specification
| Model No | U20CAM-AR0230 |
| Sensor | 1/2.7’’ ON-SEMI AR0230 CMOS |
| Resolution | 2 Mega Pixel |
| Most effective pixels | 1920 X 1080 |
| Pixel Size | 3.0μm X 3.0μm |
| Resolution | See above |
| Compression format | YUY2/MJPG |
| Frame rate | MJPG:
l 1920X1080@30FPS; (default) l 1280X720@30FPS; l 1024X768@30FPS; l 800X600@30FPS; l 640X480@30FPS;
YUY2: l 1280X1024@ 5FPS; (default) l 1920X1080@ 5FPS; l 1280X720@ 5FPS; l 1024X768@ 5FPS; l 800X600@ 20FPS; l 640X480@ 30FPS; |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus/Manually adjustable |
| S/N ratio | 41dB |
| Dynamic range | UP to 96dB |
| Dark current | <10mA |
| Interface type | USB2.0 |
| Microphone | Not supported |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 180mA |
| Main chip | DSP/SENSOR/FLASH |
| Automatic Exposure Control (AEC) | Support |
| Automatic White Balance (AEB) | Support |
| Automatic Gain Control (AGC) | Support |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB Interface | Vendor：1.25mm-5P ZZ-MS，Shouhan |
| Cable Length | 1M |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
| Lens | Distortion: 0％
FOV:95 Lens Seat distance: 18mm Fixed Type:Fixed Len IR: 650±10nm |
