U20CAM-IMX335

Features:

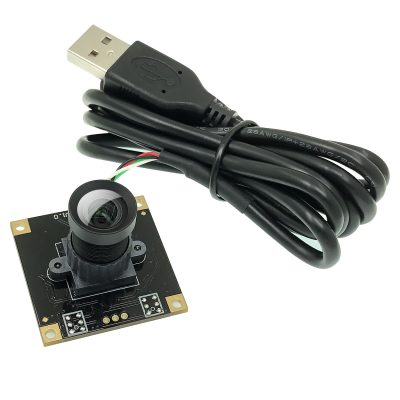

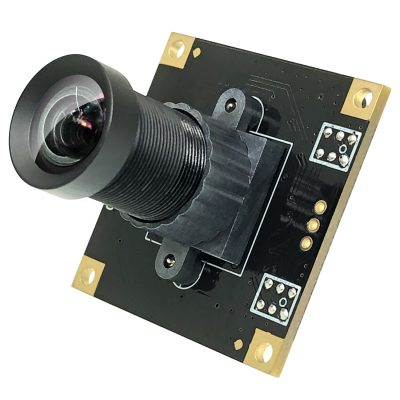

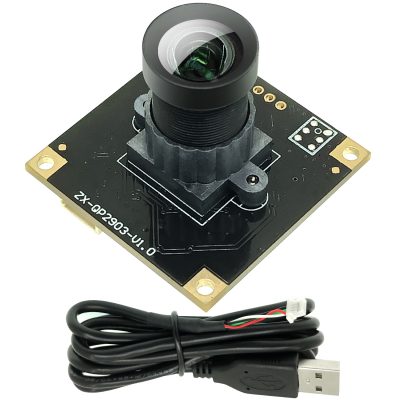

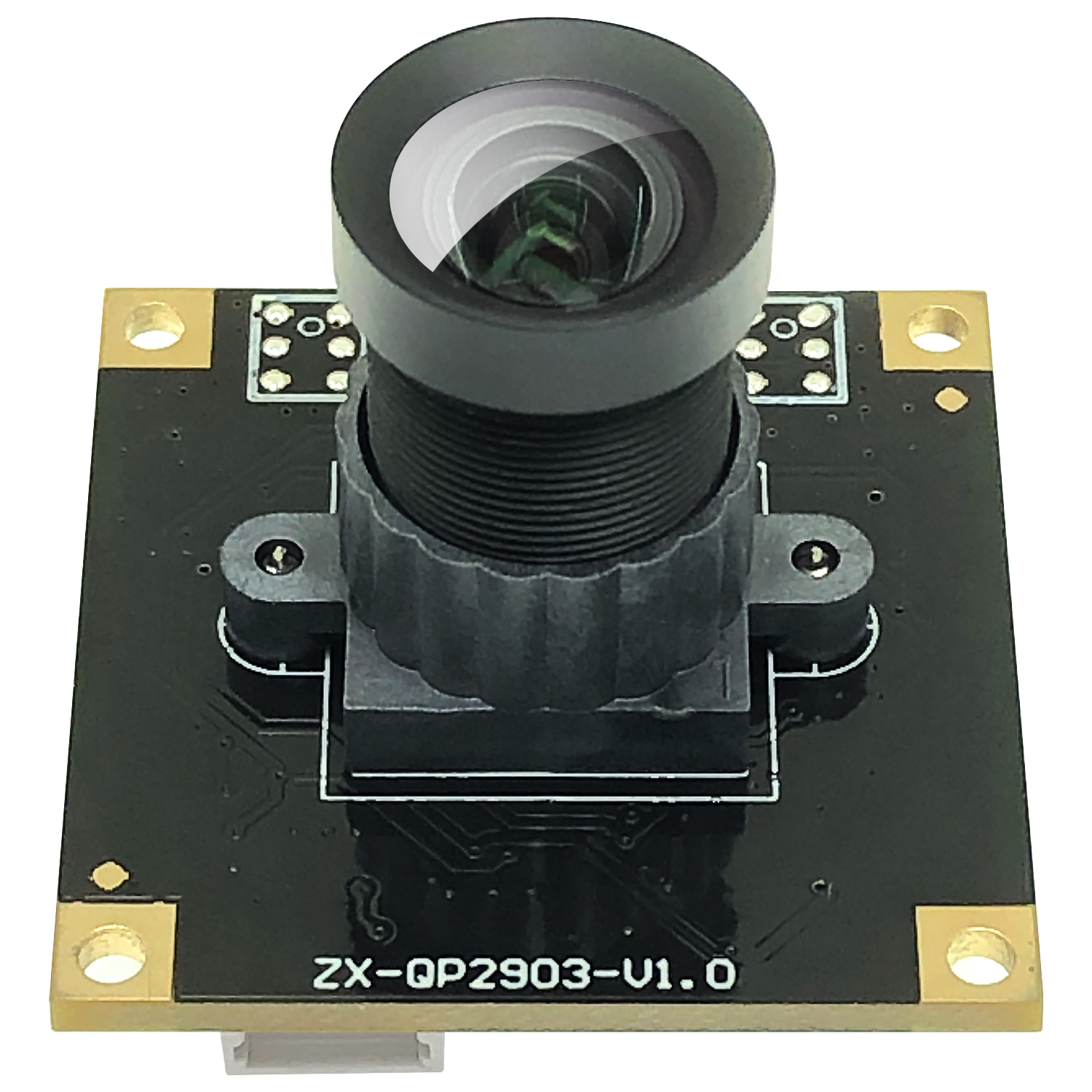

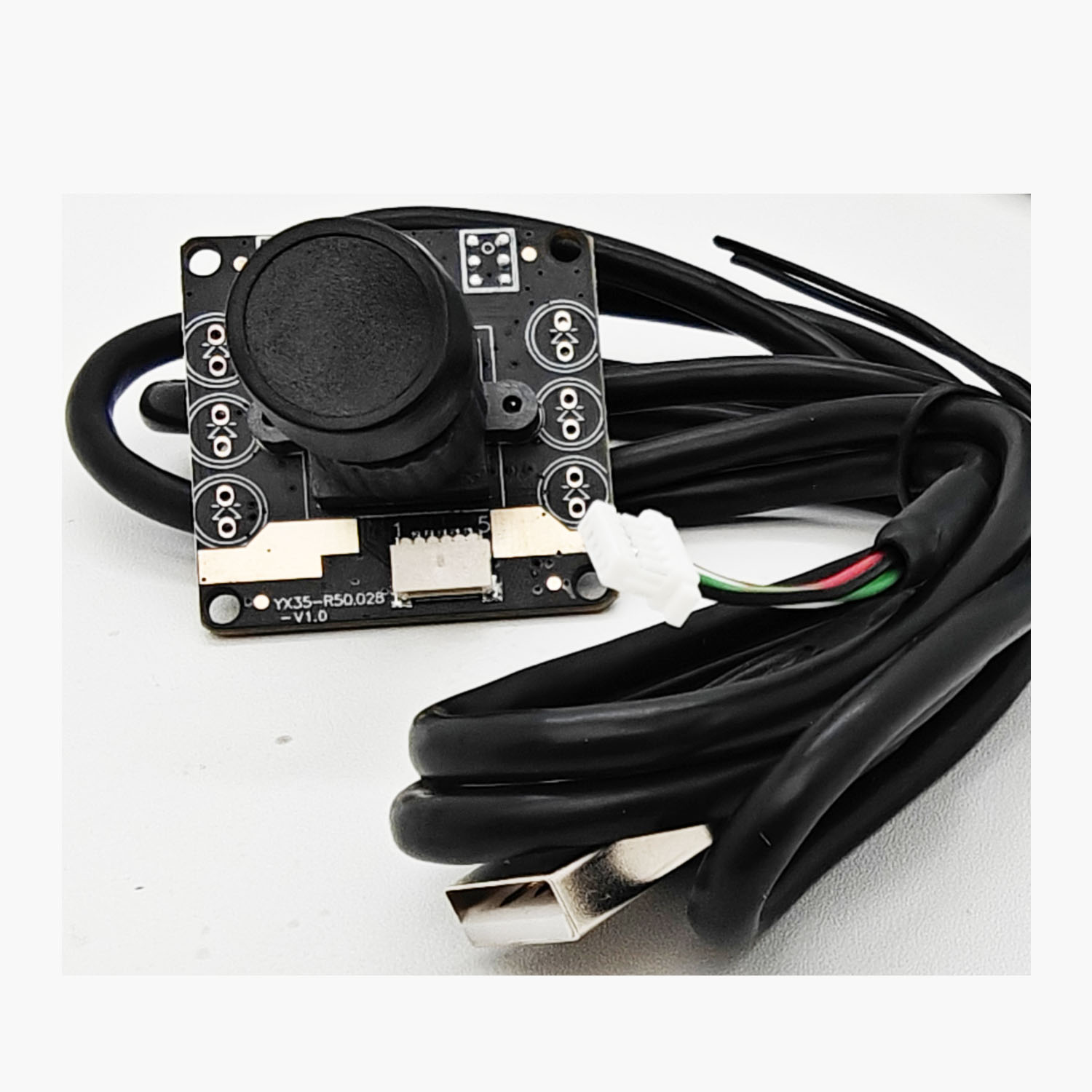

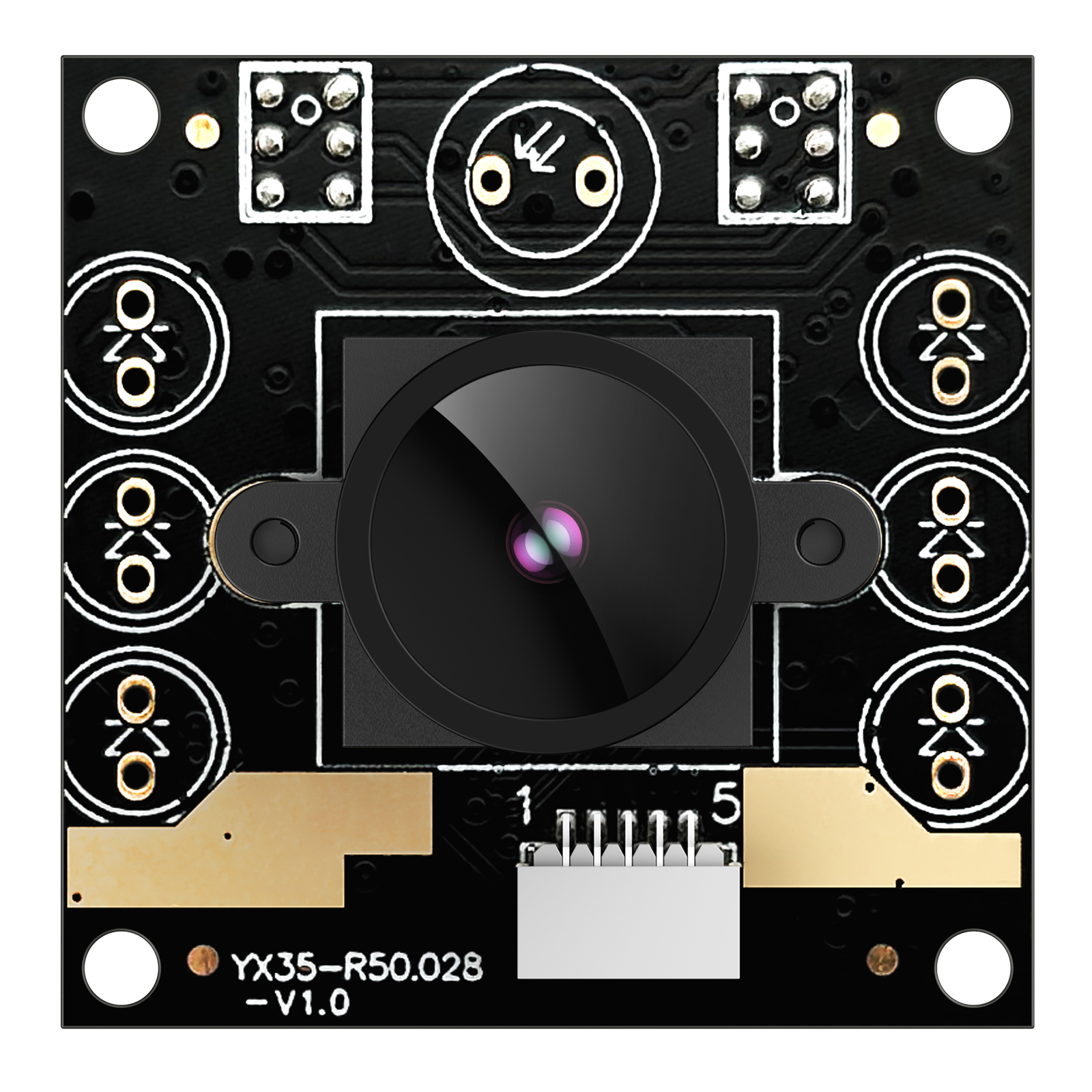

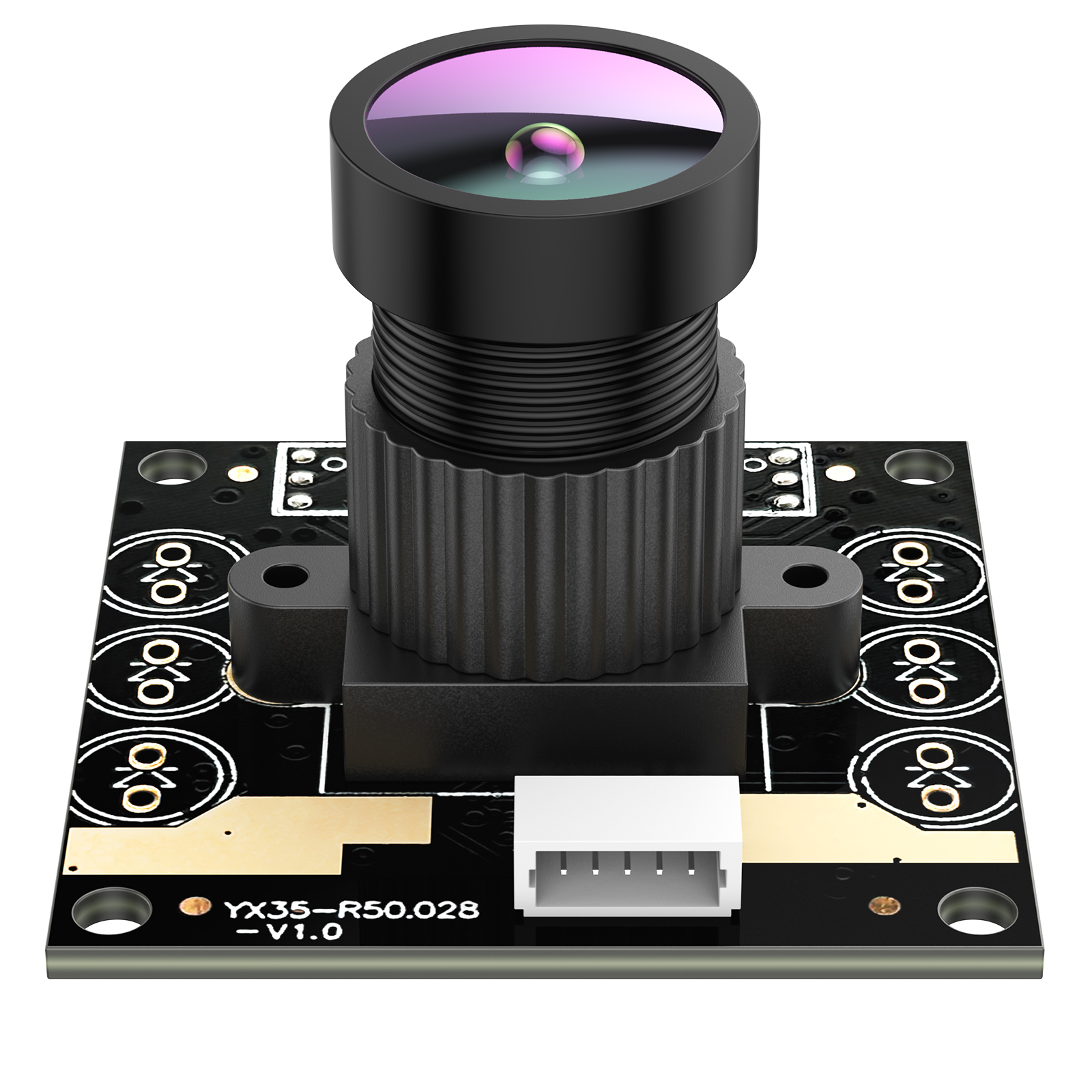

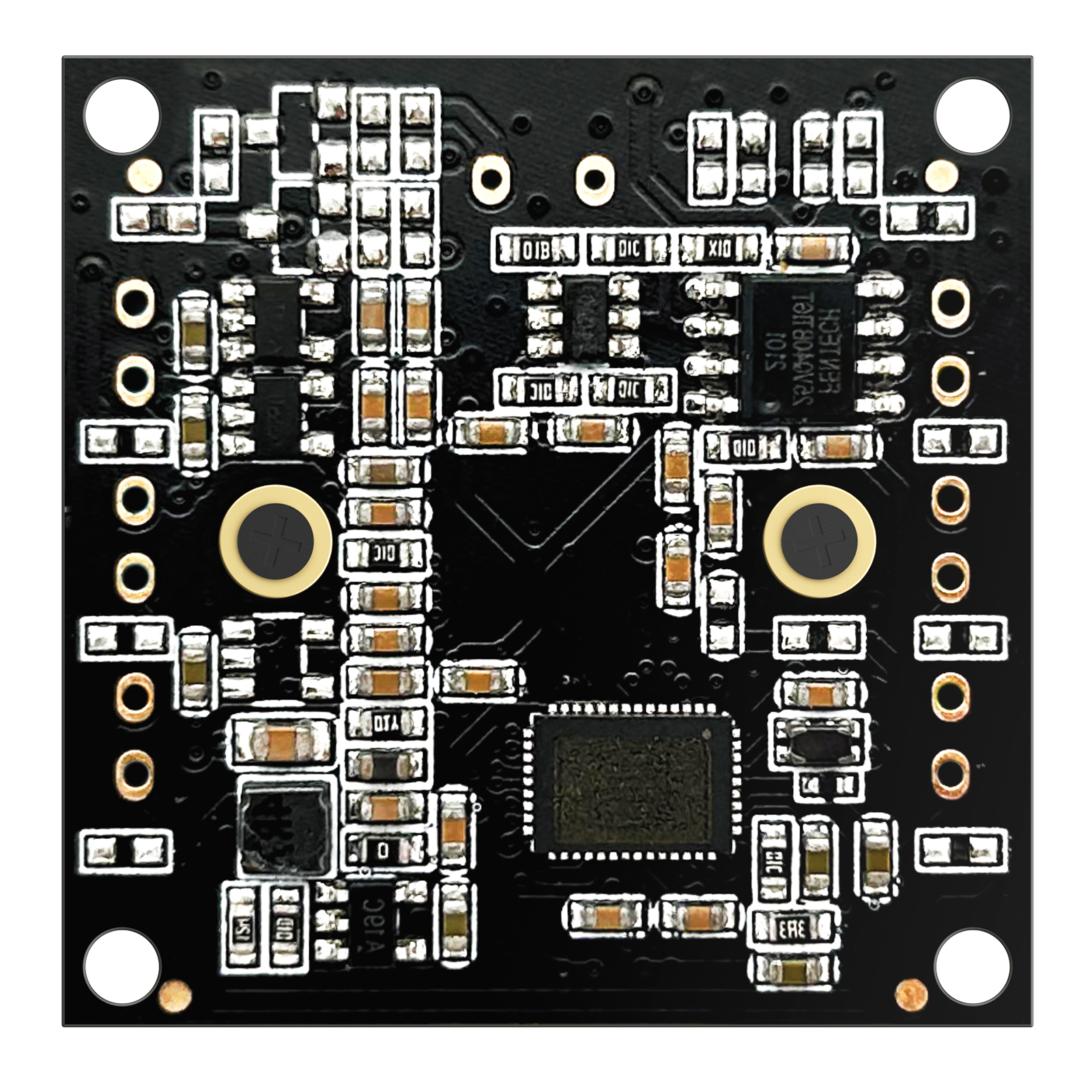

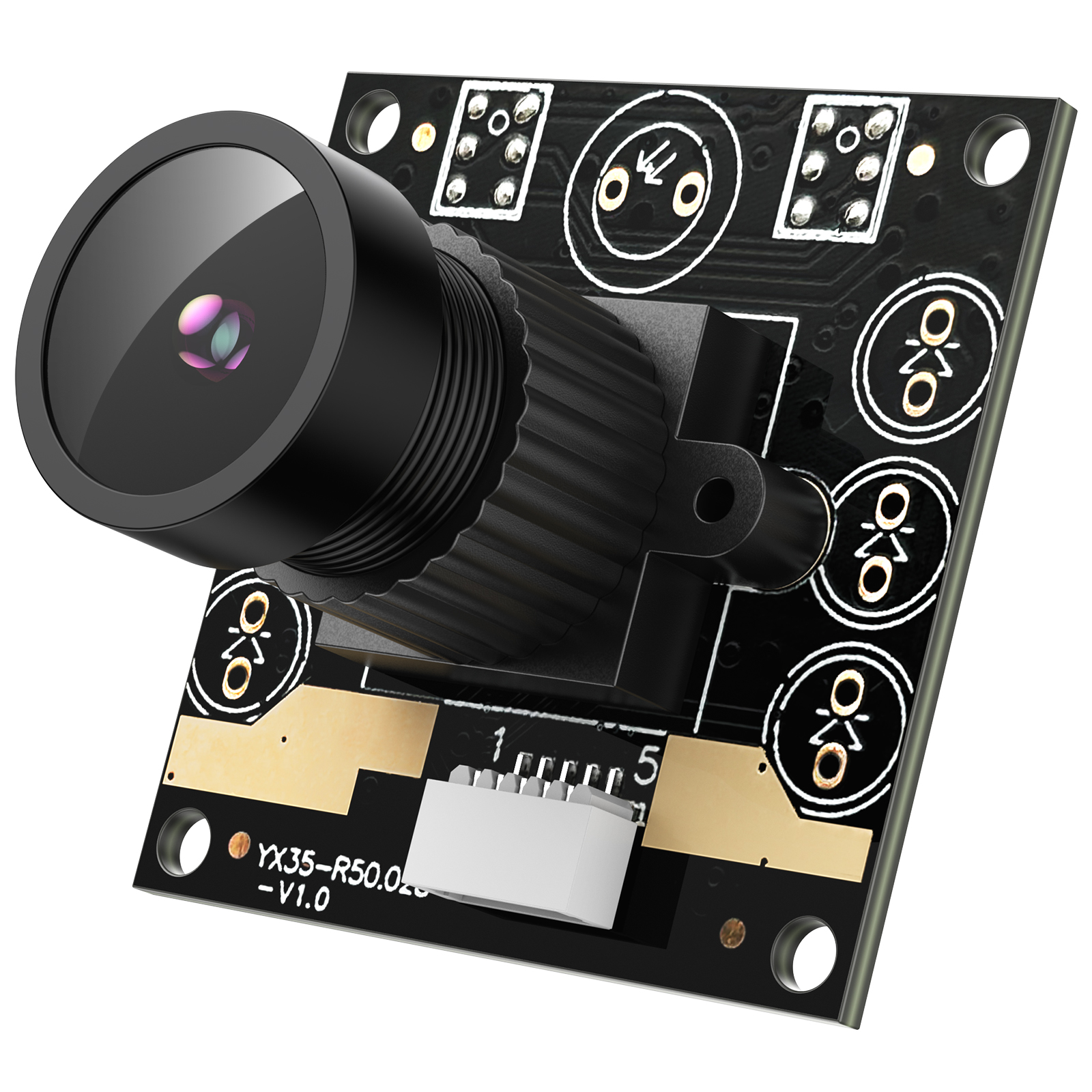

U20CAM-IMX335 is a 5MP resolution camera module with STARVIS IMX335 CMOS sensor, image quality is very high and stable.
Features like a dynamic range up to 72 dB, advanced HDR functions and digital overlap HDR further improve the image quality and contrast behavior allowing for more detailed image analysis.
These features when combined with the low dark current performance and no smear further improve its performance in applications looking at both bright and dark regions at once.
The current module size is 32MM*32MM after your testing, we can adjust module size & shape according to your need, it will require some engineering cost. Compatible with Raspberry Pi ,Jetson Nano,PC Computers, Windows Linux Android Mac OS with UVC Driver.
5MP resolution with IMX335 CMOS sensor, STARVIS technology with high sensitivity performance, HDR (high dynamic range) function improves image quality and contrast behavior Excellent low illumination feature
Excellent image quality, Low power consumption
Plug And Play: UVC-compliant, support Windows, Linux, Mac OS and Android device with UVC, just connect the camera to PC, laptop or Raspberry Pi with the USB cable without extra drivers to be installed.

Datasheet

Category: High Dynamic Range SKU: U20CAM-IMX335-5MP

Description

1 General

U20CAM-IMX335 is a 5MP resolution camera module with STARVIS IMX335 CMOS sensor, image quality is very high and stable.
Features like a dynamic range up to 72 dB, advanced HDR functions and digital overlap HDR further improve the image quality and contrast behavior allowing for more detailed image analysis.
These features when combined with the low dark current performance and no smear further improve its performance in applications looking at both bright and dark regions at once.
The current module size is 32MM*32MM after your testing, we can adjust module size & shape according to your need, it will require some engineering cost. Compatible with Raspberry Pi ,Jetson Nano,PC Computers, Windows Linux Android Mac OS with UVC Driver.

5MP resolution with IMX335 CMOS sensor, STARVIS technology with high sensitivity performance, HDR (high dynamic range) function improves image quality and contrast behavior Excellent low illumination feature
Excellent image quality, Low power consumption
Plug And Play: UVC-compliant, support Windows, Linux, Mac OS and Android device with UVC, just connect the camera to PC, laptop or Raspberry Pi with the USB cable without extra drivers to be installed.

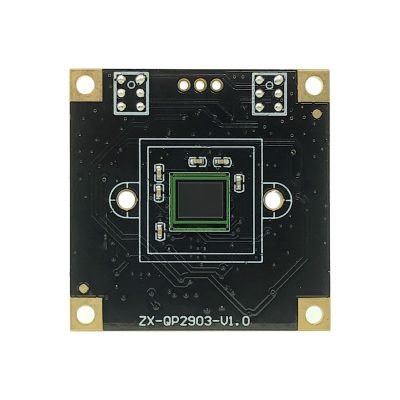

Sensor	• 1/2.8’’ IMX335 • 5 Mega Pixel • 2592(H) x 1944(V) • 2.0µm x 2.0µm • Color
Shutter Type	Electronic rolling shutter
Dynamic range (HDR)	72dB
Sensitivity	>= 2000mV

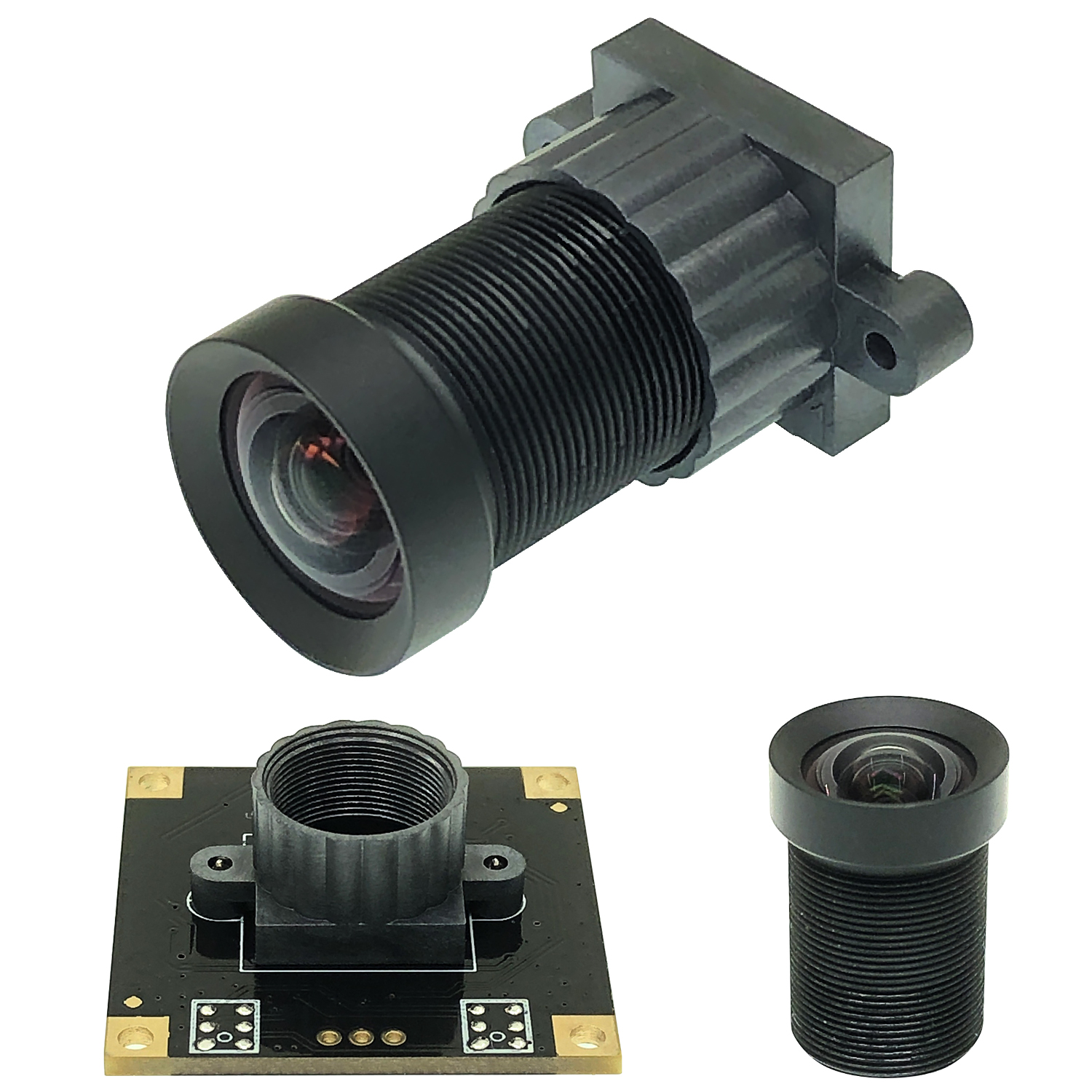

Focus type	Fixed focus / Manually adjustable
Output Format	MJPG/YUY2
Output Resolution	MJPG Resolution & Frame rate • 1920×1080@30fps • 2592×1944@30fps,25fps,20fps,15fps,10fps,5fps,2fps • 800×600@30fps • 1024×768 @30fps • 1024×720@30fps • 1280×920 @ 30fps • 2048×1536 @25fps • 320×240 @ 30fps • 160×120 @ 30fps • 640×480 @ 30fps
Output Resolution	YUY2 Resolution &Frame rate • 1920×1080@3fps • 1024×720@8fps • 800×600@20fps • 960X540@15fps • 2592×1944@2pfs • 1280×920@8fps • 640×480@30fps • 2045×1536@3fps
Auto Parameters	Auto Exposure Control (AEC) /Auto White Balance (AEB) /Auto Gain Control (AGC)
Controllable Parameters	Brightness,Contrast,Hue,Saturation,Sharpness,Gamma,White Balance,Backlight Comp, Gain, Exposure ,PowerLine Frequency,Low Light Compensation
USB Type	USB2.0 High Speed USB2.0 OTG USB Video Class（UVC）

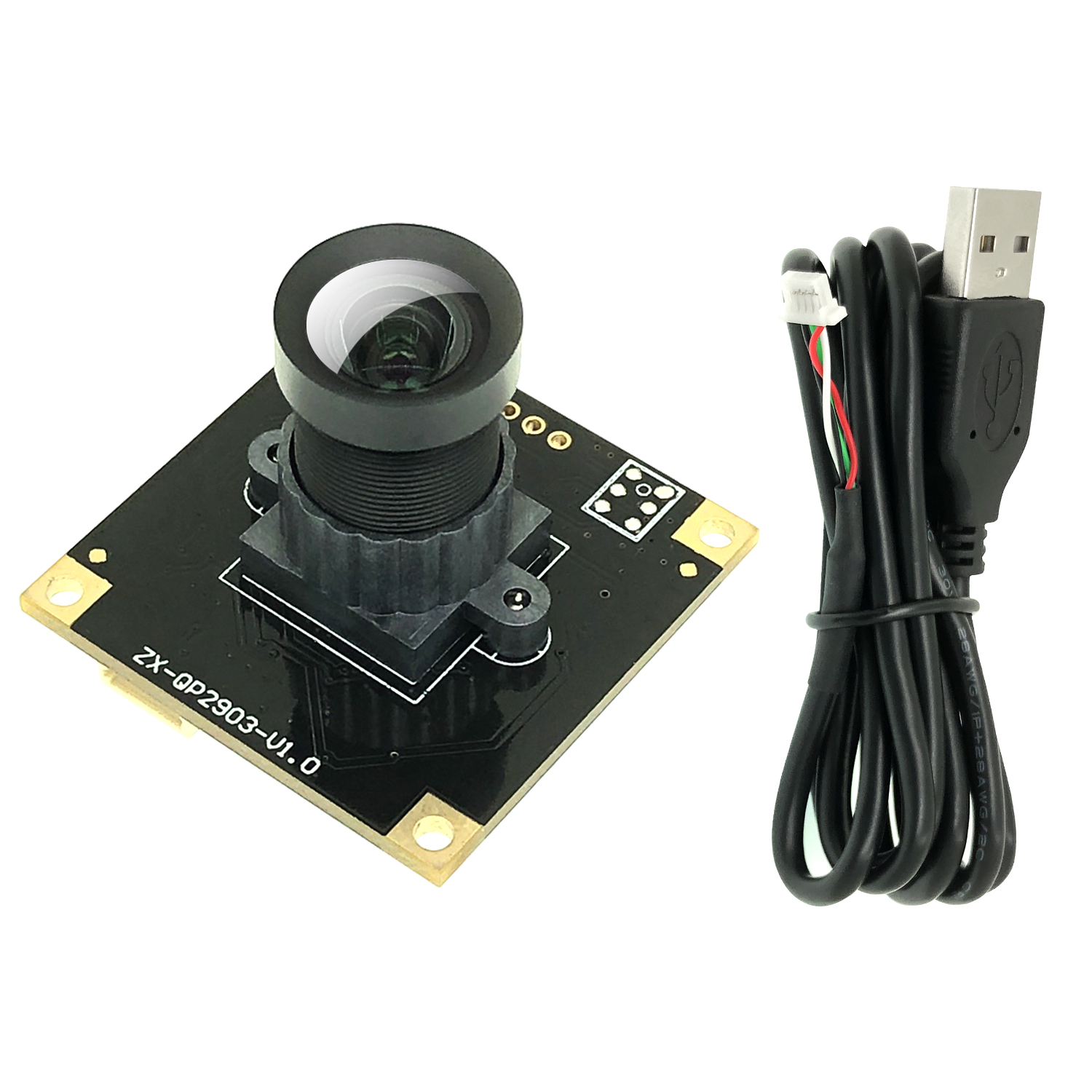

Cable Length	1M
Support OS	Windows,Mac Os,Android,Linux with UVC Driver
Working Condition	• Power:DC 5V, 500mA • Operating Temperature:0°C-70°C, • Storage temperature: -20°C to 70°C • Dimension:32mmx32mm
