Description
1 General
1.1 Description

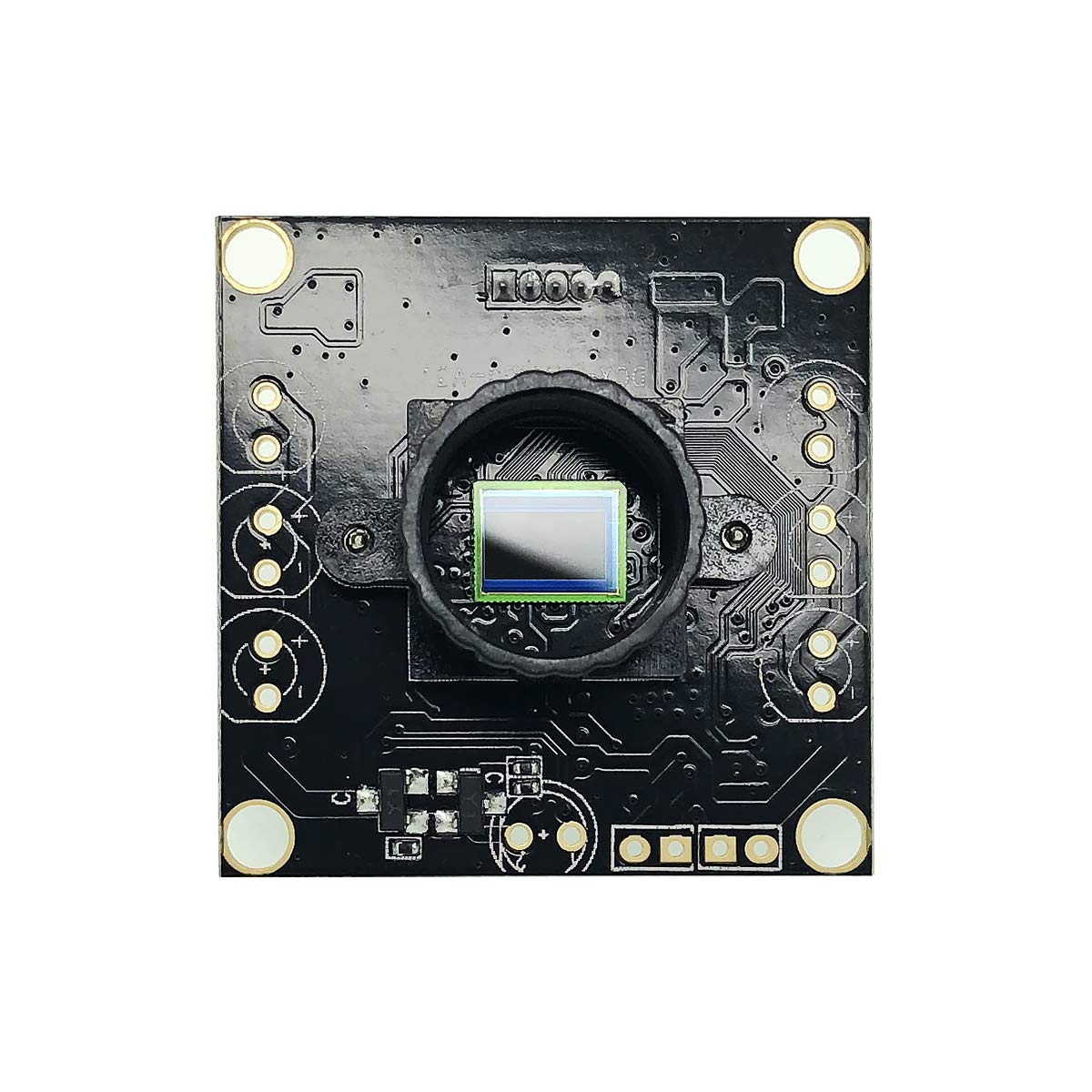

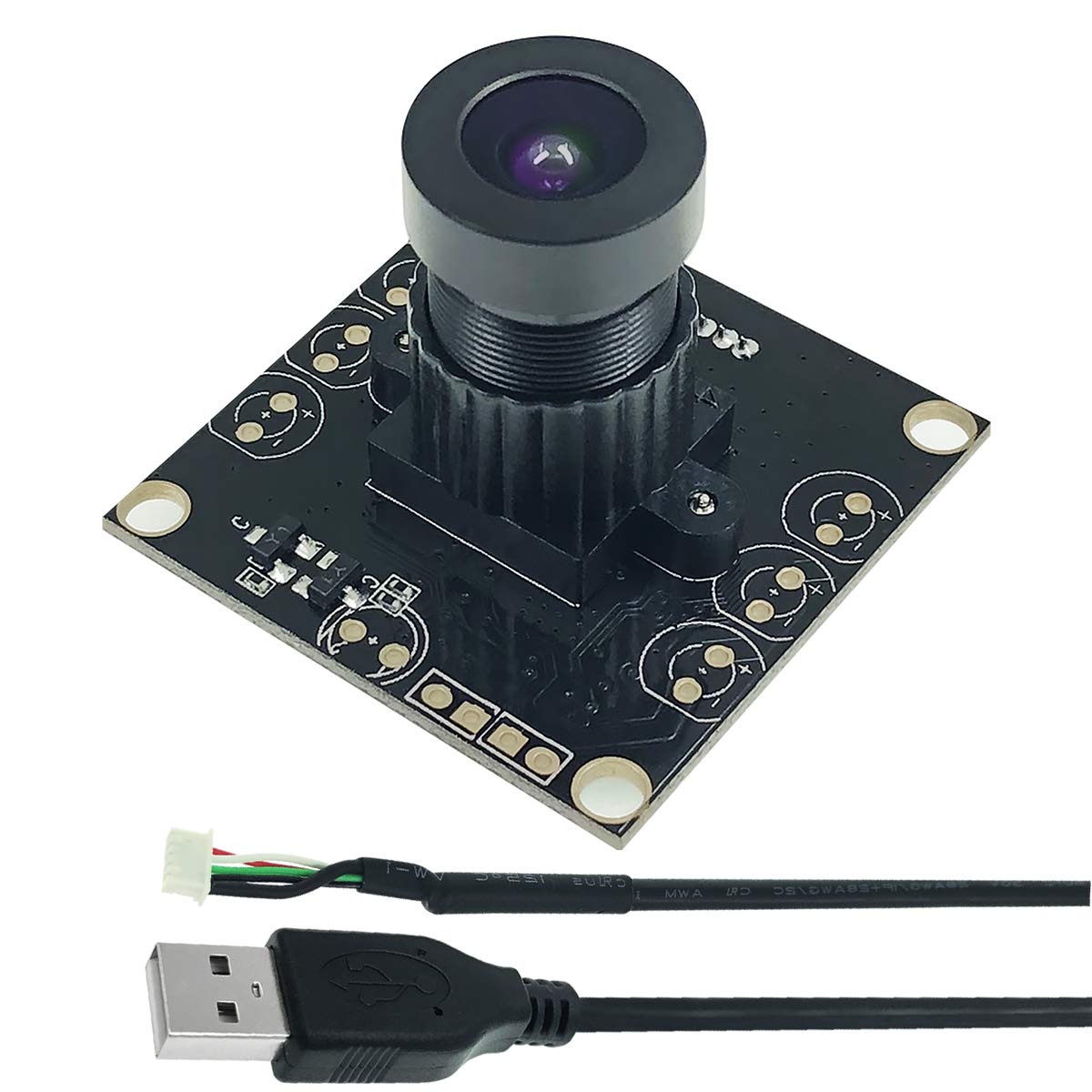

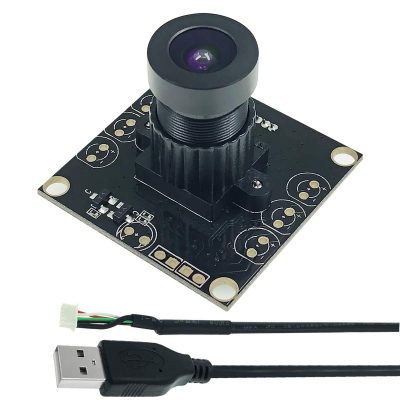

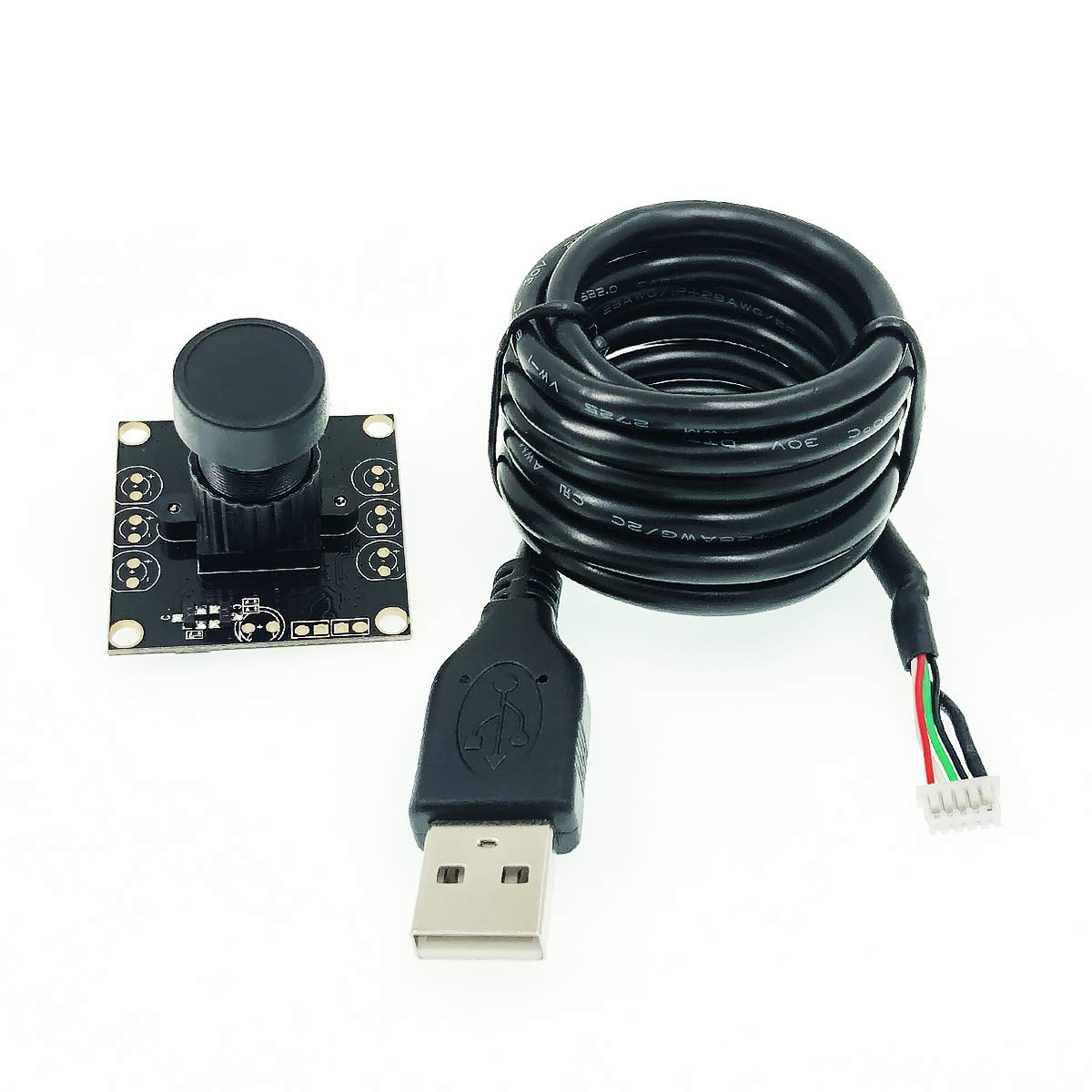

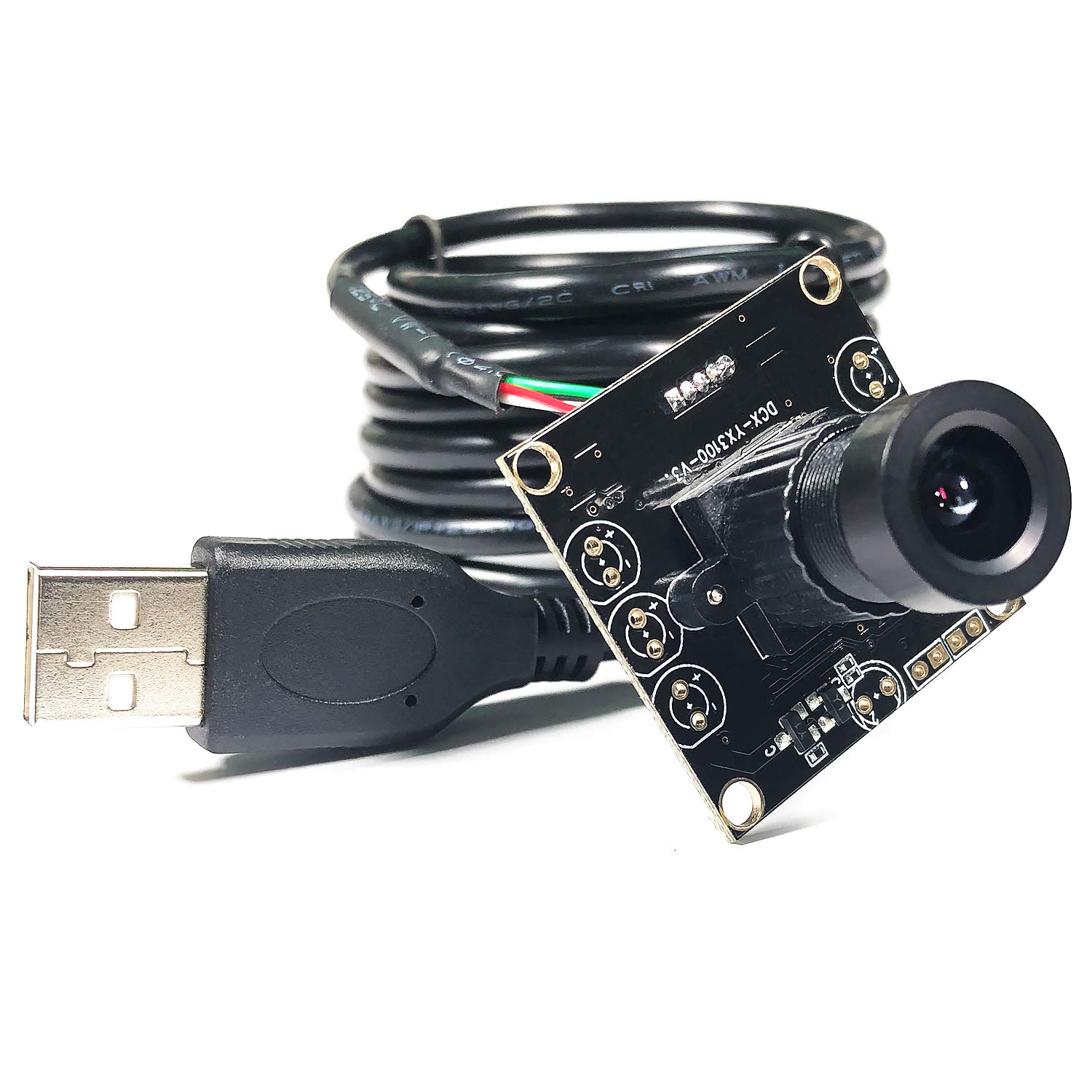

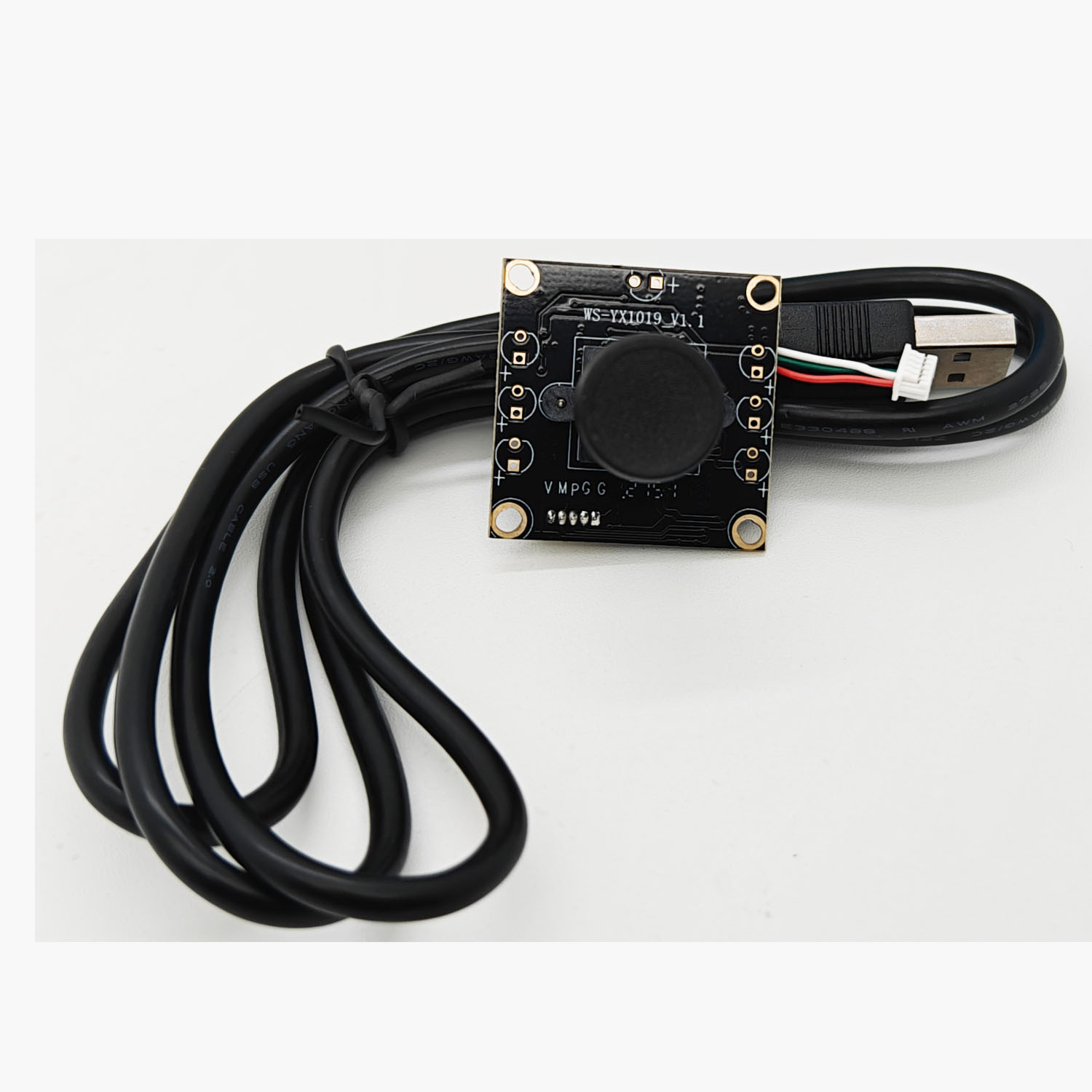

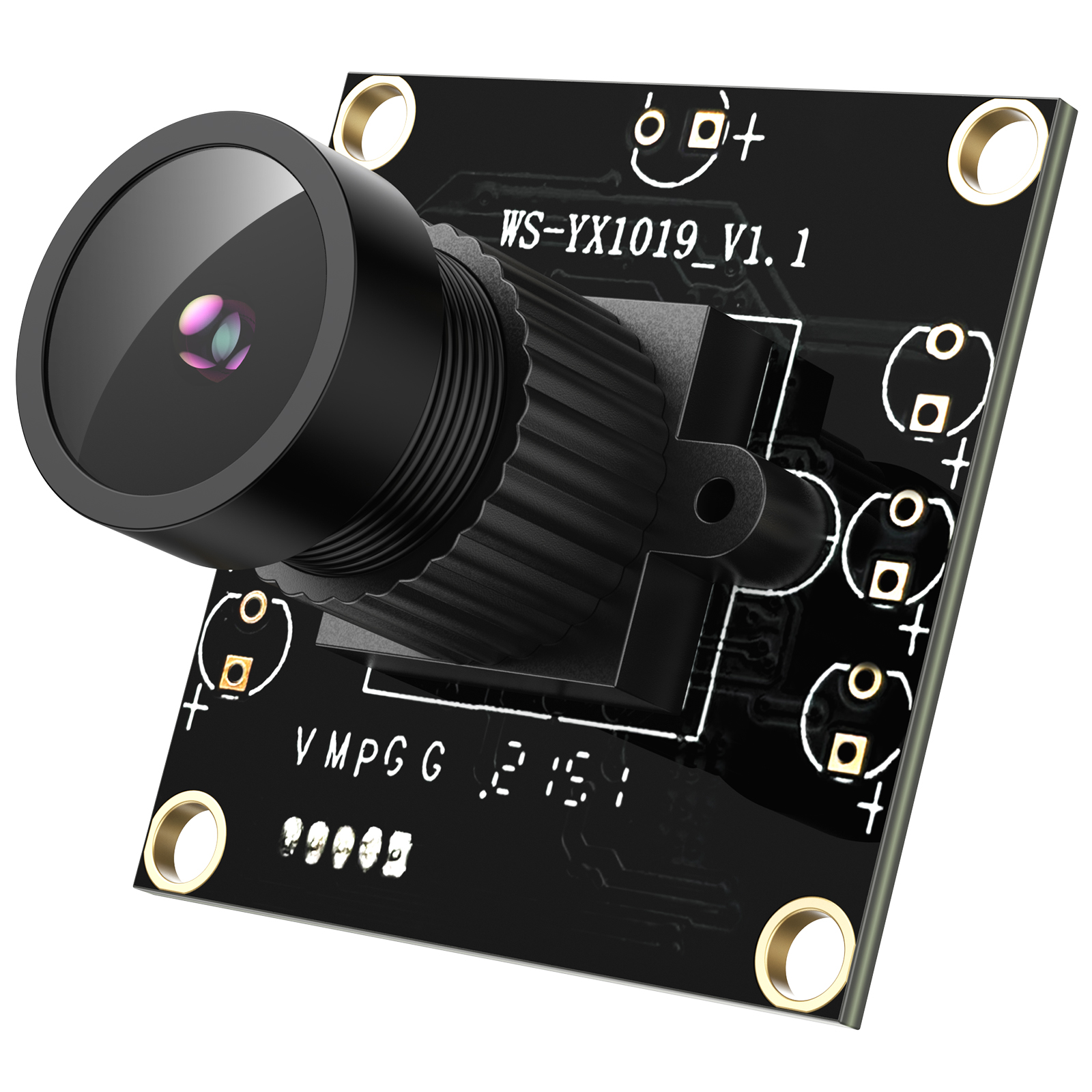

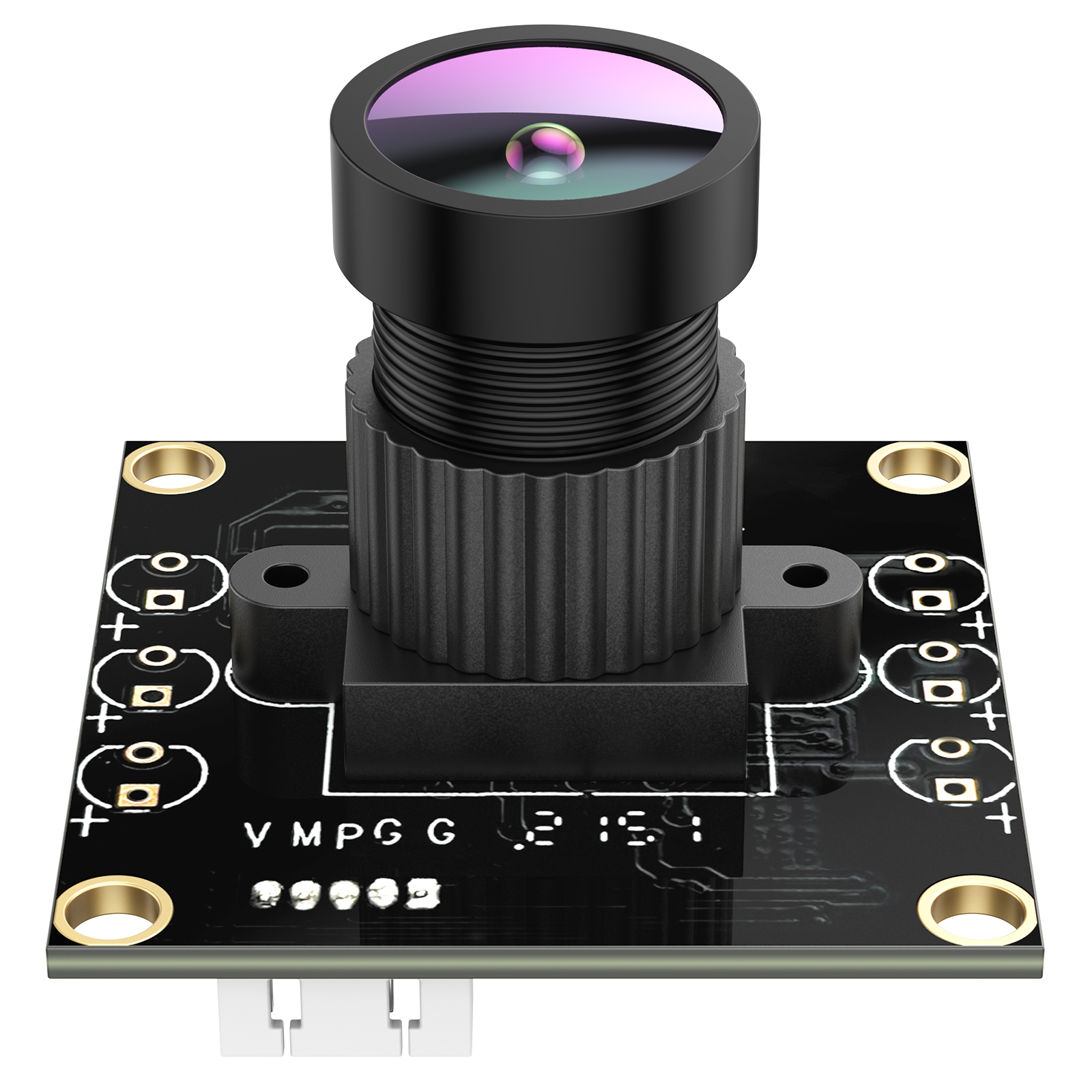

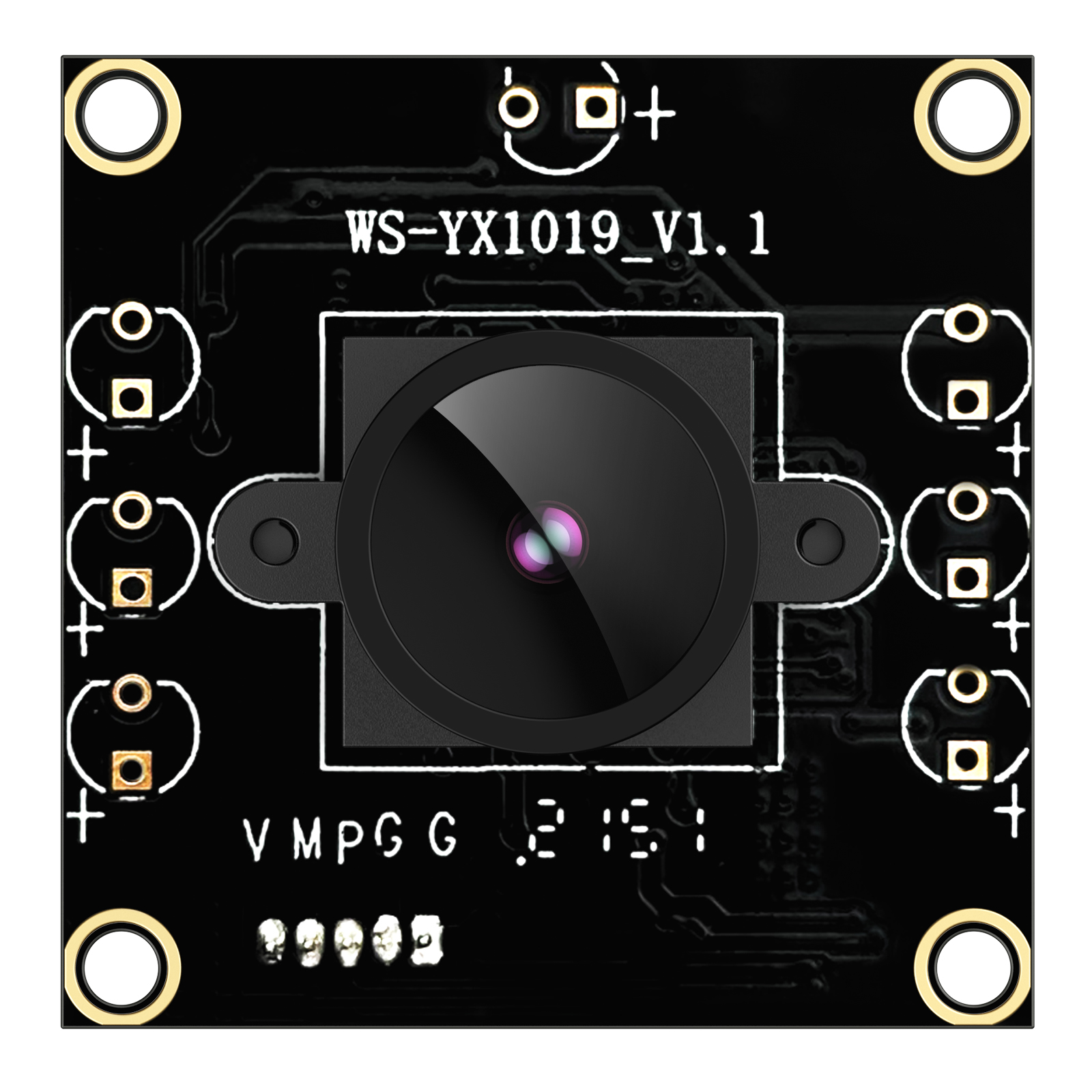

- InnoMaker USB 2.0 UVC Camera Module U20CAM-OV2719 is a High Performance 1080P HDR Camera Module, Feature with OV2719 CMOS sensor and supports 30FPS frame rate, image quality is very high and stable.
- Compatible Windows, Linux, Mac OS, Android OS with UVC Drivers. Support Raspberry PI,Jetson Orin Nano,Bealgeboard,etc…
1.2 Features
- 2MP resolution with OmniVision OV2719 CMOS sensor,Full HD 1080P resolution & 30fps frame rate, High quality image
- UVC compliant, Plug & Play,Support Linux, Android, Mac and Windows,Module size is 32MM*32MM Widely used for Face recognition, AI, Computer vision, Robotics, Machine vision, imaging
- Plug&Play: UVC-compliant, support Windows, Linux, Mac OS and Andriod device with UVC, just connect the camera to PC, laptop or Raspberry Pi with the USB cable without extra drivers to be installed.
2 Specification
| Item | Description |
| Sensor | l 1/2.7’’ OV2719
l Mega Pixel l 1920(H) x 1080(V) l 3.3µm x 3.3µm,Color |
| Output Parameter | MJPG 1920X1080 30fps |
| Shutter Type | Electronic rolling shutter |
| Dynamic range(HDR) | 76dB |
| Focus type | Fixed focus / Manually adjustable |
| Output Format | MJPG/YUY2 |
| MJPG Resolution & Frame rate | 1920×1080/1280×720/1024×768/800×600/640×480/352×288/320×240/160×120/@ 30fps |
| YUY2 Resolution & Frame rate | 1920×1080@5fps/ 1280×720@5fps/ 1024×768@5fps/ 800×600@5fps /640×480@15fps/ 252×288@30fps/ 176×144@15fps/ 160×120@15fps |
| Auto Parameters | Auto Exposure Control (AEC) /Auto White Balance (AEB) /Auto Gain Control (AGC) |
| Controllable Parameters | Brightness,Contrast,Hue,Saturation,Sharpness,Gamma,White Balance,Backlight Comp, Gain, Exposure ,PowerLine Frequency,Low Light Compensation |
| USB Type | USB2.0 High Speed USB2.0 OTG USB Video Class（UVC） |

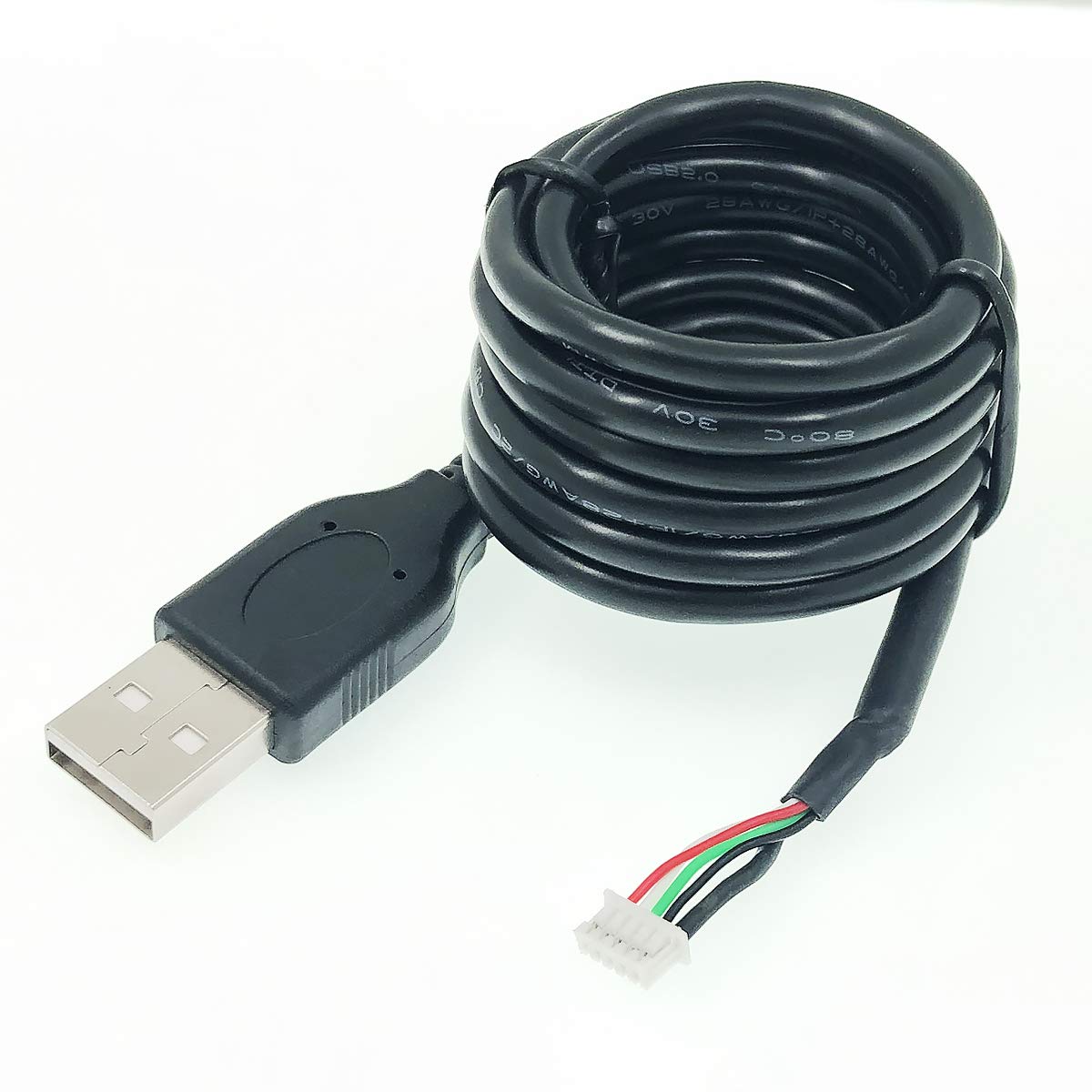

| Cable Length | 1M |
| Support Os | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
| Working Condition | Power：DC 5V, 500mA
Operating Temperature:0°C-70°C, Storage temperature：-20°C to 70°C Dimension：32mmx32mm |

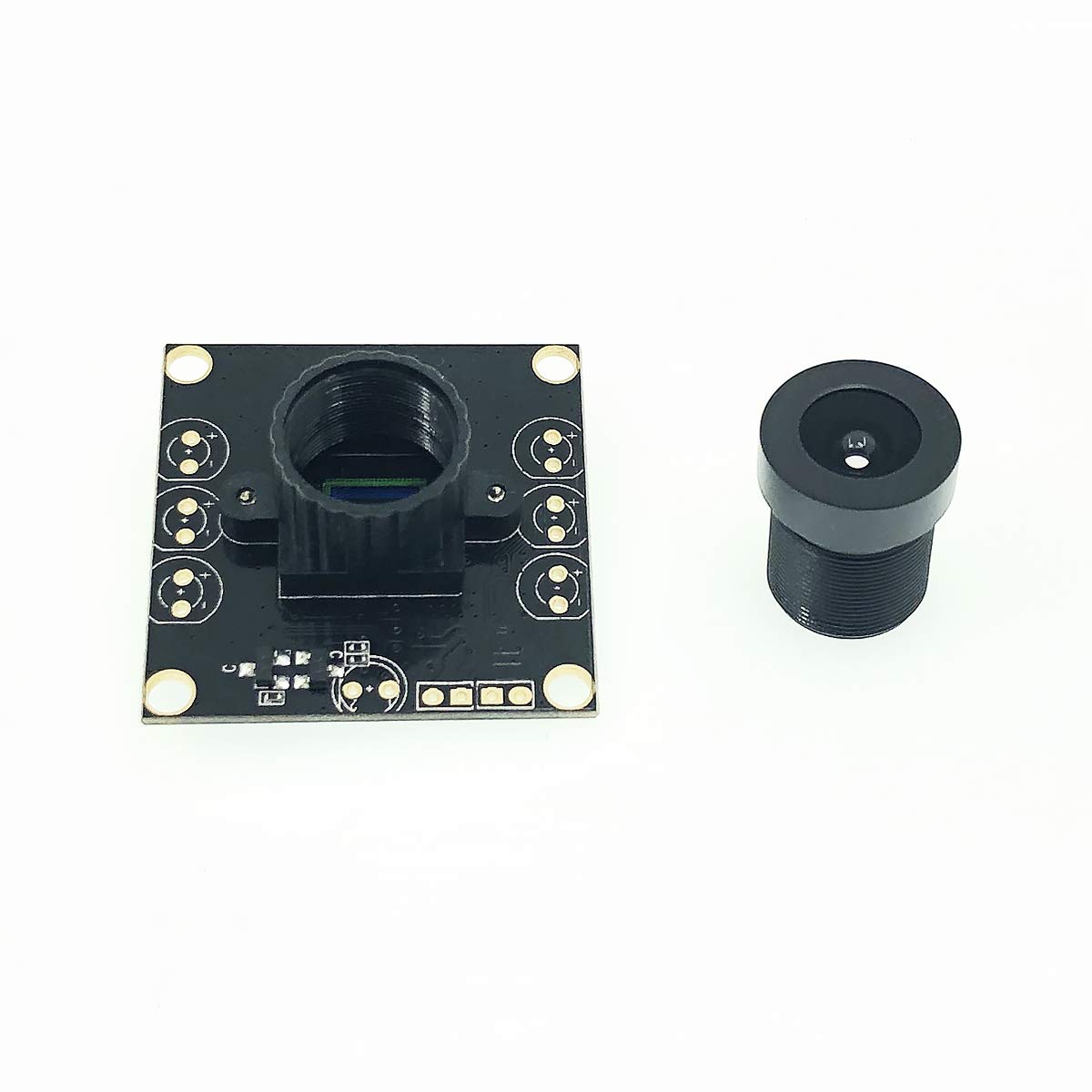

| Lens | F/N: 2.3
Focus Length:3mm CRA:14° Distortion:25％ FOV:140（H）x115(V)x62(D) Lens Seat distance:18mm Fixed Type: Fixed Len IR:650±10nm |
