USB2CAN-Module

Original price was: $39.99.Current price is: $34.99.

Datasheet: https://github.com/INNO-MAKER/usb2can

Features:

  • Innomaker USN-CAN Analyzer compatible with Raspberry Pi Zero(W)/Pi3B+/PI4/Beaglebone/Tinker Board and any single board computer.

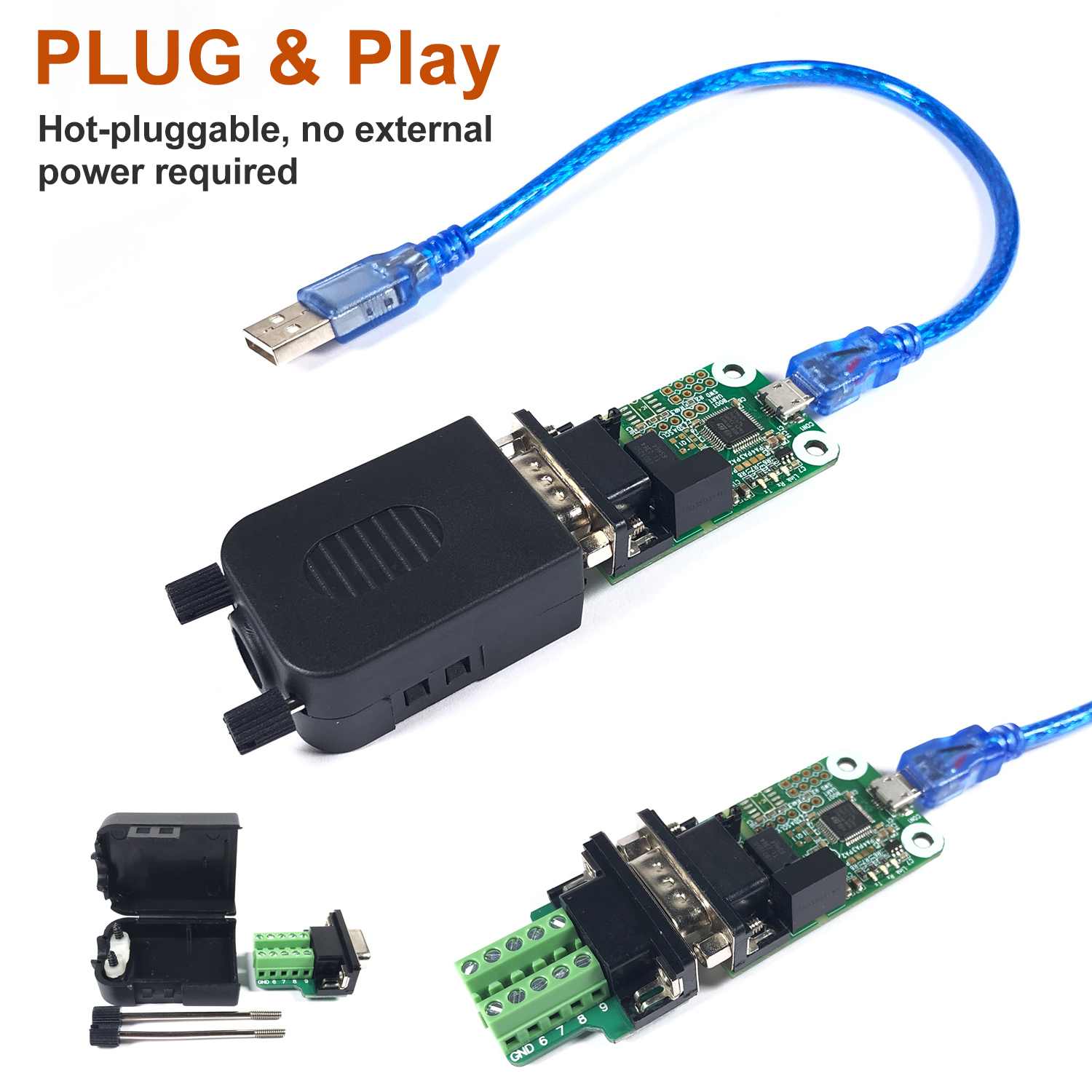

  • Plug and Play USB device. No external power required. Support wider CAN baud rate, from 20Kbps to 1Mbps can be programmed arbitrarily.

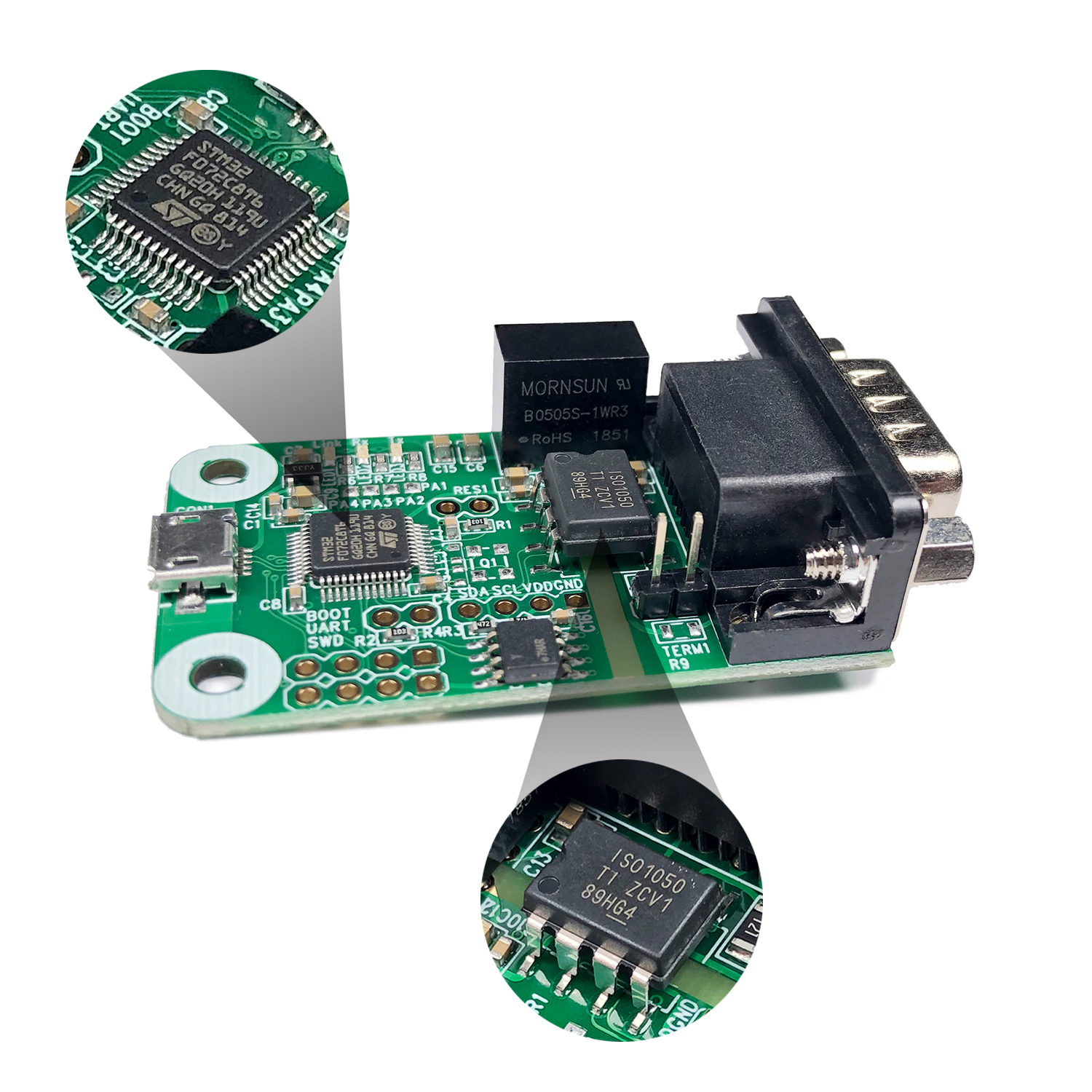

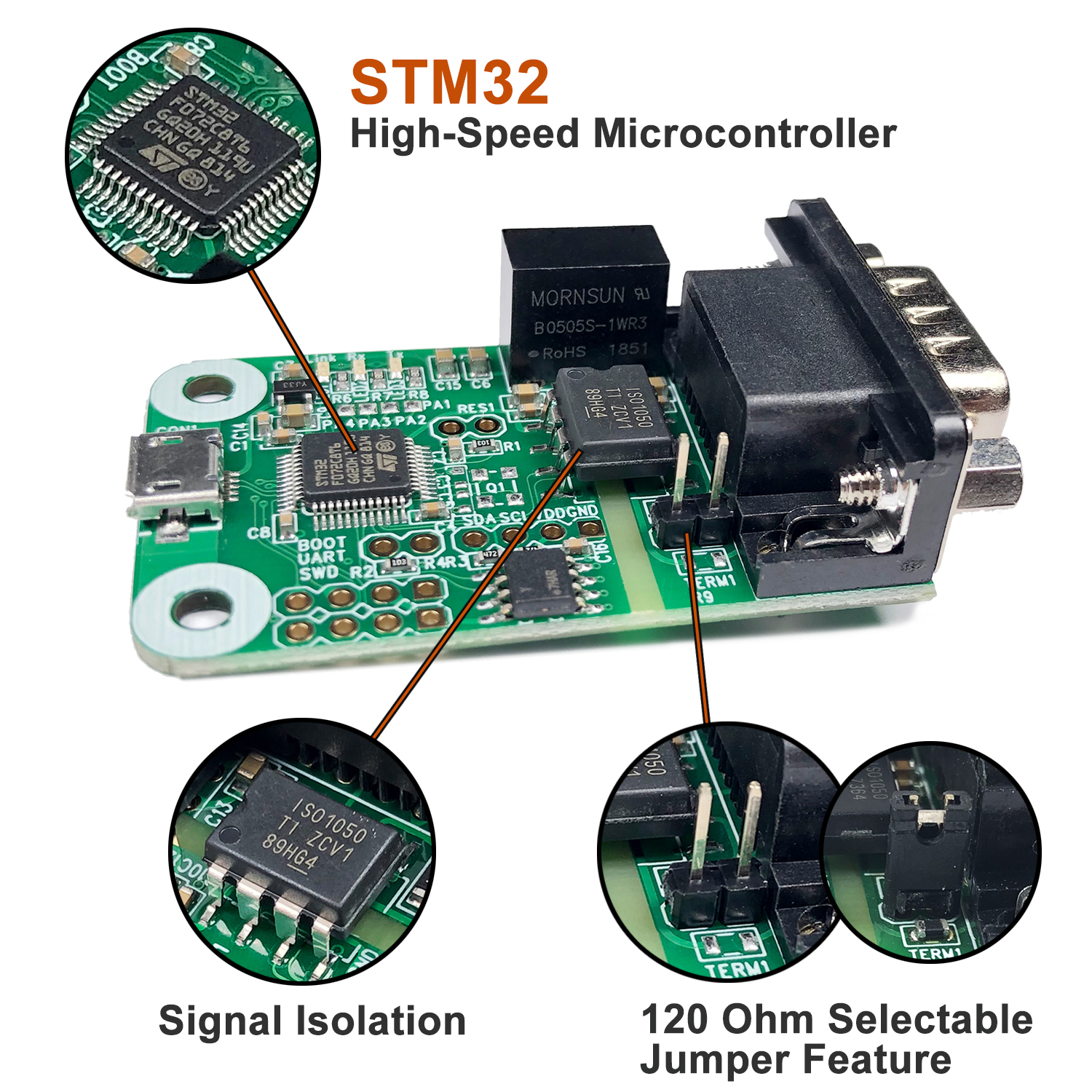

  • On board STM32F0 microcontroller, high speed data transfer with DMA technique. Support for CAN bus 2.0A and 2.0B specification.
  • Power supply isolation, signal input/output isolation, Built-in surge and static protection. 120Ohm resistor selectable jumper feature.
  • Comes with C/Python demos of Socket-CAN, detailed user manual and friendly technology support.
  • InnoMaker Windows/MacOs/Linux Soft_API, Support Python
  • CE,FCC Certificated

Product Documents

x
Categories: , SKU: usb-can

Description

[Description:]

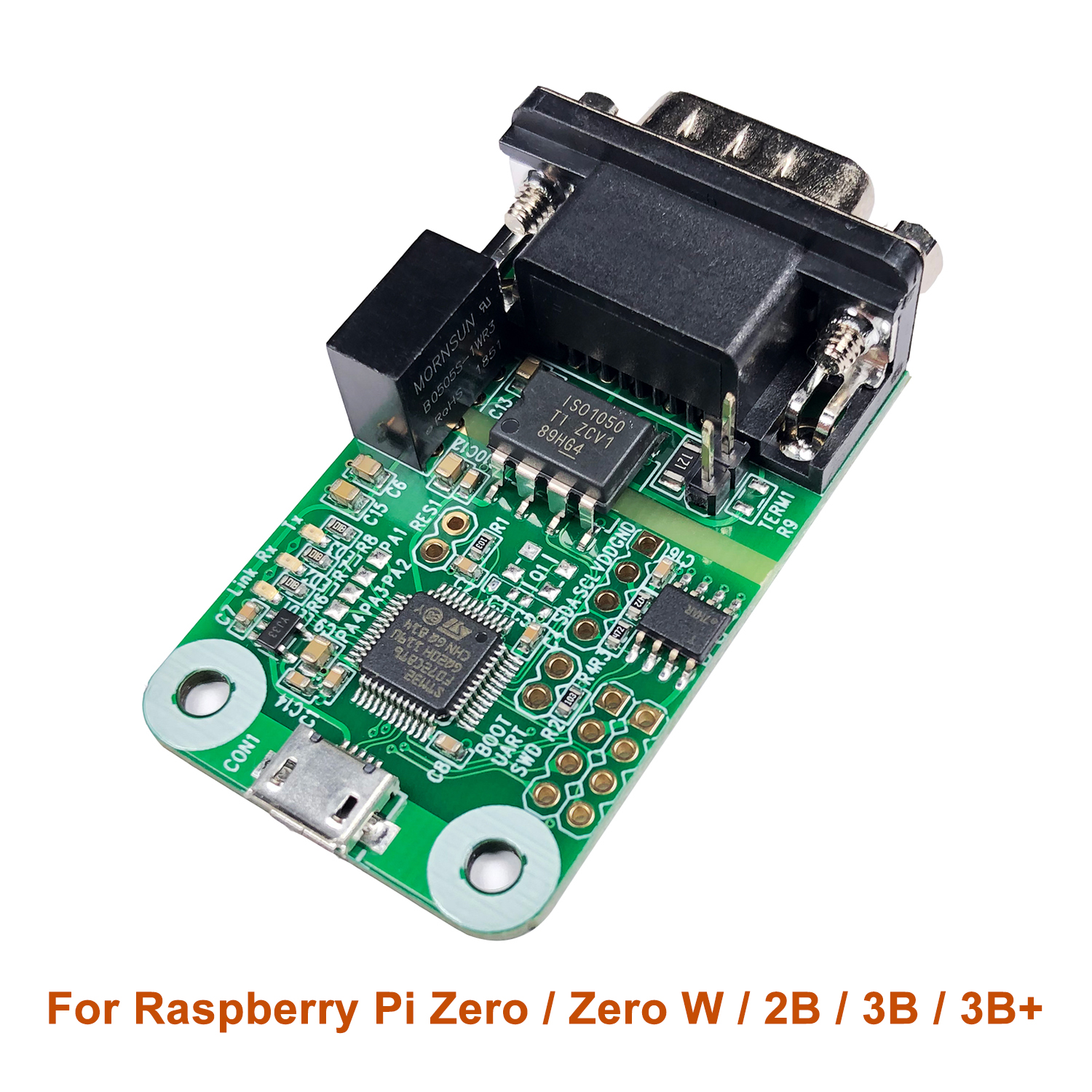

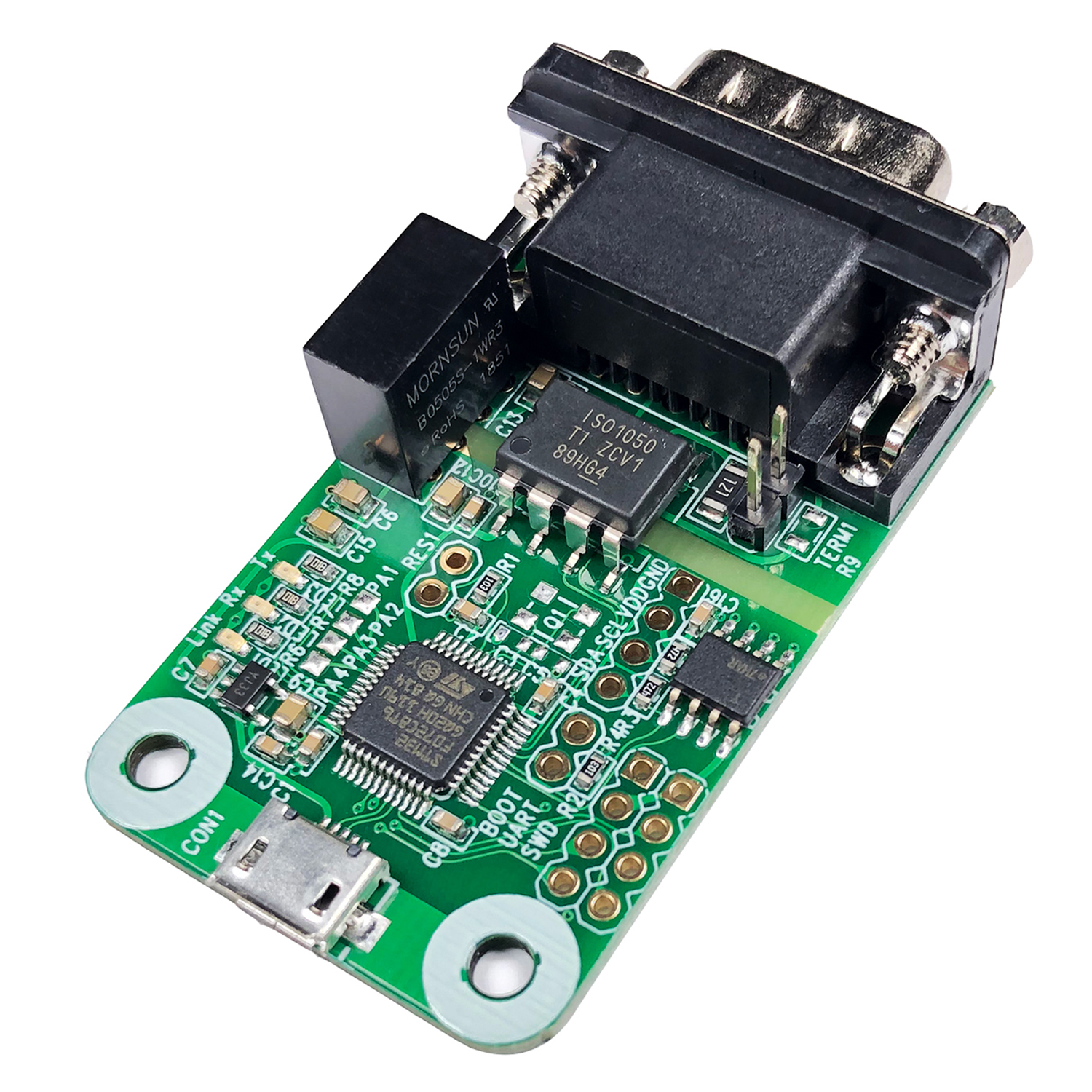

InnoMaker USB-CAN analyzer converter module is a “plug and play ” and bi-directional port powered USB to CAN converter which realizes long-distance communication between your Raspberry Pi and other devices stably though CAN- Bus connection. Compatible with Raspberry Pi Zero/Zero W/2B/3B/3B+/4B.
With small size and convenient operation, It’s a cost-effective solution that are safe and reliable for all your data-conversion / device-protection applications for any experienced engineer interfacing to expensive industrial equipment yet simple enough for home use by an amateur hobbyist.

[Technical Specification:]

  • CAN: D-SUB, 9 pins
  • USB: USB 2.0 Full-Speed, Micro USB
  • Specification: 2.0A (standard format) and 2.0B (extended format), ISO 11898-2 High-speed CAN
  • Data Rate: From 20kbps to 1Mbps can be programmed arbitrarily
  • Isolation Voltage: 1.5K VDC/min, 3K VDC/1s
  • Microcontroller: STM32F0, 48MHz
  • Termination: 120 Ohm resistor selectable jumper
  • CAN Transceiver: ISO1050DUBR ,Texas Instruments
  • Work Temperature: -40°~ 85°
  • Relative humidity: 15-90%, not condensing
  • PCBA Size (L * W * H): 56.50mm * 31.20mm * 14.20mm
  • Weight: 15.5 g

[Packing List:]

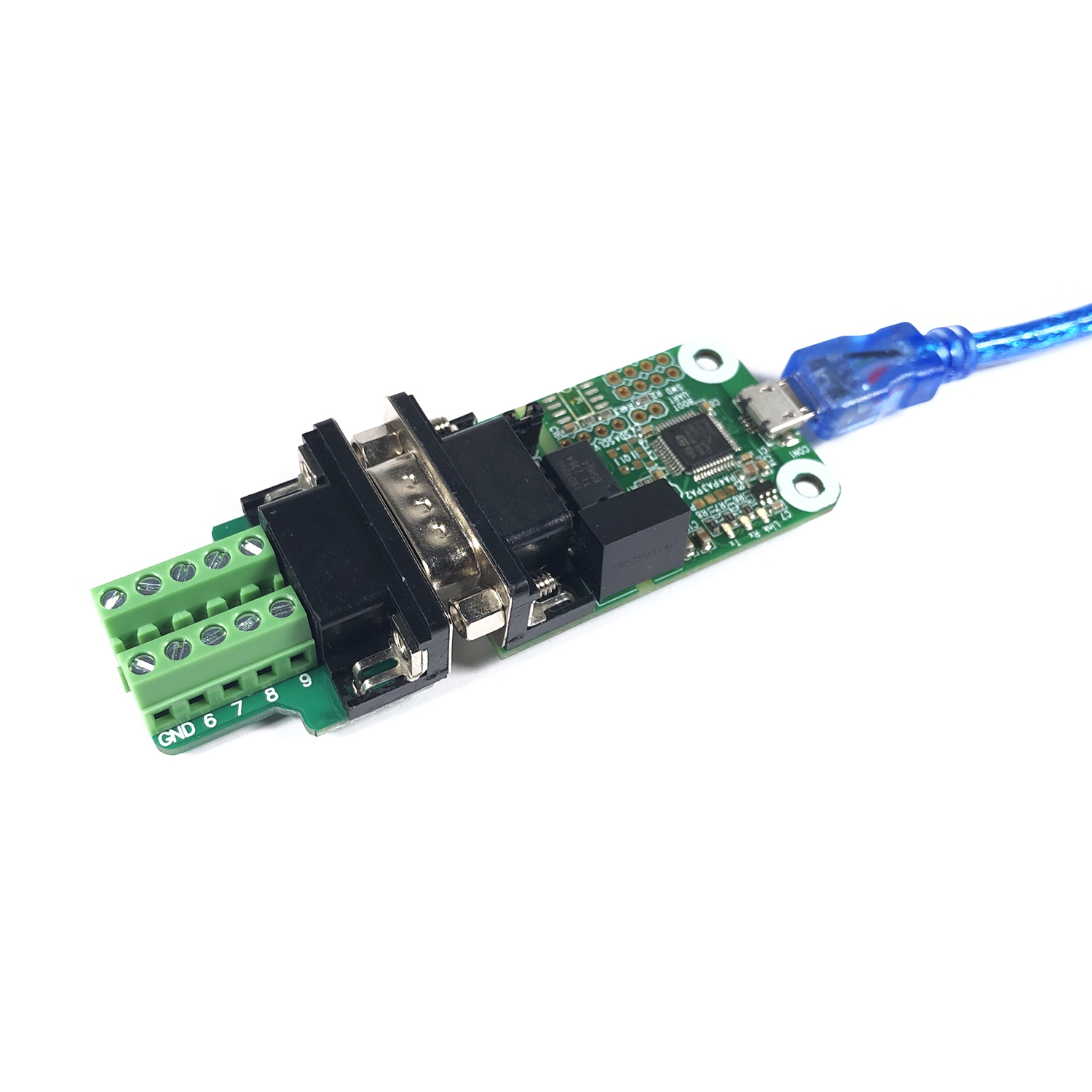

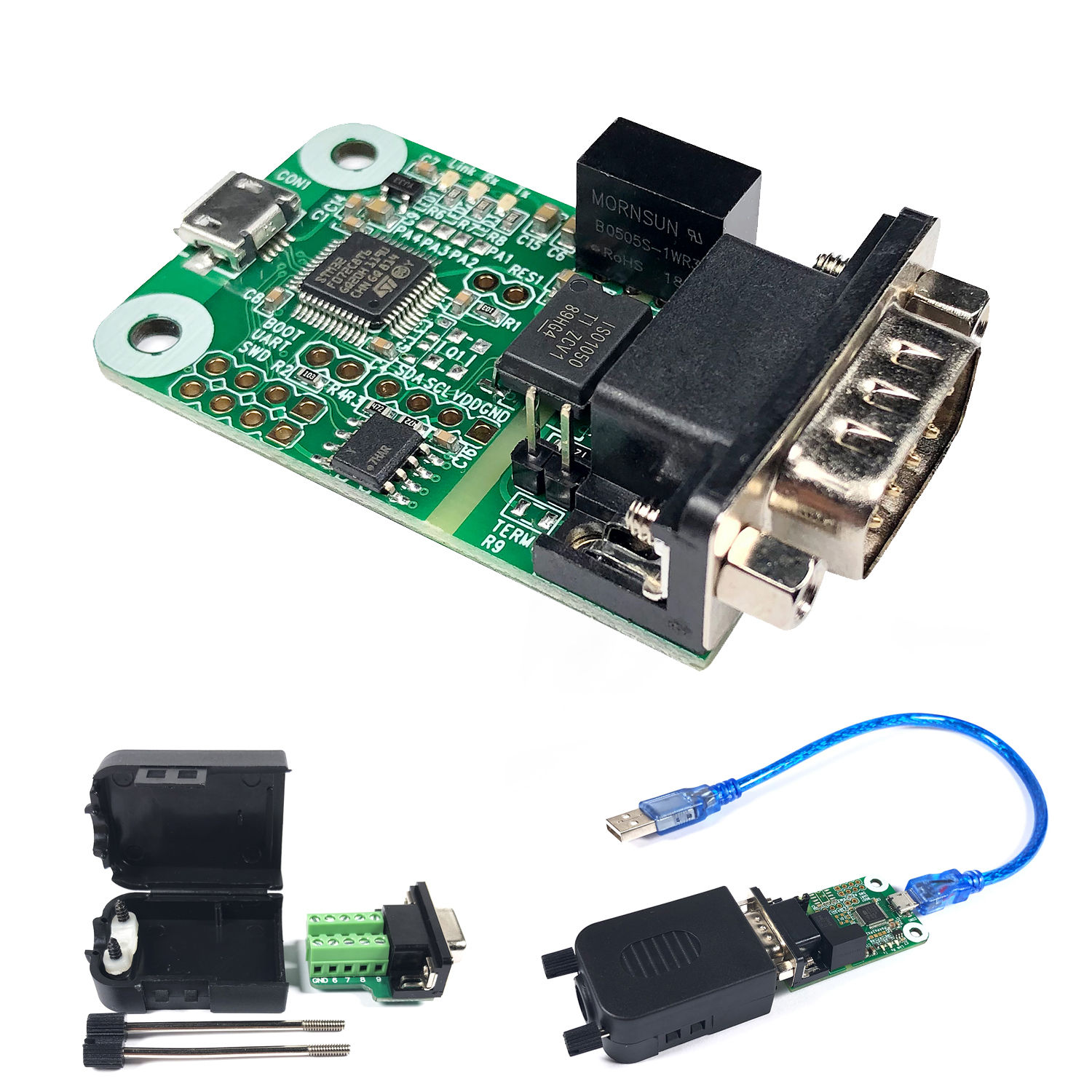

  • 1 x USB to CAN Converter

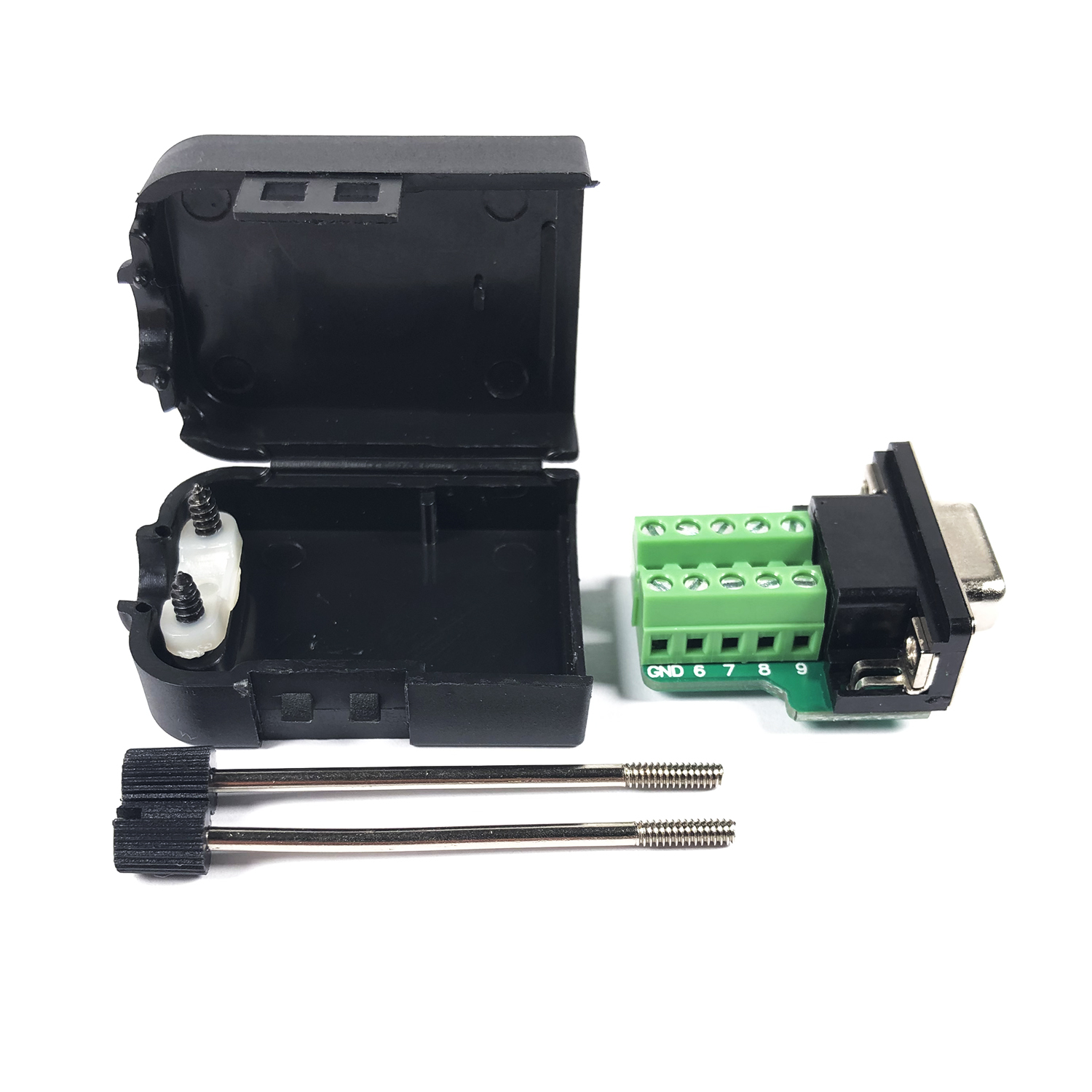

  • 1 x Terminal Block
  • 1 x USB Cable

Additional information

Options

USB CAN(No Accessory), USB CAN Set, USB CAN Set And OBD-II
